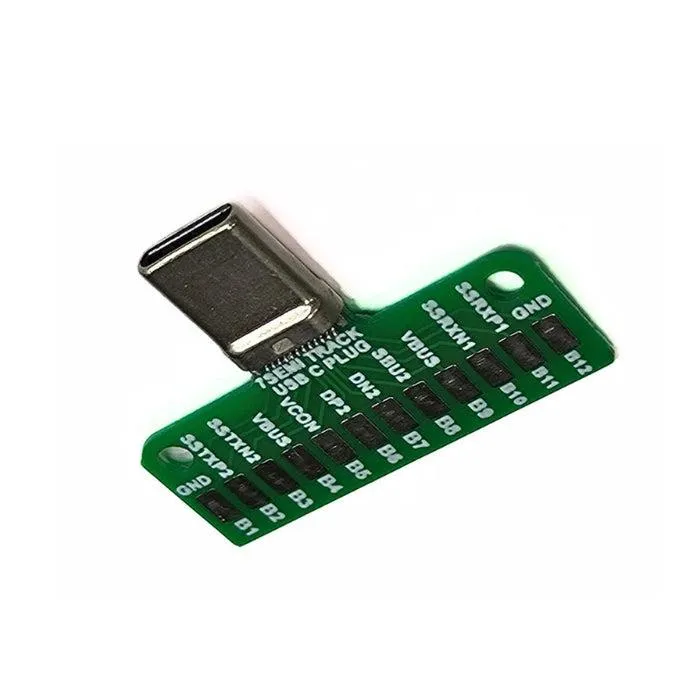

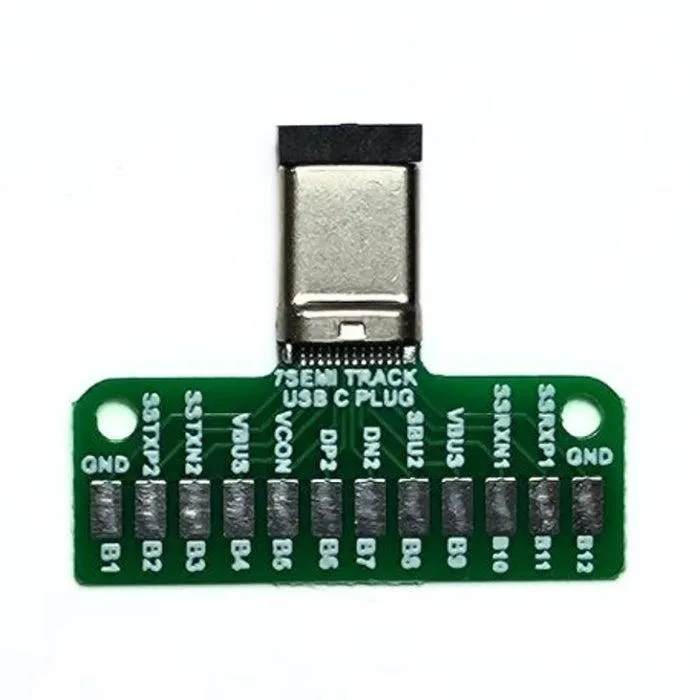

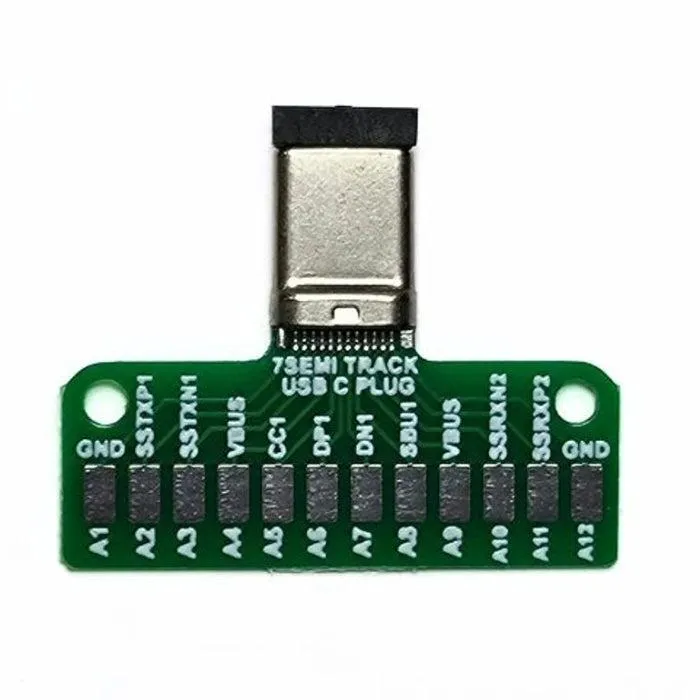

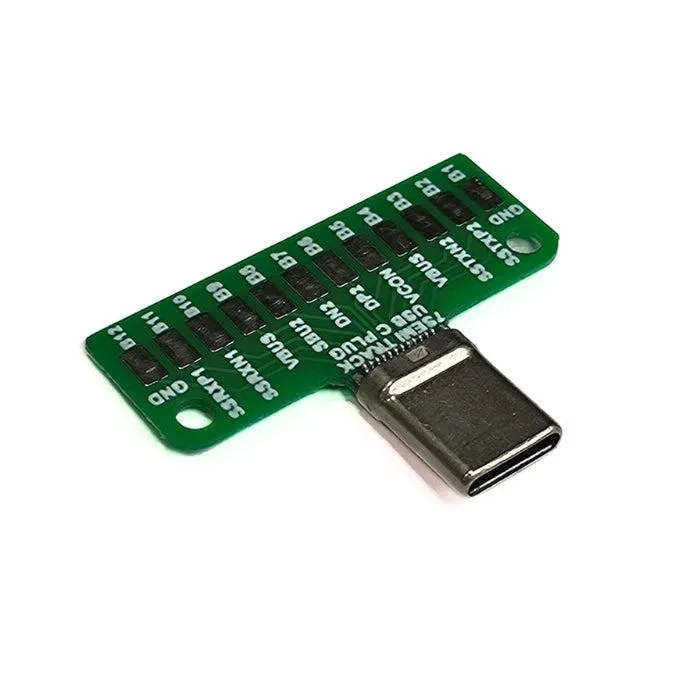

USB 3.1 Type-C Male Breakout Board (24-Pin) - 7Semi The 7Semi USB 3.1 Type-C Male Breakout Board (24-Pin) offers a practical solution for integrating USB-C connectivity into your projects without the need for soldering individual small SMD pads. Featuring a straight plug type 24-pin Type-C male connector, this USB-C breakout board provides a vertical interface that is particularly convenient for applications without mounts. Its straightforward orientation simplifies the design process, making it an excellent choice for prototyping, testing, and custom electronics development. Features: Connectivity without effort: Adding a USB-C port to your projects is simple. Adaptable Design: Perfect for mount-free applications. Simple Orientation: Suitable for a range of PCB designs. Dependable Performance: Assures USB-C connections are steady and effective. Superior Construction: Sturdy and long-lasting.
| Connector Type | USB 3.1 Type-C Male (Straight Plug) |
|---|---|
| Pin Count | 24 Pins |
| Orientation | Vertical |
| Mounting Type | Through-hole (no SMD soldering required) |
| Dimensions | 3.3 x 2.7 x 0.3 cm |
| Weight | 2 gm |
| Pin Pitch | 0.1" (2.54 mm) |
| Power Delivery Support | Yes (up to 100W, depending on upstream device) |
| Data Transfer Rate | Up to 10 Gbps (USB 3.1 Gen 2) |
| Durability | 10,000 mating cycles |
| Mounting Holes | Yes, for secure attachment |
| Ideal Use Cases | Prototyping, custom electronics, testing, DIY projects |
