TSOP1838

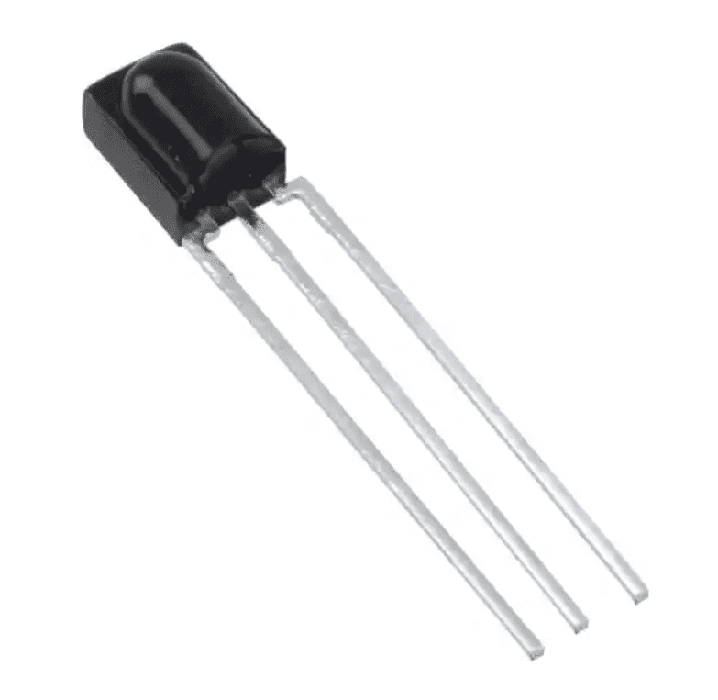

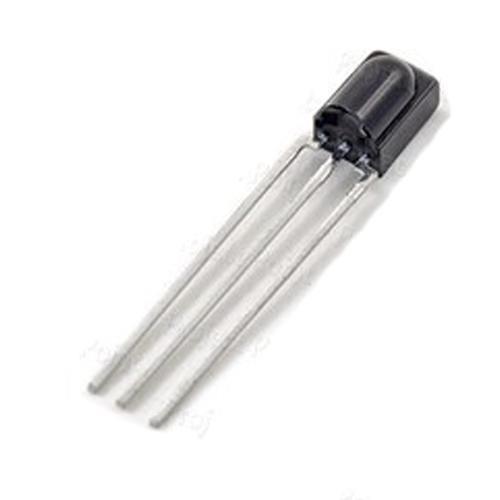

TSOP1838 The TSOP 1838 is an IR remote control receiver device operating at 3 volts. The sensor is a miniaturized version in the family of the TSOP and is used in small size remote control devices. It is designed to sense the Infrared rays of the center frequency of 38 KHz only. The sensor has an inbuilt embedded preamplifier circuit with automatic gain controller along with a bandpass filter. The sensor only detects and responds to the 38 KHz IR ray incident directly on to it. The voltage generated is passed through the amplifying and filter circuit of the sensor in order to amplify and filter the signals, then the noiseless output so obtained can be used to drives the NPN transistor. check out : TSOP 1738 Also check the TSOP 1838B , a miniaturized infrared receiver designed for remote control and other applications requiring improved ambient light rejection. It features a separate PIN diode and preamplifier IC assembled on a single lead frame, with an epoxy package containing a special IR filter. The module offers excellent performance in disturbed ambient light conditions and provides protection against uncontrolled output pulses.
