TB6612FNG Dual DC Motor Driver The Motor Driver TB6612FNG Module can control up to two DC motors at 1.2A constant current (3.2A peak). The motor can be controlled by two input signals (IN1 and IN2) in one of four function modes: CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be controlled independently, and the speed of each motor is controlled by a PWM input signal with a frequency range of up to 100kHz. To remove the motor from standby mode, pull the STBY pin high. The logic supply voltage (VCC) can range from 2.7 to …
Condition: NEW
As low as ₹158.01   ₹341.60 Incl. GST (No Hidden Charges)
Backorder Available
OUT OF STOCK SKU#: IOT-212
Backorder Available
You can place this order now with any quantity. We will prioritize fulfillment as soon as stock arrives.
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Backorder Available

Expected to be in stock within 5-7 business days. We'll ship immediately once available.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

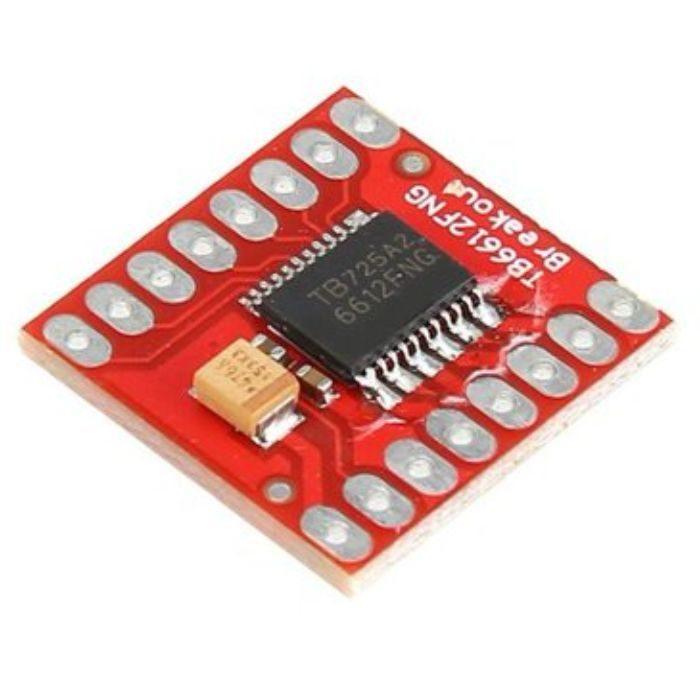

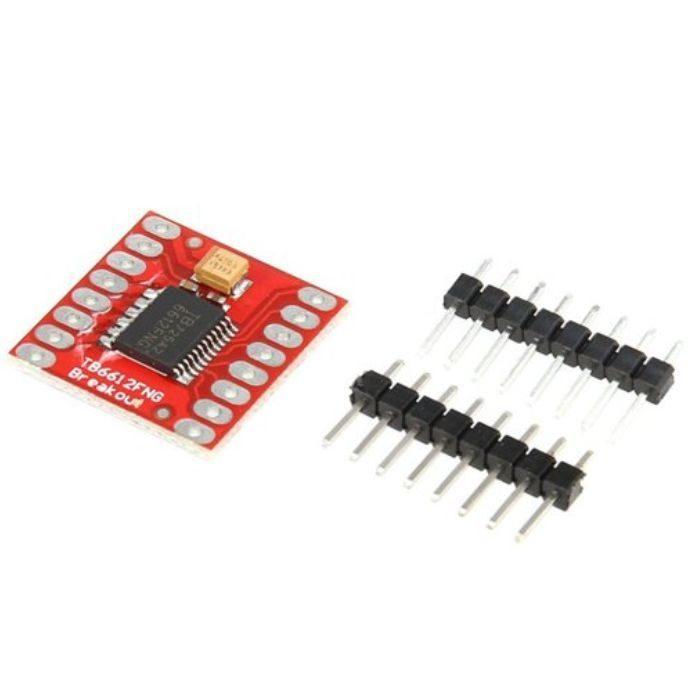

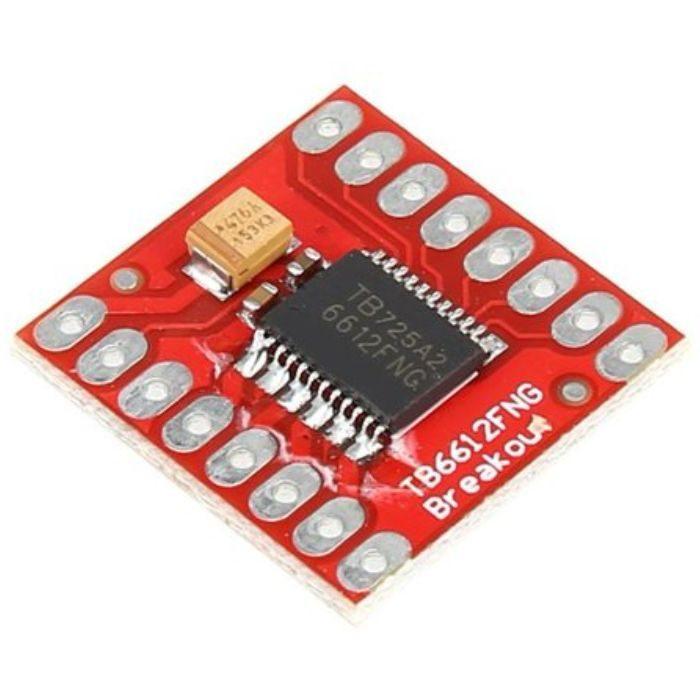

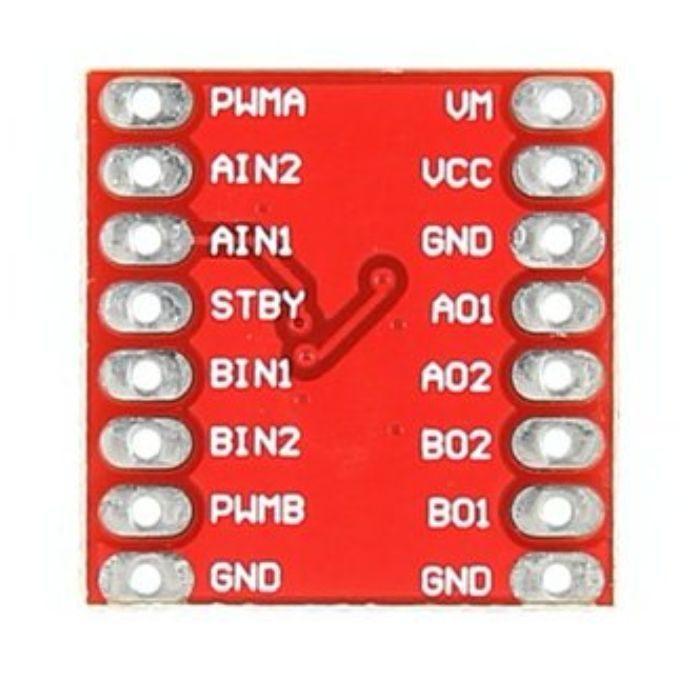

TB6612FNG Dual DC Motor Driver The Motor Driver TB6612FNG Module can control up to two DC motors at 1.2A constant current (3.2A peak). The motor can be controlled by two input signals (IN1 and IN2) in one of four function modes: CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be controlled independently, and the speed of each motor is controlled by a PWM input signal with a frequency range of up to 100kHz. To remove the motor from standby mode, pull the STBY pin high. The logic supply voltage (VCC) can range from 2.7 to 5.5VDC, while the motor supply (VM) has a maximum voltage of 15VDC. The maximum output current per channel is 1.2A. (or up to 3.2A for a short, single pulse). All components are installed on the board as shown. On both supply lines, decoupling capacitors are installed. The TB6612FNG has all of its pins broken out to two 0.1?? pitch headers, with input pins on one side and output pins on the other. Features: Output current: Iout=1.2A(average) / 3.2A (peak) Standby control to save power CW/CCW/short break/stop motor control modes Built-in thermal shutdown circuit and a low voltage detecting circuit All pins of the TB6612FNG broken out to 0.1? spaced pins Filtering capacitors on both supply lines

  • This is a TB6612FNG Dual DC Motor Driver.
  • Can control up to two DC motors at a constant current of 1.2A (3.2A peak).
  • Two input signals (in1 and in2) can be used to control the motor in one of four function modes- cw, ccw, short-brake, and stop.
  • Temperature range: -30℃~60℃.
  • The board comes with all components installed as shown.
  • Decoupling capacitors are included on both supply lines.
  • All pins of the TB6612FNG are broken out to two 01" pitch headers.
  • Good for many applications including industrial, laboratory, personal, and hobbies.
Driver Model TB6612FNG
Operating Voltage (VDC) 15
Peak Current 3.2A
Continuous Current 1.2A
No. Channels 1
Weight 22gm
