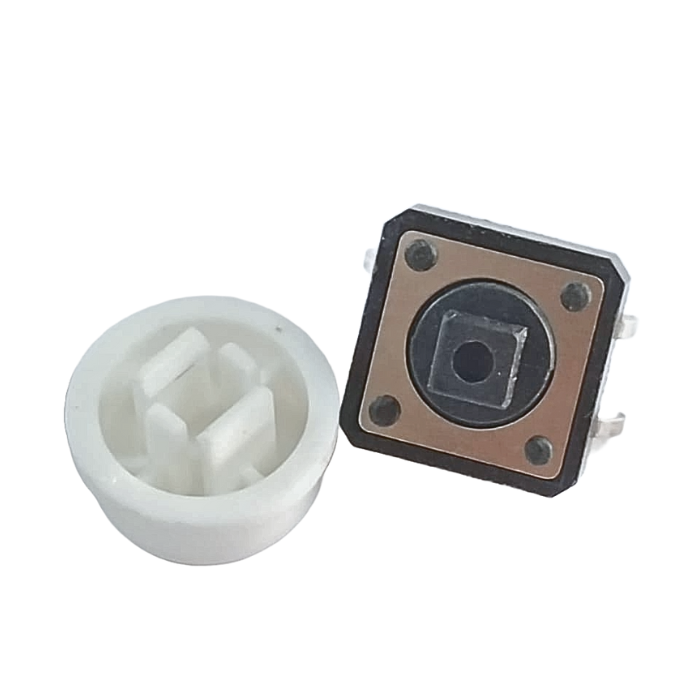

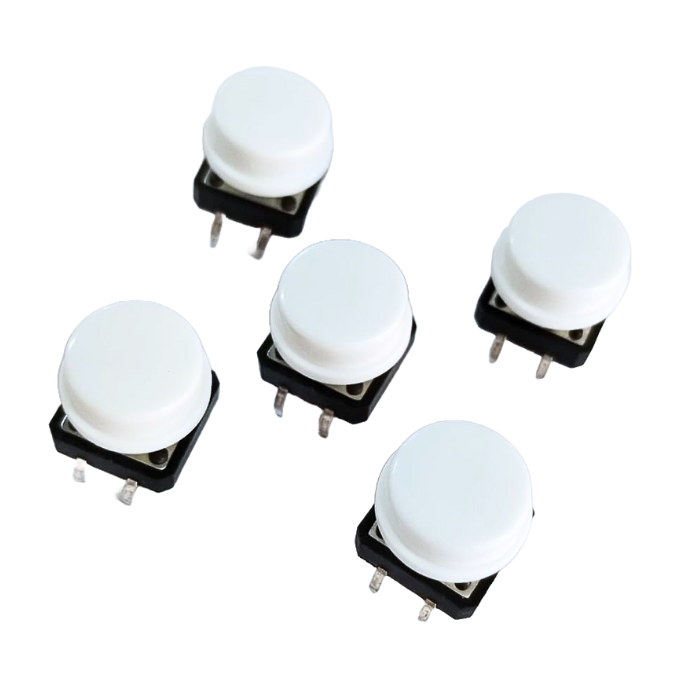

Tactile 4 Pin Push Button Switch - Pack of 5 ( 12x12x7.3 mm ) 6x6x6mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These push button switch work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications: Can be used in Prototyping Can be used in DIY Projects for triggering input. Can be used with Arduino for IOT Applications Explore our broad range of Push Button Switch !
| Operating Voltage (VDC) | 12 |
|---|---|
| Max. Operating Current (mA) | 50mA |
| On/Off Function | Push to ON |
| Switch Type | Momentary |
| Contact Type | Through-hole |
| Contact Resistance | 50m? |
| Insulation Resistance (M?) | 100 |
| Operating Temperature Range (°C) | -20 to 70 |
| Operation Stroke | 0.25+0.2/-0.1mm |
| Operation Force | 1.56 +/- 0.5 N |
| Dimensions | 12x12x7.3 mm |
| Weight | 1g (each) |
