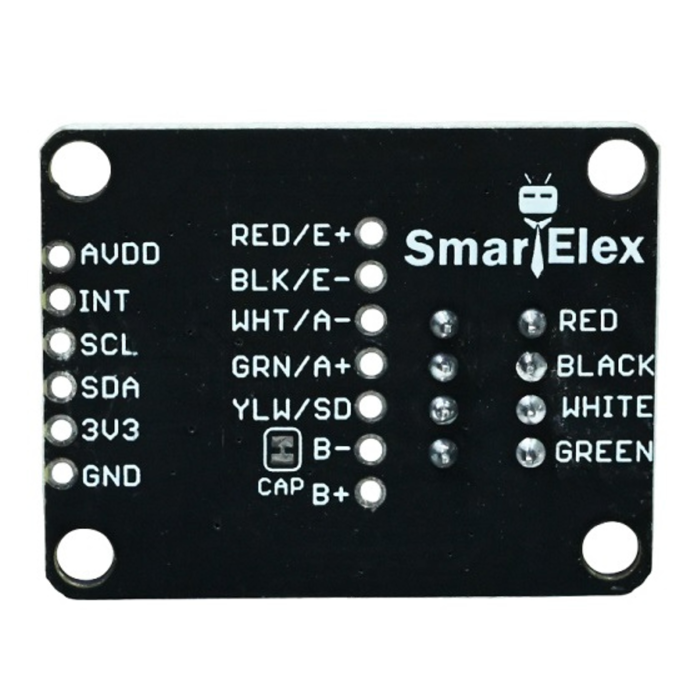

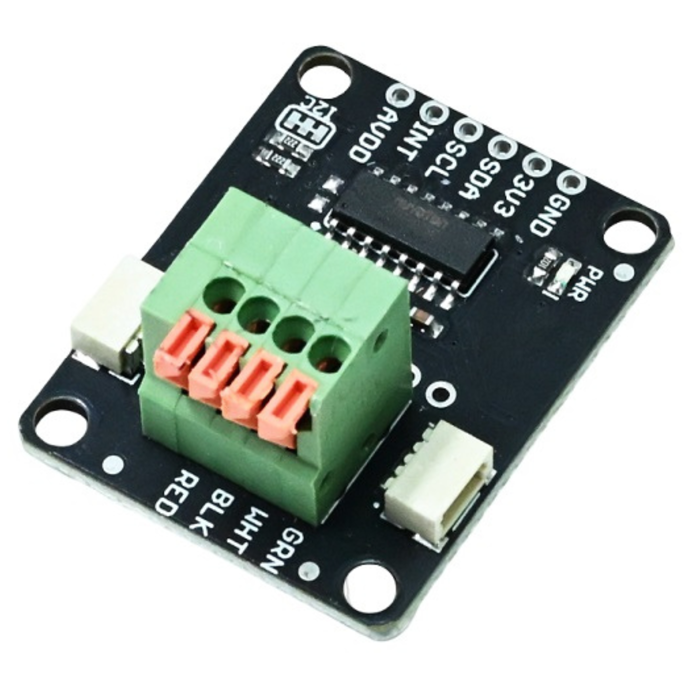

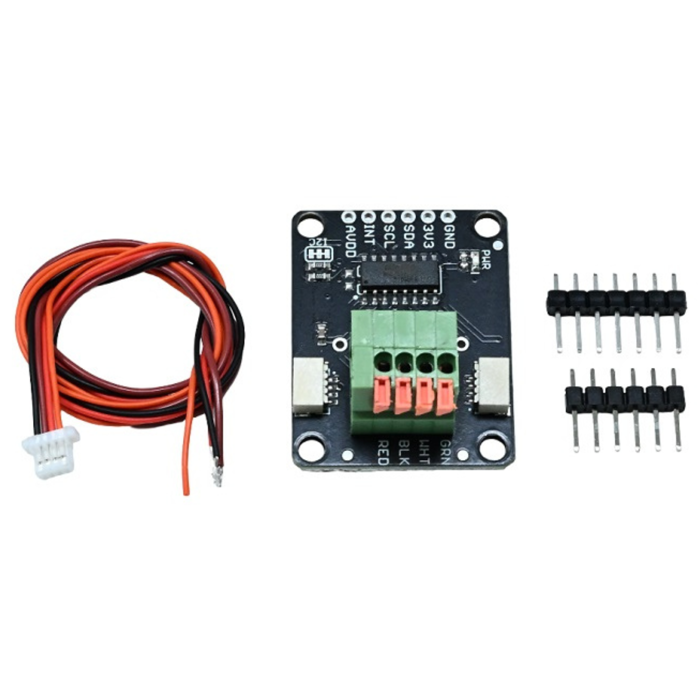

SmartElex Scale Breakout Board – NAU7802 The SmartElex Scale Breakout Board – NAU7802 is a precision module designed for accurate weight measurement using load cells. This breakout board integrates a high-performance 24-bit ADC converter that amplifies and converts the tiny signals from a load cell into reliable digital data through an I2C interface. It allows easy connection to any microcontroller without the need for soldering, thanks to its four spring terminals. The NAU7802 ensures excellent signal amplification and conversion, making it perfect for creating industrial weighing systems, process control mechanisms, or custom sensing applications. With its user-friendly design and high accuracy, the SmartElex Scale Breakout is an essential component for engineers and makers working on precise measurement and automation projects. Features: Model: NAU7802 (24-bit dual-channel ADC). Operating Voltage: 3.3V (NAU7802: 2.7V–5.5V). 24-bit Analog to Digital Converter with Dual Channels Programmable Gain Amplifier On-chip temperature sensor Rejects both 50Hz and 60Hz simultaneously. Programmable PGA increases from 1 to 128. External differential reference voltage ranges from 0.1 to 5 volts. Low Power Consumption and Programmable Power Management Options: <1uA of standby current.
| Model | Scale Breakout |
|---|---|
| Model No. | NAU7802 |
| Voltage Rating (V) | 3.3V |
| Reference Voltage (V) | 0.1V to 5V |
| PCB Size (L x W) mm | 27.32 x 35.56 mm |
