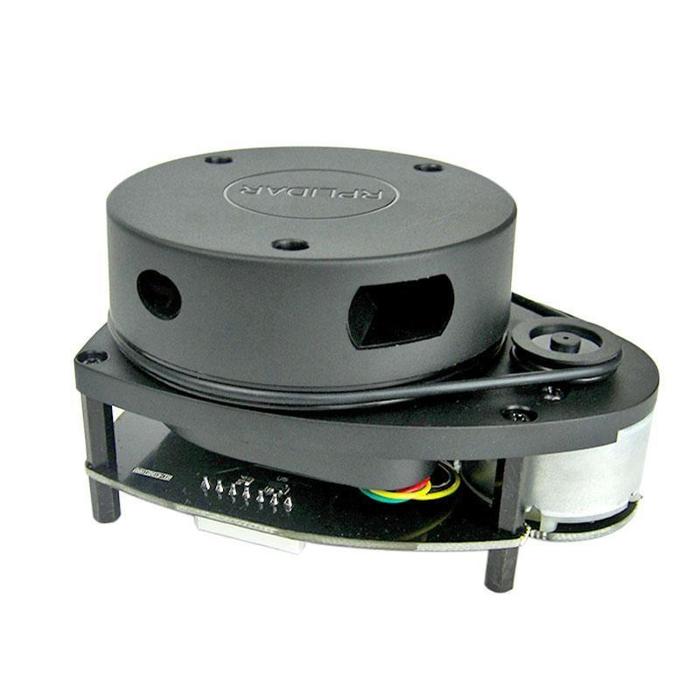

RPLiDAR A1M8 360 Degree Laser Range Finder RPLiDAR A1M8 360 Degree Laser Range Finder – 6m (Radius Range) is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360-degree scan within a 6-meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling. Applications: Home service /cleaning robot navigation and localization. General robot navigation and localization. Smart toy’s localization and obstacle avoidance. Environment scanning and 3D re-modeling. General simultaneous localization and mapping
| Distance Range | (Radius): 0.15m to 6m, white objects (Diameter Range – 12m) |
|---|---|
| Angular Range | 0 ~ 360º |
| Distance Resolution | < 0.5mm |
| Sample Duration | 0.5ms |
| Sample Frequency | 2000 – 2010Hz |
| Scan Rate | 1 ~ 10Hz, Typical 5.5Hz |
| Dimensions | 6 x 7 x 9 cms |
| Weight | 200 grams |
The RPLiDAR A1M8 has a maximum scanning range of 6 meters in radius, suitable for indoor navigation and mapping applications.
Yes, the RPLiDAR A1M8 is fully compatible with ROS, Arduino, and Raspberry Pi, with SDKs and drivers available for easy integration.
Yes, it is specifically designed for SLAM (Simultaneous Localization and Mapping) in robots and autonomous systems.

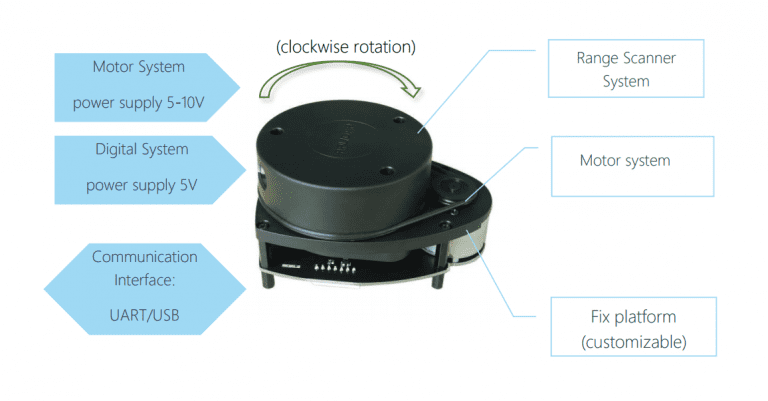

The RPLiDAR A1M8 uses a UART serial interface for communication with microcontrollers and single-board computers.
Shop RPLiDAR A1M8 360° laser scanner with 6m range. Ideal for robotics, SLAM, and mapping. Compatible with ROS and Arduino.
