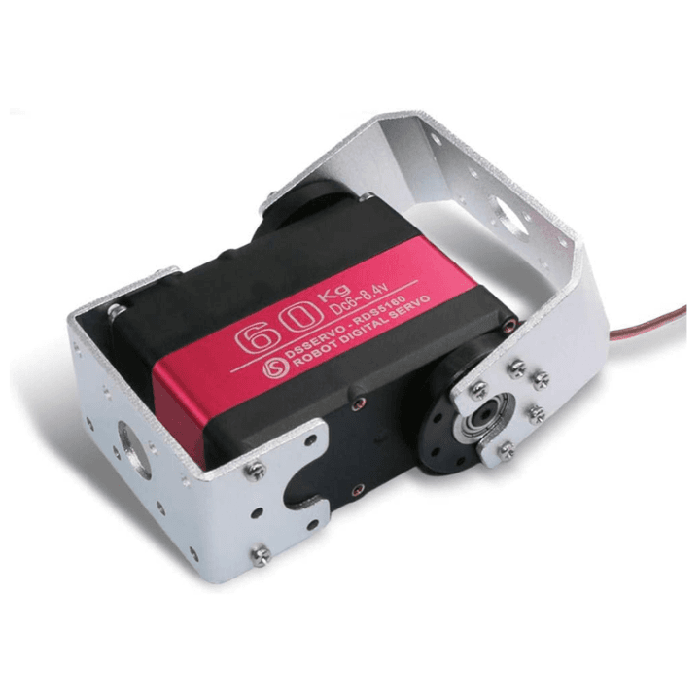

Robot Servo 60kg RDS5160 Metal Gear Digital servo Motor 180 Degree with Clamp The DS5160 is a high-quality servo motor with a torque of up to 60kg. Suitable for high torque applications such as Robot Arms, Grippers, Flap Control in RC Planes, Steering Control in RC Cars, or as a general-purpose mechanical actuator. The improved DS5160 Servo has a higher torque and speed than the standard DS5160 Servo. These servos have metal gear and a tough construction. They provide high reliability, stability, simple installation, low noise, low vibration, smooth operation, and long life. Note: The best use voltage is 7.4v. …
Condition: NEW
As low as ₹2981.03   ₹5808.60 Incl. GST (No Hidden Charges)
Backorder Available Delivery: Next Day Delivery
IN STOCK SKU#: IOT-3075
Delivery & Pickup Options
Get it Next Day on Order

Order now and we'll have it ready for delivery by the next business day.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

Robot Servo 60kg RDS5160 Metal Gear Digital servo Motor 180 Degree with Clamp The DS5160 is a high-quality servo motor with a torque of up to 60kg. Suitable for high torque applications such as Robot Arms, Grippers, Flap Control in RC Planes, Steering Control in RC Cars, or as a general-purpose mechanical actuator. The improved DS5160 Servo has a higher torque and speed than the standard DS5160 Servo. These servos have metal gear and a tough construction. They provide high reliability, stability, simple installation, low noise, low vibration, smooth operation, and long life. Note: The best use voltage is 7.4v. It is recommended to use 2s battery for power supply (6v-8.4v)

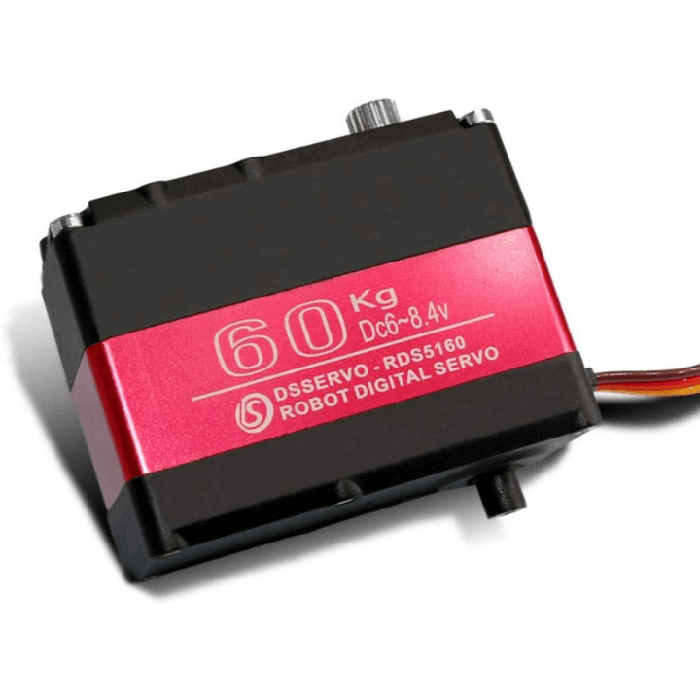

  • This is RDS5160 60KG Servo motor
  • CNC aluminium middle Shell for rugged use
  • Dual ball bearings for smooth operation and long life
  • High-performance digital standard servo offers higher accuracy compared to standard servos
  • High-precision metal gears with hard anodizing for high torque applications
Model DS516060KG
Operating Voltage 6.0-8.4V DC
Angle 180 degree
Operating Speed @ 6V 0.17 sec/60°
Operating Speed @ 7.4V 0.15 sec/60°
Operating Speed @ 8.4V 0.13 sec/60°
Stall Torque @ 6.0V 58 kg/cm
Stall Torque @ 7.4V 65 kg/cm
Stall Torque @ 8.4V 70 kg/cm
Signal Dead Band 3?s
Weight 162 g (2.12 oz)
Motor Type DC Motor
Gear Type Copper & Aluminum
Working frequence 1520?s / 333hz

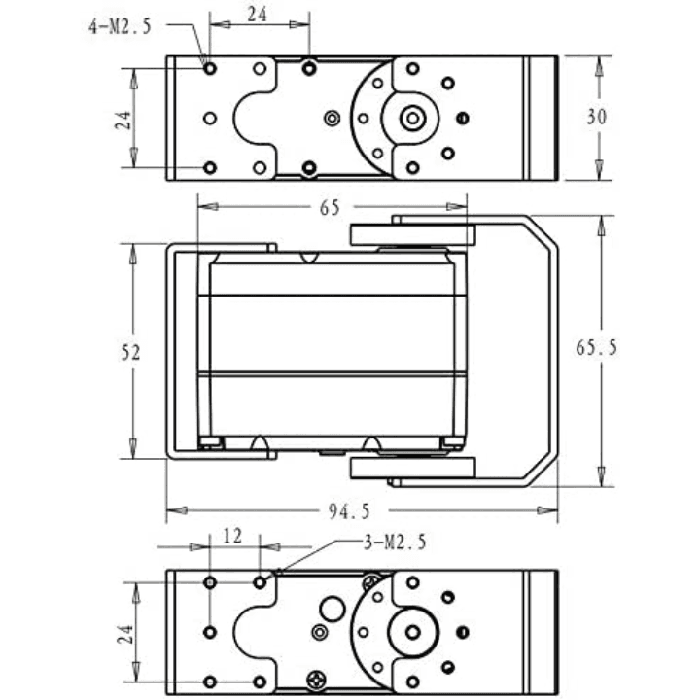

Size 65*30*48mm
Bearing Double bearing
Gear 18T
