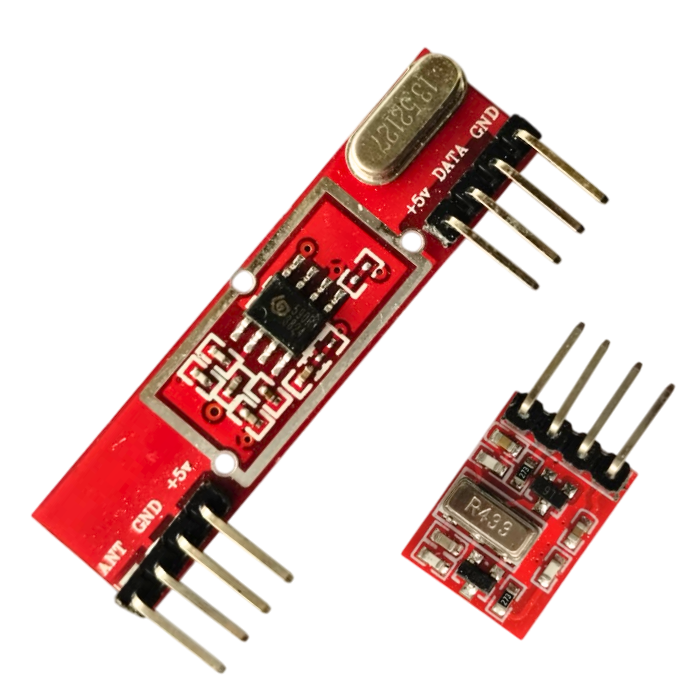

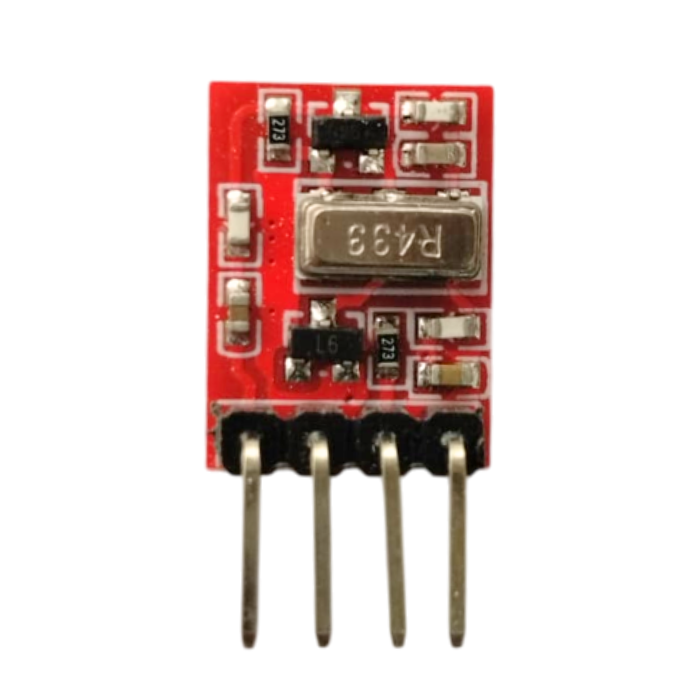

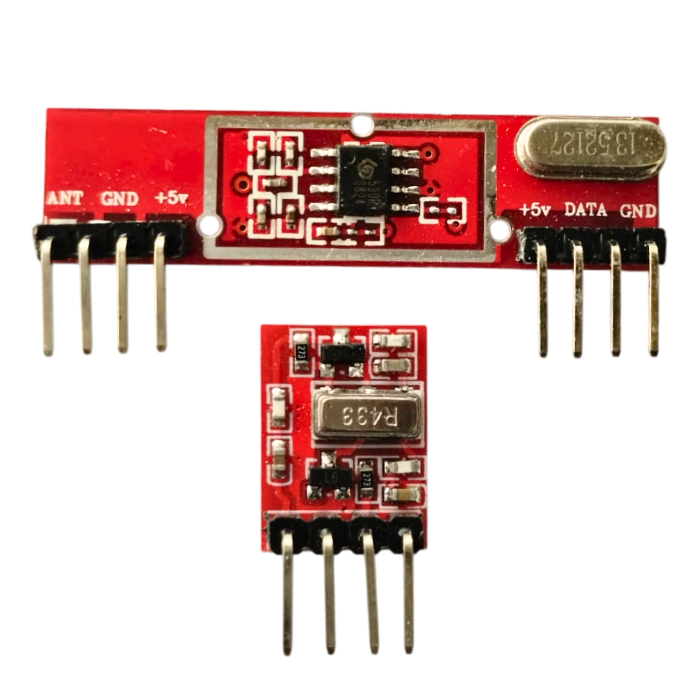

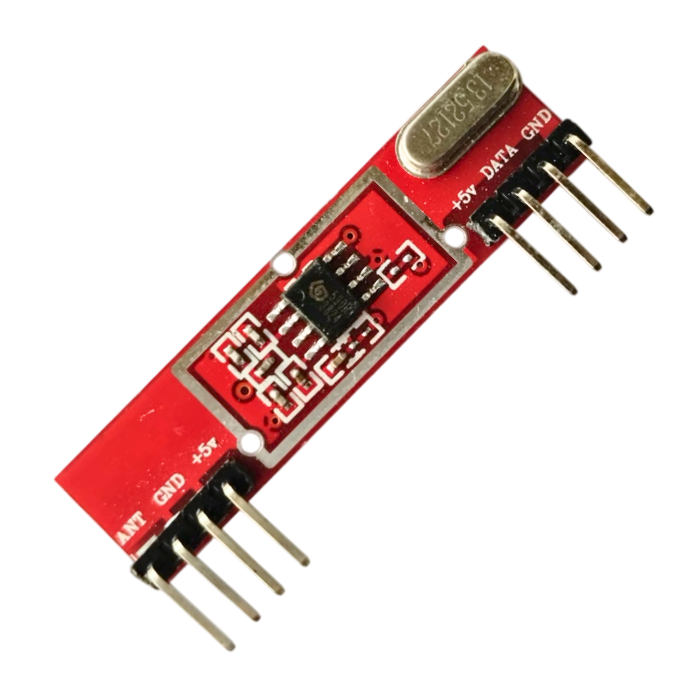

RF433 MHz Transmitter Receiver Wireless Module This 433 MHz wireless RF module is a superheterodyne ASK (Amplitude Shift keying ) / OOK (On-Off keying based ) module. The design idea is to use a SAW filter, highly suitable for industry control or bad place for use, with strong anti-jamming. Built-in automatic gain circuit (AGC), will automatically change front-end LNA gain among received signal strength also make signal output not be strong or weak signals caused by phase distortion so that it can rise higher sensitivity. To receive the local oscillation circuit for the PLL lock loop design, no offset, and …
Condition: NEW
As low as ₹127.96   ₹236.60 Incl. GST (No Hidden Charges)
Backorder Available Delivery: Next Day Delivery
IN STOCK SKU#: IOT-2893
Delivery & Pickup Options
Get it Next Day on Order

Order now and we'll have it ready for delivery by the next business day.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

RF433 MHz Transmitter Receiver Wireless Module This 433 MHz wireless RF module is a superheterodyne ASK (Amplitude Shift keying ) / OOK (On-Off keying based ) module. The design idea is to use a SAW filter, highly suitable for industry control or bad place for use, with strong anti-jamming. Built-in automatic gain circuit (AGC), will automatically change front-end LNA gain among received signal strength also make signal output not be strong or weak signals caused by phase distortion so that it can rise higher sensitivity. To receive the local oscillation circuit for the PLL lock loop design, no offset, and stability is high. The frequency is 433MHz and the receiver structure is Superheterodyne, the received signal is OOK. After receiving the signal, it will output the TTL signal to the external decoder IC for decoding. It is convenient to the applicant in different products and external components are not necessary to make products wireless and also bring value-added for your products. read more: RADIO FREQUENCY Applications: Remote Controls Automation System Wireless Security System Sensor Reporting Car Security System Remote Keyless Entry

  • This is RF433 MHz Transmitter Receiver Wireless Module
  • These are affordable and simple to use RF receivers and transmitters.
  • Its extremely small size coupled with its low power consumption makes it ideal for a variety of applications.
  • These modules can be used with an encoder/ decoder IC pair or can be directly interfaced to a microcontroller/Arduino.
  • This receiver works between 3 - 5V
  • The transmitter works between 3 -12V
  • Has a range of around 100m(when in line of sight and when the transmitter is powered at 12V)
Operating voltage 3.6~5.5V
sensitivity 110dBm
Operating Current 5 mA
Dimensions 5 x 4 x 3cms
Weight 15 grams
