Expected to be in stock within 5-7 business days. We'll ship immediately once available.

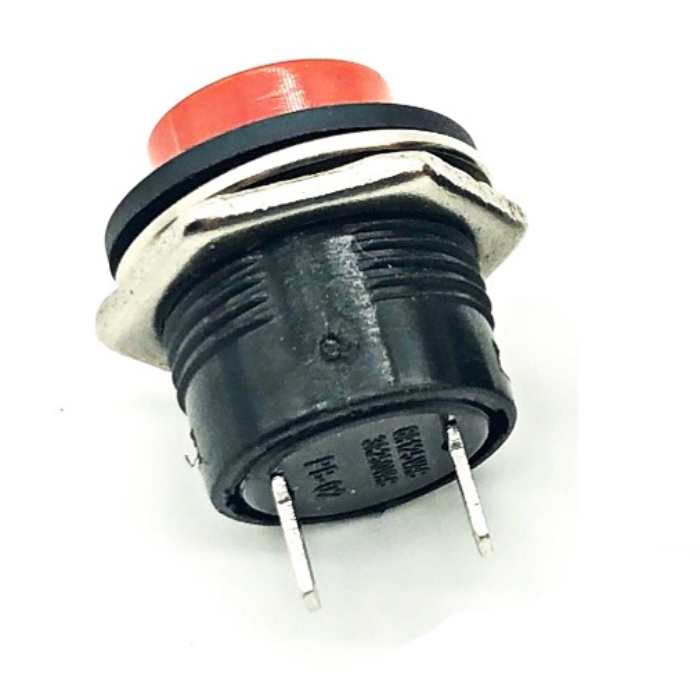

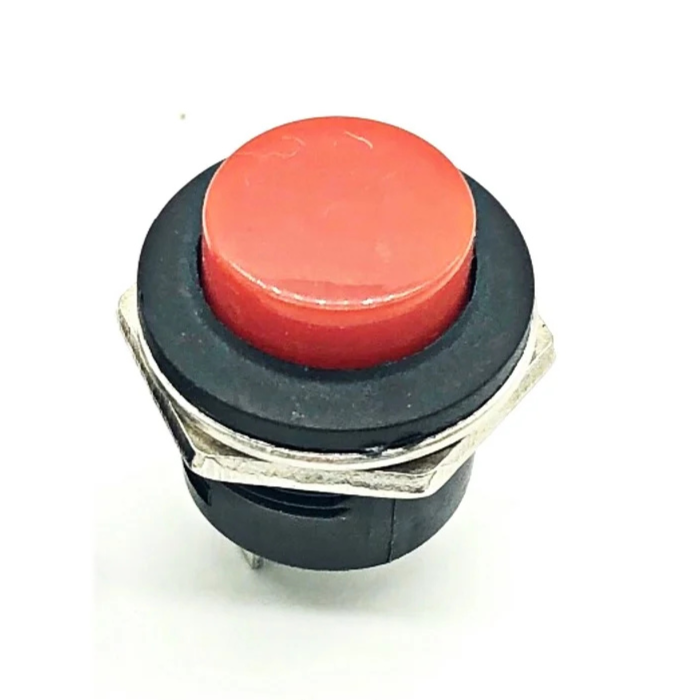

RED R13-507 16mm No Lock Push Button Momentary Switch 3A, 250V (PBS 25B Red) The RED R13-507 16mm No Lock Push Button Momentary Switch is a simple and reliable switch for controlling electrical circuits. It fits into a 16mm mounting hole and can handle up to 3A, 250V. This switch works by turning ON when pressed and automatically turning OFF when released, making it easy to use in applications like controlling motors or other electrical devices. It is commonly used in equipment like starters and contractors. Features: Single pole push-to-make and push-to-break function. Good electrical conductivity for reliable performance. Non-momentary type push-button switch. Waterproof and dustproof with rubber ring and hexagon nut for secure fixing.
| Model | R13-507-M-5S |
|---|---|
| Material | Plastic, Metal |
| Terminals | 2 Pin |
| Action Type | Momentary Action (Push and Hold – ON, Release – OFF) |
| Voltage | AC 6A / 125V, 3A / 250V |
| Total Size | 24.4 x 20mm (0.96" x 0.79") |
| Length | 2.5cm |
| Height | 1.5cm |
| Width | 2cm |
| Weight | 4gms |
The R13-507 is rated for 3A at 250V AC, suitable for low-power control circuits.
Yes, it can be used in low-voltage control circuits interfaced with microcontrollers like Arduino and Raspberry Pi.
Yes, it comes with a rubber sealing ring and hexagon nut for secure 16mm panel mounting.
It is a momentary (push-to-make) switch that turns ON when pressed and OFF when released.
Buy RED R13-507 16mm momentary push button switch. Compatible with control panels, starters. Price in India.
