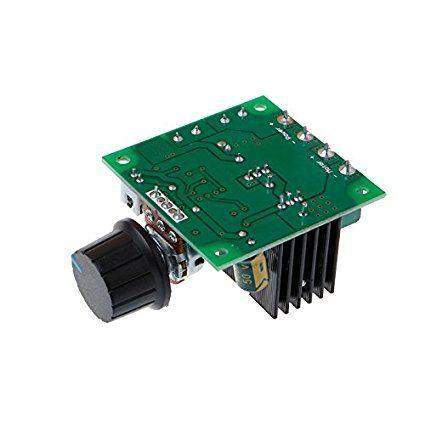

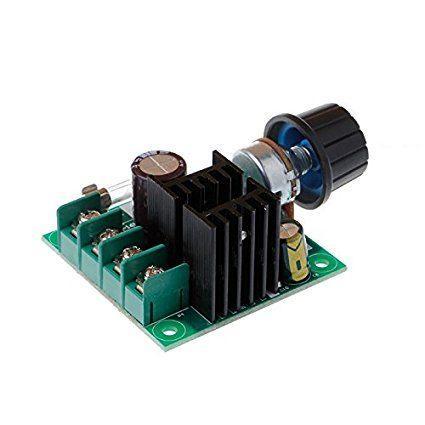

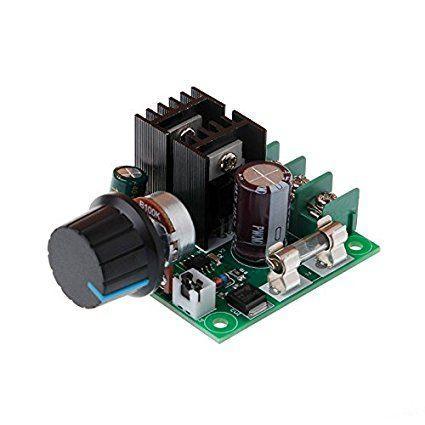

9V-50V 10A PWM DC Motor Speed Controller This is the 9V-50V 10A PWM DC Motor Speed Controller, The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function. This speed regulator uses a barrier terminal block as its wiring type. The output voltage is …
Condition: NEW
As low as ₹244.80   ₹456.40 Incl. GST (No Hidden Charges)
Backorder Available Delivery: Next Day Delivery
IN STOCK SKU#: IOT-3035
Delivery & Pickup Options
Get it Next Day on Order

Order now and we'll have it ready for delivery by the next business day.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

9V-50V 10A PWM DC Motor Speed Controller This is the 9V-50V 10A PWM DC Motor Speed Controller, The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function. This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz. Features: Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current protection. Control voltage over-voltage protection function The overload and short circuit protecting current is 10A

  • This is 9V-50V 10A PWM DC Motor Speed Controller
  • This Controls the speed of a DC motor with this controller High Efficiency
  • This has high torque and low heat generation With reverse polarity protection,
  • This has high current protection Suitable for the DC motor (or DC load) within 10A
  • The Potentiometer with switch function for PWM adjustment.
Input supply voltage 9V - 50V DC
Control Power 0.01 – 500W
Static Current 0.02A (Standby)
PWM Duty Cycle 10% - 100%
PWM frequency 13kHz
