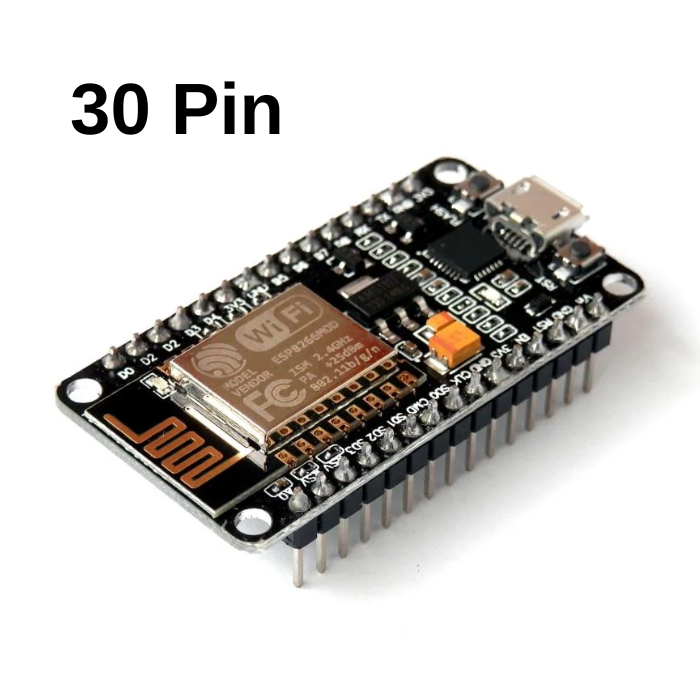

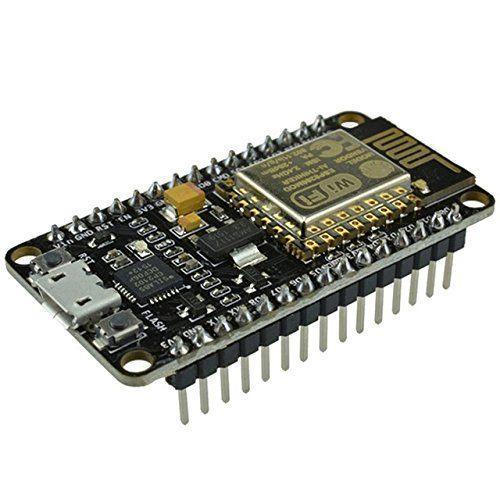

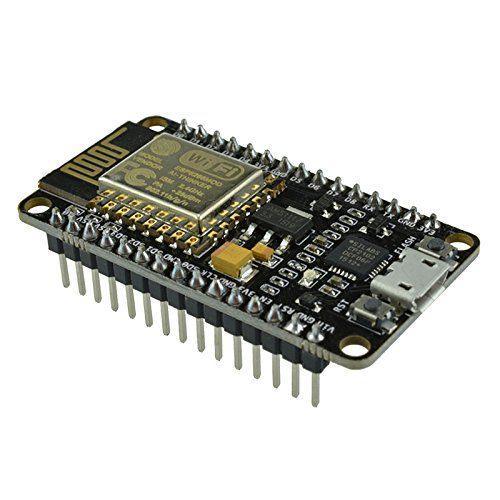

NodeMCU ESP8266 AMICA CP2102 WiFi Development Board Presenting you with the NodeMCU ESP8266 WiFi development board. It is designed to cater to a wide range of wireless applications. This versatile NodeMCU board is equipped with the AMICA-CP2102 driver . It is interactive and programmable, with hardware IO that is reminiscent of Arduino . The NodeMCU ESP8266 board features a convenient micro USB slot. One of the standout features of the board is its ability to provide seamless internet connectivity to your embedded projects , which makes it perfect for Internet of Things (IoT) applications. With an onboard voltage regulator and 10 GPIO pins , this development board is designed for quick and hassle-free setup. It's an open-source platform, often programmed using the user-friendly Lua language . The ESP8266 NodeMCU powered by the ESP8266 WiFi Module chip with the ESP-12 SMD footprint , is well-equipped with 4MB flash memory . Explore the wide range of ESP Modules & Development Board Download the ESP8266 Datasheet NodeMCU ESP8266 Pinout: ESP32 vs ESP8266 Comparison Table: Feature ESP8266 AMICA ESP8266 Lolin ESP32 MCU Xtensa Single-core 32-bit L106 Xtensa Single-core 32-bit L106 Xtensa Dual-Core 32-bit LX6 (600 DMIPS) Wi-Fi 802.11 b/g/n (HT20) 802.11 b/g/n (HT20) 802.11 b/g/n (HT40) Bluetooth - - Bluetooth 4.2 and BLE Typical Frequency 80 MHz 80 MHz 160 MHz SRAM - - ? Flash ? (Usually 4MB) ? (Usually 4MB) ? GPIO 11 (usable) 11 (usable) 34 PWM (Hardware/Software) None / 8 channels None / 8 channels None / 16 channels SPI / I2C / I2S / UART 2 / 1 / 2 / 2 2 / 1 / 2 / 2 4 / 2 / 2 / 2 ADC Resolution 10-bit 10-bit 12-bit CAN Interface - - ? Ethernet MAC Interface - - ? Working Temperature -40ºC to 125ºC -40ºC to 125ºC -40ºC to 125ºC Price (Approx.) ?207 ?165 VIEW ?354 VIEW Read our blog: What is Nodemcu ESP8266. Applications: With this, we can Control Devices using an Android Phone over WiFi. Few generic applications would be in Internet Smoked Alarm VR Tracker Octopod Serial Port Monitor ESP Lamp Incubator Controller IoT home automation Security Alarms
| Serial/USB Chip | CP2102 |
|---|---|
| Operating Voltage | 3.3V |
| Output Power(dBm) | 19.5 @802.11b Mode |
| Flash Memory(Mb) | 4 |
| Support | SDIO 1.1/2.0, SPI, UART |
| Dimensions (mm) | 49 x 24 x 13 |
| Weight (gm) | 8 |
It's used for IoT projects, home automation, wireless sensor networks, and embedded systems requiring Wi-Fi connectivity.
Yes, it can be programmed using the Arduino IDE with ESP8266 board support installed.
It comes with 4MB of onboard flash memory for firmware and data storage.
Yes, it's widely used in smart home systems, security alarms, and remote device control over Wi-Fi.
Buy NodeMCU ESP8266 AMICA CP2102 for IoT projects. Compatible with Arduino IDE, 4MB flash, Wi-Fi enabled. Best price in India.
