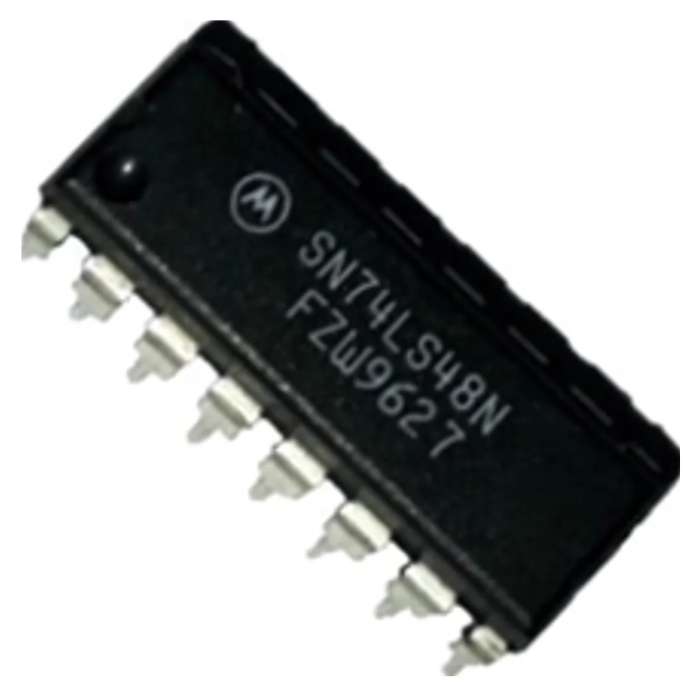

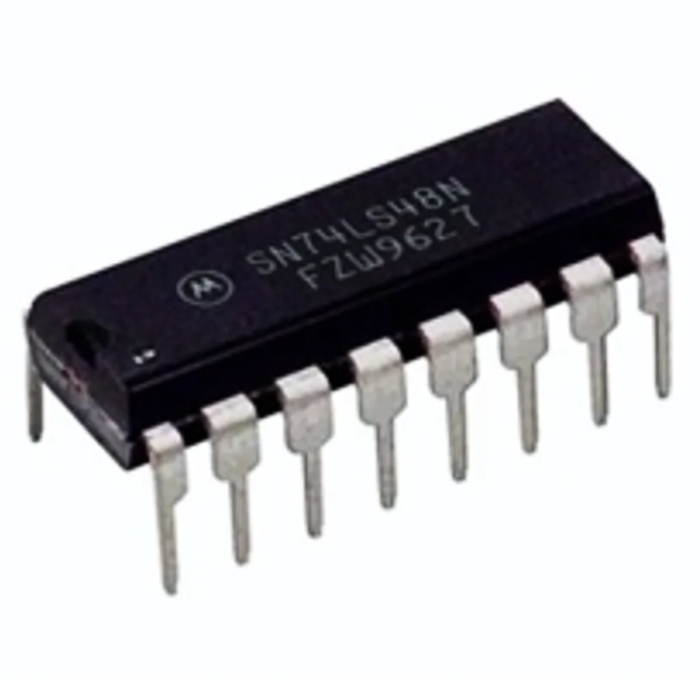

Motorola SN74LS48N IC BCD TO 7-Segment Decoder If you want the best solution for driving 7-segment displays then check out the Motorola SN74LS48N IC BCD to 7-Segment Decoder. This small chip converts 4-bit binary numbers into numbers that can be read on a 7-segment display. It works great and has features like automatic zero-blanking to keep the screen clear. Because of the built-in resistors, you can also modify the brightness of the lights without the need for additional parts. It's an excellent solution for any project requiring easy-to-read displays.
| Part Number | SN74LS48N |
|---|---|
| Type | BCD to 7-Segment Decoder |
| Input Format | 4-bit Binary-Coded Decimal (BCD) |
| Output Type | 7-Segment Display |
| Logic Family | TTL (Transistor-Transistor Logic) |
| Operating Voltage Range | 4.75V to 5.25V |
| Input Current | 1.6 mA (max) |
| Output Current | 25 mA (max) |
| Maximum Clock Frequency | 20 MHz |
| Features | Automatic Zero-Blanking, Lamp Intensity Control |
| Package Type | DIP (Dual In-line Package) |
| Temperature Range | 0°C to 70°C (Commercial) |
It converts 4-bit BCD input into signals that drive a 7-segment display to show decimal digits 0–9.
Yes, it works seamlessly with Arduino, Raspberry Pi, and other 5V microcontrollers.
No, it has built-in pull-up resistors for direct LED segment connection.
It drives common-cathode 7-segment LED displays.
Shop Motorola SN74LS48N IC – converts BCD to 7-segment output. Compatible with Arduino & Raspberry Pi. Drives common-cathode displays.
