Expected to be in stock within 5-7 business days. We'll ship immediately once available.

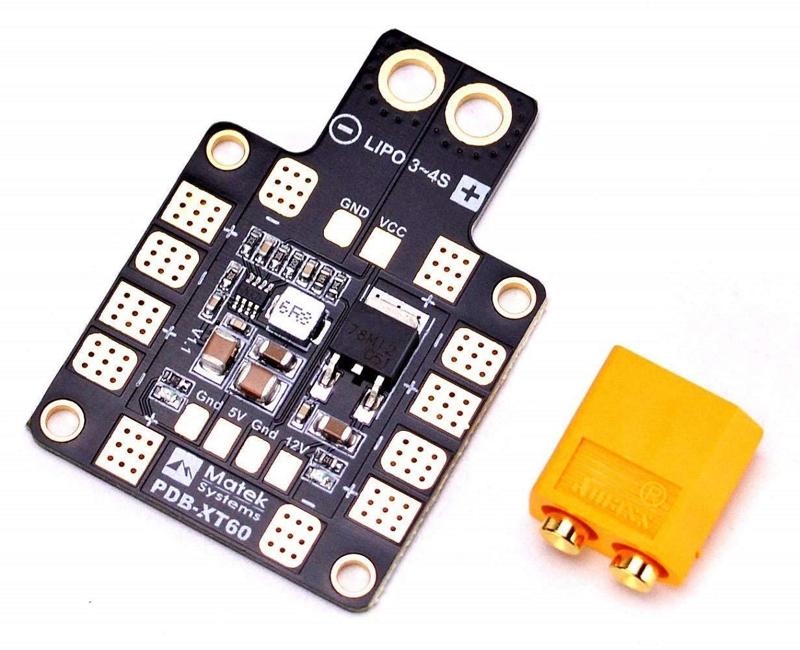

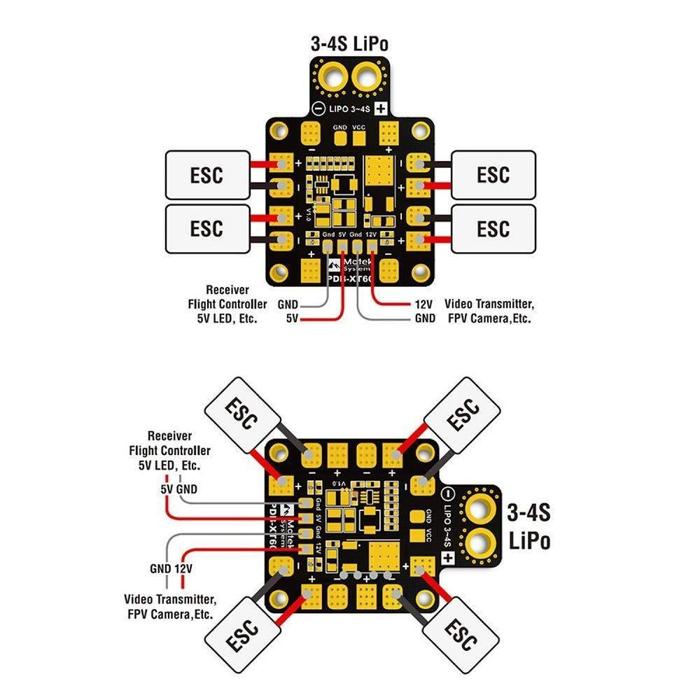

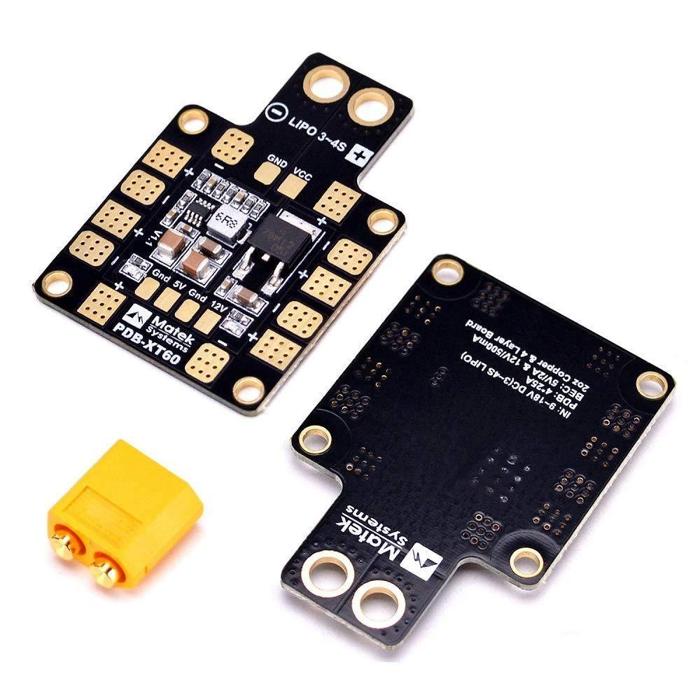

Matek Systems PDB-XT60 Power Distribution Board The Matek PDB power distribution board has been engineered to provide the highest possible performance and reliability in a 36 x 50mm and 4 layers PCB. It distributes power from a lipo pack to 6 ESC's , as well as providing synchronized regulated dc 5v outputs and linear regulated dc 12v for powering cameras, servos, RC receivers, flight controllers , video transmitters, LEDs, etc.
| Output Continuous Current | 25A @4 and 15A @6 |
|---|---|
| Short Circuit Tolerant Voltage | 9 to 18 V |
| Track Material | 2oz Copper |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
The PDB-XT60 supports up to 6S LiPo batteries with a maximum voltage of 25.2V.

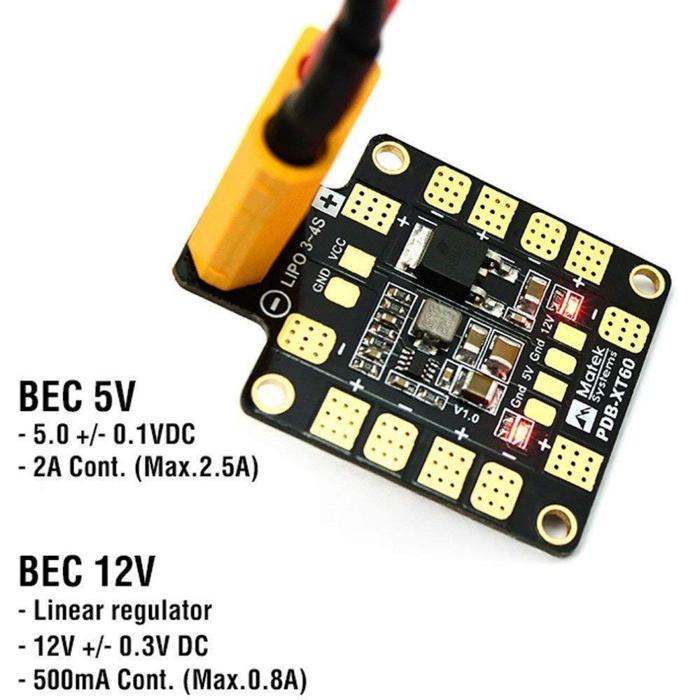

Yes, it provides regulated 5V and 12V outputs suitable for flight controllers, cameras, and other peripherals.
Yes, it is fully compatible with Betaflight, Pixhawk, and other standard flight controllers.
It supports up to 6 ESCs with dedicated power distribution outputs.
Shop Matek PDB-XT60 Power Distribution Board. Compatible with Betaflight, Pixhawk. 5V/12V regulated outputs, 6 ESC support.
