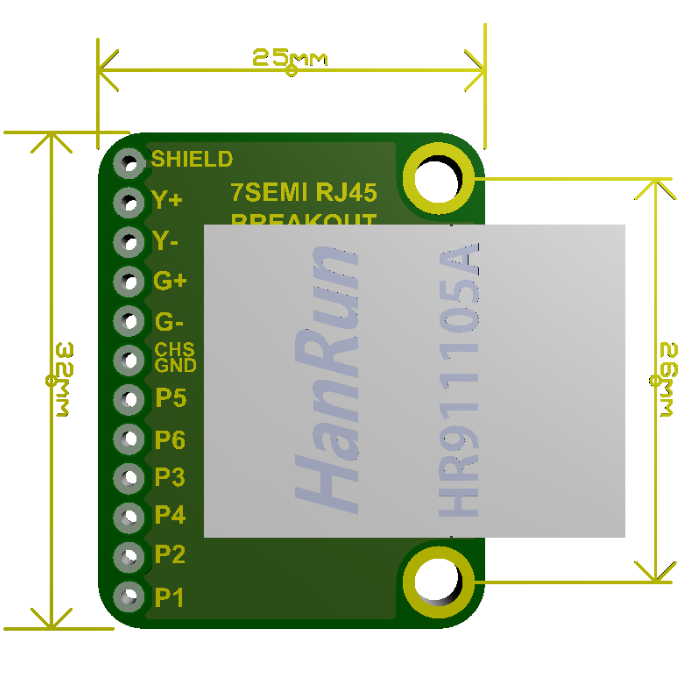

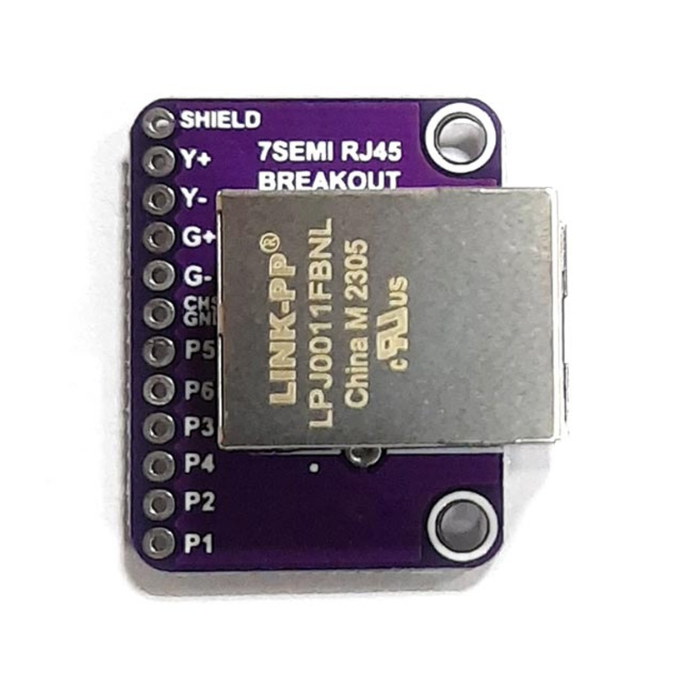

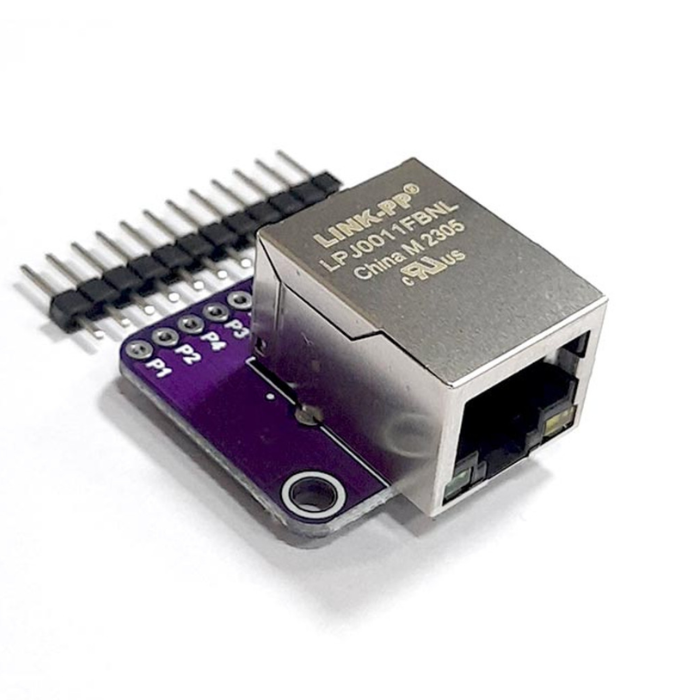

MagJack RJ45 Ethernet Connector Breakout Board -7Semi The 7Semi MagJack RJ45 Ethernet Connector Breakout Board is a robust and user-friendly solution for adding Ethernet connectivity to your electronic projects. Equipped with the high-performance LPJ0011FBNL RJ45 connector and integrated 10/100 Base-T magnetics, this breakout ensures stable and efficient data transmission. Its pre-soldered design, complete with status LEDs and shielding, eliminates the need for manual assembly and offers excellent protection from electromagnetic interference. With all necessary pins easily accessible, this board simplifies connections to microcontrollers, sensors, and more. Whether you're working on IoT systems, industrial automation, or robotics, the 7Semi RJ45 MagJack Breakout Board provides a reliable, cost-effective, and easy-to-use networking solution. Features: LPJ0011FBNL Single Port RJ45 Connector 10/100 Base-T Integrated Magnetics for reliable Ethernet performance Pre-soldered MagJack for plug-and-play convenience Onboard status LEDs and shielding for EMI protection Breaks out all essential pins: P1–P6, Y+, Y-, G+, G-, GND, and Shield Compact PCB form factor for easy integration into projects
| Connector Type | RJ45 MagJack (LPJ0011FBNL) |
|---|---|
| Ethernet Standard | 10/100 Base-T |
| Integrated Magnetics | Yes |
| Status LEDs | Yes (Link/Activity indicators) |
| Shielding | Yes (EMI protection) |

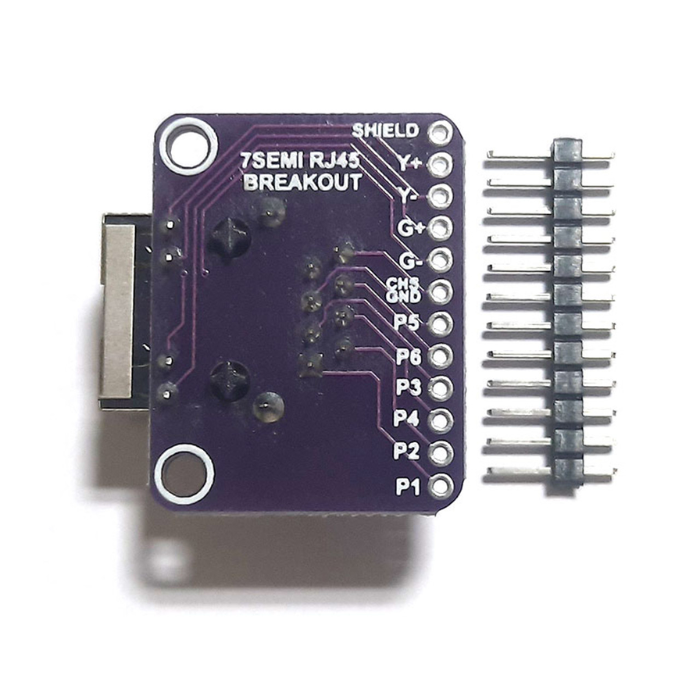

| Breakout Pins | P1–P6, Y+, Y-, G+, G-, GND, Shield |
| Compatibility | Microcontrollers, Sensors, IoT Devices |
| Supported Protocols | TCP/IP, UDP, HTTP |
Yes, it is fully compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers with Ethernet MAC support.
Yes, it features integrated 10/100 Base-T magnetics via the LPJ0011FBNL RJ45 connector for reliable Ethernet performance.
No, this breakout board does not support Power over Ethernet (PoE). It is designed for data-only Ethernet communication.
Yes, onboard LEDs indicate link status and data activity for easy debugging and monitoring.
