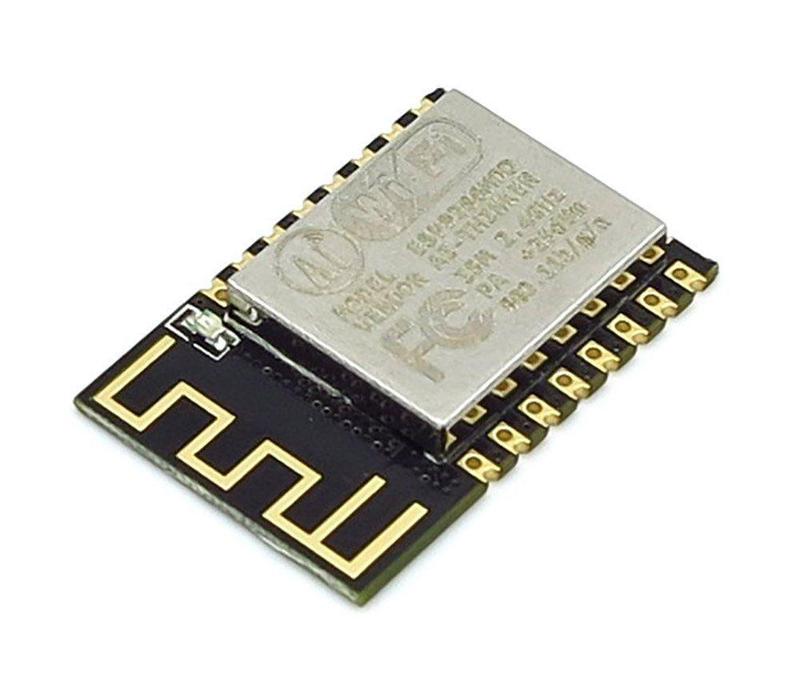

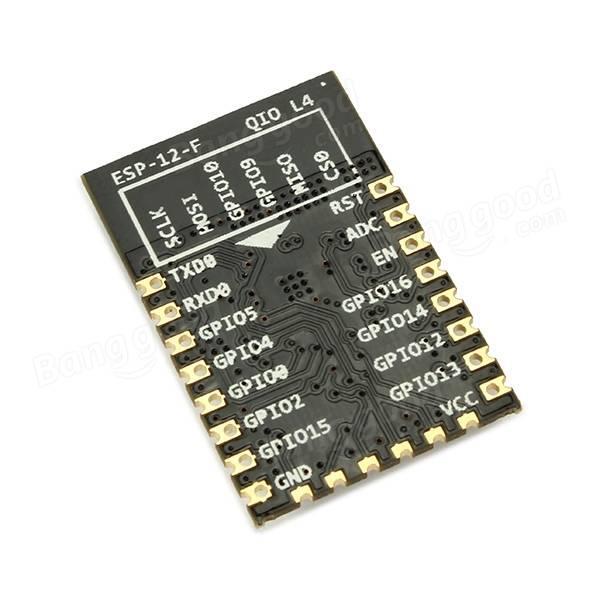

ESP8266 12F ESP8266 is high integration wireless SOCs, designed for space and power-constrained mobile platform designers. It provides unsurpassed ability to embed Wi-Fi capabilities within other systems or to function as a standalone application, with the lowest cost, and minimal space requirement. It is completely addressable over SPI and UART protocols allowing you to connect your sensors or project directly to it through its GPIOs.The ESP 8266 12F is a low-cost Wi-Fi chip with a full TCP/IP stack and MCU (Micro Controller Unit) capability. ESP8266 Serial Wifi Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. ESP8266 Serial Wifi Wireless Transceiver Module is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Pinout: Pinout of ESP8266 12F
| Compatibility | ESP-12 |
|---|---|
| Communication interface voltage(V) | 3.3 |
| Serial port baud rate | 115200(can be modified) |
| Antenna Type | Built-in PCB antenna |
| Wireless criteria | 802.11 b / g / n |
| Dimensions | 3 x 2 x 1cms |
| Weight | 5 grams |
Yes, the ESP8266 12F is fully compatible with Arduino IDE and can be programmed using the ESP8266 board package.
The ESP8266 12F operates at 3.3V; using 5V may damage the module. A voltage regulator is recommended.
Yes, it has built-in MCU and can run applications independently without an external processor.
It supports UART, SPI, and GPIO interfaces for communication and peripheral control.
