What networks does the EC200U-CN modem support?

Supports LTE-FDD, LTE-TDD, and GSM/GPRS networks for global IoT deployment.

Is the EC200U-CN compatible with Raspberry Pi?

Yes, it interfaces via USB and is compatible with Raspberry Pi, Arduino, and other SBCs.

What GNSS systems are supported?

Supports GPS, GLONASS, BeiDou, Galileo, and QZSS for accurate global positioning.

Can it operate standalone without additional hardware?

Yes, it connects directly to PC/laptop via micro-USB for standalone operation.

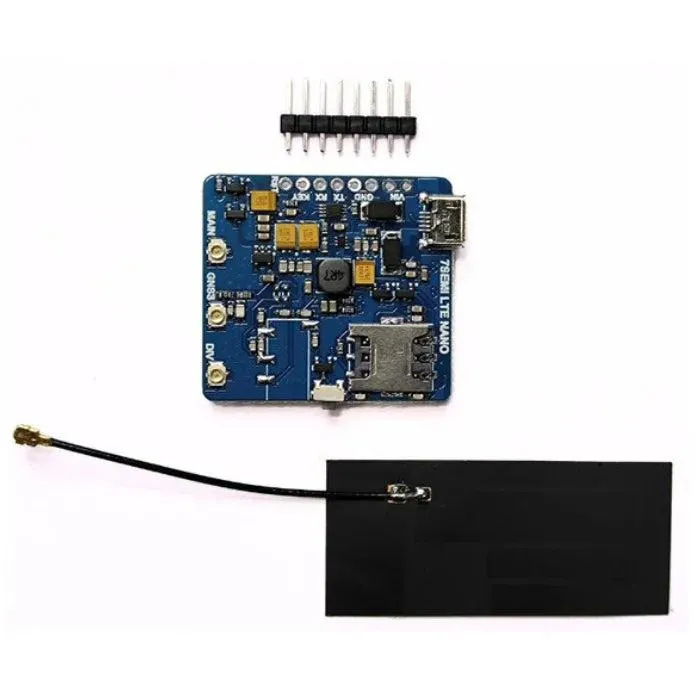

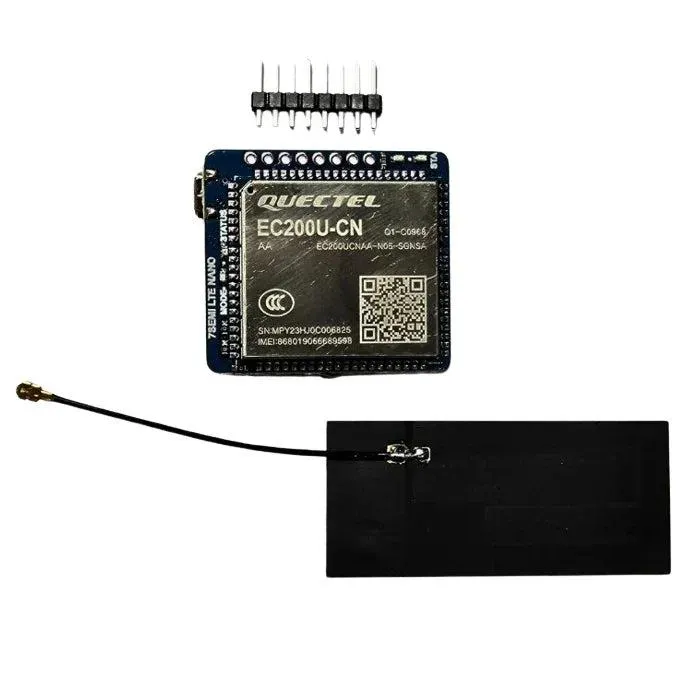

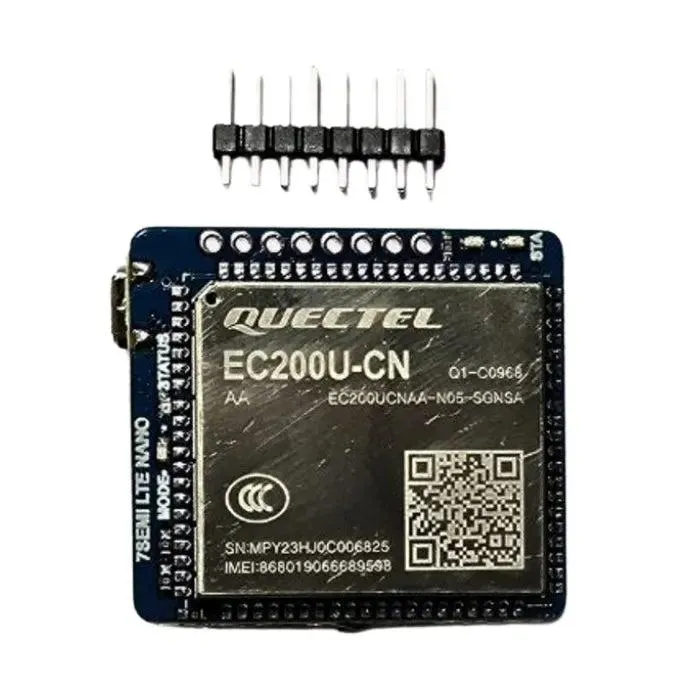

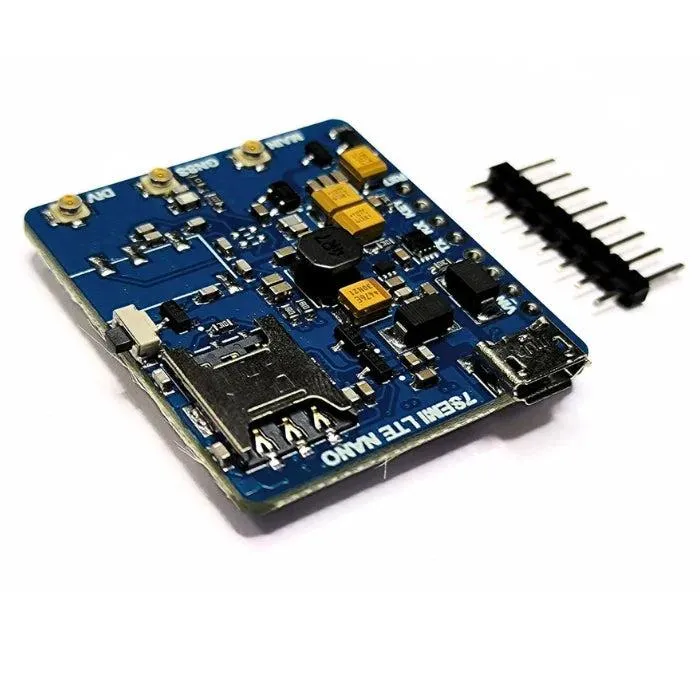

EC200U-CN LTE 4G GNSS Nano Modem

Name: EC200U-CN LTE 4G GNSS Nano Modem - 7Semi
Brand: 7Semi
SKU: IOT-2734
Price: 2159.84 INR
Availability: InStock
Rating: 5 (1 reviews)

Power Supply	5V USB
Frequency Bands	LTE-FDD: B1 / B3 / B5 / B8LTE-TDD: B34 / B38 / B39 / B40 / B41GSM: 900 MHz / 1800 MHz
GNSS Support	GPS, GLONASS, BeiDou, Galileo, QZSS
SIM Support	Compatible with Nano SIM
Data Rates	10 Mbps Downlink, 5 Mbps Uplink
Interface Options	Micro-USB (standalone), UART for Raspberry Pi (optional)
Power Management	High-efficiency regulation; power can be disabled for low-power use cases
Operating Temperature	-40°C to 80°C
GPIO Functions	Airplane Mode, Reset, RI, DTR via GPIO pins
Frequency Range	700–2700 MHz
Gain	8 dBi (internal antenna)
VSWR	? 1.8
Impedance	50 Ohm
Material	Radiator FPC
Antenna Size	52 x 24 mm
Dimensions (LxWxH)	3.8 x 3.4 x 0.7 cm
Weight	13 gm
Cable Type	1.13 coaxial cable
Connector Style	IPEX (u.FL equivalent)
Polarization	Vertical
Power Handling	30 W
Mounting	3M Sticker
