EC200U 4G LTE GNSS IoT Smart Modem with In-Built STM32 MCU - 7Semi The EC200U 4G LTE GNSS IoT Smart Modem with In-built STM32 MCU combines powerful connectivity and precise positioning in one compact device. Integrating the STM32G070KBT6 microcontroller with 128KB of flash memory, this modem eliminates the need for an external MCU, streamlining your designs. It supports global LTE CAT1 connectivity across 4G, 3G, and 2G networks with download speeds up to 150Mbps, making it ideal for high-speed data applications. With comprehensive GNSS support for GPS, BeiDou, and Glonass, the EC200U delivers accurate positioning for navigation and tracking purposes. …
Sale Accelerators
Hurry up! Only 3 left in stock
Condition:NEW
As low as₹3101.58₹5160.40Incl. GST (No Hidden Charges)
Backorder Available
Delivery: Next Day Delivery
IN STOCKSKU#: IOT-2735
Order Before 11 to for same day shipping
Low Stock
Only 3 items in stock. Additional quantity can be backordered.
Delivery & Pickup Options
Get it Next Day on Order
Order now and we'll have it ready for delivery by the next business day.

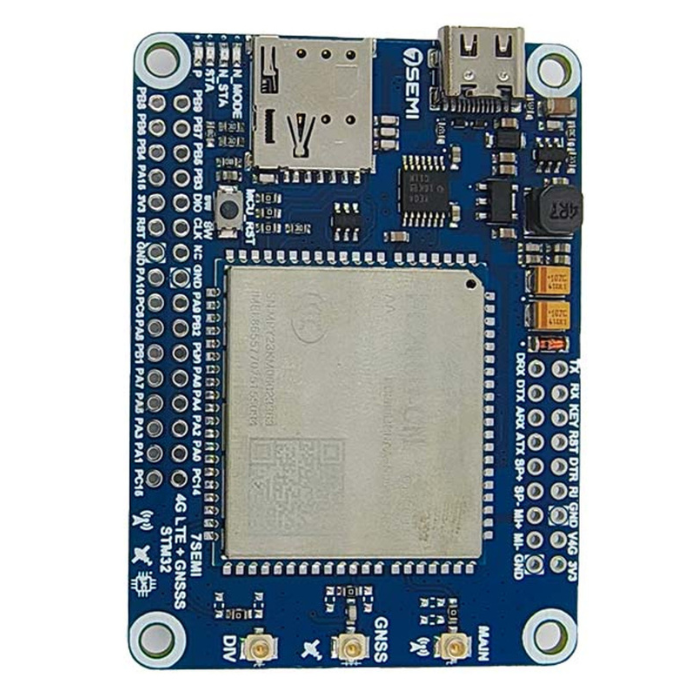

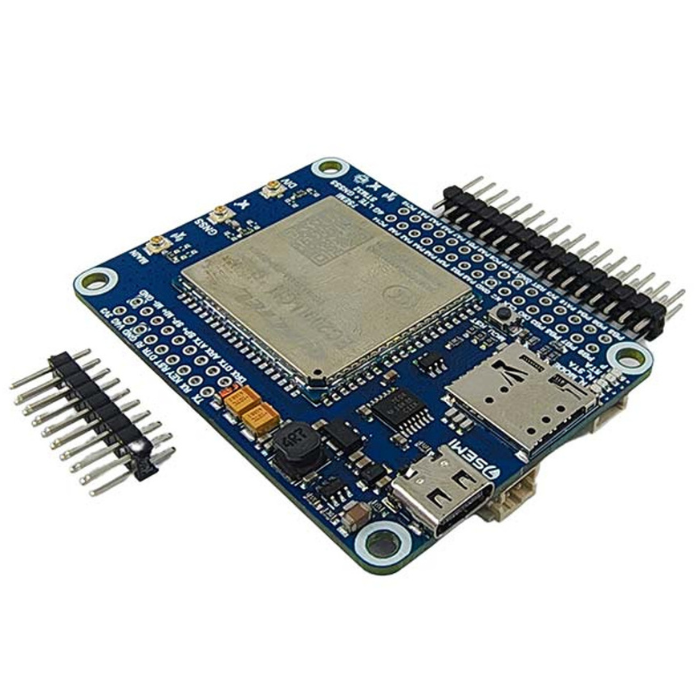

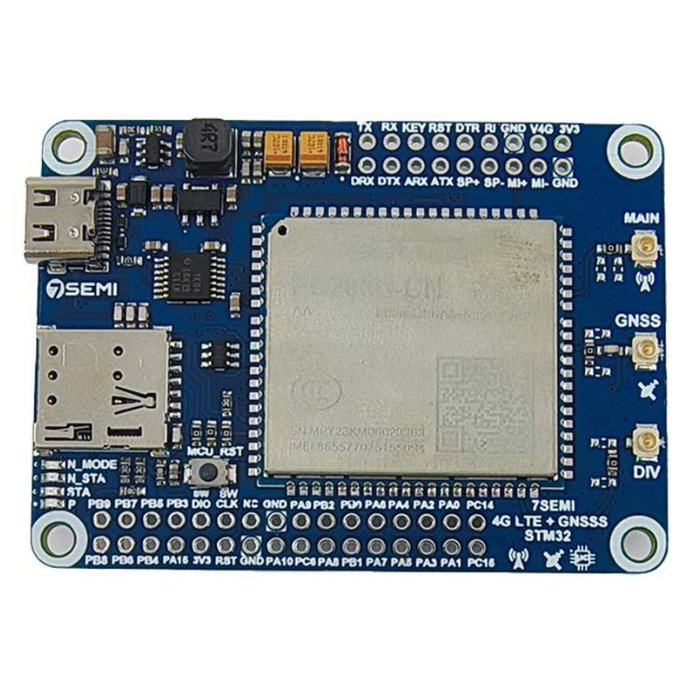

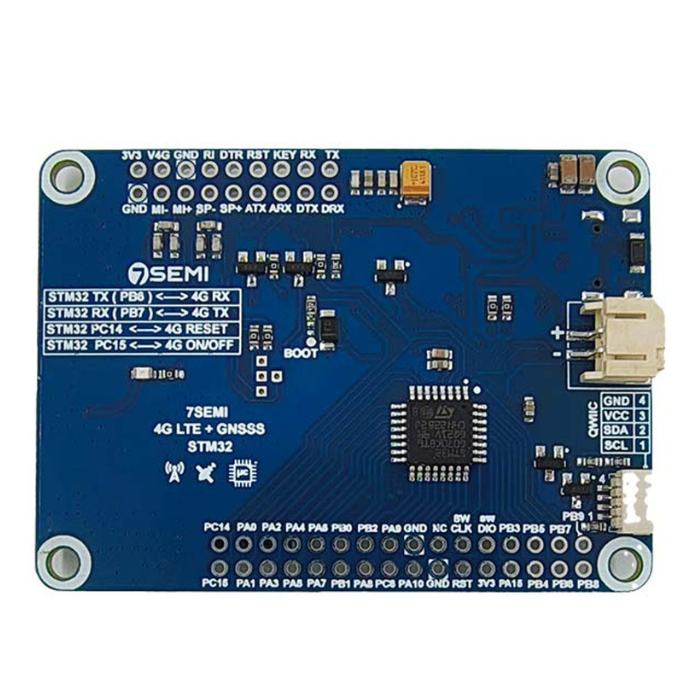

EC200U 4G LTE GNSS IoT Smart Modem with In-Built STM32 MCU - 7Semi
The EC200U 4G LTE GNSS IoT Smart Modem with In-built STM32 MCU combines powerful connectivity and precise positioning in one compact device. Integrating the STM32G070KBT6 microcontroller with 128KB of flash memory, this modem eliminates the need for an external MCU, streamlining your designs.
It supports global LTE CAT1 connectivity across 4G, 3G, and 2G networks with download speeds up to 150Mbps, making it ideal for high-speed data applications.
With comprehensive GNSS support for GPS, BeiDou, and Glonass, the EC200U delivers accurate positioning for navigation and tracking purposes.
It features a USB and UART interface for easy integration into your system and includes an onboard SIM slot compatible with 1.8v/3v SIM cards.
Dual LED indicators provide real-time status updates, while its low power consumption makes it an excellent choice for IoT, automation, tracking, and telecommunication applications.
In-built STM32G070KBT6 MCU with 128KB flash
LTE Cat 1 with up to 150Mbps download speed
Multi-GNSS support: GPS, BeiDou, GLONASS
USB and UART interfaces for easy integration
Dual LED status indicators
Low power consumption for IoT applications
All-in-one modem with embedded MCU
Global LTE network compatibility
High-accuracy positioning
Compact and low-power design
Real-time status indication via LEDs
Microcontroller
STM32G070KBT6 with 128KB Flash Memory
Connectivity
4G/3G/2G LTE CAT1
Downlink Speed
Up to 150Mbps
GNSS Support
GPS, BeiDou, Glonass, LBS Base Station Positioning
Interfaces
USB, UART
SIM Card Slot
Onboard SIM slot (supports 1.8V/3V SIM cards)
LED Indicators
Dual LED indicators for status monitoring
Power Consumption
Low power consumption, optimised for IoT applications
Dimensions (LxWxH)
6.5 x 4.7 x 0.9 cm
Weight
32 gm
Operating Temperature
-40°C to 85°C
What microcontroller is integrated in the EC200U modem?
The EC200U features an in-built STM32G070KBT6 MCU with 128KB flash memory, eliminating the need for an external processor.
Which GNSS systems does the EC200U support?
It supports GPS, BeiDou, and GLONASS for accurate global positioning and tracking.
Is the EC200U compatible with Raspberry Pi or Arduino?
Yes, it connects via USB or UART and is compatible with Raspberry Pi, Arduino, and other development platforms.
What SIM card voltage does the EC200U support?
The onboard SIM slot supports both 1.8V and 3V SIM cards for broad carrier compatibility.
