Order now and we'll have it ready for delivery by the next business day.

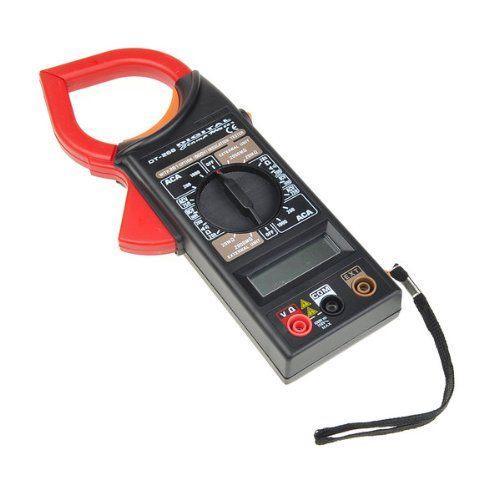

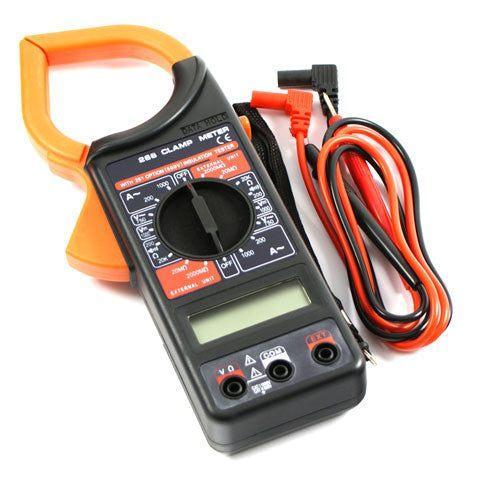

Digital Clamp Meter - DT-266 The meter is a portable, 3-1/2 digits LCD clamp meter with insulation test function (with optional 500V insulation tester unit), designed for being used by electricians, technicians, serviceman and hobbyists who need an instrument that is accurate, reliable, and always ready for use.
| DC Voltage | 1000V, ±(0.5%+1dgt) |
|---|---|
| AC Voltage | 200-750V, ±(1.0%+4dgt) |
| Resistance | 200?-2kM?, ±(2.0%+2dgt) |
| Power Supply | 9V Battery |
| Maximum Display | 14x47mm |
| Dimensions | 11 x 9 x 3cms |
| Weight | 310 grams |
Measures AC current up to 1000A, AC/DC voltage, resistance, continuity, and diode testing.
Yes, with optional 500V insulation tester unit for insulation resistance checks.
Yes, uses standard 4mm banana jack probes for voltage and resistance measurements.
Up to 26mm diameter conductors for non-intrusive AC current measurement.
Buy DT-266 Digital Clamp Meter with 3½-digit LCD, insulation test support. Ideal for electricians, technicians. Compatible with standard probes.
