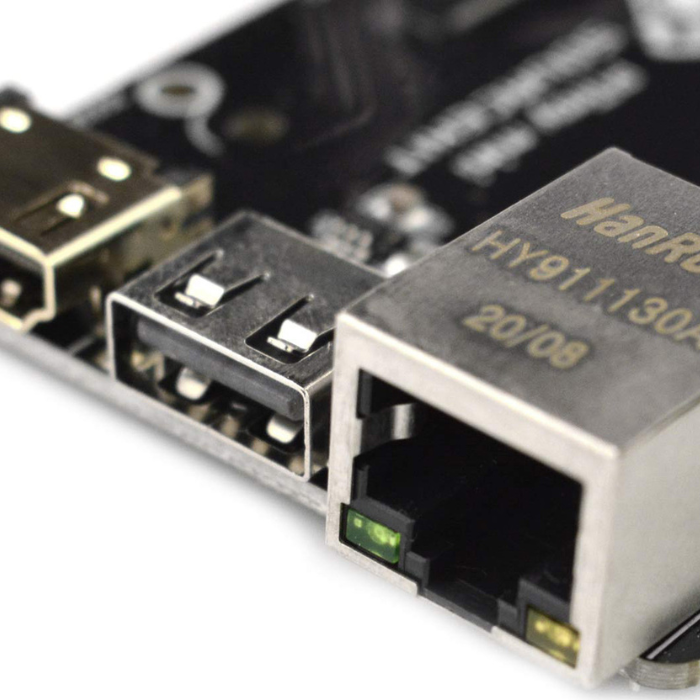

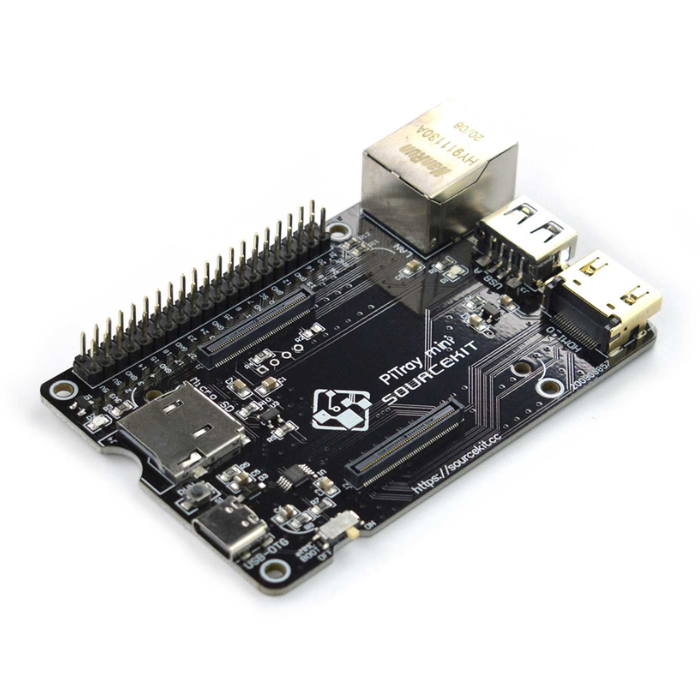

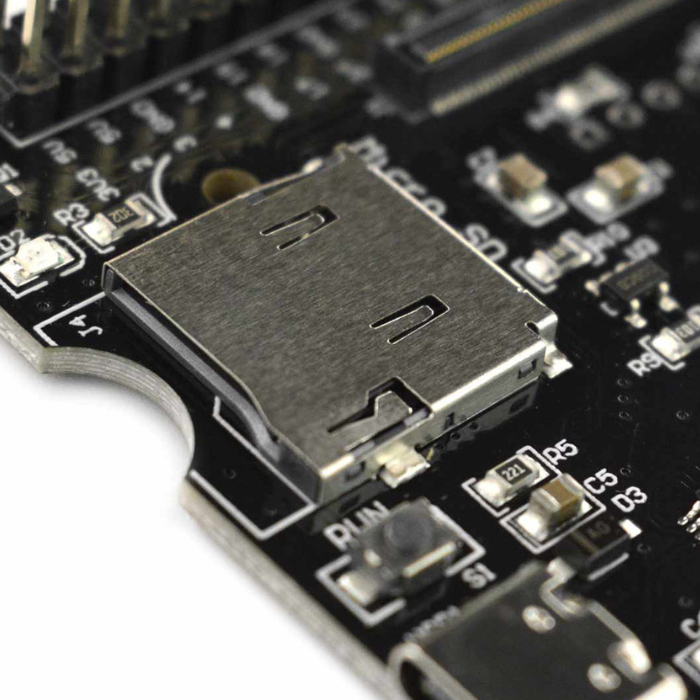

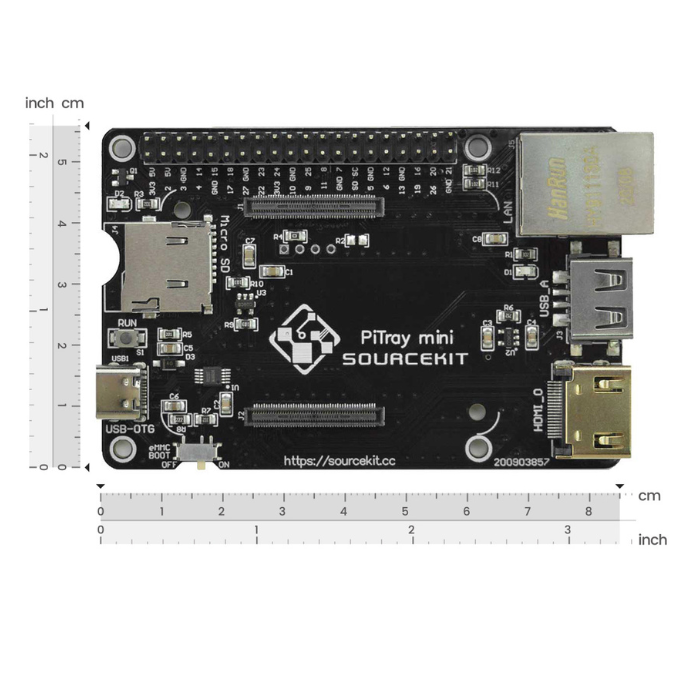

DFRobot PiTray Mini for Raspberry Pi Compute Module 4

Official Raspberry Pi 4 Model B 4GB RAM The Raspberry Pi 4 Model B 4GB is a compact and versatile single-board computer that provides desktop-level performance in a credit card-sized device. The RPI 4B is powered by a Broadcom Quad-Core Cortex-A72 (ARM v8) 64-bit SoC that runs at 1.5GHz and has 4GB of LPDDR4-3200 SDRAM for efficient multitasking and basic desktop programs. This device is designed for a wide range of DIY projects, including media centres, file servers, robotics, and smart home systems. The Raspberry Pi 4B 4GB supports dual 4K displays ( 4K@30Hz ) through its micro-HDMI ports, making it perfect for high-definition video and creative endeavours. It has dual-band WiFi 2.4 GHz and 5.0 GHz IEEE 802.11ac , Bluetooth 5.0 , and Gigabit Ethernet for a consistent connection. It also features two USB 3.0 connections and two USB 2.0 ports to connect devices. The Raspberry Pi 4 4GB is popular among programmers and makers. It comes with native Python support , making it a fantastic platform for coding education and automation project development. It is capable of running both 32-bit and 64-bit operating systems , offering versatility for different uses. Whether for teaching, prototyping, or creative projects, it serves as a potent and affordable computing option. Shop Raspberry Pi 4 4GB Full Kit – Plug & Play Setup Affordable power for your projects – Raspberry Pi 4 2GB ! What makes this model Great? The speed and performance of the new Raspberry Pi 4 4GB are a noticeable improvement from earlier models. For the first time, the Raspberry Pi Foundation has created a complete desktop experience. Whether you're editing documents, browsing the web with multiple tabs open, managing spreadsheets, or creating a presentation, you'll find the experience smooth and familiar. It is a more energy-efficient and cost-effective machine. Features Broadcom 2711 Quad-Core Cortex A72 @ 1.5GHz delivers 20% faster performance with improved power and thermal efficiency. Dual micro-HDMI outputs support dual 4K displays with hardware video decode at 4Kp60 (H.265, H.264, MPEG-4). Dual-band WiFi (802.11b/g/n/ac) on 2.4GHz & 5GHz with advanced PCB antenna for robust wireless connectivity. Bluetooth 5.0 offers an extended range of wireless peripherals. Upgraded USB 3.0 Ethernet provides wired speeds up to 10x faster than previous models. 2 USB 3.0 and 2 USB 2.0 ports enable versatile peripheral connections. 40-pin GPIO header is fully backwards-compatible with earlier Pi models. Optional PoE support is available, with PoE header pins designed to work with proper standoffs. Comparison Table Raspberry Pi 4 Model B Raspberry Pi 5 Raspberry Pi 3 Model B+ Price (INR) ?3599 VIEW ?5129 VIEW ?3649 VIEW Processor 1.5GHz Quad-Core ARM Cortex-A72 2.4GHz Quad-Core ARM Cortex-A76 1.4GHz Quad-Core ARM Cortex-A53 RAM 1GB, 2GB, 4GB, 8GB LPDDR4 2GB, 4GB, 8GB, 16GB LPDDR4 1GB LPDDR2 Wi-Fi Dual-band 802.11ac Dual-band 802.11ac Dual-band 802.11ac Bluetooth 5.0 5.0 4.2 USB Ports 2× USB 3.0, 2× USB 2.0 2× USB 3.0, 1× USB 2.0 4× USB 2.0 Ethernet Gigabit Ethernet Gigabit Ethernet Gigabit Ethernet Video Output 2× Micro HDMI (4Kp60) 2× Micro HDMI (4Kp60) 1× HDMI (1080p) GPIO Pins 40 40 40 Storage MicroSD (SDXC up to 2TB) MicroSD (SDXC up to 2TB) MicroSD (SDHC) Power Supply USB-C USB-C Micro USB Click for Complete Raspberry Pi Kits – Learn, Build, and Innovate! Pin Diagram:

7Semi BME688 Environmental Sensor Nano Breakout with 2.54mm Pitch Header The 7Semi BME688 Environmental Sensor Nano Breakout with 2.54mm Pitch Header is a versatile and high-precision environmental sensor designed for modern monitoring applications. Built around Bosch’s advanced BME688, it accurately tracks temperature, humidity, air pressure, and gas levels, helping you gain meaningful insights into environmental conditions. Its compact nano form factor and I2C interface make integration simple with Arduino, Raspberry Pi, and other development boards. Whether you’re building a smart home system, an industrial monitoring setup, or an environmental research project, this environmental monitoring sensor delivers dependable performance in a user-friendly design. Features: AI-Enhanced Gas Sensing: Identifies dangerous gasses with exceptional accuracy. Comprehensive Monitoring: A single sensor measures numerous essential environmental factors. Flexible Interface: I2C connectivity enables seamless interaction with microcontrollers. Compact design: The nano breakout board is ideal for projects with limited space. 3.3V Operating Voltage: Suitable for a wide range of development boards. Gas sensor sensitivity, selectivity, and data rate can all be adjusted to meet your individual application requirements.

7Semi UCC21330 Dual-channel Isolated Gate Driver Breakout Board The 7Semi UCC21330 Dual-Channel Isolated Gate Driver Breakout Board is designed to efficiently drive power transistors like MOSFETs, IGBTs, and SiC devices with a peak source current of 4A and a peak sink current of 6A. Its 3kVRMS isolation barrier ensures safe and reliable operation in high-voltage environments, while programmable dead-time control allows precise timing adjustments to minimize switching losses and prevent shoot-through. Integrated protection features, including undervoltage lockout (UVLO) and a disable function, safeguard your system and enable immediate shutdown when needed. This compact breakout board is perfect for applications such as motor drives, power converters, and industrial automation systems requiring precise and reliable gate driving. Features: Supports dual low-side, dual high-side, and half-bridge configurations for a wide range of power applications. High Current Capacity: 4A peak source and 6A peak sink output provide robust transistor control. Enhanced Protection: All power supplies include UVLO protection and a configurable dead time for safe operation. Precision timing is achieved with a 33ns mean propagation latency and a maximum pulse-width distortion of 5ns. Robust CMTI operation: Common-mode transient immunity of more than 125V/ns enables dependable operation in high-noise settings. Fast Disable Logic: The built-in disable feature allows you to shut down both outputs at the same time.

7Semi ACS772 50A 200KHz Current Sensor, Automotive Grade The 7Semi ACS772 50A 200 kHz Current Sensor is a high-performance current sensor module designed to accurately measure both AC and DC currents up to 50 A with a wide frequency response. Built with automotive-grade components, it delivers dependable and precise current sensing in demanding environments where stability and safety are critical. This sensor addresses the common challenge of obtaining accurate current measurements in power electronics, motor control, and battery systems, helping you monitor and protect circuits effectively. With its broad bandwidth of up to 200 kHz and robust design, the ACS772 current sensor module offers fast response, excellent linearity, and low noise, making it suitable for a wide range of applications. It’s perfect for students and hobbyists working on robotics or power monitoring, as well as professionals developing automotive systems, industrial equipment, and high-speed power electronics. The module’s ease of integration and reliability make it a practical choice for projects requiring real-time current feedback and protection. Features: High-accuracy current sensing with ±2.1% lifetime accuracy across temperature ranges Supports AC and DC current measurement for demanding power applications Ultra-low 100 µΩ internal conductor resistance for minimal power loss Reinforced galvanic isolation for safe high-side current monitoring Excellent noise immunity with advanced amplifier and filtering design Factory-trimmed gain and offset for consistent, reliable performance Compact, automotive-grade package for easy integration and mounting

Anycubic Kobra 3 Max 3D Printer – EU power plug The Anycubic Kobra 3 Max 3D Printer – EU power plug is a high-performance large-format FDM 3D printer designed for fast, precise, and large-scale printing. With an expansive build volume, it allows users to create bigger models or multiple parts in a single print, making it ideal for professional prototyping, product design, and advanced DIY projects. Equipped with high-speed printing capabilities and intelligent automation features, it delivers consistent results with minimal manual intervention. Models Created Built for efficiency and ease of use, the printer features advanced auto bed leveling technology for perfect first layers, a stable dual-axis motion system for reduced vibrations, and a high-temperature hotend compatible with a wide range of filaments. The EU power plug ensures compatibility with standard 220–240V power systems. Whether for industrial use, educational labs, or creative projects, this 3D printer offers reliable performance and excellent print quality. 420*420*500mm Print Volume The massive 420 × 420 × 500 mm print volume of the Anycubic Kobra 3 Max enables users to create large-scale models in a single print without the need to split designs into multiple parts. This expansive build area is ideal for producing full-sized prototypes, architectural models, and functional components with greater efficiency and precision. It significantly reduces assembly time and improves structural strength since parts can be printed as one complete piece. Printing Speed Up to 600mm/s With a printing speed of up to 600 mm/s, the Anycubic Kobra 3 Max is designed to deliver rapid production without compromising on print quality. This high-speed capability significantly reduces overall printing time, allowing users to complete large models and batch prints much faster than traditional 3D printers. It is especially beneficial for professionals and businesses that require quick prototyping and efficient workflow. Despite the speed, the printer maintains stability and precision through its advanced motion system, ensuring clean layers and accurate results. Precise Auto-Leveling & Motor Anti-skip The printer features an advanced auto-leveling system that ensures the print bed is perfectly calibrated before every print, eliminating the need for manual adjustments and reducing setup time. This precise leveling improves first-layer adhesion, which is crucial for achieving high-quality and successful prints. In addition, the motor anti-skip mechanism enhances movement accuracy by preventing step loss during high-speed operations. This results in smoother motion, better layer consistency, and reduced chances of print failure. Extremely Easy to Use The printer is designed with user convenience in mind, making it extremely easy to use for both beginners and experienced users. Its intuitive interface and guided setup process allow you to get started quickly without any technical complexity. Features like automatic bed leveling and pre-configured settings reduce manual effort and minimize errors during printing. The streamlined design ensures smooth operation, while simple controls make monitoring and adjusting prints hassle-free. Features: Massive build volume for large-scale 3D printing High-speed printing capability for improved productivity Intelligent auto bed leveling system for perfect first layers High-temperature hotend supporting multiple materials Dual motor-driven axis for enhanced stability and accuracy User-friendly interface for easy operation Compatible with popular slicing software Durable and rigid frame for consistent performance Suitable for prototyping, manufacturing, and creative projects

7Semi MAX31865 PT1000 RTD 3-Wire Temperature Sensor Amplifier Breakout Board The 7Semi MAX31865 PT1000 RTD 3-Wire Temperature Sensor Amplifier Breakout Board is designed for highly accurate temperature measurement using PT1000 sensors. Equipped with the MAX31865 RTD to Digital Converter, it compensates for lead resistance and supports 2, 3, and 4-wire PT1000 configurations, ensuring precise readings. The board easily connects to microcontrollers via SPI and operates at both 3.3V and 5V, making it a versatile solution for industrial, laboratory, and advanced DIY temperature monitoring projects. Features: The PT1000 RTD, a cornerstone of industrial temperature monitoring, provides high accuracy and repeatability, outperforming thermocouples in harsh situations. MAX31865 RTD Amplifier: This specialized amplifier is designed to read the low resistance of PT1000 RTDs, resulting in optimal signal processing and error minimization. 3-Wire Compatibility: The breakout board offers 3-wire RTD connection combinations to meet your individual setup needs. excellent Accuracy Temperature Sensor: Temperature measurement with little drift and excellent resolution, ideal for applications requiring accuracy. MAX31865 SPI Interface: The breakout board seamlessly integrates with popular microcontrollers such as Arduino and Raspberry Pi, allowing for easy data collecting and control. PT1000 RTD Amplifier Calibration: The MAX31865 RTD amplifier has calibration capabilities, ensuring consistent and accurate readings throughout time. MAX31865 Fault Detection: Built-in fault detection procedures aid in the identification of issues such as sensor disconnections or over-temperature conditions, hence improving system reliability. Versatile Applications: Suitable for thermal cycling, industrial process control, laboratory investigations, and any scenario requiring precise temperature measurement. The 7Semi PT1000 RTD 3-Wire Temperature Sensor Amplifier Breakout Board - MAX31865 can help you optimize your temperature sensing capabilities. Elevate your projects with unrivaled precision and dependability.

DFRobot Gravity 7/24 Industrial Analog pH Sensor Meter Kit for Arduino The DFRobot Gravity 7/24 Industrial Analog pH Sensor Meter Kit for Arduino is a high-precision Analog pH Sensor designed for professional and industrial applications requiring continuous pH monitoring. This Arduino pH Sensor uses an industrial-grade glass membrane electrode with low impedance, delivering fast response, excellent thermal stability, and stable performance over long periods. It supports a full measurement range of 0 pH to 14 pH with linear voltage output, ensuring accurate and reliable readings. The sensor integrates easily through a BNC connector and PH2.0 interface, allowing direct connection to any Arduino analog input. Its reference system, based on Ag/AgCl gel electrolyte with a PTFE membrane, provides strong anti-pollution characteristics and prevents clogging, making it an ideal industrial pH sensor for Arduino for water treatment systems, environmental monitoring, and laboratory analysis. Attention: The probe's bottle top contains protective fluids (3.3mol/L KCL). Even if the bottle cap is tightly fastened, some protective liquid may leak around it, resulting in white crystals. However, as long as the bottle top contains protective liquid, the probe's life and accuracy will be unaffected. Please use it with confidence. It is recommended that the white crystals be returned to the bottle cap's protective liquid. Features Industrial-grade Analog pH Sensor for accurate measurement Compatible with Arduino and other microcontrollers Measures pH range from 0 to 14 Fast response with high stability BNC connector for secure sensor connection Plug-and-play PH2.0 analog interface Built-in power indicator LED Suitable for long-term online monitoring Low maintenance and long sensor life Ideal for water quality and lab applications Applications Water Quality Surveillance Aquaculture

7Semi Vikram-3025 High-Power 25A DC Motor Driver for 6–30V Motors The 7Semi Vikram-3025 is a heavy-duty single-channel DC motor driver built for demanding robotics, automation, and mechatronics projects. Designed to handle 25A continuous load with a 6V–30V operating range, it uses a high-efficiency discrete NMOS H-Bridge that eliminates the need for bulky heat sinks. Whether you're powering high-torque DC motors or creating reliable industrial controls, this driver ensures stable, smooth, and responsive performance. With built-in safety features like overcurrent protection, temperature protection, and undervoltage shutdown, your system stays secure even under heavy loads. This motor driver goes beyond basic control, it includes onboard test buttons, motor output LEDs, and a regulated 5V output for powering microcontrollers, making prototyping extremely convenient. It supports PWM/DIR control signals from a wide range of logic voltages (1.8V to 30V), ensuring compatibility with Arduino, Raspberry Pi, PLCs, and other controllers. It also offers manual control options using a potentiometer and switch, giving both beginners and advanced users flexible control in real-world applications. This makes it a dependable choice for custom robotics, high-power motor control, and automation systems. Features: Provides smooth and reliable bidirectional control for single brushed DC motors. Supports a wide operating voltage range from 6V to 30V for flexible motor compatibility. Handles a continuous motor current of 25A, ideal for high-load or high-torque applications. Includes an onboard 5V regulated output (250mA) to power a microcontroller without an external supply. Onboard test buttons and motor state LEDs allow quick, controller-free testing during prototyping. Offers dual input modes: PWM/DIR for digital control or potentiometer/switch for manual operation. Compatible with 1.8V, 3.3V, 5V, 12V, and 24V logic, making it suitable for Arduino, Raspberry Pi, PLCs, and more. Supports PWM input frequency up to 40kHz with a fixed 16kHz output for quiet motor operation. Built-in protections include active current limiting, overcurrent protection, temperature protection, and undervoltage shutdown.

7Semi SHT40 SGP40 VOC Environmental Monitoring Sensor Module Qwiic-Ready The 7Semi SHT40 + SGP40 VOC Environmental Monitoring Sensor Module is designed to help you measure temperature, humidity, and air quality with high accuracy and minimal effort. Built with advanced SHT40 and SGP40 sensing technology, this compact module delivers precise data for temperature (–40°C to 125°C), humidity (0–100% RH), and VOC levels with excellent response time and reliability. Whether you're prototyping with Arduino, Raspberry Pi, or any I2C-based microcontroller, the Qwiic-compatible interface makes integration incredibly simple and clean. This breakout board is ideal for home automation, indoor air-quality projects, workplace monitoring, or industrial systems where accurate VOC readings matter. Its low power consumption and digital 16-bit output make it highly suitable for long-term IoT deployments, high-precision environmental sensing projects, and portable air-quality monitors. Features: Designed as a compact breakout board integrating the SHT40 high-precision temperature and humidity sensor and the SGP40 VOC sensor for reliable environmental monitoring. Offers fast and accurate measurements, including ±0.2°C temperature accuracy and ±1.8% RH humidity accuracy, ensuring dependable readings in various environments. Qwiic-compatible interface enables effortless plug-and-play connectivity with I2C-enabled microcontrollers and SBCs without soldering. Produces 16-bit digital raw and processed VOC Index signals for easy integration into data-logging, automation, or IoT systems. Ensures low power consumption, making it suitable for battery-powered and continuous-monitoring applications. Built to detect a wide range of volatile organic compounds such as ethanol, acetone, and formaldehyde with high sensitivity and quick response times. Board Dimensions: Arduino I2C Connection Diagram:

Official Raspberry Pi 5 Model B 1GB RAM The Official Raspberry Pi 5 Model B with 1GB RAM represents a major leap forward in single-board computing performance. Powered by a 2.4GHz 64-bit quad-core Arm Cortex-A76 processor, it delivers up to 2–3× the CPU performance of the previous generation, making multitasking, programming, media handling, and edge computing smoother than ever. With an 800MHz VideoCore VII GPU, the Pi 5 offers significantly improved graphics capabilities and supports dual 4Kp60 display output for high-resolution applications. The redesigned Image Signal Processor enhances camera performance, making it suitable for AI vision projects, surveillance systems, and advanced imaging solutions. Whether you're building a smart device, automation system, media center, or industrial controller, this latest generation Raspberry Pi 5 provides a seamless and powerful desktop-class experience in a compact form factor. Features: Processor: Quad-Core 64-bit Arm Cortex-A76 @ 2.4GHz RAM: 1GB LPDDR4X GPU: VideoCore VII @ 800MHz Display Support: Dual micro-HDMI, up to 4Kp60 each Core Function: High-performance single-board computer for embedded systems, IoT, automation, AI edge computing, and desktop applications Performance Boost: 2–3× faster CPU than Raspberry Pi 4 Camera Support: Improved ISP for advanced image processing

25 x 3mm Neodymium Disc Circular Magnet This 25mm x 3mm Neodymium Disc Magnet is a high-strength rare earth magnet designed for projects that require maximum magnetic force in a compact size. Made from premium NdFeB neodymium alloy, this disc magnet delivers exceptional holding power, making it ideal for DIY crafts, industrial applications, science experiments, home repairs, and various electronic uses. With a durable Ni-Cu-Ni triple coating, it offers corrosion resistance and long-lasting performance. Its compact disc shape makes it easy to use in projects such as motors, speakers, sensors, household repairs, custom holders, craft models, and magnetic displays. Whether you're creating functional mechanisms or designing mechanical setups, this magnet provides reliable magnetic force and stable attachment for multiple use cases. Features: High-quality NdFeB (Neodymium) rare earth material ensures strong magnetic performance. Compact 25mm × 3mm disc size ideal for both DIY and industrial projects. Triple-layer Ni-Cu-Ni coating prevents rust, corrosion, and surface damage. Magnetized through the diameter for stable and uniform magnetic force. Precision build with ±0.1 mm tolerance for accurate fitting in assemblies. Suitable for applications in electronics, tools, crafts, models, motors, and sensors. Safe operating temperature up to 80°C, ensuring reliability across environments

Cytron MDS160A 160Amp 8V–28V DC Motor Driver The Cytron MDS160A 160Amp 8V–28V DC Motor Driver is a high-power, smart motor controller built for demanding applications such as AGVs, combat robots, industrial conveyors, heavy-duty mobile robots, and high-torque motion systems. With its massive 160A continuous output, support for 8V–28V motors, and silent 16 kHz MOSFET switching, this motor driver ensures smooth, efficient, and reliable operation under extreme loads. It is designed for makers, engineers, and industrial projects that require a robust DC motor controller capable of delivering serious power. Powered by smart onboard firmware, the Cytron MDS160A offers multiple input modes, including RC, PWM+DIR, Analog, and UART, making it highly flexible for different control setups. It provides intelligent safety features such as thermal protection, regenerative braking, and temperature-based current limiting. You can also pair two MDS160A units for plug-and-play differential-drive robotics. Whether you're creating a powerful robot or building custom industrial automation, the Cytron MDS160A delivers the strength, stability, and smart control needed for high-performance motor applications. Features: Bi-directional control for a single brushed DC motor. Supports 8V–28V input voltage, suitable for various high-power applications. Capable of 160A continuous, 175A (2 minutes), and 190A peak for 1 minute. 16 kHz PWM switching frequency ensures silent, smooth motor control. Full MOSFET-based solid-state design - no flyback diodes required. Includes regenerative braking for improved efficiency. Built-in thermal protection and temperature-based current limiting. Multiple operating modes: RC, Analog, PWM+DIR, UART (Serial). Onboard test buttons for quick motor testing without a controller. Can pair with another MDS160A for differential-drive robot applications.

7Semi MAX31855 K-Type Thermocouple Amplifier Breakout The 7Semi MAX31855 Thermocouple Amplifier Breakout is designed for creators, engineers, and industrial users who need reliable and highly accurate temperature readings from extreme environments. With its advanced MAX31855 converter IC, this breakout allows effortless digital temperature measurement using K-type thermocouples, making it a powerful choice for applications like 3D printing, HVAC monitoring, and high-heat industrial systems. The onboard cold-junction compensation ensures precision by automatically correcting any thermal offsets at the connector. Supporting temperatures from -270°C to +1372°C, it delivers 14-bit resolution with smooth 0.25°C read steps, providing dependable, noise-free readings for sensitive processes. Built-in fault detection helps identify open circuits or shorts, making the system easier to troubleshoot and safer for continuous operation. With its SPI-based digital interface and compatibility with 3.3V/5V logic microcontrollers, the module integrates cleanly with Arduino, ESP32, Raspberry Pi, and industrial controllers. Features: Supports a wide thermocouple measurement range from –270°C to +1372°C, making it suitable for extreme heat and cryogenic applications. Provides 14-bit high-resolution output with precise 0.25°C increments for accurate temperature monitoring. Includes built-in cold-junction compensation, ensuring reliable compensation for ambient temperature fluctuations. Offers a simple SPI digital interface, requiring minimal I/O pins for easy integration with most microcontrollers. Compatible with multiple thermocouple types including K, J, N, T, S, R, and E, providing versatility in system design. Features fault detection for open thermocouples and shorts to VCC/GND to enhance system safety. Supports both 3.3V and 5V logic levels, ensuring broad compatibility across development boards.

Waveshare 3.5inch Capacitive Touch LCD IPS Display Module 320×480 The Waveshare 3.5-inch Capacitive Touch LCD IPS Display Module is a compact yet powerful display solution featuring a 320 × 480 pixel resolution that delivers crisp visuals and excellent clarity. Designed with an IPS panel, it offers wide viewing angles and consistent color performance, making it ideal for graphical interfaces and interactive applications. The module integrates the ST7796S display driver for reliable display control and the FT6336U capacitive touch controller for accurate, multi-touch responsiveness. Optimized for embedded development, this 3.5 inch LCD Raspberry Pi display is perfectly suited for Raspberry Pi projects, control panels, and custom HMI applications where space, touch precision, and visual quality matter. Features: 320×480 resolution, 262K colors, clear and colorful displaying effect High touch screen transmittance, fast response and long lifetime Embedded with ST7796S driver chip and FT6336U capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins Onboard TF card slot for storing more pictures, videos, music, etc. Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board Onboard voltage translator, compatible with 3.3V / 5V operating voltage Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino) SPI and I2C Control Interfaces: Pin Description 15PIN Pin No. 18PIN Pin No. VCC Power (3.3V / 5V input) 1 1 3V3 Power (3.3V input) 2 NC GND Ground 3 3 MISO SPI MISO pin 4 6 MOSI SPI MOSI pin 5 5 SCLK SPI CLK pin 6 4 SD_CS TF card chip selection, low active 7 10 LCD_CS LCD chip selection, low active 8 9 LCD_DC LCD data/command selection (high for data, low for command) 9 7 LCD_RST LCD reset pin, low active 10 8 LCD_BL LCD backlight pin 11 2 TP_SDA Touch panel data pin 12 14 TP_SCL Touch panel clock pin 13 13 TP_INT Touch panel interrupt pin 14 15 TP_RST Touch panel reset pin, low active 15 12

7Semi DC-DC Buck Converter 14V-60V Input to 5V 3A Output- AP66300 (BO-10189) The 7Semi DC-DC Buck Converter 14V–60V Input to 5V 3A Output – AP66300 (BO-10189) is a compact power module designed to convert high DC input voltages into a stable 5V output with up to 3A current. Its wide input range makes it suitable for applications that use automotive, industrial, or high-voltage power sources. Built on an efficient synchronous buck design, this converter delivers reliable power with low heat generation and minimal energy loss. It is well suited for powering microcontrollers, sensors, communication modules, and other embedded electronics. Whether you’re working on industrial systems, automation projects, or advanced DIY builds, this buck converter provides a dependable and efficient power solution. Features: Wide input range: accepts 14V to 60V DC sources Provides a stable 5V output at up to 3A High-efficiency buck converter design for low energy loss Compact breakout board for easy project use Built-in power protection for safer operation Ideal for automotive, industrial, and embedded electronics Supports powering microcontrollers, sensors, and communication modules Efficient solution for IoT, automation, and high-voltage systems
