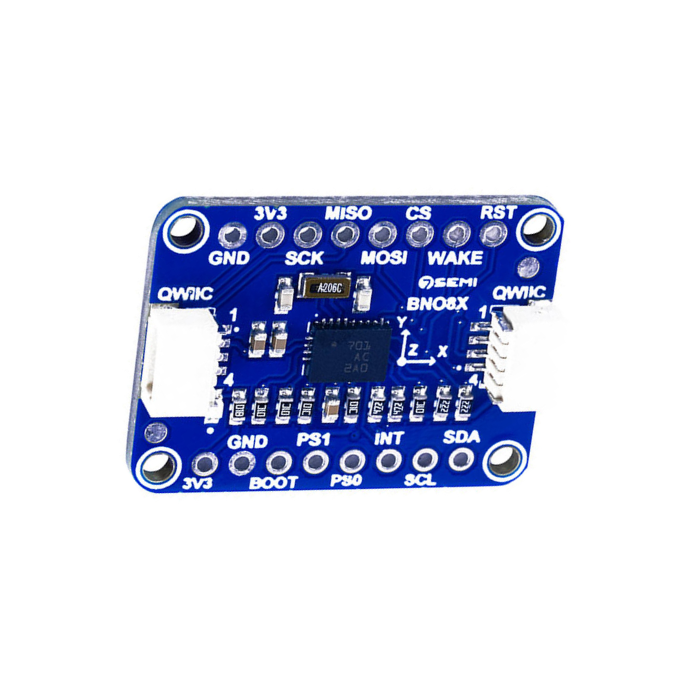

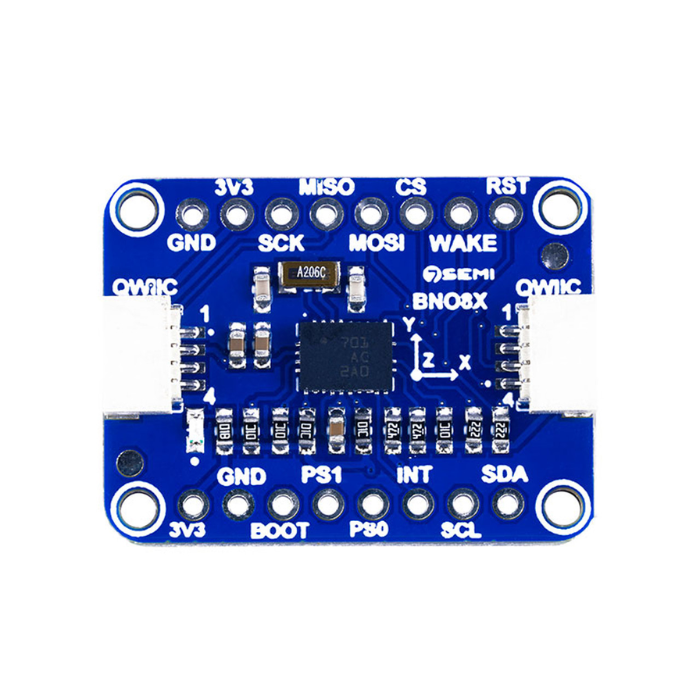

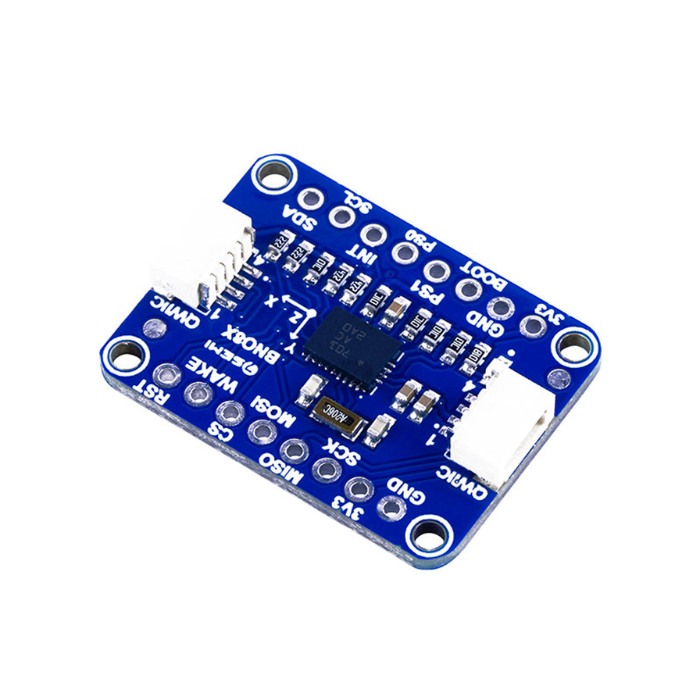

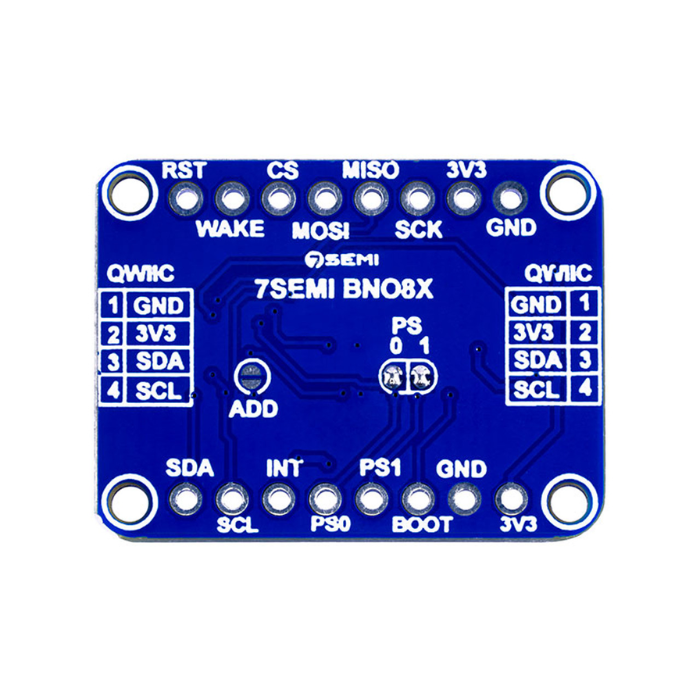

BNO086 9-DOF VR IMU Orientation Qwiic Fusion Breakout -7Semi The 7Semi BNO086 9-DOF VR IMU Orientation Qwiic Fusion Breakout is a compact, high-precision motion sensing solution that integrates a 3-axis accelerometer, gyroscope, and magnetometer into a single board. At its core is a powerful 32-bit ARM Cortex M0+ processor that runs sophisticated sensor fusion algorithms, enabling it to output highly accurate rotation vector data with a static rotation error of less than 2 degrees. This breakout board is designed for flexible connectivity, supporting I2C, SPI, and UART interfaces, and comes equipped with Qwiic connectors for hassle-free integration into your projects. Ideal for VR, robotics, and motion tracking applications, the BNO086 Fusion Breakout offers reliable and precise orientation sensing in a plug-and-play form factor. Features: Advanced Sensor Fusion: Combines accelerometer, gyroscope, and magnetometer data with drift correction for precise orientation sensing. High Accuracy: Dynamic rotation vector error < 3.5°, static error < 2.0° for reliable motion tracking. Multi-Protocol Support: Interfaces include I2C (up to 400kHz), SPI (up to 3MHz), and UART (up to 3Mbps). Dual I2C Addresses: Selectable via solder jumpers (0x4B default, 0x4A alternate). Power Efficient: Operates between 2.4V–3.6V; optimized for 3.3V via Qwiic. Activity Classification: Supports modes like biking, running with 14-bit accelerometer fusion. Plug-and-Play Design: Features 2x Qwiic connectors for easy integration. Customizable Setup: Includes power LEDs, pull-up resistor jumpers, and protocol selection options.
