7Semi 0.5mm FFC FPC Connector Breakout Board (20 Pin) The 7Semi 0.5 mm FFC FPC Connector Breakout Board (20 Pin) is designed to make working with fine-pitch flat cables simple and dependable. Built around a 20-pin FPC connector with an exact 0.5 mm pitch and 2 mm height, it provides stable signal breakout from FFC/FPC cables to standard 0.1" headers. The front-flip, bottom-contact SMT connector ensures firm cable retention and long-term durability, while the breadboard-friendly pin layout allows fast testing without extra adapters. With clearly marked pin numbers, this breakout board reduces wiring mistakes and supports efficient prototyping in electronics, …
Sale Accelerators
Hurry up! Only 1 left in stock
Condition: NEW
As low as ₹114.96   ₹180.60 Incl. GST (No Hidden Charges)
Backorder Available In Store Pickup Same Day Shipping Delivery: Ships in 1-2 days
IN STOCK SKU#: IOT-3846
Delivery & Pickup Options
Store Pickup Available

Pick up today from our store.

Standard Delivery

Estimated delivery: 2-5 business days

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

7Semi 0.5mm FFC FPC Connector Breakout Board (20 Pin) The 7Semi 0.5 mm FFC FPC Connector Breakout Board (20 Pin) is designed to make working with fine-pitch flat cables simple and dependable. Built around a 20-pin FPC connector with an exact 0.5 mm pitch and 2 mm height, it provides stable signal breakout from FFC/FPC cables to standard 0.1" headers. The front-flip, bottom-contact SMT connector ensures firm cable retention and long-term durability, while the breadboard-friendly pin layout allows fast testing without extra adapters. With clearly marked pin numbers, this breakout board reduces wiring mistakes and supports efficient prototyping in electronics, IoT, and embedded system projects. Features: 0.5mm pitch FPC FFC connector with 30 pins and a 2mm front flip bottom contact. speeds up the prototyping process. Out pins with traces leading to double rows of 0.1" spaced holes. Compatible pin spacing for breadboard application. Easily recognizable pin numbers Size: 40 x 25 mm

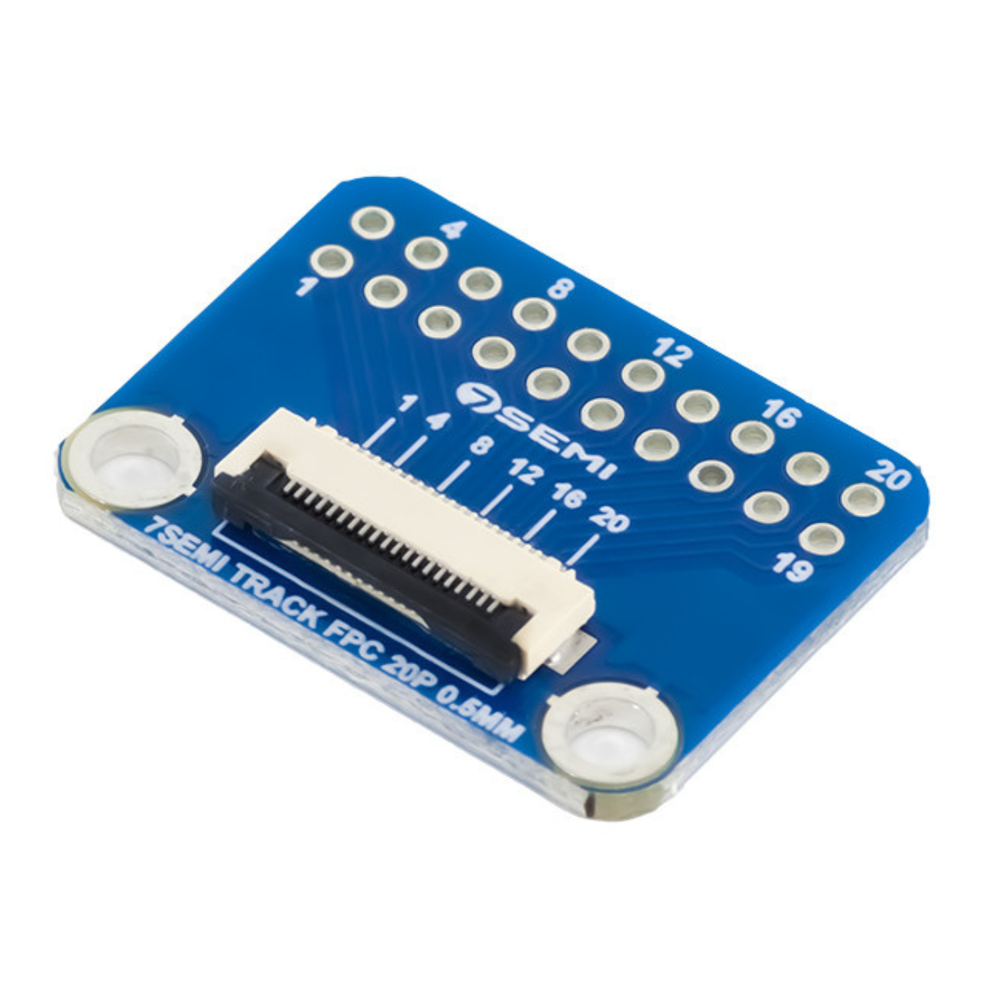

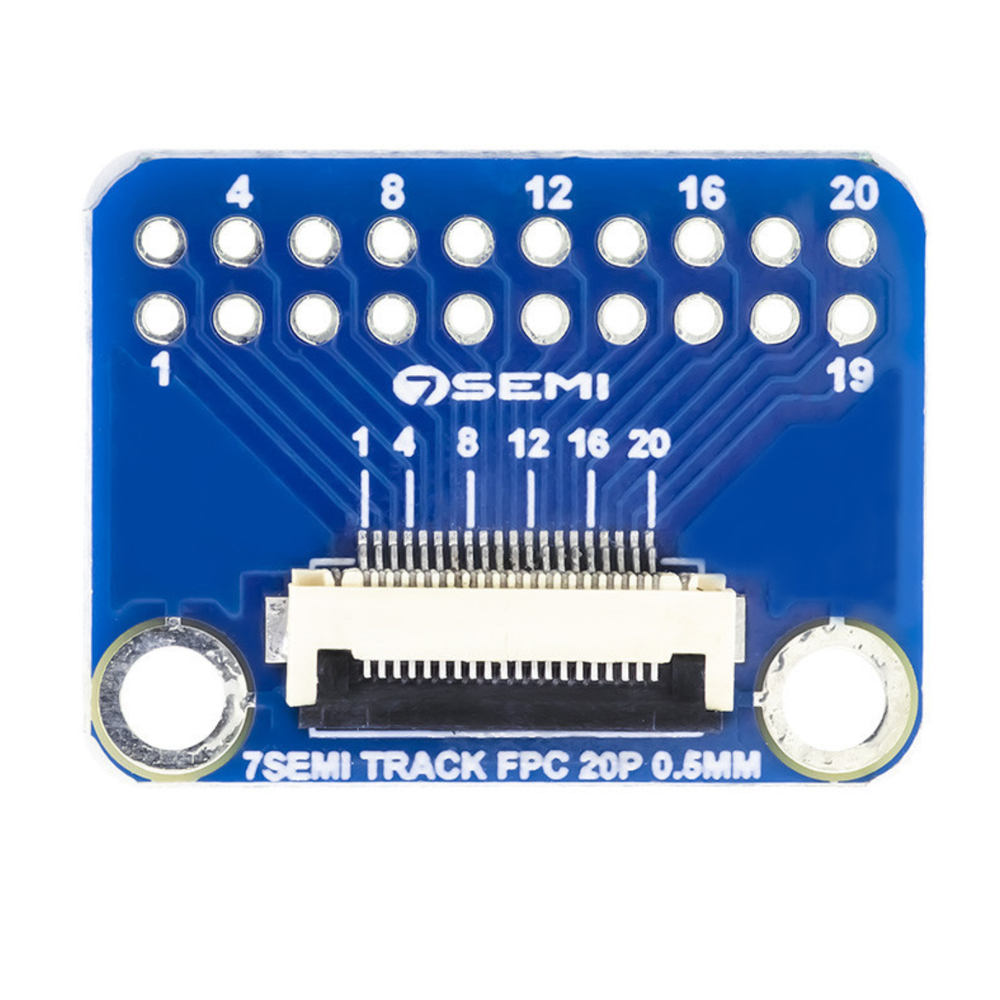

  • 0.5mm pitch FPC connector with 20-pin configuration
  • Front-flip, bottom-contact design for secure cable retention
  • 0.1" spaced dual-row headers for breadboard compatibility
  • Compact 40mm x 25mm form factor
  • Clearly labeled pin numbers to reduce wiring errors
  • Compatible with Arduino, Raspberry Pi, and ESP32
  • Enables easy interfacing with fine-pitch flat cables
  • Solderless prototyping support via breadboard headers
  • Durable SMT connector for repeated use
  • Ideal for IoT, embedded systems, and rapid prototyping

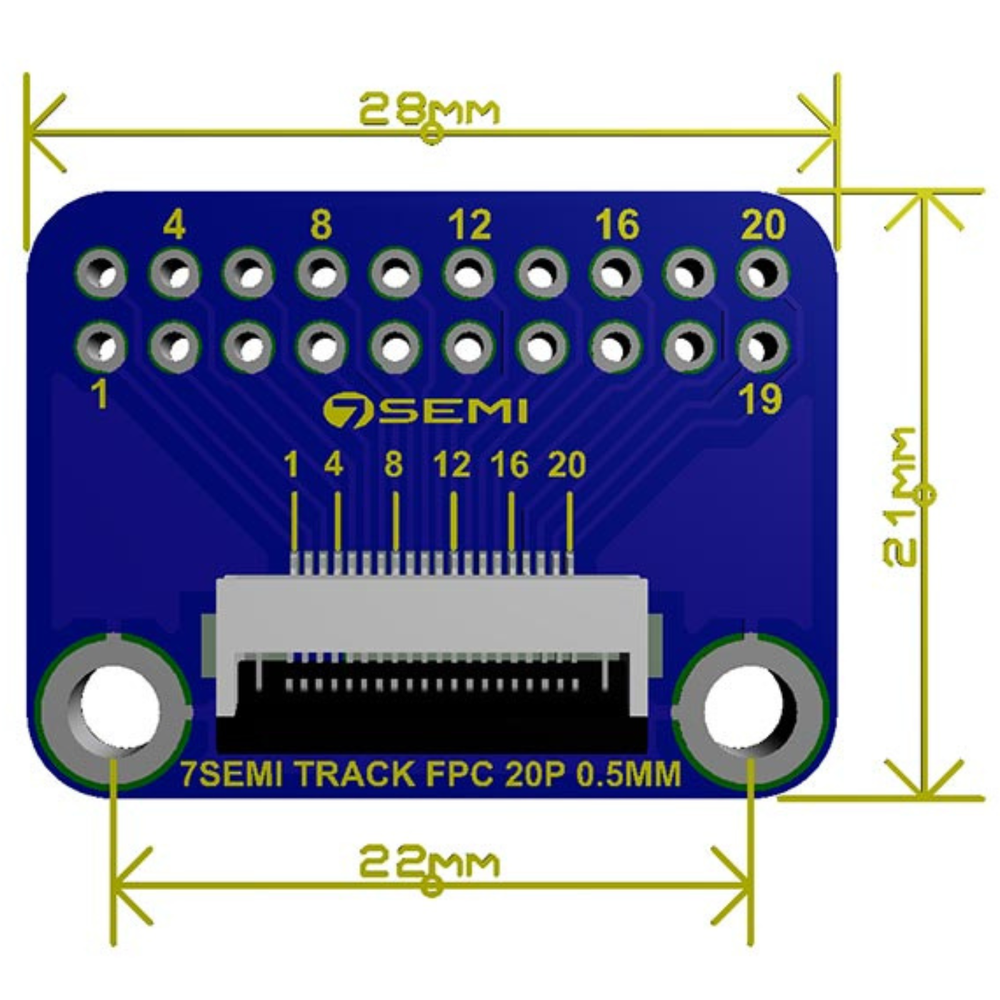

Category Parameter
Footprint Dimensions Body Size
Pitch 0.5 mm
Connector Mounting PAD 1 3 mm × 2.2 mm
Connector Mounting PAD 2 11 mm × 2.2 mm
Board Dimensions Board Size (L × W)
Board Thickness 1.6 mm
Through Hole Spacing (X Axis) 2.54 mm (40 mil)
Through Hole Spacing (Y Axis) 2.54 mm (40 mil)
Side Hole & Pad 1 mm (Drill) / 2 mm (Pad)
PCB Mounting Through Hole 3.2 mm (Drill) / 5 mm (Pad)
Board Specification PCB Copper Layers
Surface Finish HAL (Hot Air Leveling)
Material FR4
Finished Copper Thickness 1 oz (35 µm)
Maximum Trace Length < 14 mm
No. of Pins / Through-Holes 20
Is this FFC breakout board compatible with Arduino and Raspberry Pi?

Yes, the 0.1" spaced headers are breadboard and microcontroller-friendly, including Arduino, Raspberry Pi, and ESP32.

What is the pitch and pin count of the FPC connector?

It features a 0.5mm pitch with 20 pins and uses a front-flip, bottom-contact mechanism for secure cable connection.

Can this board be used for prototyping without soldering?

Yes, the 0.1" header holes allow direct insertion into breadboards for solderless prototyping.

What is the size of the breakout board?

The board measures 40mm x 25mm, making it compact for space-constrained designs.
