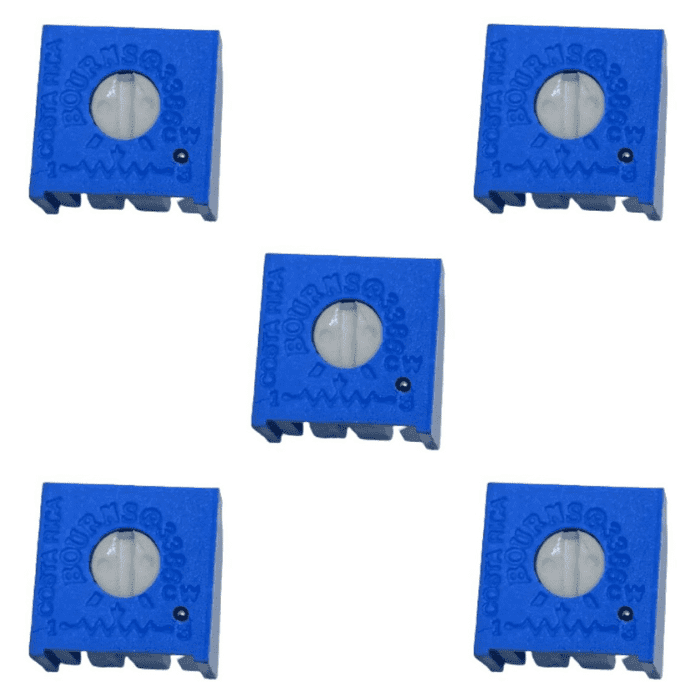

5K 3386P Trimpot(Pack of 5)
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.

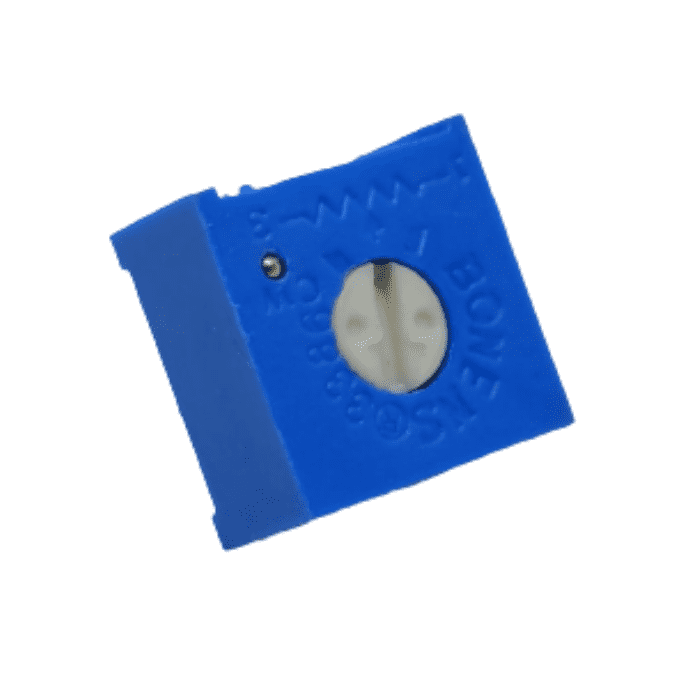

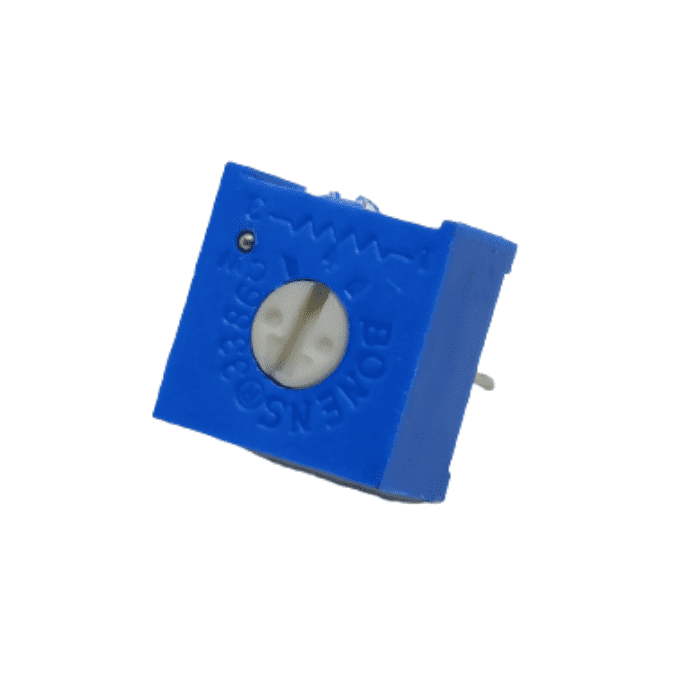

5K 3386P Trimpot Trimmer Potentiometer (Pack of 5) 5K 3386P Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value. Applications Can be used to adjust the voltage drop in the circuit Measurement and Test of electronic circuits Can be used to control the intensity of led lights in DIY projects Also check 1K 3386P Trimpot(Pack of 5) . Trimmer potentiometers are used to adjust voltage in circuits. They are small and can be mounted on PCBs. The 1K 3386P has a resistance of 1k ohms.
- 5KΩ resistance value with ±10% tolerance
- Single-turn cermet trimmer for stable adjustments
- 3-terminal through-hole design for PCB mounting
- Compatible with Arduino, Raspberry Pi, and other microcontrollers
- Pack of 5 units for prototyping and bulk use
- Top-adjust slot for easy screwdriver tuning
- High accuracy and repeatability
- Compact 6mm x 6mm footprint
- Ideal for voltage division and calibration
- Durable construction for long-term use
- Suitable for industrial and educational applications
| Type | Trimmer Resistors - Through Hole |
|---|---|
| Series: | 3386P |
| Mounting Style: | PCB Mount |
| Resistance: | 5K Ohms |
What is a 3386P trimpot used for?
It's used to adjust voltage levels in circuits, calibrate sensors, or control signal intensity in DIY and professional electronics.
Can I use the 5K 3386P trimpot with Arduino?
Yes, it's compatible with Arduino and Raspberry Pi for analog input calibration and voltage division.
How do you adjust the 3386P trimpot?
Use a small flathead screwdriver to rotate the adjustment slot and vary the resistance between terminals.
Is this trimpot PCB mountable?
Yes, it features a 3-terminal through-hole design for secure PCB mounting.
What is the resistance value and tolerance of the 3386P-5K?
The 3386P-5K has a nominal resistance of 5KΩ with a typical tolerance of ±10%, suitable for precise circuit tuning.
