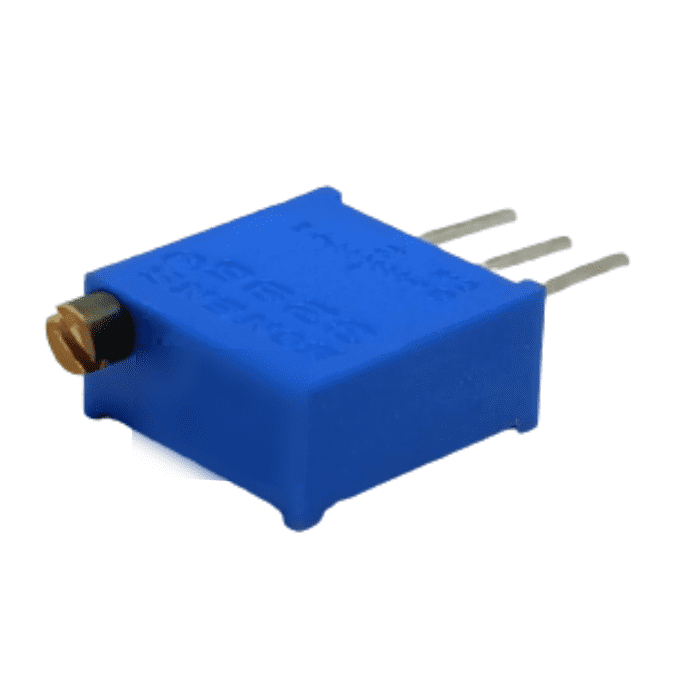

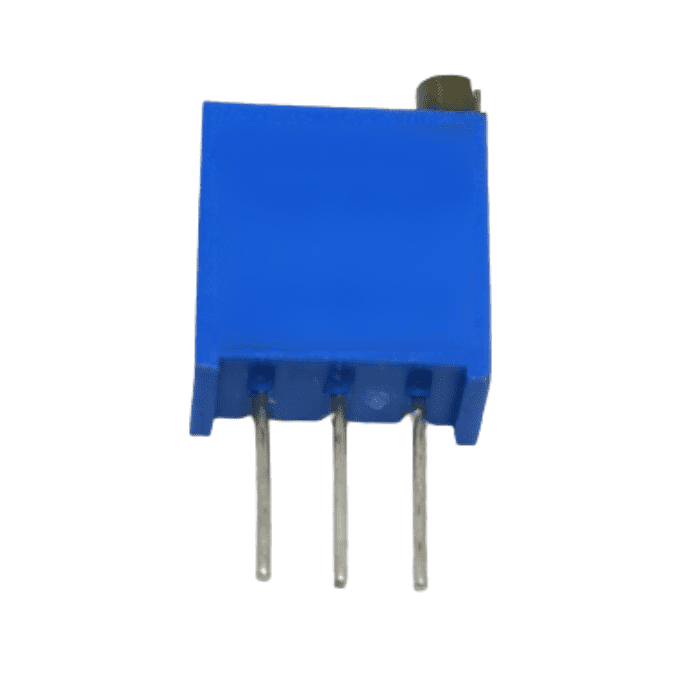

50K 3296W Trimpot(Pack of 5)
Only 7 items in stock. Additional quantity can be backordered.
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.
50K 3296W Trimpot Trimmer Potentiometer (Pack of 5) 50K 3296W Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value. Applications Can be used to adjust the voltage drop in the circuit Measurement and Test of electronic circuits Can be used to control the intensity of led lights in DIY projects
- 50KΩ (50,000 ohms) adjustable resistance
- 3-terminal through-hole design for PCB mounting
- Compatible with Arduino, Raspberry Pi, and ESP32
- Single-turn cermet trimmer for precise voltage control
- Pack of 5 units for bulk use and prototyping
- Ideal for sensor calibration, LED dimming, and signal conditioning
- High-accuracy variable resistor for precise tuning
- Durable cermet element ensures long-term stability
- Easy adjustment with standard flat-head screwdriver
- Compact size ideal for dense PCB layouts
- RoHS compliant and lead-free solder compatible
| Type | Trimmer Resistors - Through Hole |
|---|---|
| Series: | 3296W |
| Mounting Style: | PCB Mount |
| Resistance: | 50K Ohms |
What is the resistance value of the 3296W trimpot?
The 3296W trimpot has a resistance value of 50K ohms (50,000 ohms), adjustable via a screwdriver.
Can this trimpot be used with Arduino or Raspberry Pi?
Yes, it is compatible with Arduino, Raspberry Pi, and other microcontroller boards for voltage division and sensor calibration.
How many terminals does the 3296W trimpot have?
It has 3 terminal pins: two outer pins for input and ground, and a center pin for variable output voltage.
Is this trimpot suitable for PCB mounting?
Yes, the 3296W is a PCB-mountable trimmer potentiometer designed for through-hole soldering on circuit boards.
