500K 3386P Trimpot(Pack of 5)
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.

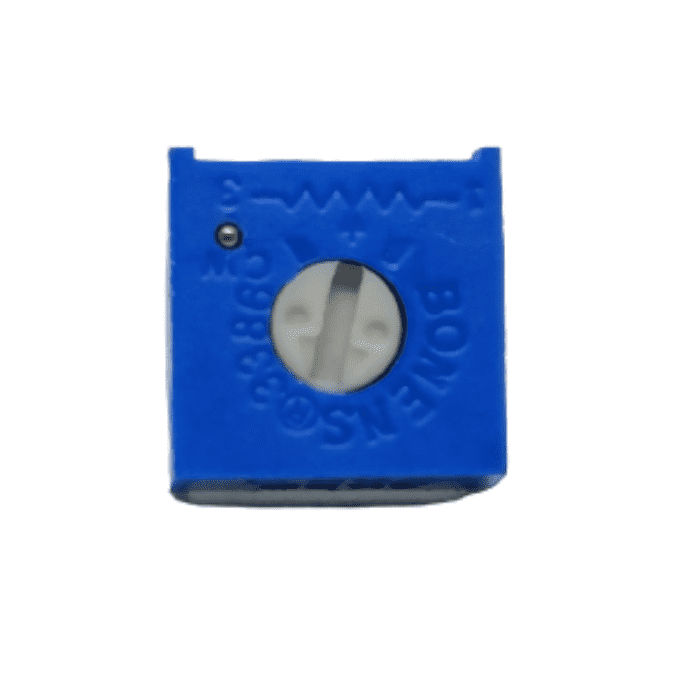

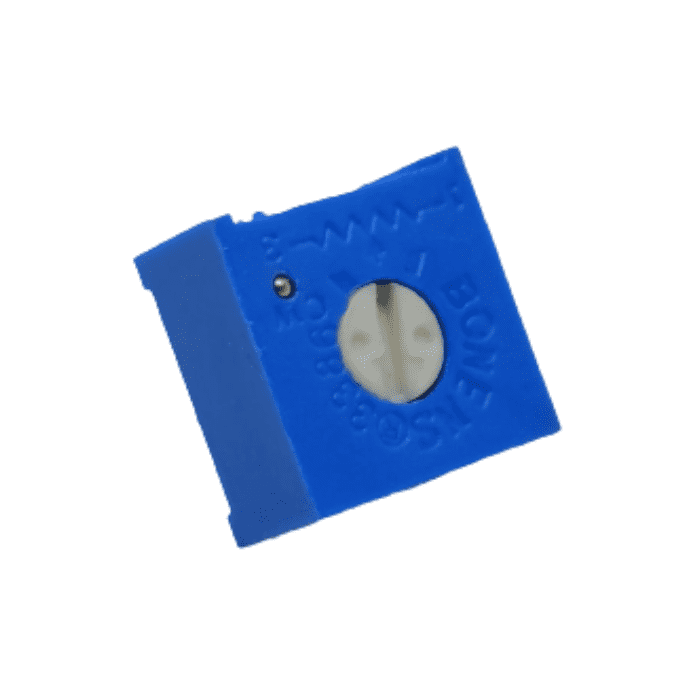

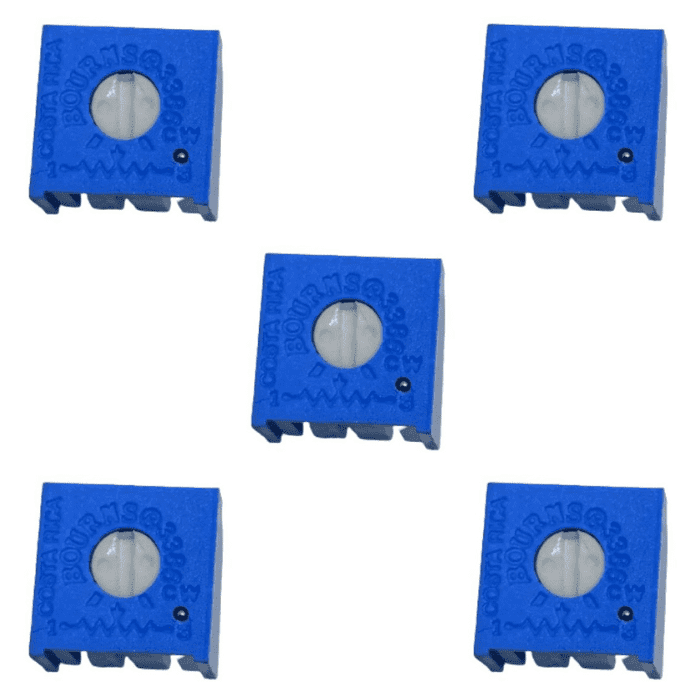

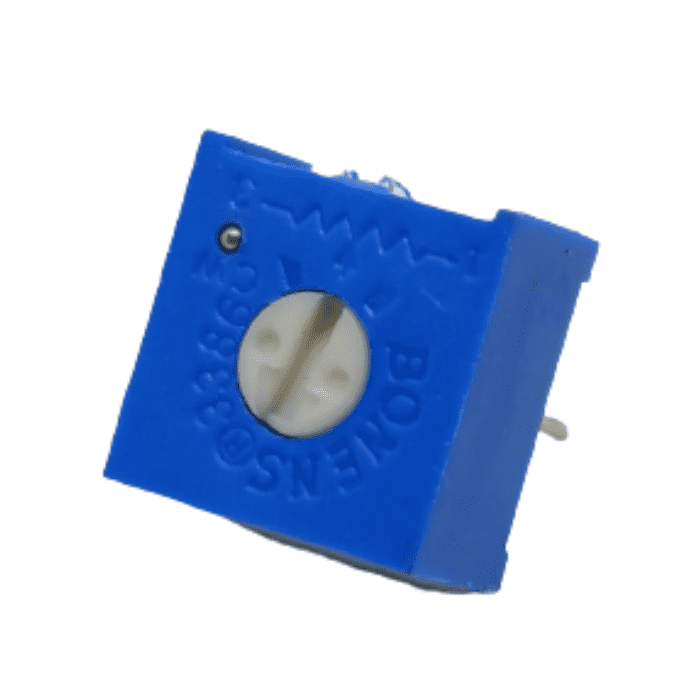

500K 3386P Trimpot Trimmer Potentiometer (Pack of 5) 500K 3386P Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value. Applications Can be used to adjust the voltage drop in the circuit Measurement and Test of electronic circuits Can be used to control the intensity of led lights in DIY projects. Also check the 100K 3386P Trimpot Trimmer Potentiometer (Pack of 5) available on the Iotcart website. It is a high-accuracy variable resistor with PCB mountability and features three terminal pins. The trimpot can be used to adjust, tune, and calibrate circuits.
- 500KΩ (±10%) resistance value
- Single-turn cermet trimmer potentiometer
- Three-terminal through-hole design for PCB mounting
- Compatible with Arduino, Raspberry Pi, and ESP32
- Pack of 5 units for prototyping and scaling
- Adjustable via standard screwdriver
- Ideal for voltage division, calibration, and signal tuning
- High-accuracy resistance adjustment
- Stable performance under thermal stress
- Compact size for dense PCB layouts
- Reliable long-term contact resistance
- Suitable for industrial and hobbyist applications
| Type | Trimmer Resistors - Through Hole |
|---|---|
| Series: | 3386P |
| Mounting Style: | PCB Mount |
| Resistance: | 500K Ohms |
What is the resistance value of the 3386P trimpot?
The 3386P-500K trimpot has a nominal resistance of 500KΩ (500,000 ohms), suitable for high-impedance analog signal conditioning and voltage division.
Can this trimpot be used with Arduino or Raspberry Pi?
Yes, it is fully compatible with Arduino, Raspberry Pi, and other microcontrollers for voltage adjustment, sensor calibration, and analog signal tuning.
How is the 3386P trimpot mounted on a PCB?
It features three through-hole leads for secure soldering directly onto PCBs, ensuring stable mechanical and electrical connections in embedded systems.
What tools are needed to adjust the trimpot?
A small flat-head or Phillips screwdriver is required to rotate the adjustment slot on top of the trimpot for precise resistance tuning.
