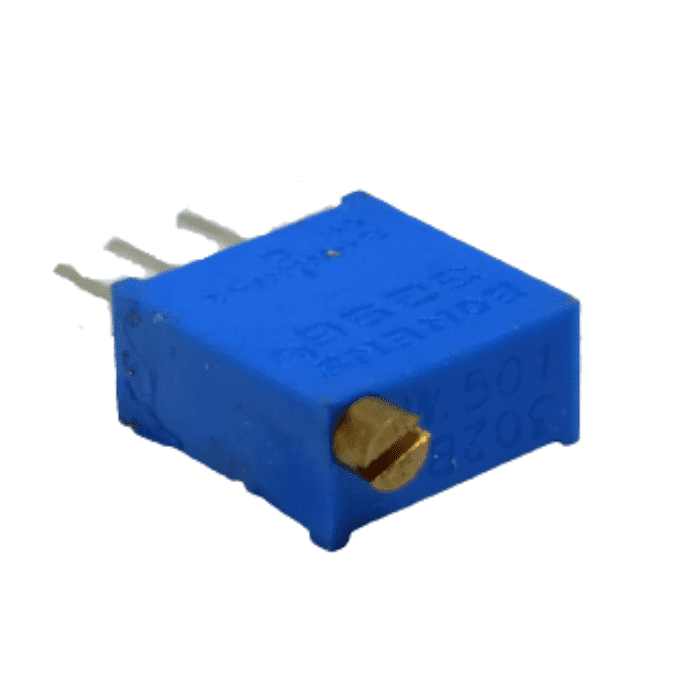

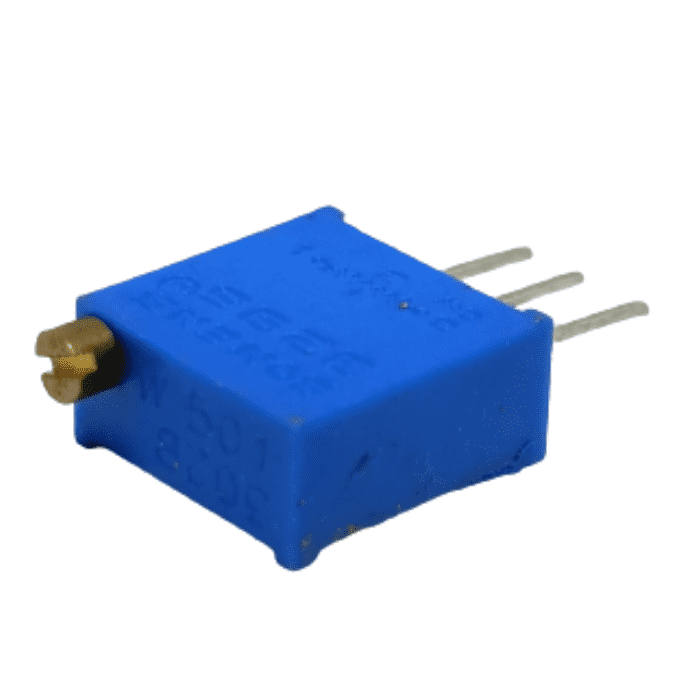

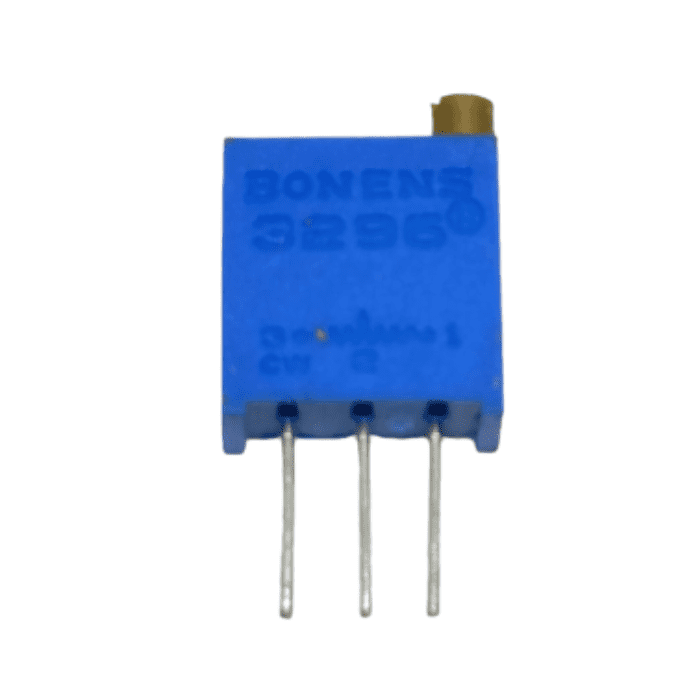

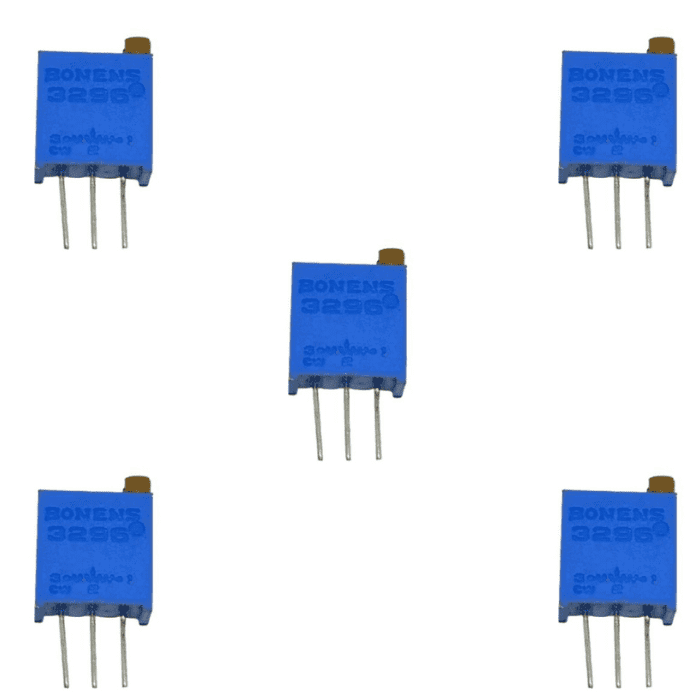

500E 3296W Trimpot(Pack of 5)
Only 7 items in stock. Additional quantity can be backordered.
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.
500E 3296W Trimpot Trimmer Potentiometer (Pack of 5) 500E 3296W Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value. Applications Can be used to adjust the voltage drop in the circuit Measurement and Test of electronic circuits Can be used to control the intensity of led lights in DIY projects Also check 10E 3296W Trimpot(Pack of 5) . It's a small, adjustable resistor with a maximum resistance of 100 ohms. It's commonly used in electronic circuits to fine-tune voltage, current, or other electrical parameters.
- 10kΩ resistance (3296W-103)
- Through-hole PCB mountable
- Compatible with Arduino & Raspberry Pi
- Single-turn preset adjustment
- Pack of 5 units
- Stable cermet element
- High accuracy and stability
- Compact 3296W standard footprint
- Easy screwdriver adjustment
- Suitable for prototyping and production
- Wide compatibility with microcontrollers
| Type | Trimmer Resistors - Through Hole |
|---|---|
| Series: | 3296W |
| Mounting Style: | PCB Mount |
| Resistance: | 500E Ohms |
What is the resistance value of the 3296W-103 Trimpot?
The 3296W-103 has a resistance of 10kΩ (10,000 ohms), ideal for precise voltage division and signal calibration.
Is this trimpot compatible with Arduino and Raspberry Pi?
Yes, it works seamlessly with Arduino, Raspberry Pi, and other microcontrollers for analog tuning and calibration.
How do I connect the 3296W trimpot on a PCB?
Solder the outer pins to Vcc and GND; the center pin provides variable output voltage based on rotation.
Is this a single-turn or multi-turn potentiometer?
It is a single-turn preset, allowing fast adjustment with a screwdriver—perfect for infrequent tuning.
To rate this product please login!
About 500E 3296W Trimpot(Pack of 5) by Iotcart
Shop 3296W-103 10kΩ Trimpot (Pack of 5). Compatible with Arduino & Raspberry Pi. Ideal for voltage tuning and calibration.
