Order now and we'll have it ready for delivery by the next business day.

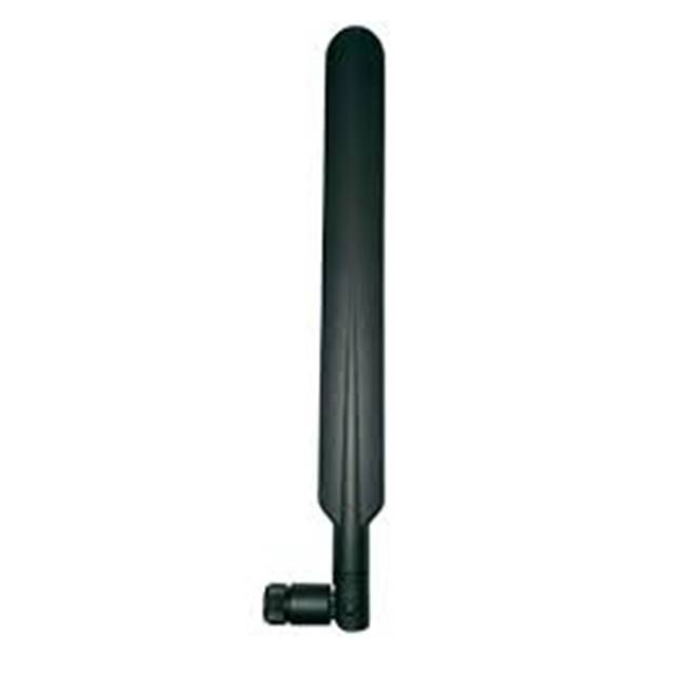

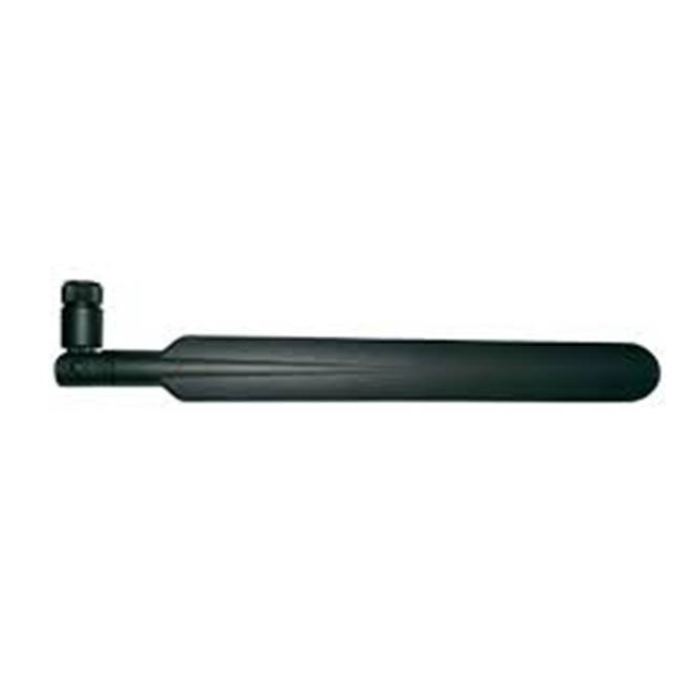

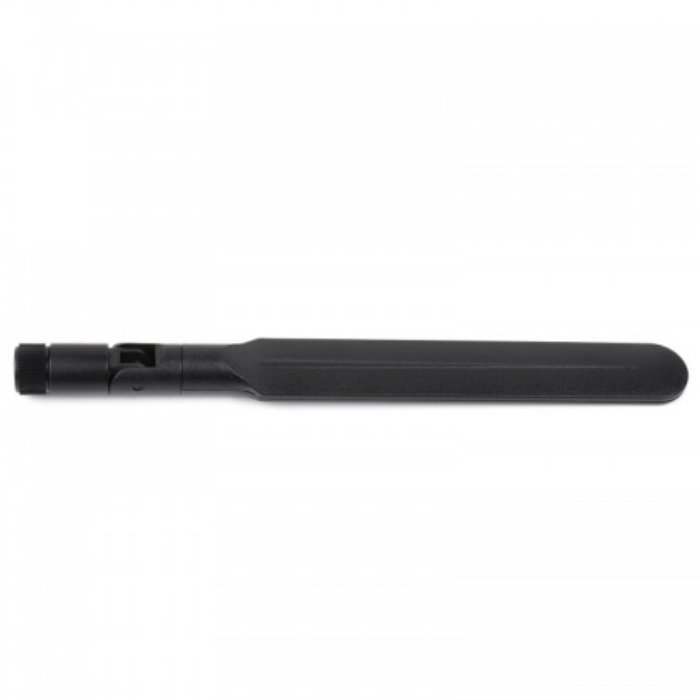

4G SMA Antenna with 2G/3G/4G Support The 4G SMA Antenna supports 2G, 3G, and 4G networks, making it ideal for a wide range of wireless applications. With a gain of 1–3 dBi, 50? impedance, and ?3.0 VSWR, it ensures stable signal performance. Its SMA connector and vertical polarization offer easy integration with routers, modems, and IoT devices. Compact, reliable, and versatile for all your connectivity needs.
| Frequency | 2G, 3G, 4G |
|---|---|
| Impedance | 50 ? |
| Gain | 1 ~ 3 dBi |
| VSWR | ? 3.0 |
| Admitted Power | 10 W |
| Polarization | Linear, Vertical |
| Connector Type | SMA |
| Antenna Base | ABS |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -30°C to +75°C |
Supports 2G, 3G, and 4G LTE networks across 700–2700 MHz, compatible with major Indian carriers.
Yes, works with Raspberry Pi and Arduino when paired with a 4G HAT or shield that has an SMA connector.
SMA male connector with 1–3 dBi gain, 50Ω impedance, and ≤3.0 VSWR for optimal signal transfer.
Suitable for indoor and light outdoor use; not waterproof—requires protective housing for harsh environments.
Available at ₹208.60 (MRP) with bulk pricing options for OEM buyers and educational institutions.
Shop 4G SMA Antenna with 1–3 dBi gain, 50Ω impedance. Compatible with Arduino, Raspberry Pi via HATs. Ideal for IoT and cellular modules.
