4-Pins DIP Momentary Square Tactile Push Button Switch 5 Pieces - 12x12x12mm 12x12x12mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical …
Condition:NEW
As low as₹43.35₹84.00Incl. GST (No Hidden Charges)
Backorder Available
Delivery: Next Day Delivery
IN STOCKSKU#: IOT-2337
Order Before 11 to for same day shipping
Delivery & Pickup Options
Get it Next Day on Order
Order now and we'll have it ready for delivery by the next business day.

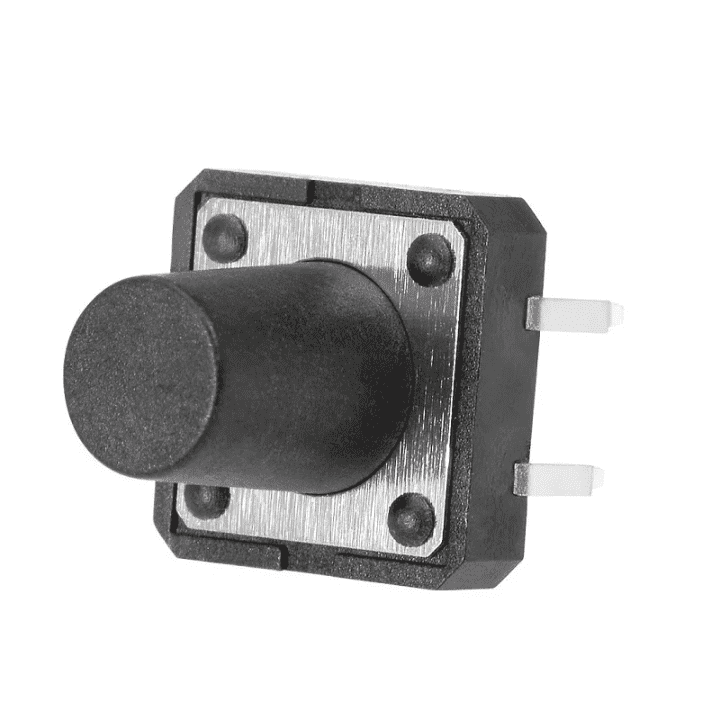

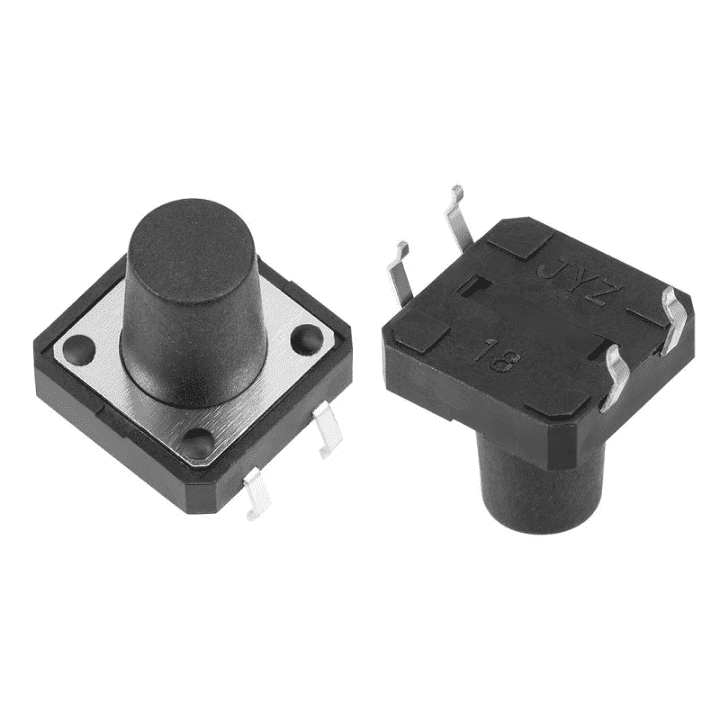

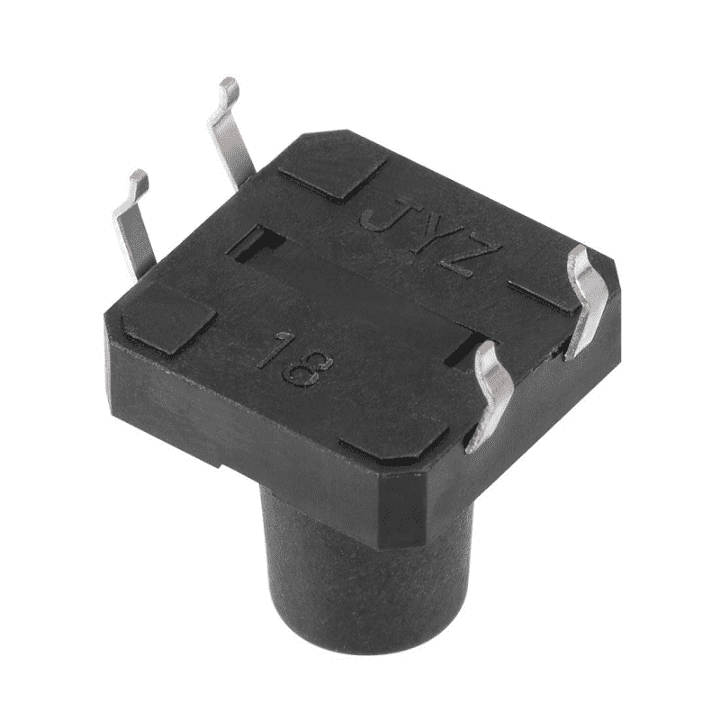

4-Pins DIP Momentary Square Tactile Push Button Switch 5 Pieces - 12x12x12mm
12x12x12mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.
This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
Momentary 4-pin DIP tactile switch

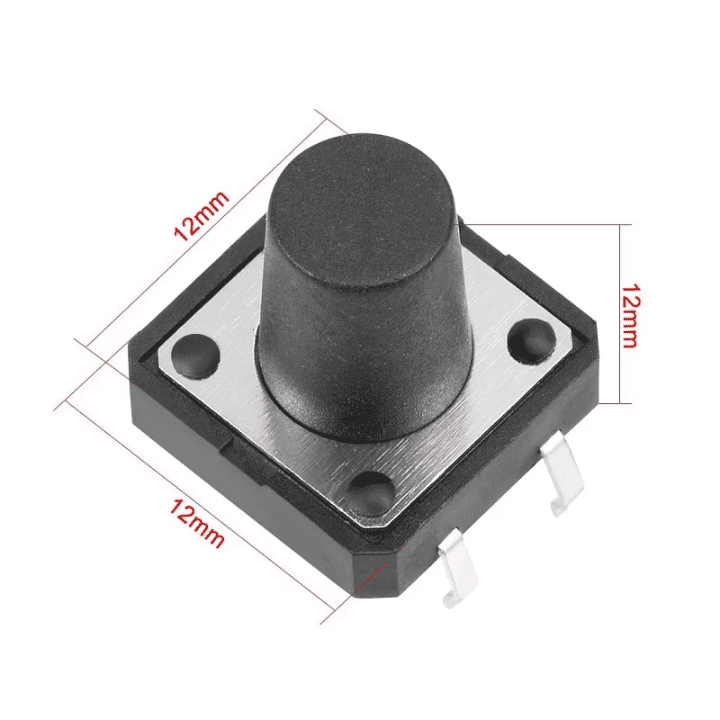

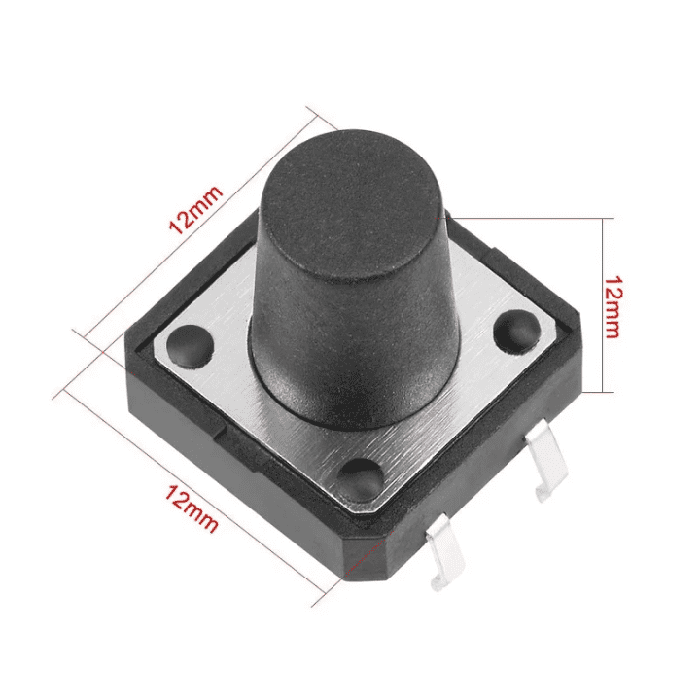

12x12x12mm compact form factor
50mA @ 12V DC rating
Compatible with Arduino, Raspberry Pi, ESP32
Strong tactile feedback with dome contact
Normally open (NO) configuration

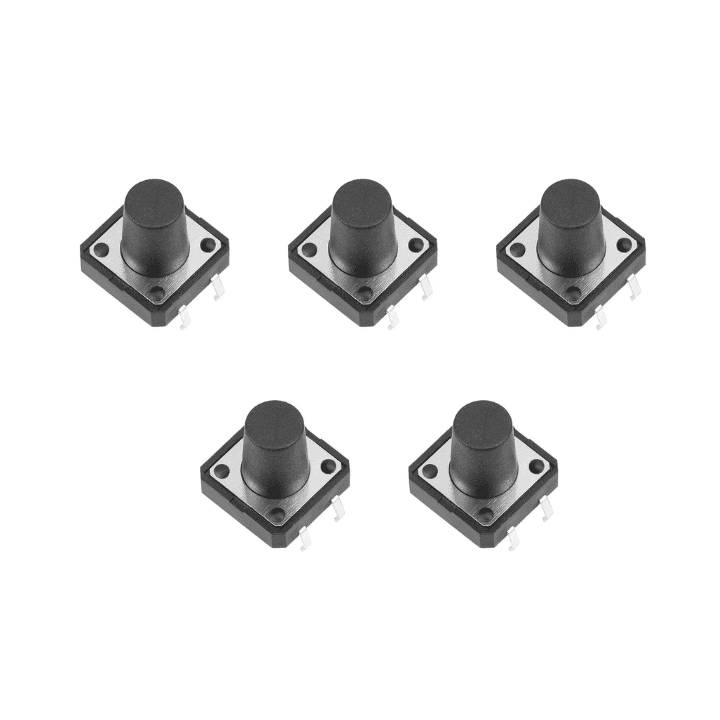

Pack of 5 switches
Durable dome contact mechanism
Strong tactile feedback for precise actuation
Suitable for 3.3V and 5V logic systems
Ideal for prototyping and production use
Wide application in embedded systems and IoT devices
Operating Voltage (VDC)
12
Max. Operating Current (mA)
50mA
On/Off Function
Push to ON
Switch Type
Momentary
Contact Type
Through-hole
Contact Material
Brass
Contact Resistance
50m?
Insulation Resistance (M?)
100
Operating Temperature Range (°C)
-20 to 70
Operation Force
1.56 +/- 0.5 N
Operation Stroke
0.25+0.2/-0.1mm
Body Material
Plastic
Mech. & Electrical Lifecycle
50000
Protection Standard
IP65
Dimensions (mm)
12x12x12
Weight (gm)
1 (approx) (each)
What is the operating voltage and current rating of this tactile switch?
Rated for 50mA at 12V DC, suitable for low-power digital circuits and microcontroller interfaces.
Can this switch be used with Arduino or Raspberry Pi?
Yes, compatible with Arduino, Raspberry Pi, and other 3.3V/5V logic boards for input and reset functions.
Is the switch momentary or latching?
Momentary type – returns to open position when released.
Can it be mounted on a breadboard?
Yes, the 4-pin DIP layout allows temporary breadboard use for prototyping.
