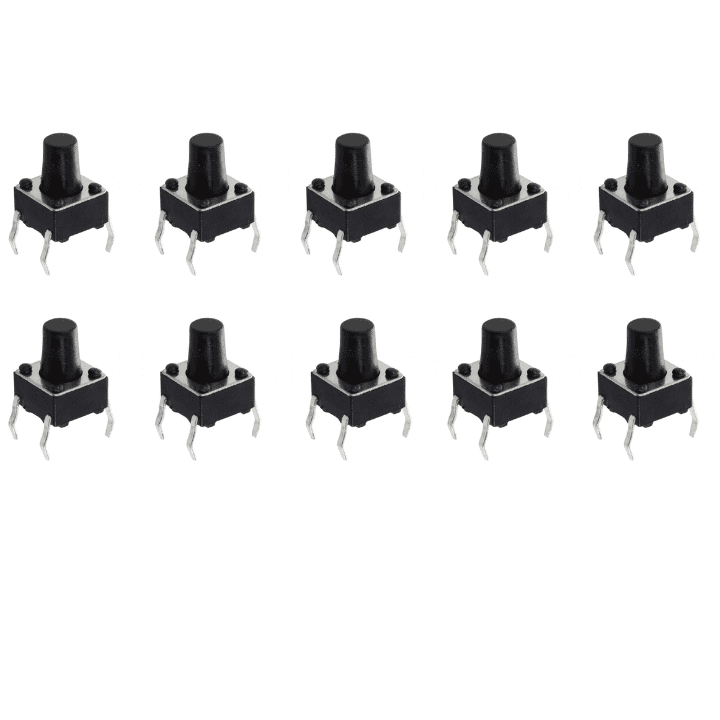

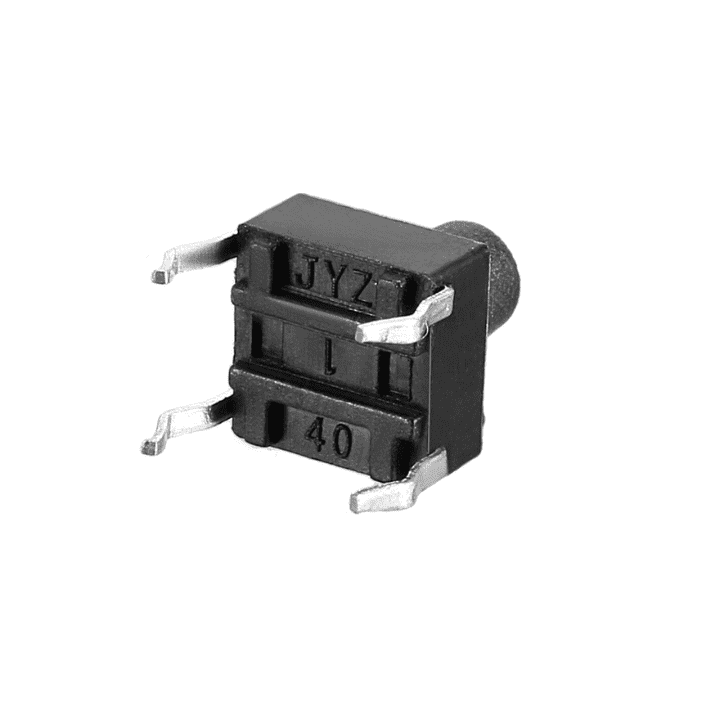

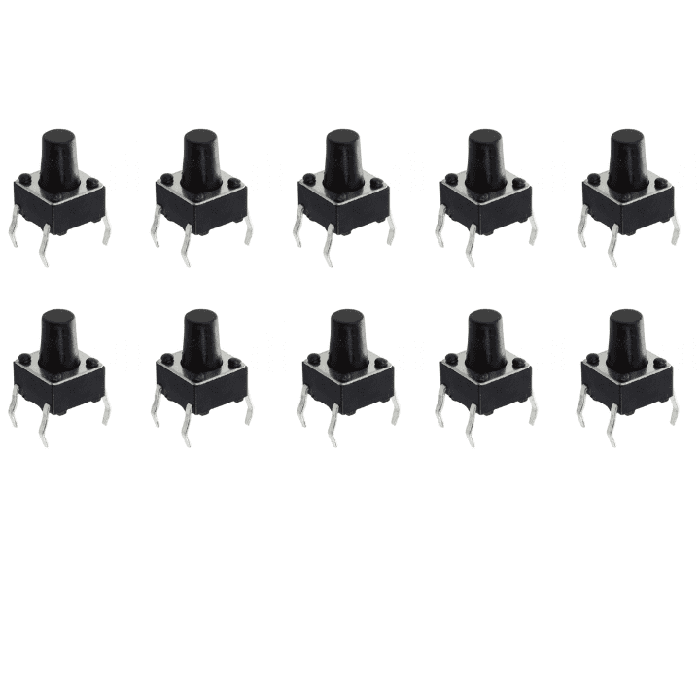

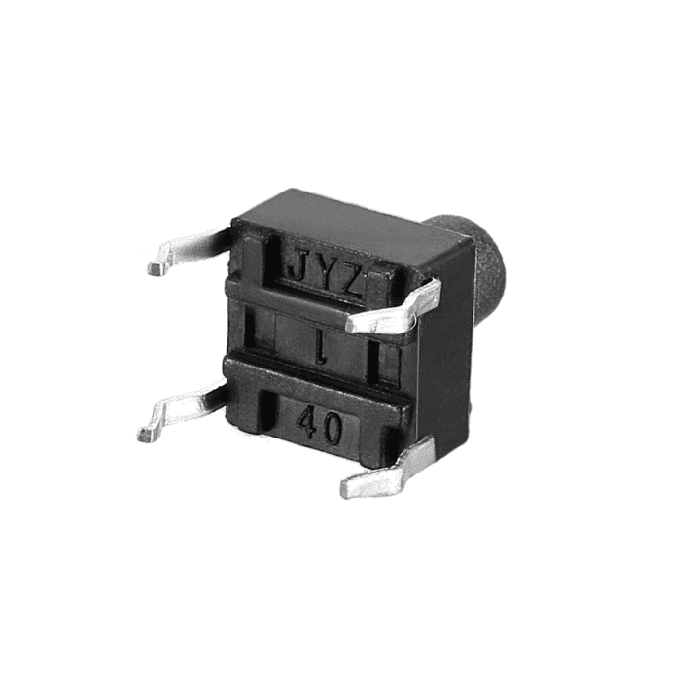

4-Pins DIP Momentary Square Tactile Push Button Switch 10 Pieces - 6x6x8mm 6x6x8mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
| Operating Voltage (VDC) | 12 |
|---|---|
| Max. Operating Current (mA) | 50mA |
| On/Off Function | Push to ON |
| Switch Type | Momentary |
| Contact Type | Through-hole |
| Contact Material | Brass |
| Contact Resistance | 50m? |
| Insulation Resistance (M?) | 100 |
| Operating Temperature Range (°C) | -20 to 70 |
| Operation Force | 1.56 +/- 0.5 N |
| Operation Stroke | 0.25+0.2/-0.1mm |
| Body Material | Plastic |
| Mech. & Electrical Lifecycle | 50000 |
| Protection Standard | IP65 |

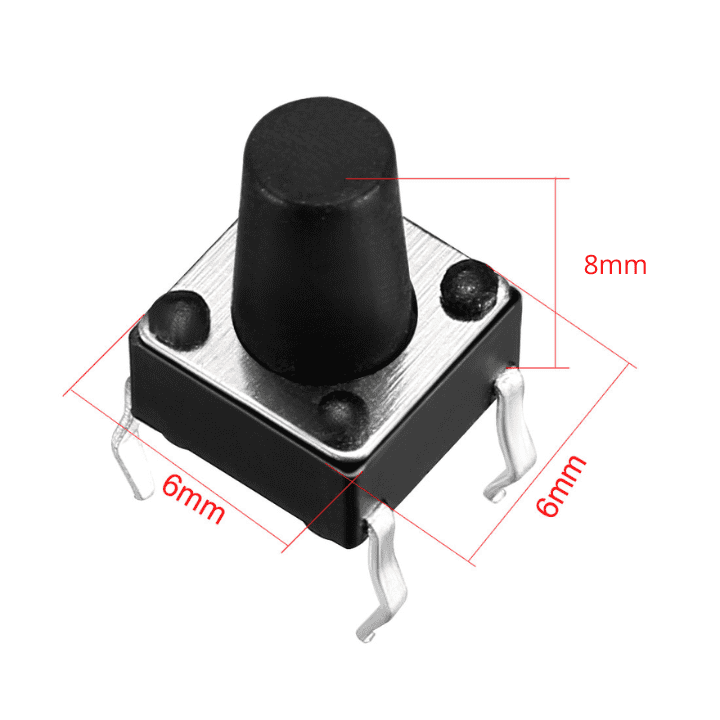

| Dimensions (mm) | 6x6x8 |
| Weight (gm) | 1 (approx) (each) |
Rated for 50mA at 12V DC, suitable for low-power digital circuits and microcontroller inputs.
Yes, the 4-pin DIP layout allows easy insertion into standard solderless breadboards for prototyping.
Yes, commonly used as input buttons for GPIO interfacing on Arduino, Raspberry Pi, and other development boards.
The switch only closes the circuit while pressed—returns to open state when released.
