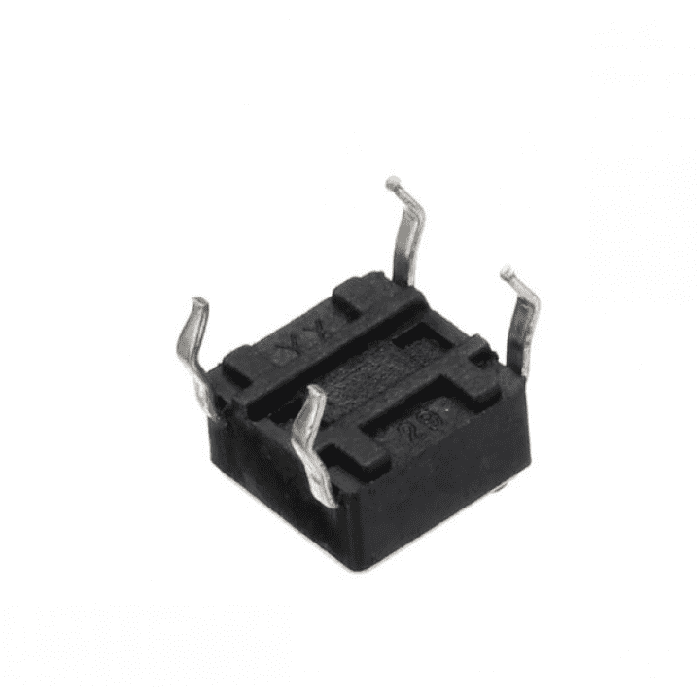

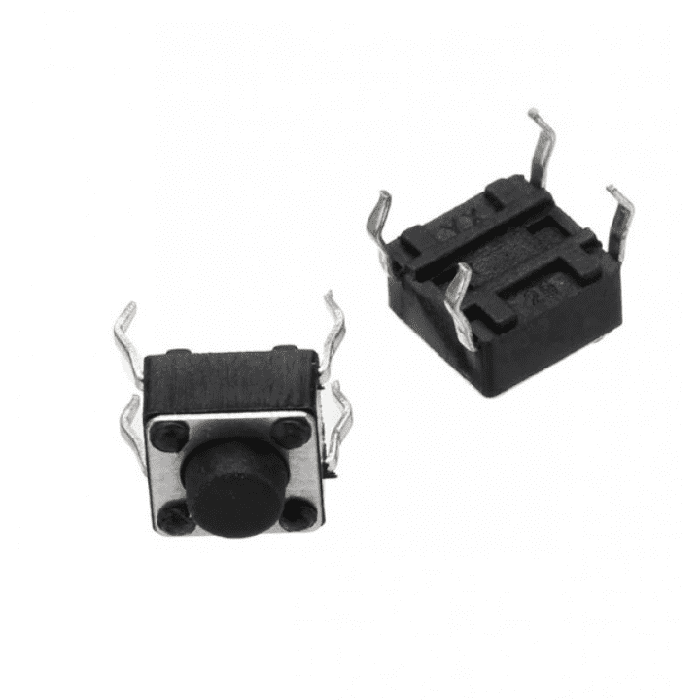

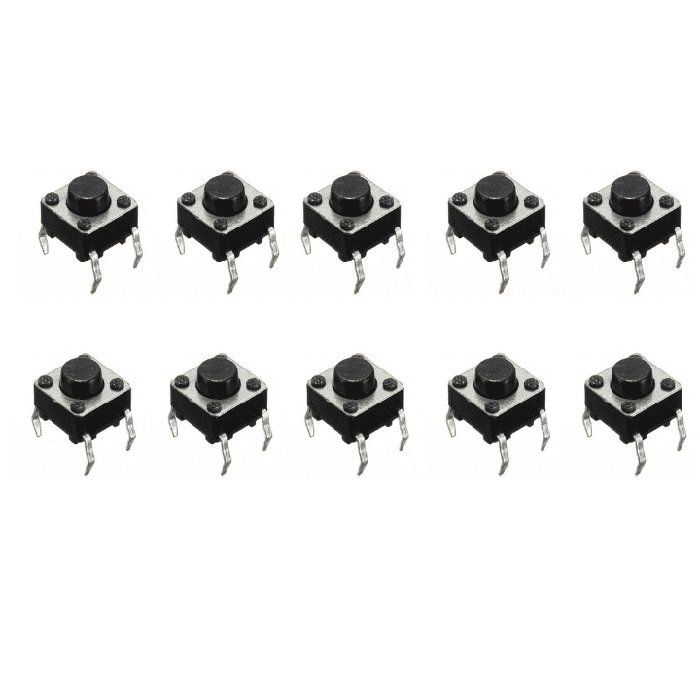

4-Pins DIP Momentary Square Tactile Push Button Switch 10 Pieces - 6x6x5mm 6x6x5mm Tactile 4 Pin Push Button Switch is widely used as a standard input buttons on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.
| Operating Voltage (VDC) | 12 |
|---|---|
| Max. Operating Current (mA) | 50mA |
| On/Off Function | Push to ON |
| Switch Type | Momentary |
| Contact Type | Through-hole |
| Contact Material | Brass |
| Contact Resistance | 50m? |
| Insulation Resistance (M?) | 100 |
| Operating Temperature Range (°C) | -20 to 70 |
| Operation Force | 1.56 +/- 0.5 N |
| Operation Stroke | 0.25+0.2/-0.1mm |
| Body Material | Plastic |
| Mech. & Electrical Lifecycle | 50000 |
| Protection Standard | IP65 |
| Dimensions (mm) | 6x6x5 |
| Weight (gm) | 1 (approx) (each) |
It features a 4-pin DIP layout with normally open (NO) contacts that close momentarily when the button is pressed.
Yes, it is fully compatible with Arduino, Raspberry Pi, and other microcontroller platforms for digital input interfacing.
Yes, the 2.54mm pin spacing allows easy use on standard solderless breadboards for rapid prototyping.
Designed for long-term reliability with durable dome contact technology and strong tactile feedback.
