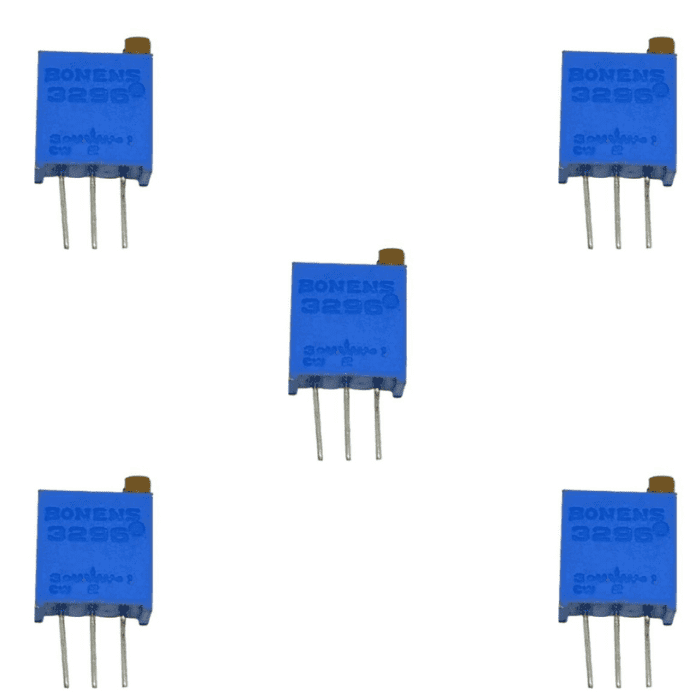

2M 3296W Trimpot(Pack of 5)
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.

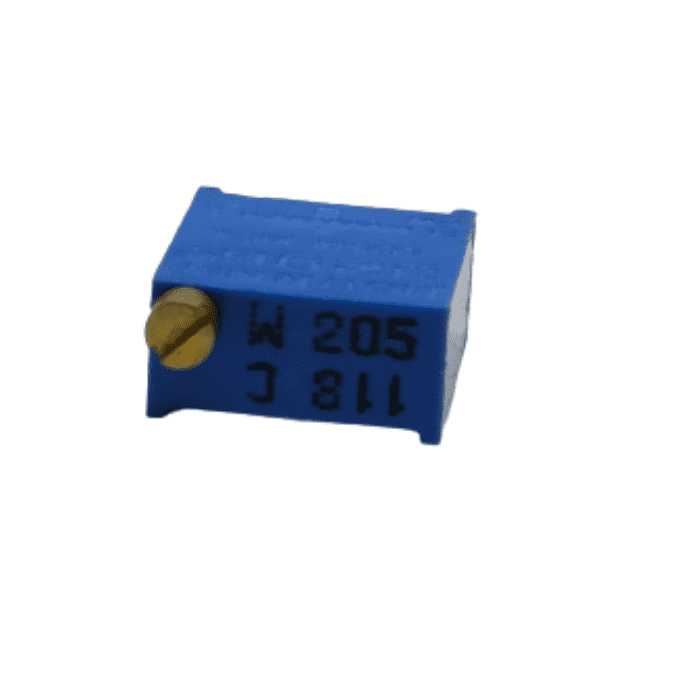

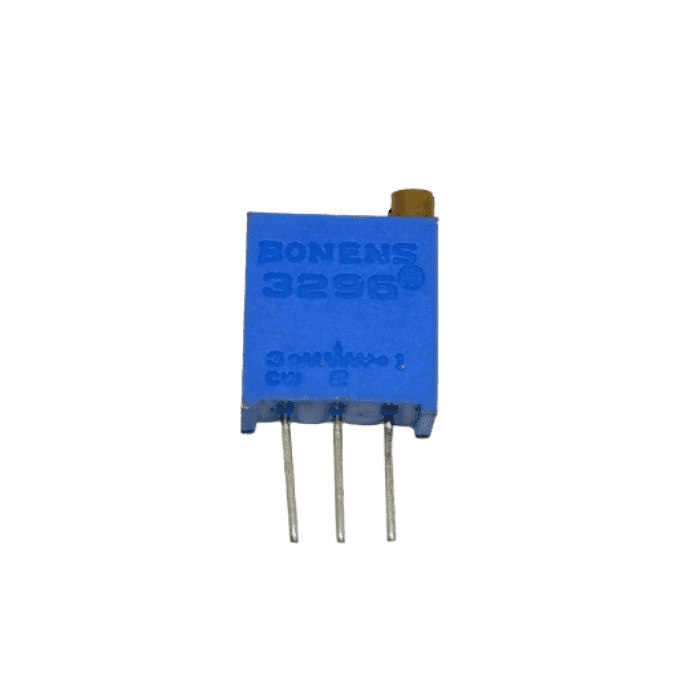

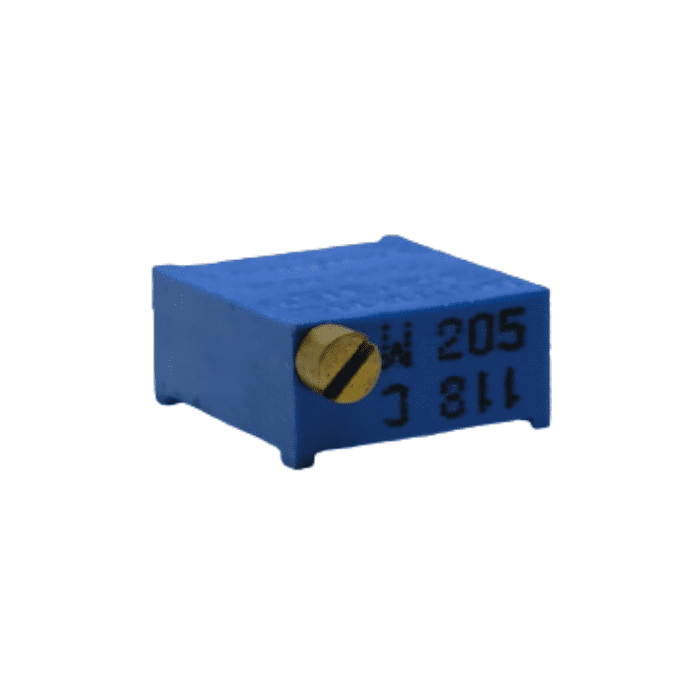

2M 3296W Trimpot Trimmer Potentiometer (Pack of 5) 2M 3296W Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value. Applications Can be used to adjust the voltage drop in the circuit Measurement and Test of electronic circuits Can be used to control the intensity of led lights in DIY projects
- 2 Megaohm (2MΩ) resistance value
- Single-turn preset potentiometer
- PCB mountable with 3 through-hole terminals
- Compatible with Arduino & Raspberry Pi
- Screwdriver-adjustable via top slot
- Pack of 5 units for prototyping
- Stable cermet element for long-term reliability
- High-precision voltage division
- Compact and durable design
- Easy integration with breadboards and PCBs
- Suitable for calibration and tuning circuits
- Cost-effective pack for bulk prototyping
| Type | Trimmer Resistors - Through Hole |
|---|---|
| Series: | 3296W |
| Mounting Style: | PCB Mount |
| Resistance: | 2M Ohms |
What is the resistance value of the 3296W trimpot?
The 3296W-2M trimpot has a resistance of 2 Megaohms (2MΩ), ideal for high-resistance circuit tuning and voltage division.
Can this trimpot be used with Arduino or Raspberry Pi?
Yes, it is fully compatible with Arduino, Raspberry Pi, and other microcontrollers for voltage adjustment and signal calibration.
How is the 3296W trimpot adjusted?
Adjust using a small flat-head or Phillips screwdriver to rotate the internal cermet element for precise resistance control.
Is this product suitable for PCB mounting?
Yes, it features a through-hole PCB-mountable design with three terminals for secure and reliable soldering.
What are common applications for this trimpot?
Used in LED dimming, sensor calibration, power supply regulation, and test/measurement circuits in DIY and OEM projects.
To rate this product please login!
About 2M 3296W Trimpot(Pack of 5) by Iotcart
Shop 3296W-2M trimpot (2MΩ) for precise voltage control. Compatible with Arduino & Raspberry Pi. PCB mountable. Pack of 5.
