2K 3386P Trimpot(Pack of 5)
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.

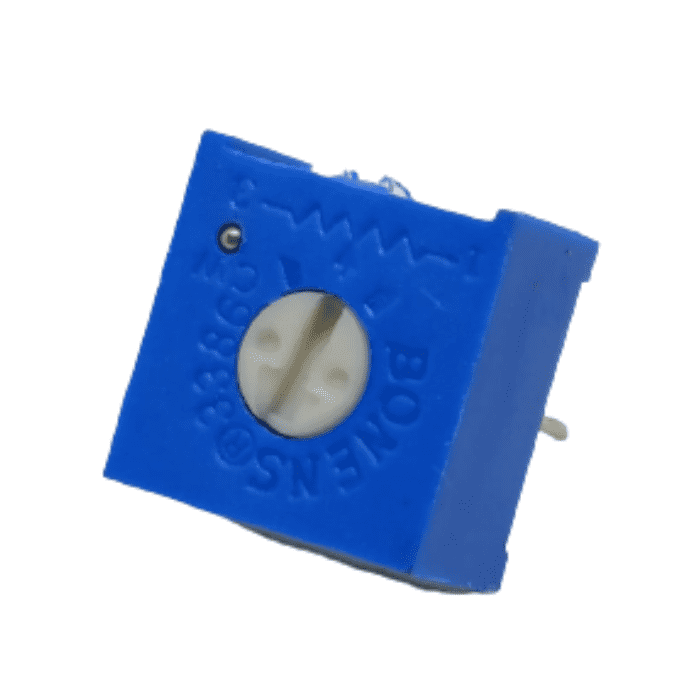

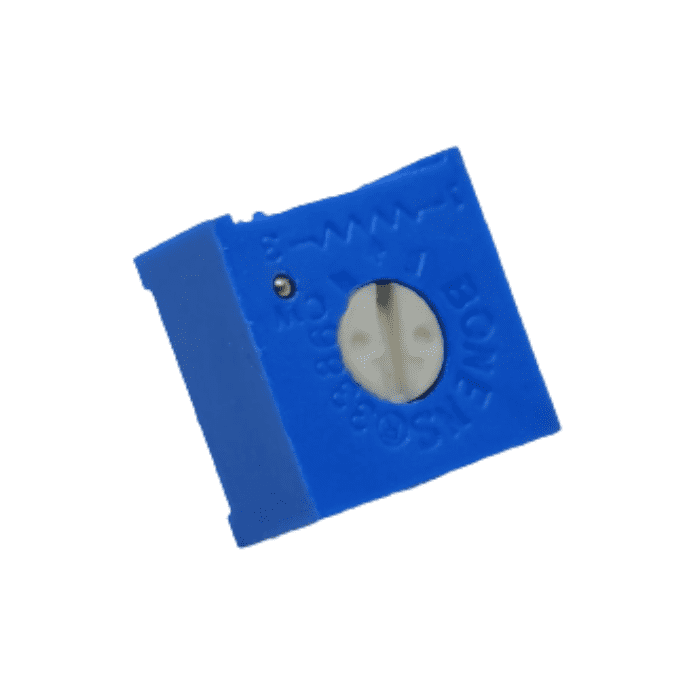

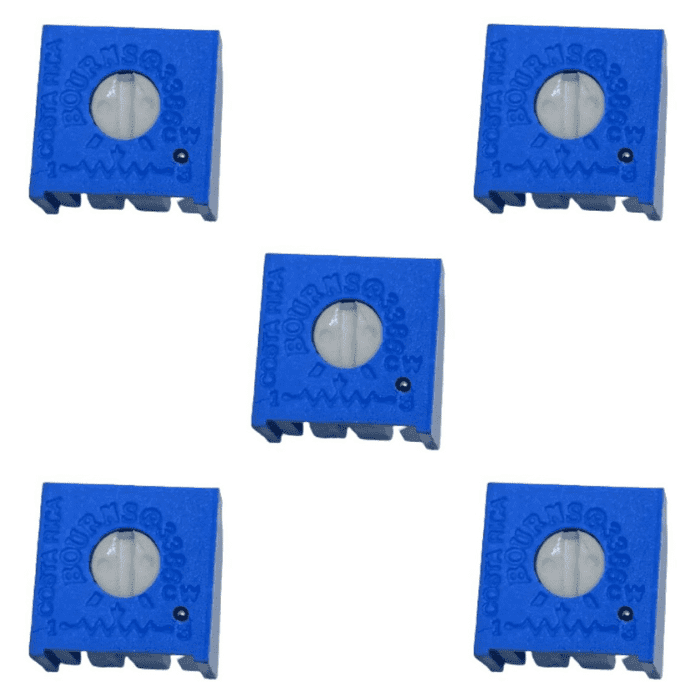

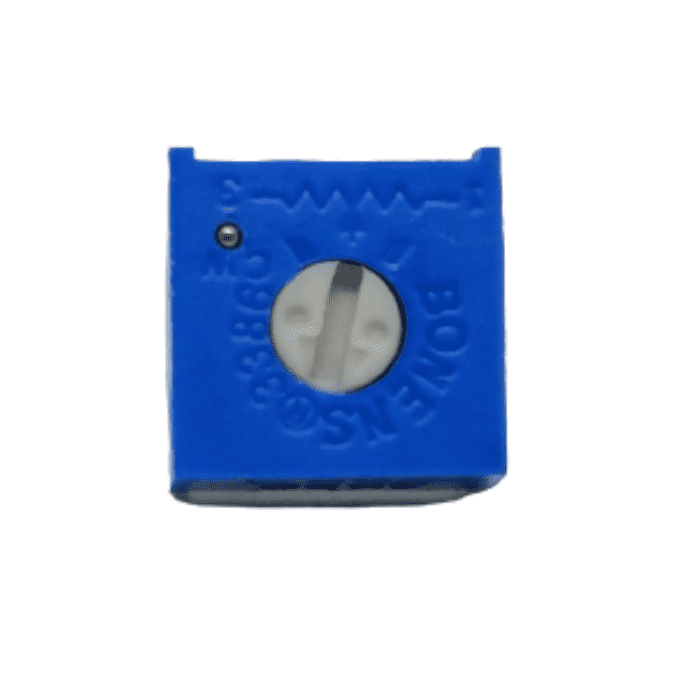

2K 3386P Trimpot Trimmer Potentiometer (Pack of 5) 2K 3386P Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value. Applications Can be used to adjust the voltage drop in the circuit Measurement and Test of electronic circuits Can be used to control the intensity of led lights in DIY projects
- Resistance: 2K Ohm (2000Ω)
- Single-turn cermet trimmer
- Through-hole PCB mount design
- 3-terminal configuration (Vcc, GND, Wiper)
- Adjustable via top screw slot
- Pack of 5 units
- Compatible with Arduino & Raspberry Pi
- High-precision voltage control
- Stable cermet resistive element
- Compact form factor for dense PCB layouts
- Reliable long-term electrical contact
- Ideal for calibration and tuning applications
| Type | Trimmer Resistors - Through Hole |
|---|---|
| Series: | 3386P |
| Mounting Style: | PCB Mount |
| Resistance: | 2K Ohms |
What is the resistance value of the 3386P trimpot?
The 3386P trimpot has a resistance value of 2 kilo-ohms (2K).
Can this trimpot be used with Arduino or Raspberry Pi projects?
Yes, it is compatible with Arduino, Raspberry Pi, and other microcontroller-based circuits for voltage adjustment and calibration.
How do you adjust the 3386P trimpot?
Use a small flathead screwdriver to rotate the adjustment slot and vary the output voltage between 0V and Vcc.
Is this trimpot suitable for PCB mounting?
Yes, it features a 3-terminal through-hole design for easy PCB mounting and secure soldering.
