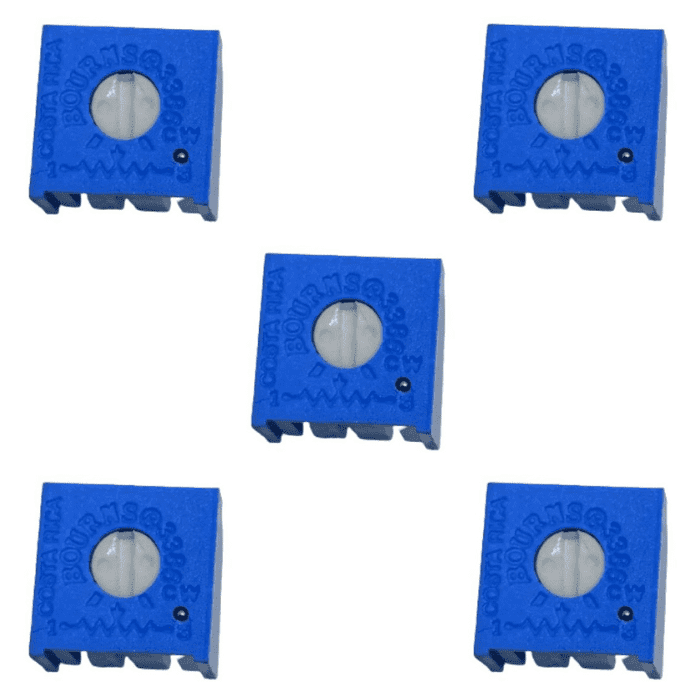

1K 3386P Trimpot(Pack of 5)
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.

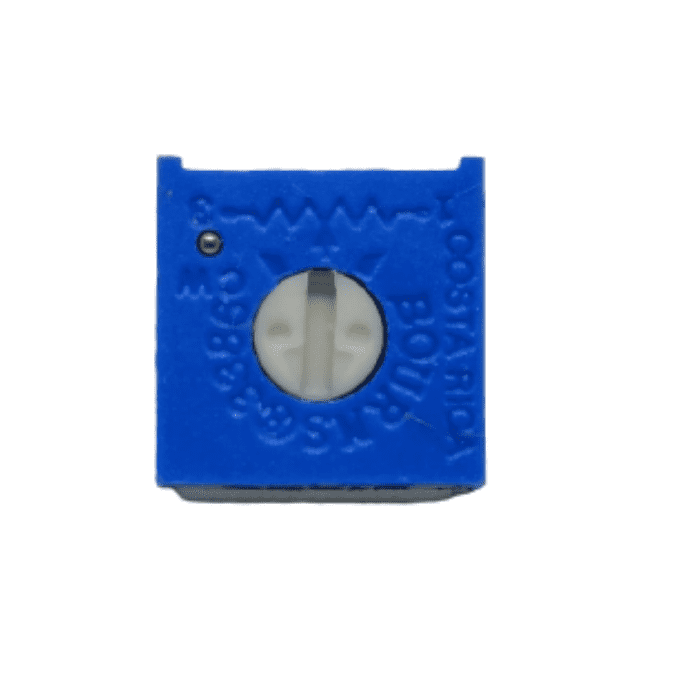

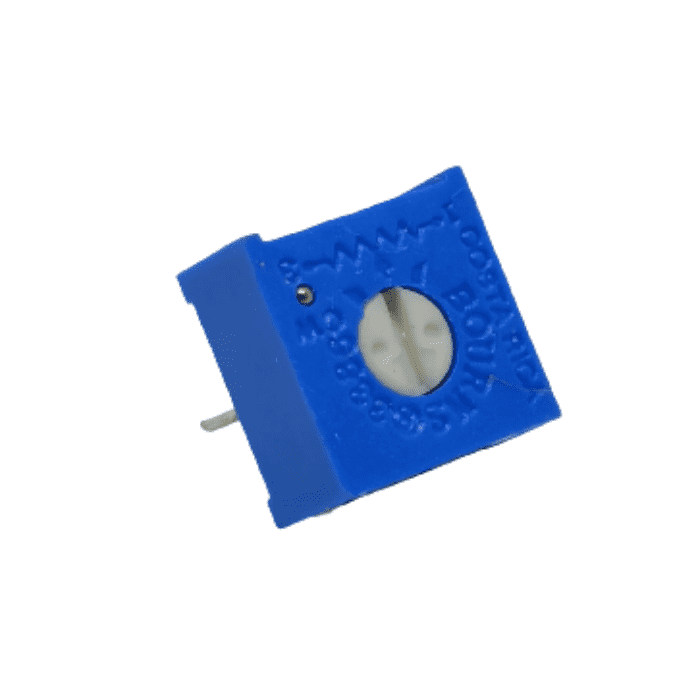

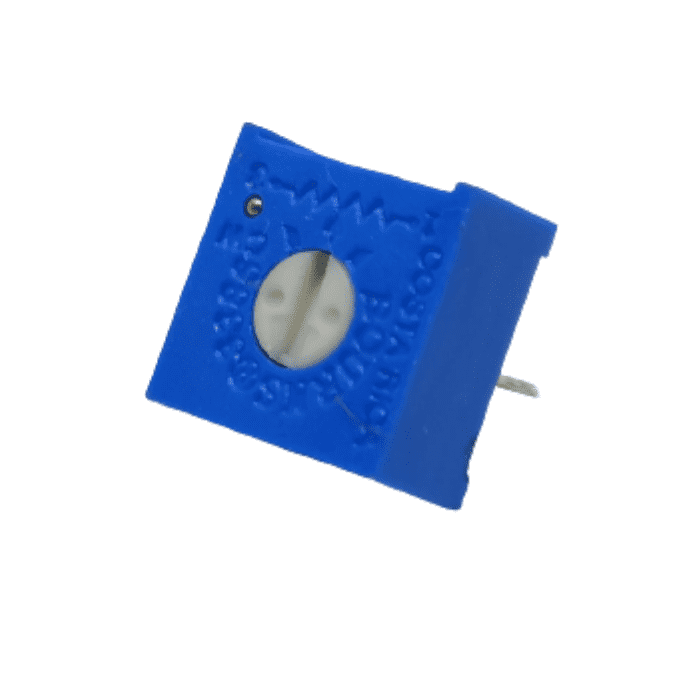

1K 3386P Trimpot Trimmer Potentiometer (Pack of 5) 1k 3386P Trimpot is a high accuracy variable resistor and PCB mountable with 3 terminal pins. A general-purpose board mountable preset also called by other names like potentiometers, Trimpots, etc but is just a variable resistor. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and the center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value. Applications Can be used to adjust the voltage drop in the circuit Measurement and Test of electronic circuits Can be used to control the intensity of led lights in DIY projects
- 1K ohm resistance value
- Single-turn trimmer potentiometer
- PCB mountable with 3 terminal pins
- Compatible with Arduino, Raspberry Pi, and microcontrollers
- Pack of 5 units for bulk use
- Ideal for voltage control, sensor calibration, and LED dimming
- High-precision cermet element for stable resistance
- Compact form factor for dense PCB layouts
- Easy screwdriver adjustment without soldering
- Reliable performance in DIY and industrial applications
- Cost-effective pack of 5 for prototyping and production
| Type | Trimmer Resistors - Through Hole |
|---|---|
| Series: | 3386P |
| Mounting Style: | PCB Mount |
| Resistance: | 1k Ohms |
What is the resistance value of the 3386P trimpot?
The 3386P trimpot has a resistance value of 1 kilo-ohm (1K), suitable for precise voltage division and signal adjustment.
Can this trimpot be used with Arduino or Raspberry Pi?
Yes, it is fully compatible with Arduino, Raspberry Pi, ESP32, and other microcontroller platforms for voltage control and calibration.
How do you adjust the 3386P trimpot?
Use a small flat-head screwdriver to rotate the adjustment screw on top of the trimpot for fine resistance tuning.
Is this a single-turn or multi-turn potentiometer?
This is a single-turn trimpot, optimized for quick preset adjustments in space-constrained PCB designs.
