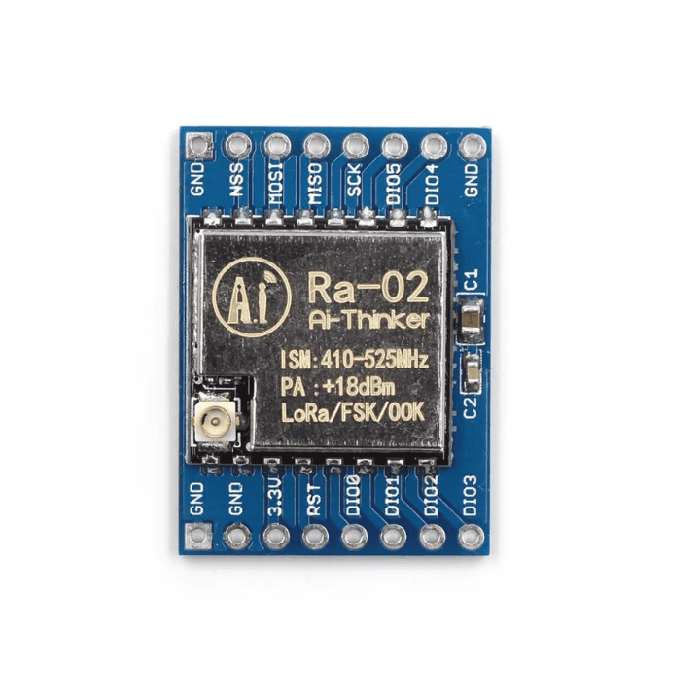

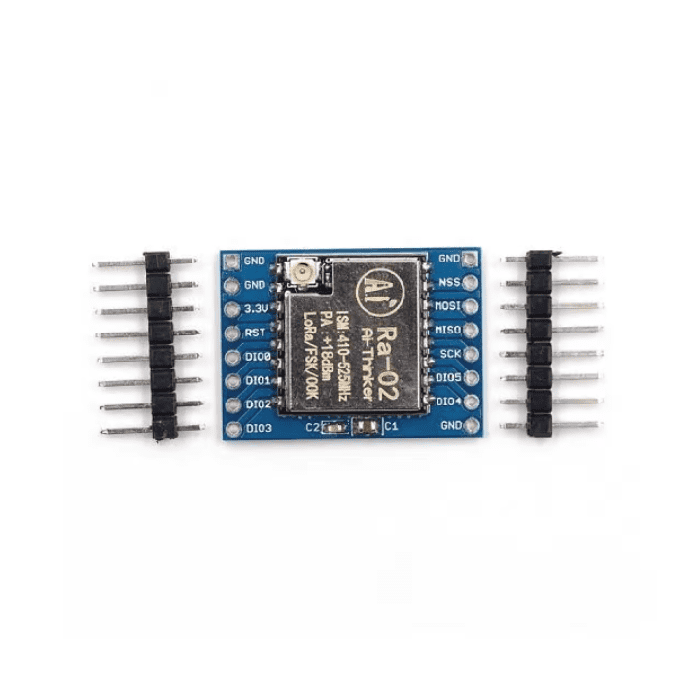

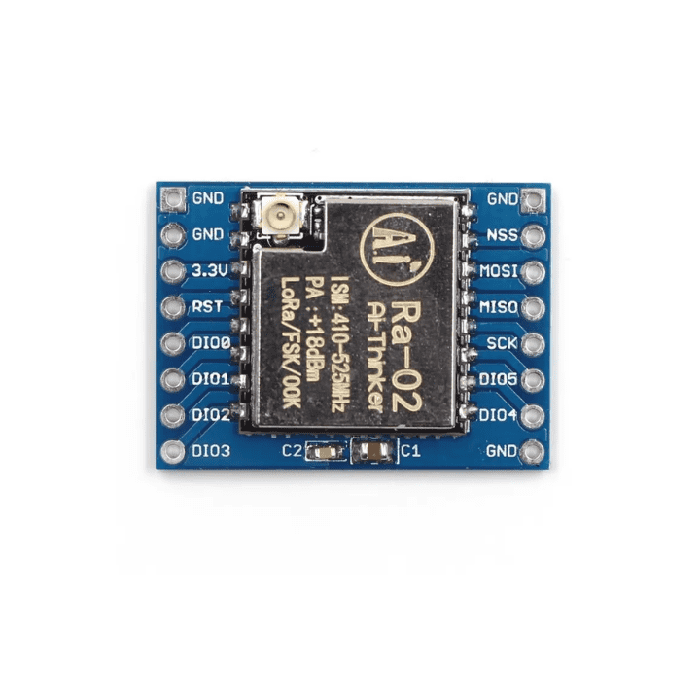

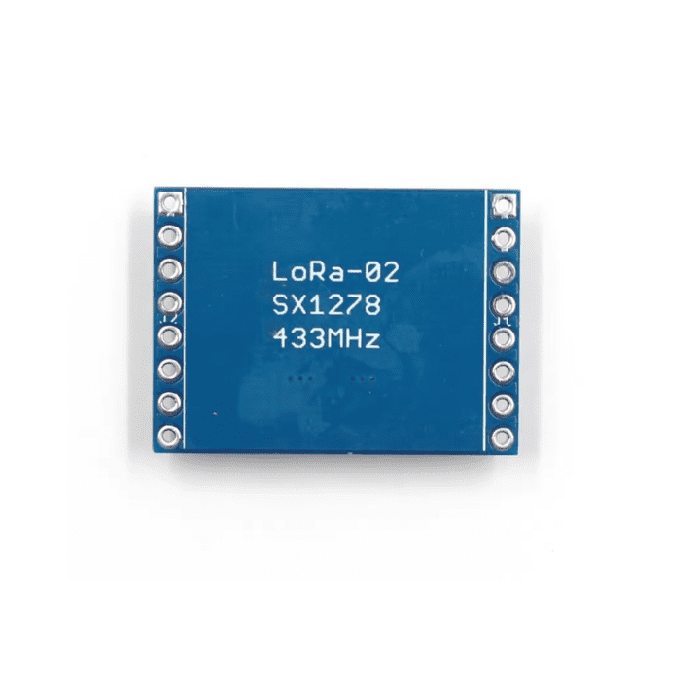

SX1278 LoRa Module Ra- 02 433MHZ Wireless Spread Spectrum Transmission

SX1278 LoRa Module Ra- 02 433MHZ Wireless Spread Spectrum Transmission

(0)
SX1278 LoRa Module Ra- 02 433MHZ Wireless Spread Spectrum Transmission The long-range wireless transmission LoRa module Ra-02 is based on the SEMTECH SX1278 wireless transceiver. This LoRa module uses advanced LoRa spread spectrum technology to provide a communication range of up to 10,000 meters. It has excellent anti-jamming skills and an air wake-up consumption feature. The SX1278 LoRa RF module is designed mainly for long-range spread spectrum communication and has low current consumption. It has a high sensitivity of -148 dBm and a power output of +20 dBm. Compared to traditional modulation technology, LoRa communication modulation technology provides significant advantages …
Condition: NEW
As low as ₹435.08   ₹838.60 Incl. GST (No Hidden Charges)
Backorder Available Delivery: Next Day Delivery
IN STOCK SKU#: IOT-2836
Delivery & Pickup Options
Get it Next Day on Order

Order now and we'll have it ready for delivery by the next business day.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

SX1278 LoRa Module Ra- 02 433MHZ Wireless Spread Spectrum Transmission The long-range wireless transmission LoRa module Ra-02 is based on the SEMTECH SX1278 wireless transceiver. This LoRa module uses advanced LoRa spread spectrum technology to provide a communication range of up to 10,000 meters. It has excellent anti-jamming skills and an air wake-up consumption feature. The SX1278 LoRa RF module is designed mainly for long-range spread spectrum communication and has low current consumption. It has a high sensitivity of -148 dBm and a power output of +20 dBm. Compared to traditional modulation technology, LoRa communication modulation technology provides significant advantages in terms of anti-blocking and selection, interference, and power consumption. Features LoRa ™ Spread Spectrum modulation technology Constant RF power output at + 20dBm-100mW voltage change Half-duplex SPI communication Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes Automatic RF signal detection, CAD mode and very high speed AFC Packet engine with CRC up to 256 bytes Small footprint dual-row stamp-hole patch package Shielded housing Spring Antenna Applications: Long-range wireless communication module based on LoRa platform Uses SPI communication protocol and requires an antenna for proper RF communication Operates on 3.3V and has 16 pins (8 on each side) Can be interfaced with microcontrollers like Arduino Uno and Nano Widely used in Arduino & IoT projects, smart agriculture, smart cities, and industrial automation due to its long-range communication and low power consumption

  • This is SX1278 LoRa Module Ra- 02 433MHZ Wireless Spread Spectrum Transmission
  • Ra-02 wireless transmission module built around the SEMTECH SX1278 transceiver
  • LoRa spread spectrum technology providing a communication range of up to 10,000 meters
  • Strong anti-jamming capabilities and air wake-up consumption function
  • High sensitivity of -148 dBm and a power output of +20 dBm
  • Ideal for long-range spread spectrum communication, meter reading, smart home automation, and burglar alarm equipment
  • Supports multiple modulation modes, automatic signal detection, and small footprint dual-row stamp-hole patch package with shielded housing and spring antenna.
Working voltage 1.8-3.7v
Communication distance 15KM
Sensitivity down to -148dBm
Programmable bit rates up to 300kbps
RSSI dynamic range 127dB
Wireless frequency 433MHz
