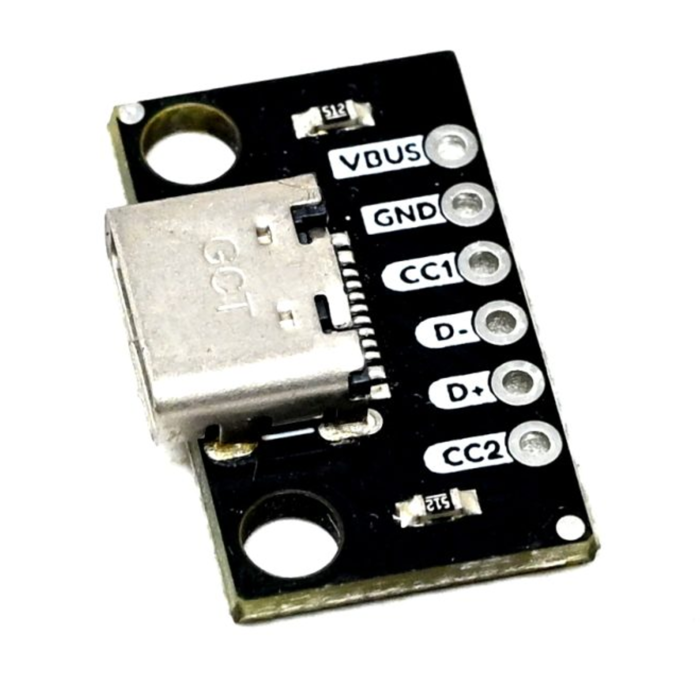

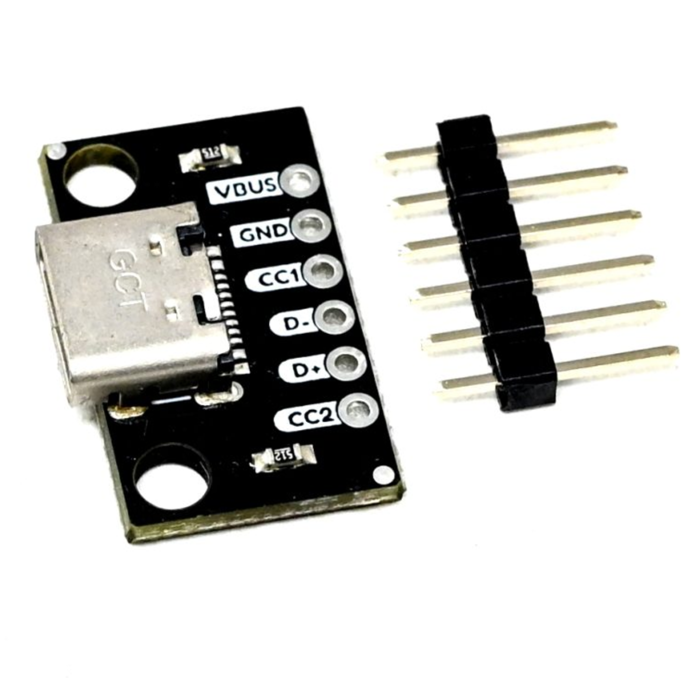

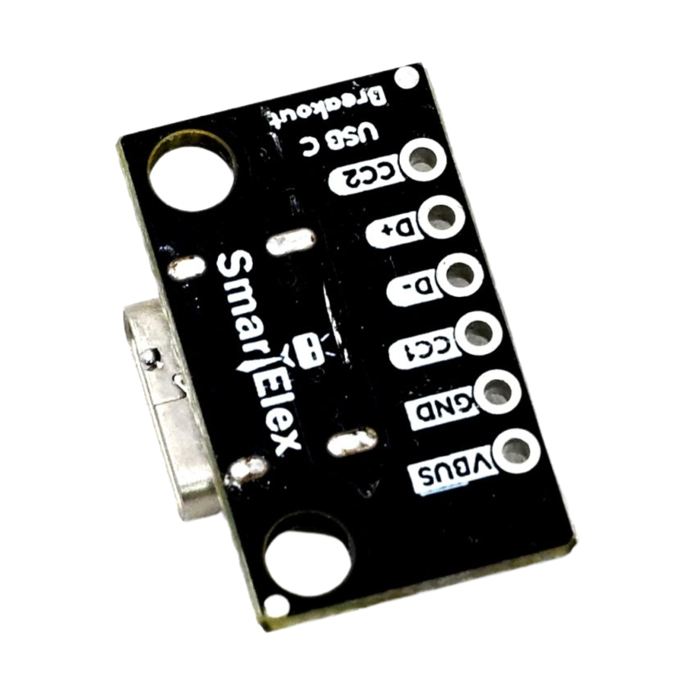

SmartElex USB-C Connector Breakout Module

TL-Smoother module for 3D printer motor drivers V1.0 A smoother module for stepper driver motor is an add-on module for stepper motors of 3D Printers. It is useful for a softer movement in Delta Style 3D Printer as when using DVR8825 or step and drives and A4988/2 driver unit. TL smoothers are popular little printed circuit boards (PCBs) that are often used in FDM 3D printers to not surprisingly, smooth out the look of prints. In other words, they reduce surface artifacts caused by irregular stepper motor motion, often dubbed “zebra stripes,” “salmon skin,” etc. These smoothers are often sold as 4- and 8-diode variants, with the 8-diode ones (pictured above) offering a stronger smoothing effect. They plug into any 3D printer between the stepper drivers and the stepper motors, working their electrical “magic” without any other setup needed. Their low cost, plug-and-play functionality, and seemingly magical effect have made them quite beloved, albeit slightly controversial. The board provides flyback diodes (freewheeling diodes) for the motor outputs so that they are also protected against induction voltages in the unpowered state of the driver. You will get smoother movement. Features: Suitable for all FDM types of 3D printers Lower vibration, lower noise, and smoother result. Smoother movement especially on the delta-style 3Dprinter under DVR8825 stepper drivers and A4988/2 drivers.

1500V USB To USB Isolator Module ADUM4160 & 3160 - Optical Isolation Board for USB Protection The USB to USB Isolator Module is designed to protect your devices and computer from electrical noise, ground loops, and voltage spikes. Featuring optical isolation technology, this module ensures safe communication between USB interfaces by isolating the data and power lines. It supports both low-speed (1.5 Mbps) and full-speed (12 Mbps) USB communication, making it suitable for a variety of microcontroller programmers, USB test instruments, HID devices, and data-acquisition tools. With an isolation voltage of up to 3000V and a built-in 1500V isolated power module, this board offers robust electrical protection in demanding environments. It is plug-and-play, powered directly from the host USB port, and requires no additional drivers. Ideal for labs, embedded systems, industrial environments, and DIY electronics, the ADUM3160 isolator helps ensure stable signal integrity and protects both the host system and connected equipment. Features: Provides strong electrical isolation using ADUM3160/ADUM4160 to protect USB devices from noise, surges, and ground loops. Supports USB 1.5 Mbps low-speed and 12 Mbps full-speed communication for wide compatibility. Built-in 1500V isolated power module and 3000V data isolation capability for enhanced safety. Compatible with many programmers and USB devices such as FT232, CH341, J-Link, PICKIT2, card readers, cameras, and more. Plug-and-play design powered directly from the host USB port—no external drivers required. Designed to operate in a wide temperature range from -40°C to 85°C, suitable for lab and industrial use. Compact PCB for easy integration into workbenches, test setups, and embedded development systems.

SmartElex 12V 10A Single Channel Power Relay Module The SmartElex 12V 10A Single Channel Power Relay Module is a reliable switching solution designed to control high-power electrical loads using low-voltage control signals. It helps safely operate devices that draw higher current without directly connecting them to sensitive control circuits. This module is suitable for students, makers, engineers, educators, and startups who are working on electronics projects, automation systems, or prototypes that require dependable and safe power switching. This single channel power relay module is widely used in robotics, IoT applications, home automation, and industrial control projects where motors, lights, pumps, or appliances need to be switched on and off reliably. It can be easily interfaced with popular platforms such as Arduino, Raspberry Pi, and ESP32, making integration simple for both learning projects and real-world systems. The sturdy design and consistent performance make it a practical choice for prototyping as well as final deployment in power control applications. Features: Single channel power relay module for high-current load switching Operates on 12V, suitable for automation and control applications Supports up to 10A load current for power devices Electrical isolation between control and load circuits for safety Compatible with Arduino, Raspberry Pi, ESP32, and similar boards Compact and durable design for easy integration

SmartElex PCA9306 Logic Level Translator Breakout Module The SmartElex PCA9306 Logic Level Translator Breakout Module is a compact solution designed to shift signal voltages between different logic levels in electronic systems. This PCA9306 level translator helps connect components that operate at mismatched voltages, such as 1.8V, 3.3V, and 5V devices, without risking damage or unstable communication. It is ideal for students, hobbyists, engineers, educators, and startups who need a simple and reliable way to manage voltage differences in mixed-signal circuits, sensor interfaces, and microcontroller projects. With its bidirectional design, this voltage level translator supports seamless communication in both directions, making it suitable for robotics, IoT devices, automation systems, and embedded prototyping. It works smoothly with platforms like Arduino, Raspberry Pi, ESP32, and other controllers, allowing easy integration with modules, displays, and sensors. Whether used as a bidirectional level shifter for I2C communication or for general logic conversion, it offers a practical way to ensure safe and consistent signal translation across a range of development environments. Features: Based on the PCA9306 bidirectional level shifting IC Safely converts logic levels between 1.8V, 3.3V, and 5V devices Supports I2C and general-purpose bidirectional communication Protects components from voltage mismatches and signal damage Compatible with Arduino, Raspberry Pi, ESP32, and other controllers Compact breakout design for fast prototyping and integration

SmartElex 12V 3A 8 Channel Signal Relay Module The SmartElex 12V 3A 8 Channel Signal Relay Module is a reliable control solution designed to switch multiple electrical devices using low-power control signals. It allows users to safely manage higher-voltage or higher-current loads without directly connecting them to sensitive control circuits. This module is suitable for students, makers, engineers, educators, and startups working on embedded systems, automation projects, and control applications that require dependable multi-channel switching. This 8-channel relay module is ideal for robotics, IoT systems, home and industrial automation, and advanced prototyping where several devices need to be controlled independently. It can be easily interfaced with popular platforms such as Arduino, Raspberry Pi, and ESP32 to control lights, motors, pumps, relays, or other external equipment. The straightforward design and consistent performance make it easy to integrate into both experimental setups and finished products, supporting safe and efficient control across a wide range of applications. Features: 8-channel relay module for controlling multiple devices independently Operates on 12V, suitable for automation and control systems Supports up to 3A load current per relay channel Electrical isolation between control signals and load circuits Compatible with Arduino, Raspberry Pi, ESP32, and other controllers Compact board design with LED indicators for channel status

SmartElex 12V 20A Single Channel Power Relay Module The SmartElex 12V 20A Single Channel Power Relay Module is a high-current switching solution designed to control heavy electrical loads using low-voltage control signals. It helps safely operate high-power devices without directly exposing microcontrollers or control circuits to high current, reducing risk and improving system reliability. This module is suitable for students, makers, engineers, educators, and startups who are working on power control, automation, or embedded electronics projects that demand robust switching capability. This single channel power relay module is ideal for robotics, IoT systems, home and industrial automation, and power management applications where devices such as motors, heaters, pumps, or high-load appliances need reliable control. It can be easily interfaced with popular platforms like Arduino, Raspberry Pi, and ESP32, making it convenient for both prototyping and deployment. The strong build quality and straightforward integration make it a dependable choice for projects requiring consistent and safe high-current switching. Features: Single channel power relay module for high-current load control Operates on 12V, suitable for industrial and automation systems Supports heavy load switching up to 20A Electrical isolation between control and power circuits for safety Compatible with Arduino, Raspberry Pi, ESP32, and similar controllers Robust design for reliable operation in power control applications

SmartElex 8 Channel Multiplexer Breakout Module – (74HC4051) The SmartElex 8 Channel Multiplexer Breakout Module (74HC4051) is a compact and efficient solution for expanding input and output options in electronic projects. This 74HC4051 multiplexer breakout allows users to route multiple signals through a single microcontroller pin, solving the problem of limited I/O availability when working with sensors, switches, or analog inputs. It is designed for students, makers, engineers, educators, and startups who need a practical way to manage multiple device connections without increasing hardware complexity. This module acts as both an 8 channel multiplexer and demultiplexer, making it suitable for robotics, IoT systems, automation tasks, and rapid prototyping. It integrates smoothly with Arduino, Raspberry Pi, ESP32, and similar platforms, enabling users to scale projects without sacrificing performance or stability. Whether you are building sensor hubs, data acquisition systems, or experimenting with signal routing, this multiplexer demultiplexer module offers a reliable and easy-to-use interface that enhances flexibility in circuit design. Features: Based on the 74HC4051 8-channel analog/digital multiplexer IC Expands I/O by routing up to 8 signals through a single control interface Works as both a multiplexer and demultiplexer for flexible signal routing Helps manage limited microcontroller pins in multi-sensor projects Compatible with Arduino, Raspberry Pi, ESP32, and similar platforms Ideal for robotics, IoT systems, data acquisition, and prototyping

SmartElex DS3231 RTC Module with EEPROM (I2C, AT24C32) The SmartElex DS3231 RTC Module with EEPROM is a high-precision RTC module designed for accurate date and time tracking in embedded systems and IoT projects. Based on the DS3231 chip with an integrated temperature-compensated crystal oscillator (TCXO), this I2C RTC module ensures stable and reliable timekeeping across temperature variations. It features an onboard 32Kbit AT24C32 EEPROM for non-volatile data storage, along with 1Hz SQW and 32KHz outputs for timing applications. Operating within an exact voltage range of 2.2V to 5.5V, the module maintains time even during power loss using a backup battery, making it ideal for data loggers, automation systems, and time-critical electronics projects. Features: Temperature-compensated crystal oscillator (TCXO) for accurate timing. Additional data storage is provided by a built-in 32Kbit EEPROM. 1Hz SQW and 32KHz output pins. Battery backup ensures uninterrupted functioning. Supports both 12- and 24-hour time types. It operates with a voltage supply range of 2.2V to 5.5V.

7Semi MAX17048 LiPoly - LiIon  Battery Fuel Gauge Breakout Module The 7Semi MAX17048 LiPoly - LiIon  Battery Fuel Gauge Breakout Module is a reliable and easy-to-use battery fuel gauge module built for accurate monitoring of single-cell lithium batteries. Using the MAX17048 IC, this single-cell lithium battery monitor delivers precise state-of-charge and voltage measurements without the need for a current-sense resistor, simplifying circuit design. With its I2C interface, the board integrates smoothly with microcontrollers, making it perfect for real-time battery tracking in portable devices, IoT applications, and DIY electronics projects. Features: MAX17048-based battery fuel gauge module for accurate SoC measurement Supports Li-Ion and Li-Poly single-cell lithium battery monitoring No current-sense resistor required for simplified design I2C communication for easy microcontroller integration Compact breakout board suitable for portable and IoT projects Benefits: Streamline your process: Avoid project delays and time-consuming guesswork with instantaneous battery % monitoring. For seamless and effective operations, know precisely when it's time to recharge. Advanced surveillance without the trouble: These intricate battery calculations are handled by the sophisticated MAX17048 microcontroller, which provides you with extremely precise data without requiring any programming or analysis on your behalf. All-purpose compatibility for every project: Whether you're using Arduino, Raspberry Pi, or other well-known microcontrollers, you can easily incorporate this board into your configurations. For optimal versatility across many systems, it supports both 3.3V and 5.0V logic levels. Optimize battery life by tailoring low-power modes and alarms to your specific project requirements, making the most of your LiPo batteries for extended runtimes. Go beyond simple voltage measurements: The MAX17048 offers a reliable, real-time state-of-charge percentage, so you can learn the truth about the condition of your battery.

7Semi BMP585 I2C Pressure Sensor Breakout Module The 7Semi BMP585 I2C Pressure Sensor Breakout Module is a high-precision sensor designed to measure atmospheric pressure with exceptional accuracy, covering a range of 300–1250 hPa. This BMP585 Pressure Sensor combines low power consumption with compact design, making it perfect for mobile devices, battery-powered systems, and IoT projects. With both I2C and SPI interface support, it can be easily integrated into various electronics projects, enabling applications such as altimetry, weather monitoring, indoor navigation, and environmental sensing. Its reliable performance ensures accurate readings in real-time, making it an essential component for makers and engineers seeking precise pressure measurement. Features: Exceptional pressure sensing resolution at 1/64 Pa and accuracy of ±0.5 hPa provide highly precise data. Wide Pressure and Temperature Range: Measures pressure from 30 to 125 kPa and temperature from -40°C to 85°C, ensuring versatility in a variety of applications. Flexible Data Communication: Compatible with both I2C (up to 1MHz) and SPI (up to 12MHz) protocols, allowing enabling easy integration into a variety of systems. Programmable features include variable oversampling, a FIFO buffer (stores up to 32 samples), low-pass filtering, and 6 bytes of user-programmable non-volatile memory. Energy-Efficient Operation: Provides five operational modes with minimal power usage (1.5µA in Deep Standby and 260µA peak during measurements). Compact Design: A small breakout board with pin spacing of 0.1" allows for simple soldering and connecting.

Dual Micro USB 18650 LiPo DIY Power Bank Module (3.7V to 5V, 2A Output) The Dual Micro USB 18650 LiPo DIY Power Bank Module is designed to convert a 3.7V 18650 lithium battery into a stable 5V output with up to 2A current, making it perfect for charging smartphones, IoT devices, and other USB-powered gadgets. At its core, this module functions as a compact power management and boost conversion board, allowing you to build a fully customized portable power bank. It features dual Micro USB ports for convenient charging and integrated LED indicators to display charging and power status. Ideal for DIY enthusiasts, makers, and electronics hobbyists, this board gives you the flexibility to create your own reliable mobile power solution—provided you have basic electronic assembly knowledge. When installing items, it is important to keep the following in mind: Batteries can be connected in parallel with a voltage ranging from 3.2 to 4.2V, including 18650 flat and polymer batteries. We can connect the battery to the motherboard B + negative-, which is installed against the burning motherboard. Batteries that are new and old, or that have contradictory model brands, cannot be mixed. Features: Four-level LED bulb displays power, not working situation intelligent automated shutdown. The built-in lithium battery protection IC, overcurrent, overpressure, and undervoltage protection Dual USB output ports. Input requirements: 5V constant voltage power supply can charge input power, the most matching charger for 5V 1A or above. Requirements for rechargeable batteries: Compatible batteries include 18650 batteries, cell phone batteries, flat-panel batteries, MP3 batteries, and polymer lithium batteries ranging from 3.7V to 4.2V.

SmartElex TPS63060 5V USB Buck-Boost Module – 500mA The SmartElex TPS63060 5V USB Buck-Boost Module – 500mA is a compact and high-efficiency buck boost module designed to provide a stable 5V output from input voltages ranging from 3V to 12V. Powered by a 2A internal switch, this 5V buck boost converter can deliver up to 500mA from a 3V source and at least 1000mA from a 12V source, making it ideal for battery-powered and portable electronics. Its synchronous operation allows complete output disconnection using the Enable pin, ensuring zero output power consumption when disabled. With over 90% efficiency, low heat generation, and ultra-low quiescent current (5mA enabled, 20µA disabled), it is well-suited for USB-powered DIY projects, embedded systems, and efficient power management applications. Features: Wide input voltage range: 3 to 12 VDC. Stable 5V DC Output: Produces a stable 5V output. 500mA Output Current: Provides up to 500mA of current. Buck-Boost Conversion: Provides a stable output despite swings in input voltage. Universal Power Supply: Ideal for a variety of portable tasks. Battery Pack Conversion: Converts battery packs into 5-volt USB power sources. Ideal for Variable Voltage: Designed to work with fluctuating or unknown battery voltages.

SmartElex 12V 1.5A MC33063A Boost Module The SmartElex 12V 1.5A MC33063A Boost Module is a compact DC-DC boost converter designed to step up lower voltages to a stable 12V output for electronic projects. It offers a reliable way to power modules, sensors, and communication devices when a direct 12V supply is not available. This module is suitable for students, hobbyists, engineers, and startups working on embedded systems or battery-powered applications where efficient power management is essential. This boost module is ideal for robotics, IoT devices, automation systems, and portable projects that need a consistent 12V source from lower input voltages. It integrates easily with microcontroller platforms like Arduino, Raspberry Pi, and ESP32-based circuits, making it useful for prototyping and real-world deployment. The stable output and dependable performance help reduce power-related issues, allowing users to focus on development without worrying about unstable voltage supply. Notes: Efficient Conversion: The module ensures high efficiency, making it ideal for battery-powered applications, reducing energy loss. Compact and Easy Integration: Its small size and low component count make it easy to integrate into custom circuits. Protection Features: Overload and short-circuit protections ensure the module and connected devices are safe under fault conditions. Low Ripple: The module provides a clean, stable 12V output with minimal ripple, which is essential for powering sensitive components. Aspect Filtered Output Non-Filtered Output Ripple Reduced, smooth DC voltage with minimal ripple Significant ripple in the DC output Stability Stable, suitable for powering sensitive electronics Unstable, may cause instability in sensitive devices Components Requires capacitors to smooth output No filtering components, raw output Use Case Ideal for powering microcontrollers, sensors, and other sensitive electronics Suitable for less sensitive applications or where ripple is not critical Voltage Output Steady, clean DC voltage Pulsating DC with noticeable fluctuations Features: Built-in protection against overload and short circuits for safe operation. Delivers a steady 12V output with low ripple, suitable for sensitive circuits. Uses standard inductor values (100µH to 220µH) based on load needs. Uses capacitors (100µF to 470µF) to help maintain voltage stability. Compact 8-pin package design that is easy to add to electronic projects. Applications: Powers 12V devices from low-voltage sources like Li-ion batteries. Suitable for 12V LED strips and lighting setups. Useful in custom 12V power supplies. Can power sensors, microcontrollers, and communication modules needing a clean 12V source.

SmartElex USB-C Serial Basic Converter and CH340C IC Breakout Module he SmartElex USB-C Serial Basic Converter with CH340C is a compact USB-to-serial adapter designed to help users program, debug, and communicate with microcontroller boards and embedded systems. It converts USB signals to reliable UART serial communication, making it useful for students, hobbyists, engineers, educators, and startups working with boards that lack native USB support. With its USB-C interface and CH340C chipset, it provides a simple plug-and-play experience for connecting development boards, sensors, and custom circuits to a computer. This USB-to-serial converter is ideal for prototyping in robotics, IoT development, firmware flashing, serial monitoring, and automation projects. It works smoothly with platforms like Arduino, ESP8266, ESP32, Raspberry Pi (UART pins), and other TTL-based microcontrollers, making integration straightforward in both development and testing stages. Offering stable communication and easy computer connectivity, the SmartElex USB-C Serial Basic Converter with CH340C is a practical tool for labs, DIY electronics, and professional development environments. Features: Converts USB-C to TTL serial for programming and debugging CH340C chipset ensures stable and reliable UART communication Plug-and-play design for quick connection to development boards Compatible with Arduino, ESP8266, ESP32, Raspberry Pi (UART), and more Ideal for firmware flashing, serial monitoring, and IoT prototyping Compact breakout module for labs, workshops, and field testing

7Semi MCP4728 Quad DAC Module The 7Semi MCP4728 Quad DAC Module is a compact and reliable DAC module designed to convert digital signals into precise analog voltage outputs. Based on the MCP4728 IC, this digital-to-analog converter breakout board allows users to generate up to four independent analog outputs using simple I²C communication, making it an efficient solution for applications where microcontrollers lack sufficient analog output pins or require higher accuracy. This module offers easy integration with popular microcontrollers, stable performance, and flexible voltage output control, making it ideal for signal generation, sensor simulation, audio control, and calibration tasks. With its user-friendly design and dependable operation, it is well suited for students learning embedded systems, hobbyists building DIY electronics, and professionals developing prototypes or compact analog control systems. Features: Powered by the Microchip MCP4728 Quad DAC IC 12-bit resolution on all four DAC output channels (A–D) Onboard non-volatile EEPROM retains DAC settings after power-off I²C interface with Fast Mode support up to 400 kHz Low-power operation, ideal for battery-powered projects Compact 7Semi breakout with clearly labeled pinouts Supports LDAC and RDY pins for real-time DAC updates and monitoring Applications: Signal generation (sine, square, and triangle waveforms) Audio voltage control for synthesizers and mixers Programmable and adjustable reference voltage sources Lab instruments, testing, and control systems Industrial automation and process control applications Multi-channel analog and neural interface testing
