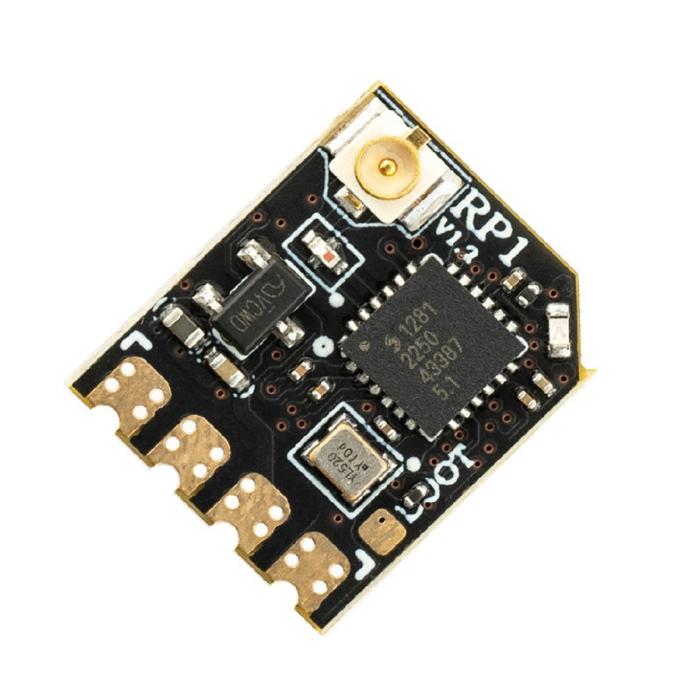

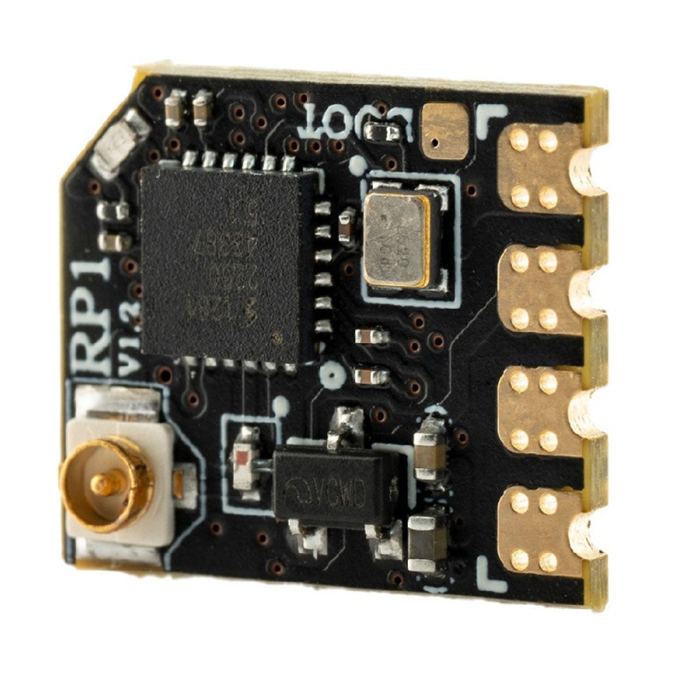

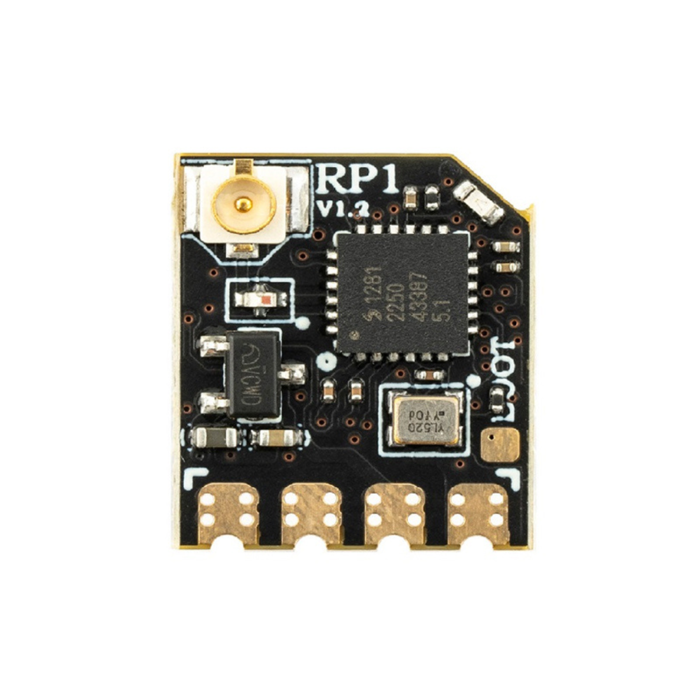

Radiomaster RP1 V2 ExpressLRS 2.4 Ghz Nano Receiver for RC Drone
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.
Radiomaster RP1 V2 ExpressLRS 2.4 Ghz Nano Receiver for RC Drone The Radiomaster RP1 V2 ExpressLRS Nano Receiver is a high-performance rc drone receiver designed for pilots who want precision, long-range control, and ultra-fast signal response. Powered by advanced ExpressLRS technology, it delivers low latency and rock-solid connectivity, making it perfect for freestyle quads, FPV racers, and fixed-wing builds. Its compact size keeps builds clean and lightweight, while wide transmitter compatibility ensures smooth integration into nearly any setup. With simple setup steps and reliable transmission, this drone receiver board gives hobbyists and professionals the confidence to explore more airspace and fly with sharper control. Whether you're pushing range limits, fine-tuning maneuvers, or flying tight tracks, the RP1 V2 keeps your aircraft locked in and responsive. Stable performance, tiny footprint, and strong signal reliability make it a go-to upgrade for next-level RC flying. Features • Improved PCB layout for better heat dissipation • Strong rigid antenna for enhanced durability and signal performance • Top-side LED for clear status indication • Easier-to-solder pads for smooth installation • Built-in TCXO for stable frequency and reliable link • Compatible with all 2.4GHz ExpressLRS modules and transmitters
- ExpressLRS 2.4GHz protocol for ultra-low latency
- Built-in TCXO for frequency stability
- Rigid helical antenna for enhanced signal durability
- Top-side LED for clear status indication
- Compact nano form factor for lightweight builds
- Compatible with all 2.4GHz ExpressLRS transmitters
- Ultra-low latency control for competitive FPV flying
- Long-range capability with strong signal penetration
- Improved heat dissipation via optimized PCB layout
- Easy-to-solder pads for hassle-free installation
- Stable performance in varying temperature conditions
| Item Type | Receiver |
|---|---|
| Frequency (GHz) | 2.4 |
| Refresh Rate (Hz) | 500Hz / F1000Hz |
| Operating Voltage (V) | 5V |
| Weight (g) | 2.2g (Including antenna) |
| Dimensions (L x W x H) mm | 13mm x 11mm x 3mm |
| Firmware Version | ExpressLRS v2.4 pre-installed |
| Interface | CRSF |
Is the Radiomaster RP1 V2 compatible with my ExpressLRS transmitter?
Yes, the RP1 V2 is compatible with all 2.4GHz ExpressLRS transmitters including Radiomaster TX16S, Boxer, and Zorro modules.
What is the maximum range of the RP1 V2 receiver?
The RP1 V2 supports long-range flights up to several kilometers in open areas, depending on transmitter power and environmental conditions.
Does the RP1 V2 support telemetry and firmware updates?
Yes, it supports full telemetry feedback and firmware updates via ExpressLRS passthrough mode.
Can I use this receiver with Betaflight or iNav flight controllers?
Yes, the RP1 V2 works seamlessly with Betaflight and iNav when configured for CRSF protocol.
