NE555 + CD4017 Water Flowing Light LED Module DIY Kit
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.

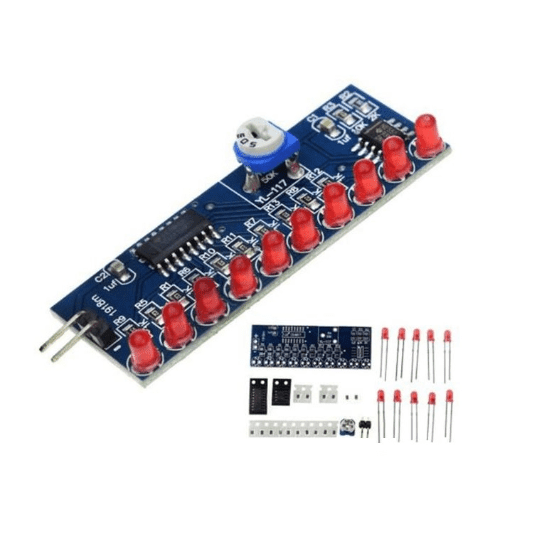

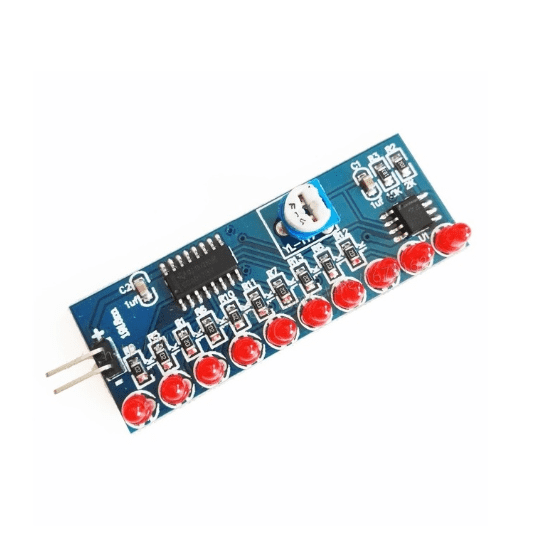

NE555 + CD4017 Water Flowing Light LED Module DIY Kit This is NE555 + CD4017 Water Flowing Light LED Module DIY Kit. It has a double-sided board with a surface mount and a through-hole configuration. It is designed for users with advanced soldering skills. You must solder some components on the top surface and some components on the bottom side of the board. The module has a very simple assembly process that will take anywhere between 30 minutes to an hour. This kit is mainly composed of clock generation circuit and decimal counter circuit. The NE555 is the core self-excited multivibrator. The power supply charges the capacitor C1 through R2, R3 and R4. When C1 starts charging, the NE555 2 pin also At low level, the output pin 3 is high. When the power supply is charged to C2 to the 2/3 power supply voltage through R2, R3, and R4, the output pin 3 level changes from high to low. NE555 internal discharge tube guide Pass, capacitor C1 is discharged through pin 7 of R4, R3, NE555, until the voltage across C1 is lower than 1/3 of the power supply voltage, the level of the 3 pin of NE555 changes from low level to high level. C1 is charged again. This cycle forms an oscillation. The charging time is: 0.695 (R2+R3+R4)C1, the discharge time is: 0.695 (R4+R3)C1, the R4 can be adjusted to control the output frequency of the oscillator, and the clock oscillation signal of NE555 is continuously added to the 14th pin of CD4017. Ten LEDs are connected to the 10 outputs of the CD4017. When the 10 outputs of the CD4017 alternately generate a high level under the action of the clock signal, D1--D10 are sequentially illuminated to form a water-light effect. Adjust the R4 to adjust the flow speed of the LED light.
- Double-sided PCB with SMD and through-hole components
- NE555-based oscillator with adjustable frequency via R4
- CD4017 drives 10 LEDs in sequential water-flow pattern
- Operating voltage: 5V DC
- Ideal for learning analog and digital circuit integration
- Sequential LED water-flow lighting effect
- Adjustable speed control via potentiometer (R4)
- Educational tool for IC-based circuit design
- Compatible with breadboard and external 5V supply
- Includes all necessary components and PCB
| Chip | NE555, CD4017 |
|---|---|
| Input Voltage | 2.5 ~ 14.5 V |
| PCB Size (LxWxH) | 54.5 x 20.5 x 1.5 mm |
| LED color | Red |
| Resistor Type | SMD |
| Weight | 105gm |
What is the operating voltage of the NE555 + CD4017 Water Flowing LED Kit?
The kit operates at 5V DC and is compatible with standard breadboard power supplies.
Can I adjust the speed of the LED flowing effect?
Yes, adjusting resistor R4 changes the oscillator frequency, allowing you to control the LED flow speed.
Is this kit suitable for beginners?
This kit is recommended for users with intermediate to advanced soldering skills due to double-sided PCB assembly.
What components are included in the SES-P-834 kit?

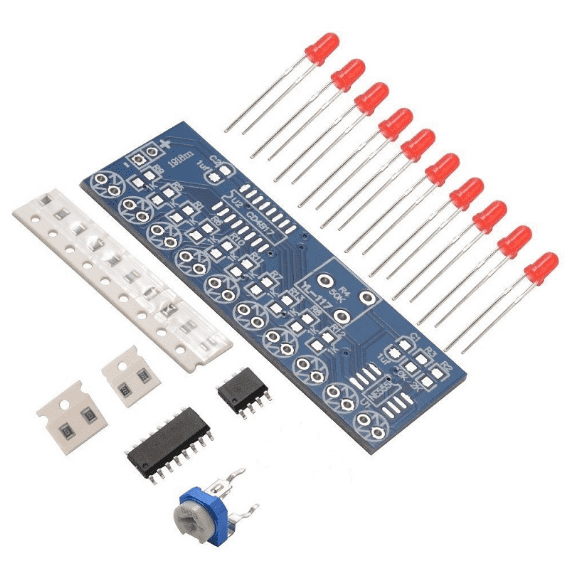

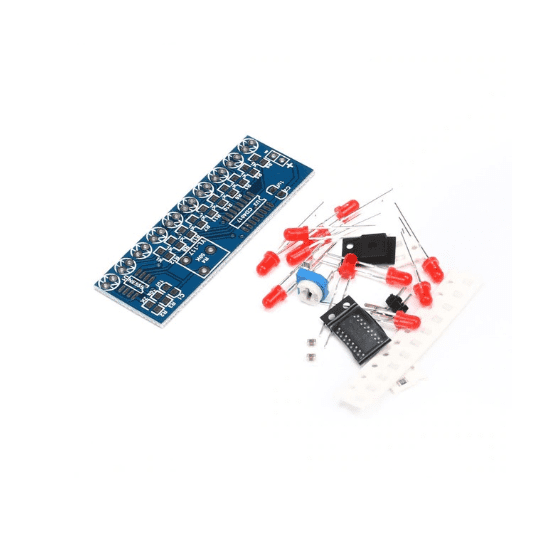

Includes NE555 timer IC, CD4017 counter IC, LEDs, resistors, capacitors, and a double-sided PCB.
