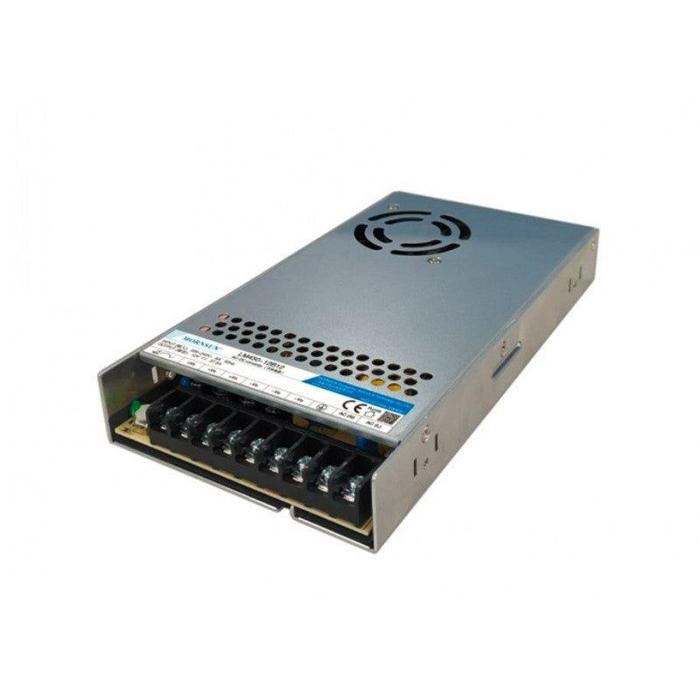

Mornsun LM450-12B36 AC/DC 450W Enclosed SMPS

TP4056 Battery Charger C Type Module with Protection The TP4056 1A Li-Ion Battery Charging Board Type C with Current safety is a small module designed for charging single-cell 3.7V lithium-ion batteries, such as 16550s, that do not have their own safety circuit. Using the TP4056 charger IC and the DW01 battery protection IC, this lithium battery charger produces a 1A charging current and will automatically stop charging once completed. Also, if the battery voltage goes below 2.4V, the safety IC will cut off the load to save the cell from functioning at an unacceptably low voltage. The TP4056 charging module also protects against overvoltage and reverse polarity connections, often sacrificing itself to preserve the battery. Just remember to double-check your connections the first time you put it up. Your batteries can be safely and easily charged with TP4056 lithium-ion battery charger. All you need to do is connect it correctly, and it will do the rest. Use the Module Through the Following Steps: To supply power, either plug in a Type C cable or attach a 5V DC source to the IN+ and IN-labeled pads on the module's left side. Fasten the battery that has to be charged to the B+/B- pads on the module's right side. The OUT+/OUT- pads on the right side can also be used to attach a load, or an object that the battery will power. Keep in mind that while the battery is charging, unplug the load. When the charging process is finished, the green LED will turn on, while the red LED will illuminate to signify that the charge is ongoing. Be careful to never charge your battery at a rate exceeding 1C Note: Please remember the following crucial information: The module's 5V input side is the only one to which the ampere meter should be attached. A charging current of around 37% of the battery's capacity is advised. A 400mAh charging current is adequate for a 1000mAh battery. Make use of reasonably thin connecting cables. Verify the security of the connecting point. It is usual for the current to decrease below 1000mA if the input voltage is greater than 5.2V. In order to shield the chip from harm, this protective function immediately lowers the charging current. Reverse polarity should be avoided at all costs. Features It features a modern USB Type-C port that provides convenient and universal power. This module includes integrated protection against over-charge, over-discharge, and short-circuits. It utilizes an intelligent CC/CV algorithm to ensure a fast, safe, and efficient charging cycle. It is equipped with clear dual-LED indicators for at-a-glance monitoring of the charging status. This module is perfectly designed for charging single-cell 3.7V Li-Ion and Li-Po batteries. Its compact and high-precision design allows for seamless integration into any electronics project.

Mornsun LMF75-23B15 AC/DC 75W Enclosed Switching Power Supply The LMF75-23B15 is a 75W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage of 85-305VAC or DC input voltage of 120-430VDC, built-in active PFC function, high efficiency, and high reliability. It also has output short circuit, over-current, over-voltage, and over-temperature protection. The LMF75-23B15 is designed to meet IEC/EN/UL62368, EN60335, GB4943 standards and is widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc. Features: Universal AC input voltage of 85-305VAC or DC input voltage of 120-430VDC Built-in active PFC function High efficiency (up to 87%) High reliability Output short circuit, over-current, over-voltage, and over-temperature protection Designed to meet IEC/EN/UL62368, EN60335, GB4943 standards Widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc. check out : Mornsun LMF75-23B05 AC/DC 75W Enclosed Switching Power Supply Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

18650 1 Cell Holder This is a 1x battery cell holder for a rechargeable 18650 Lithium-Ion Cell. These battery holders are used to add single lithium cells and have clearly marked with polarity identification to assure proper orientation. It has shrapnel screens to hold the batteries, making the installation and replacement of the battery safe, easy, and reliable. Features Holds a single 18650 battery. Easy install, convenient to use. High-quality plastic material. Applications: Robotics: The 18650 Single Battery Cell Case Holder allows for easy incorporation of 18650 cells into robotics applications by providing a simple way to connect and power devices Prototyping: It is ideal for prototyping projects where a single 18650 Lithium-Ion Cell needs to be securely held and connected, ensuring proper orientation and easy installation DIY Electronics: Commonly used in do-it-yourself electronics projects, the holder facilitates experimentation and modification of circuits by providing a flexible and removable power source Automotive Electronics: In automotive applications, such as key fobs and portable navigation devices, the cell holder enables convenient battery replacement, ensuring uninterrupted operation of electronic components

3.7v 2000mah 18650 Li-Ion Battery 18650 lithium-ion battery is a Li-ion rechargeable battery with a 2000 mAh Battery Capacity. This is not a standard AA or AAA battery but is very useful for applications that require continuous high current or high current in short bursts like in cameras, DVD players, iPod, etc. These 3.7v 18650 li-ion battery 2000mah are safe to use, environment friendly and have long battery life. This li ion battery comes with high energy density and provides excellent continuous power sources to your device. It should be used with a protection circuit board that guards the 18650 battery against over-charge, over-discharge of the pack, and avoid over-current drawn. It is very easy to use the cell in any circuit just solder the wires on the terminals or use 18650 li-ion battery holders to easily replace the used cells. Care must be taken while handling Li-ion batteries as they are volatile and inflammable and should not be handled roughly and punctured. Also, don’t overcharge and discharge beyond a certain point as gases accumulated inside might result in explosions and fire. So always use the Protection board while using Li-Ion cells. Note: We do not recommend using this 3.7v 18650 lithium ion rechargeable battery for critical applications. The capacity and performance of the cell might vary based on charging and discharging parameters. Please note that we do NOT provide any guarantee/warranty on this product. Read our blog about Battery AH means , It covers all the details of batteries. Features: Safe to use, environment-friendly, and with long battery life High energy density for excellent continuous power sources Use with a protection circuit board to guard against over-charge, over-discharge, and over-current Easy to use in any circuit by soldering wires on the terminals or using battery holders Applications: Cordless Phones Tablet PC GPS iPod, DVD, MP4 Player, etc. Mobiles backup power supply/Power bank

Raspberry Pi 4 Model B 8GB RAM The Raspberry Pi 4 Model B (8GB) sets a new benchmark in compact computing, offering exceptional performance for academic, professional, and hobbyist applications. With 8GB of LPDDR4 RAM and a Broadcom BCM2711 Quad-Core Cortex-A72 (ARM v8-A, 64-bit) processor running at 1.5GHz, it delivers the processing power needed for advanced computing tasks such as artificial intelligence, data analysis, and software development. Supporting dual 4K displays via micro-HDMI ports, the Raspberry Pi 4B 8GB enables high-resolution visuals and smooth 4K video playback at 60 frames per second using H.265 decoding. It also features dual-band Wi-Fi (2.4GHz and 5GHz), Gigabit Ethernet, and Bluetooth 5.0, ensuring fast and stable connectivity for seamless browsing, streaming, and remote collaboration. With two USB 3.0 and two USB 2.0 ports, along with a 40-pin GPIO header, the Raspberry Pi 4B allows easy integration of sensors, motors, and external devices—making it ideal for robotics, IoT, and electronic prototyping. Compatible with Raspberry Pi OS, Ubuntu, and lightweight Windows versions, this board is versatile, reliable, and easy to power using a standard 5V/3A USB-C adapter, making it an outstanding tool for learning, experimentation, and innovation. Useful Link: https://www.raspberrypi.com/documentation/computers/getting- started.html Key Features: RPI 4 features a Broadcom 2711 processor for efficient multitasking. 8GB RAM enables running intensive data servers and virtual machines smoothly. The latest Broadcom 2711 Quad-Core CPU at 1.5GHz for 20% faster performance. Dual-display 4K support with hardware decode for smooth playback. Dual-band 802.11ac Wi-Fi and Bluetooth 5.0 for faster, extended-range connectivity. USB 3.0 technology for 10x faster wired networking. Maintains 40-pin header with new PoE pins, caution with HATs. Comes with NOOBS (New Out Of Box Software) for easy operating system installation. Pin Diagram: Important Information about Raspberry Pi 4 It can be used as a budget desktop PC with smooth multitasking. Runs Chromium browser for fast web browsing. Supports media centres like OSMC and LibreELEC for streaming and 4K playback. Plays classic console games via RetroPie emulators. Supports multiple OS options, including Raspbian, Ubuntu, and Snappy Core. Acts as a Windows 10 thin client for remote desktop use. Built-in WiFi and Bluetooth for seamless connectivity. Dual-display support enhances multitasking and productivity. Uses of Raspberry Pi 4: Learn programming languages like Python, Java, or Scratch. Learn to connect with sensors, LEDs, motors, and more. Create home automation systems, control lights, and security. Build gadgets, robots, or IoT devices. Improve STEM education in schools and universities. Prototyping of product ideas or concepts before full-scale development. Comparison Raspberry Pi 4B Vs Raspberry Pi 3B+ Vs Raspberry Pi 3B Feature Raspberry Pi 4 Model B Raspberry Pi 3 Model B+ Raspberry Pi 3 Model B Price (INR)₹ ₹ 3599 VIEW ₹ 3649 VIEW ₹ 3999 VIEW Processor Broadcom 2711, Quad-core Cortex-A72 64-bit SoC @ 1.5GHz Broadcom BCM2837B0, Quad-core Cortex-A53 64-bit SoC @ 1.4GHz Broadcom BCM2837A1 (B0), Quad-core Cortex-A53 64-bit SoC @ 1.2GHz Memory 1GB, 2GB, or 4GB LPDDR4 SDRAM 1GB LPDDR2 SDRAM 1GB LPDDR2 SDRAM Connectivity 2.4GHz / 5.0GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 5.0, BLE, 2 x USB 2.0 / 2 x USB 3.0 ports delivering true Gigabit Ethernet 2.4GHz / 5.0GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE, 4 x USB 2.0 ports, Gigabit Ethernet over USB2.0 (max. 300Mbps) 2.4GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.1, BLE, 4 x USB 2.0 ports Access Extended 40-pin GPIO header Extended 40-pin GPIO header Extended 40-pin GPIO header Video & Sound 2 x micro HDMI, 4K video, 1 x MIPI DSI display port, 1 x MIPI CSI camera port, 4-pole stereo output and composite video port 1 x full-size HDMI, 1 x MIPI DSI display port, 1 x MIPI CSI camera port, 4-pole stereo output and composite video port 1 x full-size HDMI, 1 x MIPI DSI display port, 1 x MIPI CSI camera port, 4-pole stereo output and composite video port Multimedia H.265 decode (4Kp60), H.264 decode (1080p60), H.264 encode (1080p30), OpenGL ES 1.1, 2.0, 3.0 graphics H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics SD Card Support Micro SD format for loading OS & data storage Micro SD format for loading OS & data storage Micro SD format for loading OS & data storage Input Power 5V/3A DC via USB Type-C connector, 5V DC via GPIO, POE enabled 5V/2.5A DC via micro USB connector, 5V DC via GPIO, POE enabled 5V/2.5A DC via micro USB connector, 5V DC via GPIO Performance Tests: Raspberry Pi 4 Model B (8GB) vs Earlier Versions Powered by a quad-core ARM Cortex-A72 processor, offering a major performance jump over the older Cortex-A53 used in previous Pi models. Delivers faster application launches, smoother multitasking, and improved web browsing performance. In memory-intensive tasks, the 8GB variant shows higher read/write speeds and better overall responsiveness. Handles large datasets efficiently, enabling faster data transfers and better performance for heavy workloads. Upgraded hardware including USB 3.0 ports and Gigabit Ethernet enhances transfer speeds and network reliability. Ideal for power users running virtual machines, data-heavy programs, or multi-tab browsing sessions.

Mornsun LI30-20B48PR2 AC/DC 30W DIN-Rail Power Supply The LI30-20B48PR2 is a cost-effective and energy-efficient AC/DC power supply with 48VDC output. It has an extremely compact design that saves space on your DIN-Rail and is ideal for applications like industrial control and building automation. Features: Compact design Energy-efficient Standard DIN-Rail mounting 48VDC output Wide input voltage range (85-264VAC or 120-370VDC) High current output (0.75A) High isolation voltage (4000VAC) Overvoltage, undervoltage, overcurrent, and overload protection Note: Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m All index testing methods in this datasheet are based on our company's corporate standards In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability The out case needs to be connected to the earth ( )of system when the terminal equipment in operating The output voltage can be adjusted by the ADJ, clockwise to increase Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Arduino UNO R3 SMD Board Compatible with Arduino One of the new ways into the world of electronic innovation is the SMD Arduino UNO R3 Development Board with Cable. This board is totally different from the Arduino Uno R3. Uno R3 and Uno R3 SMD both boards are based on the ATmega328P Microcontroller but the difference is that the UNO R3 is through-hole version, and this is an SMD version or Surface Mount Device version. A SMD or surface-mount device is an electronic component that is mounted directly onto the surface of a printed circuit board (PCB), rather than being inserted through holes. The board has dimensions of 7 x 5 x 1cm and comes to the fore as a compact and reliable choice for both beginners and experienced electronics enthusiasts. It is designed with 14 digital input/output pins, 6 analog inputs, a 16MHz crystal oscillator, a USB connection, and the CH340G USB to UART Converter Chip, this development board is a perfect match for the electronic prototypes that you want to build with Arduino. This Arduino programming board is a must-have if you're into robotics, IoT, home automation, and security system projects. If your projects are large or small, this Arduino UNO R3 ATmega328P SMD microcontroller brings to you a whole lot of potential and creativity. Buy Genuine Arduino Uno R3 – Best Price! Pin Diagram Comparison of Uno Boards: Specification UNO Wifi UNO SMD UNO R3 Microcontroller ATmega4809 ATmega328P (SMD) ATmega328P (Through hole) USB connector Micro-USB USB-B USB-B Digital I/O Pins 14 14 14 Analog input pins 6 6 6 PWM pins 5 6 6 UART Yes Yes Yes I2C Yes Yes Yes SPI Yes Yes Yes I/O Voltage 5V 5V 5V Input voltage (nominal) 7-12V 7-12V 7-12V DC Current per I/O Pin 20mA 20 mA 20 mA Power Supply Connector Barrel Plug Barrel Plug Barrel Plug clock speed 16 MHz 16 MHz 16 MHz USB-Serial chip ATmega16U2 CH340 ATmega16U2 SRAM 6.144KB 2KB 2KB Flash Memory 48KB 32KB 32KB EEPROM 256 Bytes 1KB 1KB Dimensions 68.6 mm x 53.4 mm 68.6 mm x 53.4 mm 68.6 mm x 53.4 mm RADIO MODULE u-blox NINA-W102 - - Inertial Measurement Unit LSM6DS3TR (3D accelerometer) - - LED_BUILTIN 25 13 13 Wi-Fi Microprocessor Yes - - Why Choose the SMD Version? Compact design allows smaller, space-efficient circuits. Cost-effective due to automated manufacturing and minimal material use. High reliability with better resistance to vibration and mechanical stress. Improved electrical performance with reduced signal loss and interference. Lightweight and ideal for modern compact electronics. Faster production and easier large-scale assembly. Comparison: Original Arduino UNO vs Compatible SMD UNO Feature Original Arduino UNO Compatible SMD UNO Microcontroller ATmega328P (DIP) ATmega328P (SMD) Build Type Through-hole components Surface-mount components Chip Replaceability Removable and replaceable Fixed (non-removable) Size Slightly larger More compact Performance Same processing power Same processing power USB Interface ATmega16U2 CH340 or similar USB-to-Serial chip Ease of Repair Easier (replaceable chip) Harder to repair Cost Slightly higher More affordable Durability Very robust Slightly less robust mechanically Best For Learners who want to experiment with hardware Budget-friendly, compact projects Beginner Project Ideas with Arduino UNO SMD LED Blink Project Temperature Sensor Monitoring Light Sensor (LDR) Based Automation DC Motor Speed Control Ultrasonic Distance Measurement RGB LED Color Mixing Servo Motor Angle Control Sound Sensor Activation IR Remote Controlled LED Push Button Counter Display Applications: Arduino Music Instrument Robot Car Fingerprint door lock Home Automation Security systems

Official Raspberry Pi 5 Model 16GB RAM Double your computing power with the new Raspberry Pi 5 16GB RAM variant! With expanded memory, this model handles resource-intensive tasks effortlessly - perfect for AI projects, data processing, and multimedia work. The Raspberry Pi 5 16GB is identical to previous Pi 5 models, supporting the same accessories, cases, and overclocking options. The only difference is the increased RAM, giving you more flexibility for demanding applications. Ideal for developers, hobbyists, and educators, this upgrade joins the 2GB, 4GB, and 8GB models, offering more power for your projects. Unlock new possibilities and take your computing to the next level with this 16GB Raspberry Pi 5 model! Raspberry Pi + AI = Unlimited Possibilities – Checkout Official Raspberry Pi AI Kit ! Features VideoCore VII GPU with OpenGL ES 3.1 and Vulkan 1.2 support Dual 4Kp60 HDMI output with HDR support 4Kp60 HEVC decoder for high-quality video playback LPDDR4X-4267 SDRAM, available in 2GB, 4GB, 8GB, and 16GB options Dual-band 802.11ac Wi-Fi for fast wireless connectivity Bluetooth 5.0 & BLE for seamless device pairing microSD card slot with high-speed SDR104 mode support 2 × USB 3.0 ports with simultaneous 5Gbps transfer speed 2 × USB 2.0 ports for additional peripherals Gigabit Ethernet with PoE+ support (requires PoE+ HAT) Dual 4-lane MIPI transceivers for cameras and displays PCIe 2.0 x1 interface for high-speed peripherals (requires M.2 HAT or adapter) 5V/5A USB-C power input with Power Delivery support Raspberry Pi standard 40-pin header for GPIO expansion Real-time clock (RTC) powered by an external battery Dedicated power button for easy on/off control Comparison Table: Raspberry Pi 5 16GB Vs 8Gb Feature Raspberry Pi 5 (16GB) Raspberry Pi 5 (8GB) Processor Broadcom BCM2712 Quad-core Arm Cortex-A76 (2.4GHz) GPU VideoCore VII (supports dual 4Kp60 HDMI output) RAM 16GB LPDDR4X-4267 SDRAM 8GB LPDDR4X-4267 SDRAM Storage MicroSD card slot (supports SDXC), PCIe 2.0 x1 via FFC connector USB Ports 2 × USB 3.0, 2 × USB 2.0 Networking Gigabit Ethernet, Dual-band Wi-Fi 802.11ac, Bluetooth 5.0 Display Support 2 × micro-HDMI (up to 4K@60fps) Camera Support 2 × 4-lane MIPI CSI/DSI connectors Power Input USB-C (5V / 5A recommended) GPIO 40-pin GPIO header (backward compatible) Operating System Support Raspberry Pi OS, Ubuntu, and other Linux distributions Performance Advantage Better suited for heavy multitasking, AI, and data-intensive workloads Ideal for general computing, IoT, and light robotics projects Ideal Users Developers, researchers, and advanced makers Students, hobbyists, and entry-level users Performance Benchmarks & Real-World Speed Faster Boot Time: Boots into Raspberry Pi OS in under 20 seconds, even with heavy startup scripts. Enhanced Graphics Performance: Handles 4K dual-display output smoothly, ideal for media centers, AI visualization, and gaming projects. 16GB LPDDR4X RAM: Supports multitasking, containerized workloads, and large AI/ML models without lag. Snappy Desktop Experience: Run Chromium, VS Code, and multiple applications simultaneously with minimal delay. Benchmark Results: CPU Performance (Geekbench 6): ~2.9× faster than Raspberry Pi 4 (4GB model) GPU Performance (OpenGL ES): ~60 FPS in lightweight 3D tests Storage I/O (NVMe/SSD via PCIe): Over 700 MB/s read speeds with supported adapters Optimized for AI & Edge Computing: Handles TensorFlow Lite, image recognition, and IoT gateway workloads efficiently. Ideal For: AI projects, robotics, emulation, software testing, and high-performance DIY computing.

5V 1 amp DC jack Adapter 5 Volt 1 Amp Power Adapter takes an AC INPUT of 100-270VAC and gives 5V 1A DC output Features Excellent Quality Short Circuit, Over Voltage & Over Current Protection Incredibly Low Fault Rates No Minimum Load This power supply is a regulated Center Positive power supply It's plug design is for Indian power socket so, no plug converter is required Compact size & light weight High Reliability Regulated Stable Voltage Good quality SMPS Based Adapter Stabilized Output, low ripple & low interference Single Output Voltage High Efficiency & low energy consumption check out : 5V 2Amp Single Jack Adapter

12V 15A Power Supply SMPS This industry power module SMPS converts AC power to 12V 15A DC. It has built-in over-voltage, over-current, and short circuit protection. Perfectly designed and well constructed, small and compact Size with an indicator. This is the switched-mode power supply (SMPS) which converts 100 - 264V AC to 12V DC. It can provide up to 15A maximum current. All types of protections such as over-voltage protection, over-current protection, short circuit protection, and surge-protected output, are provided in the supply. These 12V 15 Amp power supply achieve high efficiency and are robust to use; By using these latest 12 Volt 15 amp power supply, you can reduce your electricity bill. This SMPS will provide you with a constant output of 12V 15A means we can drive applications that have a maximum current rating up to 15A. It includes any type of motor with different RPM, thermoelectric Peltier, etc. It has passed the CE & RoHS certification. This power supply is built with high-quality and high-performance materials. This SMPS power supply has an LED power supply with a metal body for hidden installation for LED lighting. Features: Converts AC power to 12V 15A DC Built-in over-voltage, over-current, and short circuit protection Small and compact size with an indicator Suitable for various applications including servers, power stations, personal computers, vehicles, factories, industries, railway and security systems, and mobile devices LED power supply with metal body for hidden installation. Applications: Servers, power stations, and personal computers. Vehicles for charging batteries. Factories and industries for power. Used in the equipment used in railway and security systems. It is also used in mobile and also as lighting.

NOVEL Li-ion Single Battery Charger Plug in Type NOVEL Li-ion Single Battery Charger, a reliable and efficient solution for powering your lithium-ion batteries. Designed with convenience in mind, this plug-in charger offers a straightforward charging experience. Its compact design ensures easy portability, making it an ideal choice for both home and travel use. Crafted from durable plastic, the NVL-006 charger is built to withstand everyday wear and tear. With an output voltage of 9V, it provides the necessary power to charge your batteries effectively. Whether you're at home or on the go, this charger ensures your devices stay powered and ready for use.

XL6019 DC-DC 5A Adjustable Boost Power Supply Module(RED) DC to DC step up module based on the upgraded XL-Semi XL-6019, offering up to 5A switching current and conversion efficiency of up to 97%. This XL6019 boost converter has two input pins for VCC and GND on the left side of the module. It has two output pins on the right side of the module. To get the desired output voltage you have to rotate the trimpot screw. It changes the feedback resistance value and thus the output voltage with respect to the input voltage. As this module is a step-up converter, therefore, the output current is always smaller than the input current. If the output power is greater than 10W then add the heat sink with the module otherwise it may damage the module. Features With reverse connect protection, output 5V / 12V / 24V adjustable, beyond LM2577 performance. The built-in thermal protection, over-current protection reliability. Wide input voltage range, the input voltage up to 35V. Adjustable output voltage, maximum support 40V. The built-in thermal protection, over-current protection full reliability protection circuit, high reliability. System conversion efficiency can achieve 90% above, convenient thermal design. TO263-5 l standard packaging, suitable for booster application within 30W. Also check the LM2596 Mini 360 Aircraft Power Supply Step-down Module . It is a non-isolated BUCK module with synchronous rectification. The module features an integrally molded power inductor and a synchronous rectifier control chip. It includes built-in 160°C thermal shutdown for safety and boasts low output ripple of 30mV (no-load).

12V 5A SMPS 60W DC Metal Switch Mode Power Supply This industry power module SMPS converts AC power to 12V 5A DC. It has built-in over-voltage, over-current, and short circuit protection. Perfectly designed and well constructed, small and compact Size with an indicator. This is the switched-mode power supply (SMPS) which converts 100 - 264V AC to 12V DC. It can provide up to 5A maximum current. All types of protections such as over-voltage protection, over-current protection, short circuit protection, and surge-protected output are provided in the supply. These SMPS are achieved high efficiency and robust to use; By using these latest SMPS, you can reduce your electricity bill. This SMPS will provide you with a constant output of 12V 5A means we can drive applications that have a maximum current rating up to 5A. It includes any type of motor with different RPM, thermoelectric Peltier, etc. It has passed the CE & RoHS certification. This power supply is built with high-quality and high-performance materials. This SMPS power supply has a led power supply with a metal body for hidden installation for led lighting Applications: It is used in servers, power stations, and personal computers. It is used in vehicles for charging batteries. It is used in factories and industries for power. It is used in the equipment used in railway and security system. It is also used in mobile and also as lighting.

11.1V 5200mAh 35C 3S1P Bonka Lipo Battery Lithium Polymer (AKA “LiPo”) batteries are a type of battery now used in many consumer electronics devices. They have been gaining in popularity in the radio control industry over the last few years and are now the most popular choice for anyone looking for long run times and high-power The 5200 mAh 35C 3S1P Bonka Lipo battery is a great choice which is specially designed for high power output such as for Quadcopters, Airplanes, RC Boat, RC Cars, etc. Extend your battery life with the iMax B6AC 80W Balance Charger . Safety Precautions: In order to maintain the efficiency and battery life of the batteries, avoid overcharging or over-discharging them. Batteries must not be kept near hot devices, surfaces, or substances. This can lead to severe damage and/or fire. To avoid environmental damage, do not throw the Lithium Polymer batteries into water or fire. Never leave this battery on charge unattended. Check out the best collection of Lipo Batteries . Also, read our blog on Li-ion vs Li polymer to understand Li-po vs Li-ion battery Which One to Choose? Features: Type: Lithium Polymer (LiPo) Battery Voltage: 11.1V Capacity: 5200mAh Discharge Rate: 35C (continuous), 70C (burst) Cell Configuration: 3S1P (3 cells in series, 1 cell in parallel) Connectors: JST-XH balance plug, JST 4Pin connector And XT60 Female connector High Power Output: Designed for quadcopters, RC cars, RC airplanes, and other demanding applications. Heavy Duty Discharge Leads: Minimizes resistance and handles high current loads Applications for this product: The Bonka 5200 mAh LiPo battery can be used in RC Cars Quadcopters RC airplanes Power various small low-powered embedded devices. Also, check 22.2v 22000mAh 25C/50 6S1P DJI S1000 Bonka Lipo Battery Pack .

0.9V-5V to 5V 600MA USB Output charger step up Mini DC-DC Boost Converter This Step-up Module is highly beneficial as it allows for an input range of 0.9-5V and an output of 5V, which is compatible with a variety of digital devices. As a result, it is an excellent choice for creating a portable charger and can prove useful in USB charger projects and onboard USB device supply solutions, such as GoPro cameras. Moreover, This boost converter offers versatility in terms of power supply options. It can be powered by a single-cell LiPO or AA size battery, or other similar options. When powered by two AA batteries, it can output a current of 500-600mA. On the other hand, a single AA battery power supply can provide an output of 200 mA current supply, making it ideal for mobile phones, cameras, single-chip, and digital products supply. Applications USB voltage regulator for USB-powered device. This module will bring the USB voltage required for your application at regulated 5V output. Various USB devices need 5V from low voltage batteries. Charge mobile phone/MP4/MP3 from AA battery when traveling Features The module adopts a high-performance imported chip, performance is superior to the common module. Work with indicator light. Take the USB female, a wide range of Uses. A single AA battery power supply can output current up to 200-300 mA. Two AA batteries to the output current of 500-600 mA. Work from battery voltage as low as 0.9V, allowing you to maximize battery use. If your USB device is critical on 5V operation you can use this module.
