Which satellite systems does the L89HA support?

The L89HA supports GPS, IRNSS (NavIC), GLONASS, BeiDou, Galileo, and QZSS with dual-band L1 and L5 reception for high accuracy.

Is the L89HA compatible with Arduino?

Yes, it supports UART and I2C communication and works seamlessly with Arduino, ESP32, and Raspberry Pi.

How do I enable IRNSS (NavIC) on the L89HA?

Send the AT command PSTMSETCONSTMASK,1024 via QNavigator and use an external active antenna under open sky.

What power supply does the module require?

The L89HA operates on a stable 3.3V power supply and includes a backup battery pin for data retention.

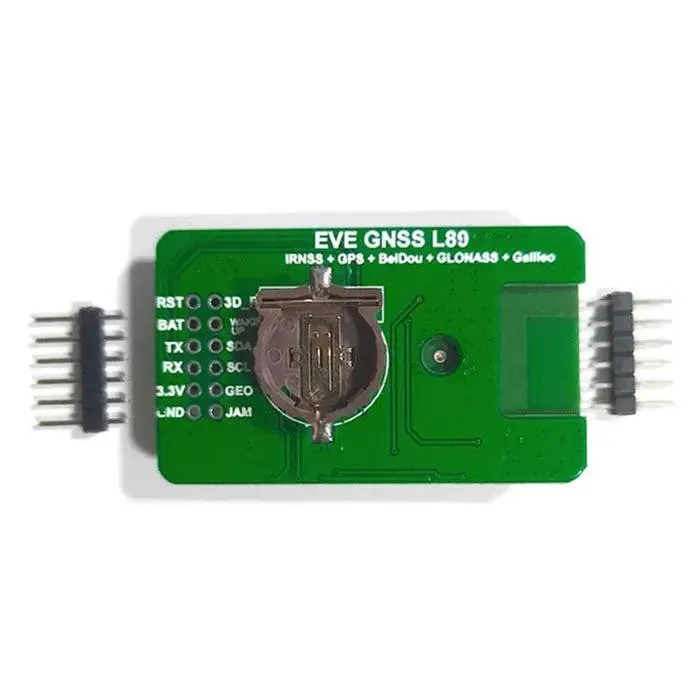

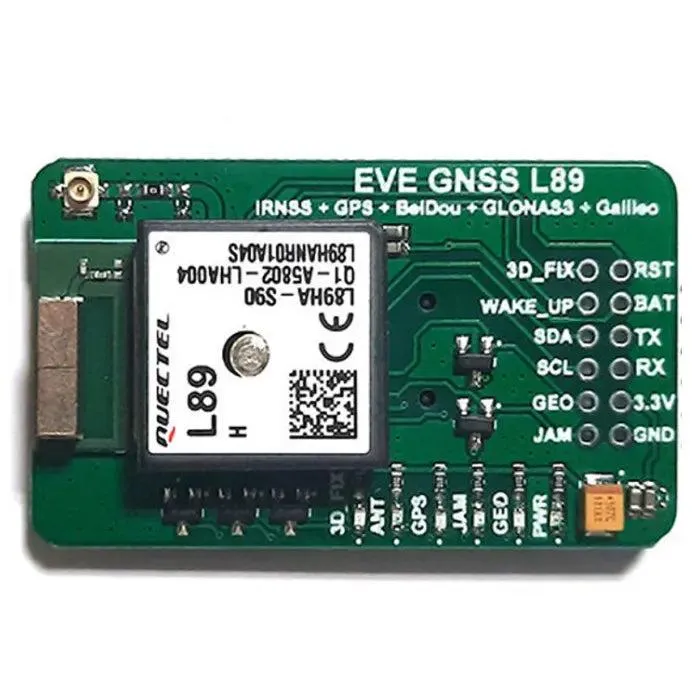

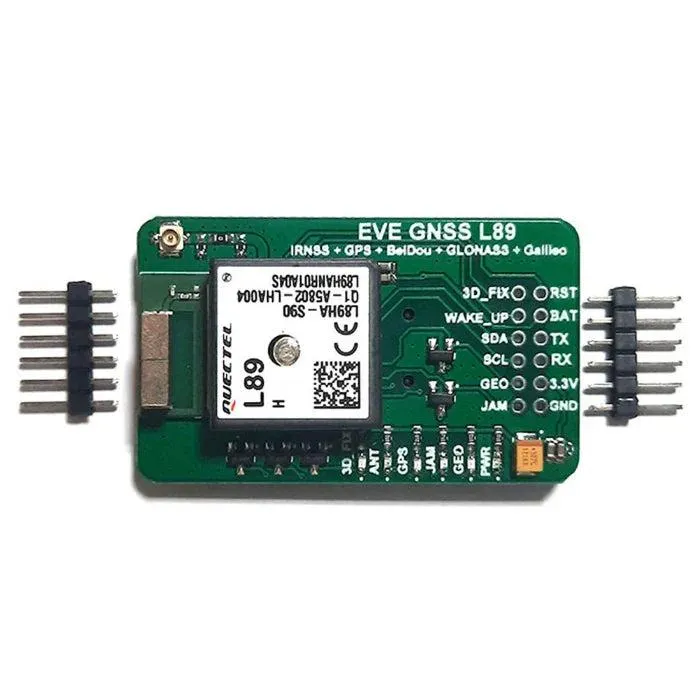

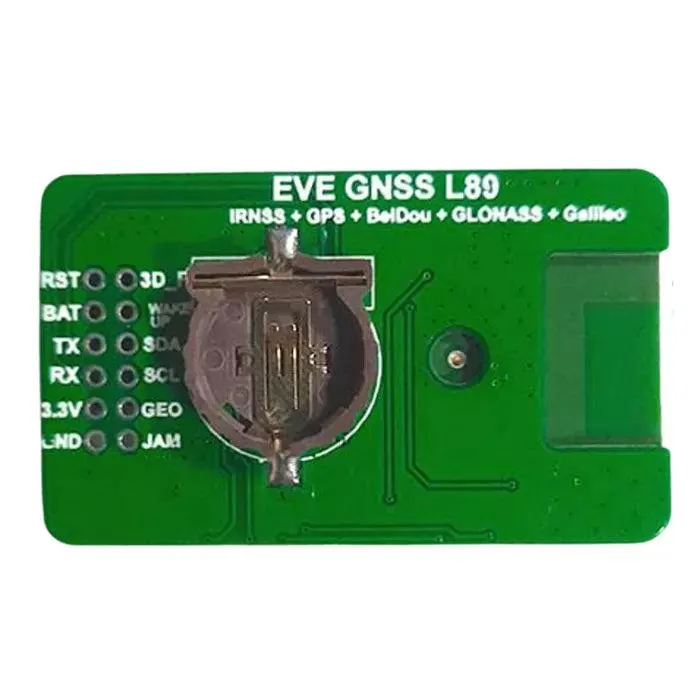

L89HA Multi-GNSS Module - GPS, NavIC, GLONASS, BeiDou

Name: L89HA Multi-GNSS Breakout Module for GPS, IRNSS, GLONASS, BeiDou, Galileo & QZSS - 7Semi
Brand: 7Semi
SKU: IOT-2747
Price: 1278.54 INR
Availability: InStock
Rating: 5 (1 reviews)

Parameter	Specification
Receiving Bands	GPS L1 / Galileo E1 C/A: 1575.42 MHzGLONASS L1 C/A: 1602.5625 MHzIRNSS L5 C/A: 1176.45 MHzBeiDou B1 C/A: 1561.098 MHz
SBAS Support	WAAS, EGNOS, MSAS, GAGAN
Horizontal Position Accuracy	Autonomous: < 1.8 m CEP
Velocity Accuracy	Without Aid: < 0.1 m/s
Acceleration Accuracy	Without Aid: < 0.1 m/s²
Timing Accuracy (1PPS)	3.9 ns
Reacquisition Time	< 1.5 s
Dimensions (LxWxH)	5 x 3 x 0.8 cm
Weight	15 gm
Sensitivity	Acquisition: -147 dBmTracking: -163 dBmReacquisition: -156 dBm
Dynamic Performance	Maximum Altitude: 18,000 mMaximum Velocity: 515 m/sMaximum Acceleration: 4G
