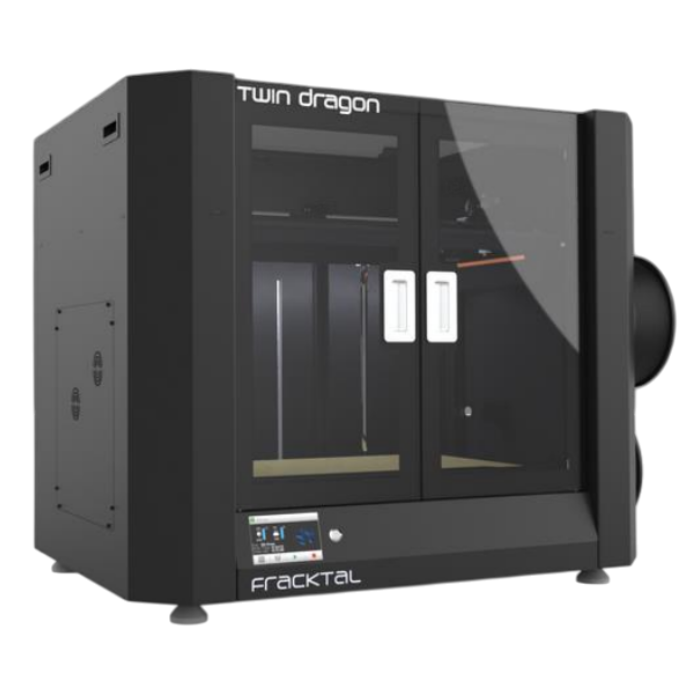

Fractal Works Dragon 700 FDM 3D Printer
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.
Fractal Works Dragon 700 FDM 3D Printer Dragon 700 FDM 3D Printer by Fractal Works offers a large 700 x 600 x 400 mm build volume, supporting materials like ABS+, PLA+, PETG, and Carbon Fiber Composites. It features 8-micron (X, Y) and 2-micron (Z) accuracy for precise prints, with a single extruder that heats up to 300°C and prints at speeds up to 300 mm/s. Layer resolution is adjustable from 100 to 800 microns, and the PEI FlexBuild surface ensures easy part removal. With remote monitoring via Wi-Fi and LAN, it’s a durable, reliable choice for large-scale, high-quality 3D printing. Key Features Large Build Volume: 700 x 600 x 400 mm. High Precision: 8 microns (X, Y) and 2 microns (Z). Print Speed: Up to 300 mm/s. Supports Multiple Materials: ABS+, PLA+, PETG, Polycarbonate, Carbon Fiber Composites, TPU. Adjustable Layer Resolution: 100 to 800 microns. Nozzle Temperature: Up to 300°C. PEI FlexBuild Surface: Easy part removal and strong adhesion. Remote Monitoring: Wi-Fi and LAN connectivity for live updates. Durable Design: Weighs 200 kg for stability.
- Large 700 x 600 x 400 mm build volume
- 8-micron (X, Y) and 2-micron (Z) precision
- Print speed up to 300 mm/s
- Supports ABS+, PLA+, PETG, Polycarbonate, TPU, Carbon Fiber
- Nozzle temperature up to 300°C
- PEI FlexBuild surface for easy part removal
- Wi-Fi and LAN remote monitoring
- 200 kg durable frame for stability
- Industrial-scale build volume
- High-precision motion system
- Multi-material compatibility
- Remote monitoring via Wi-Fi/LAN
- Durable and stable frame design
- User-friendly PEI build plate
| Print Head | Fused Deposition Modeling (FDM) |
|---|---|
| Build Volume (Single Mode) | 700 mm x 600 mm x 400 mm |
| Filament Diameter | 1.75 mm |
| XYZ Positioning Resolution | 8 Micron (X, Y), 2 Micron (Z) |
| Number of Extruders | 1 |
| Build Speed | Up to 300 mm/s |
| Layer Resolution | 0.4 mm nozzle: 100-300 micron0.6 mm nozzle: 150-450 micron0.8 mm nozzle: 200-600 micron1.2 mm nozzle: 300-800 micron |
| Built Plate Temperature | Max: 150°C |
| Connectivity | USB port, WiFi, Ethernet |
| Supported Materials | ABS+, PLA+, PETG, PVA, PVA+, Polycarbonate, Carbon Fiber Composites, CF Nylon, TPU |
| Nozzle | Single Nozzle System |
| Nozzle Temperatures | Up to 300°C |
| Positioning Accuracy Z | 10 µm |
| Positioning Accuracy X-Y | 15 µm |
| Build Plate | PEI FlexBuild Surface |
| Monitoring | Camera over WiFi, LAN |
| Net Weight | 200 kg |
| Networking | Remote Monitoring System & Live Printer Updates |
What materials can the Fractal Works Dragon 700 print with?
The Dragon 700 supports ABS+, PLA+, PETG, Polycarbonate, TPU, and Carbon Fiber Composites with a nozzle temperature up to 300°C.
Can I monitor prints remotely on the Dragon 700?
Yes, the printer features Wi-Fi and LAN connectivity for real-time remote monitoring and control.
What is the build volume of the Dragon 700 3D printer?
It offers a large build volume of 700 x 600 x 400 mm, suitable for industrial-scale printing.
Is the Dragon 700 compatible with Raspberry Pi or Arduino?
No, it is a standalone FDM 3D printer with built-in control system; not designed for direct microcontroller interfacing.
To rate this product please login!
About Fractal Works Dragon 700 FDM 3D Printer by Fractal Works
Shop Fractal Works Dragon 700 FDM 3D Printer with 700x600x400mm build volume, Wi-Fi/LAN remote monitoring, and support for ABS+, PLA+, PETG, and Carbon Fiber.
