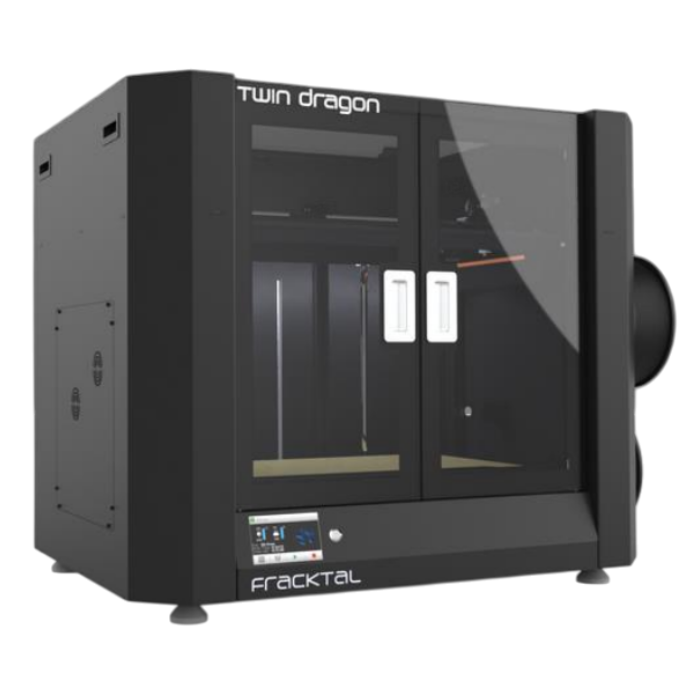

Fractal Works Dragon 500 FDM 3D Printer
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.
Fractal Works Dragon 500 FDM 3D Printer The Dragon 500 FDM 3D Printer by Fractal Works offers a large 500 x 400 x 400 mm build volume and supports materials like ABS, PLA, PETG, Polycarbonate, Carbon Fiber, and more. With 8-micron (X, Y) and 2-micron (Z) precision, it delivers high accuracy and fast printing speeds up to 300 mm/s. The 3D printer features adjustable layer resolutions from 100 to 800 microns, a PEI FlexBuild surface for easy part removal, and remote monitoring via Wi-Fi and LAN. It is an excellent choice for high-quality, large-scale 3D printing tasks. Features Large Build Volume: 500 x 400 x 400 mm for larger prints. High Precision: 8-micron (X, Y) and 2-micron (Z) positioning accuracy. Fast Printing: Speeds up to 300 mm/s. Versatile Material Support: Works with ABS, PLA, Tough PLA, PETG, PVA, Polycarbonate, Carbon Fiber Composites, CF Nylon. Adjustable Layer Resolution: 100–800 microns depending on nozzle size. High-Temperature Nozzle: Up to 300°C. PEI FlexBuild Surface: Ensures strong adhesion and easy part removal. Remote Monitoring: Camera for live updates via Wi-Fi and LAN. Durable Build: Weighs 150 kg for stability. Connectivity: Supports USB, Wi-Fi, Ethernet.
- 500 x 400 x 400 mm large build volume
- 8-micron X/Y and 2-micron Z-axis precision
- Print speeds up to 300 mm/s
- High-temp nozzle up to 300°C
- PEI FlexBuild removable surface
- Wi-Fi, LAN, and USB connectivity
- Live camera for remote monitoring
- Supports Carbon Fiber and engineering filaments
- Industrial-grade FDM printing
- Remote monitoring via live camera
- Wide material compatibility
- High-speed precision printing
- Durable and stable construction
- Easy part removal with flexible build plate
| Print Head | Fused Deposition Modeling (FDM) |
|---|---|
| Build Volume (Single) | 500 mm x 400 mm x 400 mm |
| Filament Diameter | 1.75 mm |
| XYZ Positioning Resolution | 8 Micron (X, Y), 2 Micron (Z) |
| Number of Extruders | 1 |
| Build Speed | Up to 300 mm/s |
| Layer Resolution | 0.4 mm nozzle: 100-300 micron0.6 mm nozzle: 150-450 micron0.8 mm nozzle: 200-600 micron1.2 mm nozzle: 300-800 micron |
| Build Plate Temperature | Max: 150°C |
| Connectivity | USB port, WiFi, Ethernet |
| Supported Materials | ABS, PLA, Tough PLA, PLA+, PETG, PVA, PVA+, Polycarbonate, Carbon Fiber Composites, CF Nylon |
| Nozzle | Nozzle Temperature: Up to 300°CPositioning Accuracy Z: 10 umPositioning Accuracy X-Y: 15 um |
| Build Plate | PEI FlexBuild Surface |
| Monitoring | Camera over WiFi, LAN |
| Net Weight | 150 kg |
| Networking | Remote Monitoring System & Live Printer Updates |
What materials are compatible with the Dragon 500 3D printer?
Supports ABS, PLA, Tough PLA, PETG, PVA, Polycarbonate, Carbon Fiber composites, and CF Nylon.
Can I monitor prints remotely on the Dragon 500?
Yes, it includes Wi-Fi and LAN connectivity with live camera monitoring for remote print tracking.
What is the maximum print speed of the Dragon 500?
Up to 300 mm/s, enabling fast production without sacrificing precision.
Is the build surface easy to use for part removal?
Yes, the PEI FlexBuild surface ensures strong adhesion and easy, damage-free part removal.
