ESP8266 Serial WIFI Wireless Transceiver Module ESP-07 Send Receive LWIP AP Plus STA

(0)

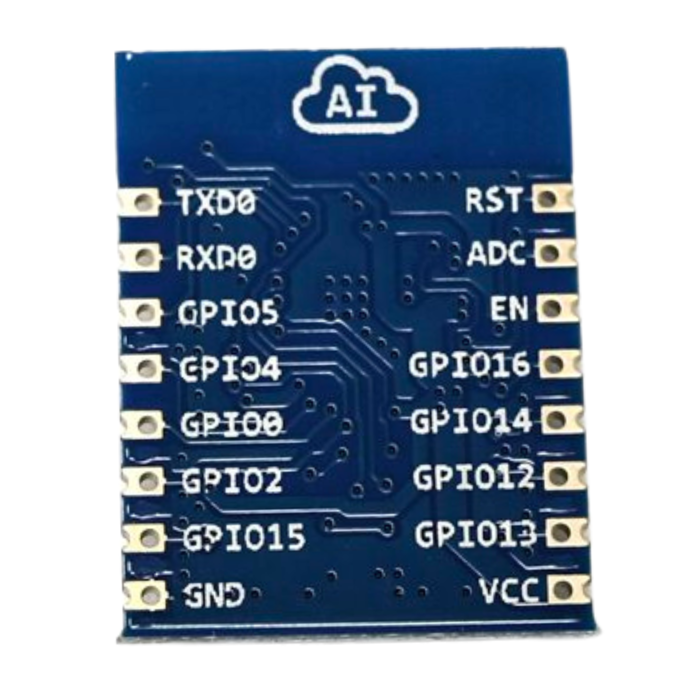

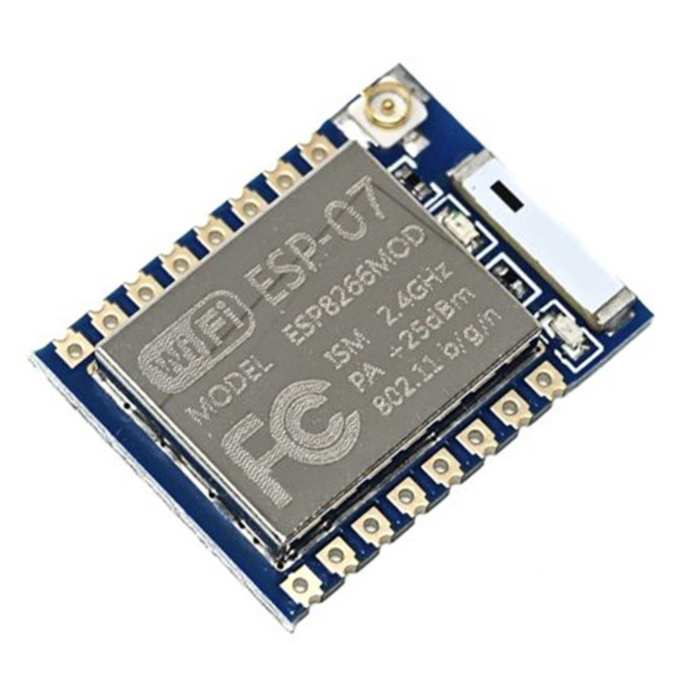

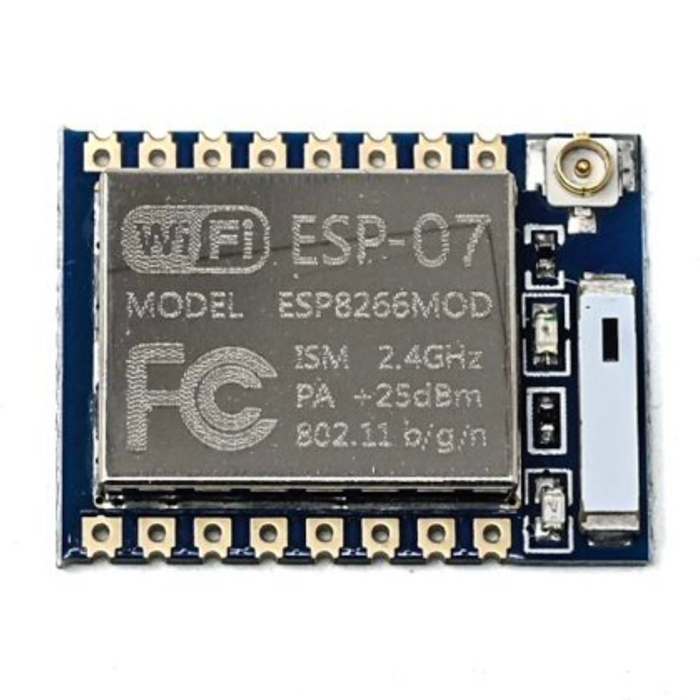

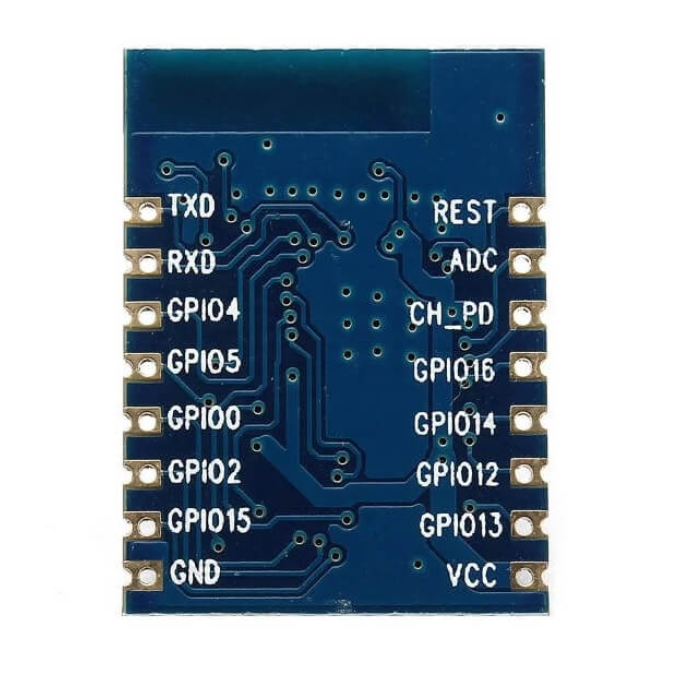

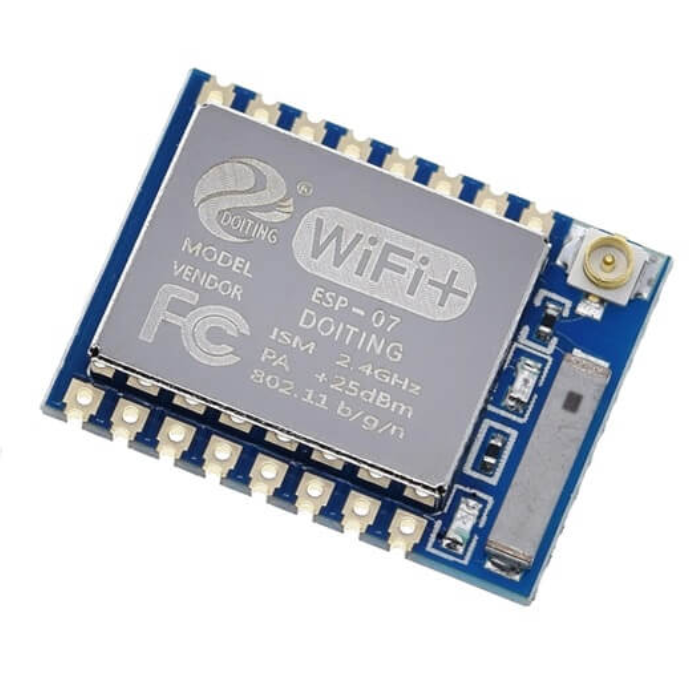

ESP8266 Serial WIFI Wireless Transceiver Module ESP-07 Send Receive LWIP AP Plus STA The ESP-07 WiFi module is developed by AI-Thinker Co., Ltd, has an ultra-low power 32-bit MCU micro, with a 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antennas. The ESP ESP8266EX offers a complete and self-contained Wi-Fi networking solution; it can be used to host the application or to offload Wi-Fi networking functions from another application processor. When ESP8266EX hosts the application, it boots up directly from an external flash. It has an integrated cache to improve the …
Condition: NEW
As low as ₹249.25   ₹368.20 Incl. GST (No Hidden Charges)
Backorder Available Delivery: Next Day Delivery
IN STOCK SKU#: IOT-2584
Delivery & Pickup Options
Get it Next Day on Order

Order now and we'll have it ready for delivery by the next business day.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

ESP8266 Serial WIFI Wireless Transceiver Module ESP-07 Send Receive LWIP AP Plus STA The ESP-07 WiFi module is developed by AI-Thinker Co., Ltd, has an ultra-low power 32-bit MCU micro, with a 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antennas. The ESP ESP8266EX offers a complete and self-contained Wi-Fi networking solution; it can be used to host the application or to offload Wi-Fi networking functions from another application processor. When ESP8266EX hosts the application, it boots up directly from an external flash. It has an integrated cache to improve the performance of the system in such applications. This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, which is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts. Pinout: Pinout of ESP8266 ESP-07 Wifi Module Features: Core Processor: ESP8266 with Tensilica L106 ultra-low-power 32-bit micro MCU. Clock Speed: Supports 80 MHz and 160 MHz. WiFi Standards: 802.11 b/g/n. Interfaces: UART, GPIO, I2C, PWM, ADC. Built-in Features: Integrated Wi-Fi MAC/BB/RF/PA/LNA, onboard antenna. Memory: Internal SRAM and ROM, with support for external SPI flash. Power Consumption: Low power consumption, suitable for battery-operated projects. ADC: Built-in 10-bit high-precision ADC. Package: SMD-16 package for easy soldering Applications: Home Automation: Used in smart home devices for controlling lights, thermostats, and security systems. Industrial Wireless Control: Employed in industrial settings for remote monitoring and control of machinery. IoT Projects: Ideal for Internet of Things applications, including data collection and remote device management. Baby Monitors: Integrated into baby monitoring systems for wireless communication. Wearable Electronics: Used in wearable devices for health monitoring and other functions. Wireless Location Sensing: Utilized in systems that require wireless positioning and location tracking. Remote Sensor Data Logging: Suitable for logging data from remote sensors over WiFi. DIY Projects: Perfect for hobbyists and makers creating custom wireless projects

  • ESP8266EX 32-bit MCU with 80/160 MHz clock speed
  • Integrated Wi-Fi 802.11 b/g/n with onboard antenna
  • Supports UART, GPIO, I2C, PWM, and 10-bit ADC
  • Ultra-low power consumption for battery-operated devices
  • Compatible with Arduino, Raspberry Pi, and custom firmware
  • Ideal for IoT, home automation, and industrial control
  • Dual-mode Wi-Fi (STA + AP)
  • Built-in TCP/IP protocol stack (LWIP)
  • Supports RTOS for multitasking
  • Self-calibrated RF system
  • Compact design for embedded applications
  • AT command support for easy integration
Module Model ESP-07
WIFI 802.11 b/g/n
Frequency Range 2.4GHz-2.5GHz (2400M-2483.5M)
Operating Voltage 3.0~3.6V
Security WPA/WPA2
Flash 4 MB
Dimensions 3 x 2 x 1cms
Weight 15 grams
Is the ESP-07 compatible with Arduino?

Yes, the ESP-07 can be interfaced with Arduino via UART using AT commands or by flashing the ESP8266 with Arduino-compatible firmware.

Does the ESP-07 have an onboard antenna?

Yes, the ESP-07 includes an integrated PCB antenna, eliminating the need for external RF components.

What is the power consumption of the ESP-07?

The ESP-07 features ultra-low power consumption, making it suitable for battery-powered IoT and wearable applications.

Can the ESP-07 operate in both STA and AP modes?

Yes, the ESP-07 supports both Station (STA) and Access Point (AP) modes simultaneously, enabling flexible network configurations.

To rate this product please login!

About ESP8266 Serial WIFI Wireless Transceiver Module ESP-07 Send Receive LWIP AP Plus STA by AI-Thinker

Buy ESP-07 ESP8266 WiFi module with UART, GPIO, ADC. Compatible with Arduino & Raspberry Pi. Ideal for IoT projects.
