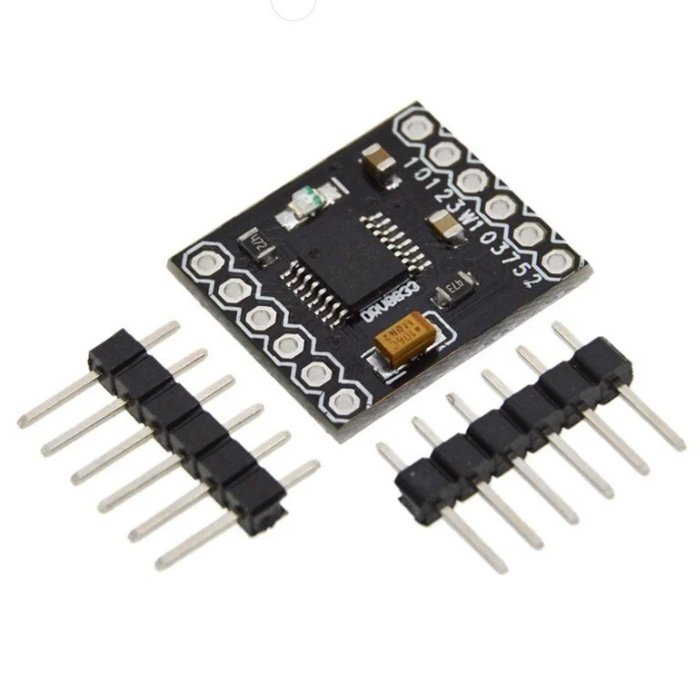

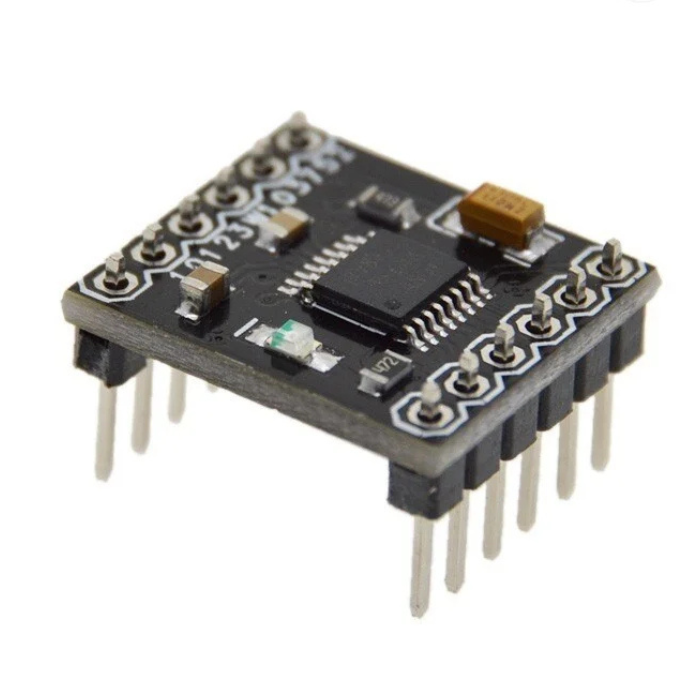

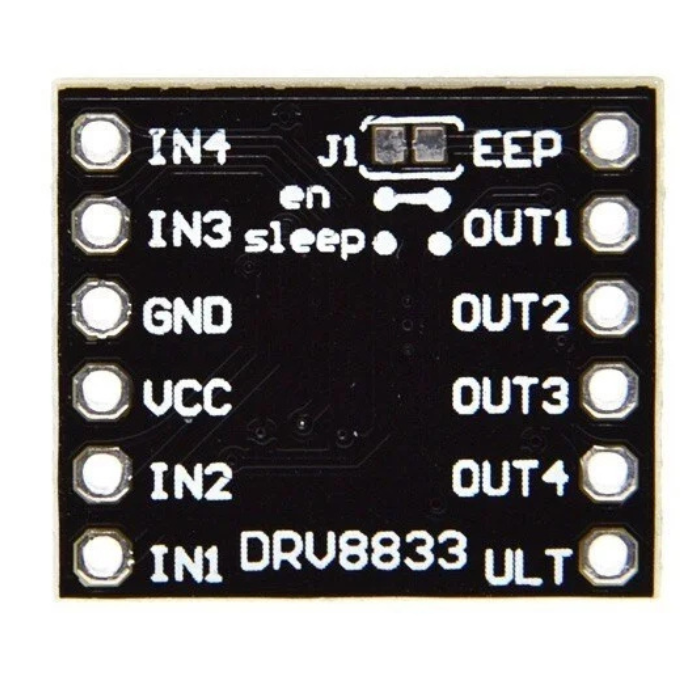

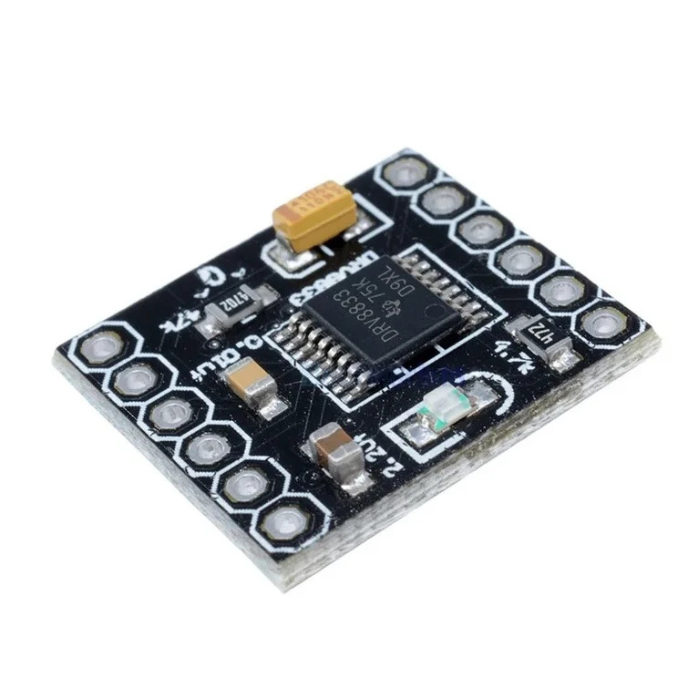

DRV8833 2 Channel DC Motor Driver The DRV8833 2 Channel DC Motor Driver is a small, powerful motor driver that controls two brushed DC motors. It works with motor voltages between 2.7V and 10.8V, providing up to 1.2A of continuous current per channel, with short bursts up to 2A. This makes it ideal for low-voltage, small-motor applications. The board comes fully assembled with the DRV8833 chip and includes a safety feature for reverse battery protection. It also has built-in current limits and doesn’t need an external power supply for the logic voltage, making it easy to use in various projects. …
Condition: NEW
As low as ₹79.00   ₹126.00 Incl. GST (No Hidden Charges)
Backorder Available Delivery: Next Day Delivery
IN STOCK SKU#: IOT-221
Delivery & Pickup Options
Get it Next Day on Order

Order now and we'll have it ready for delivery by the next business day.

For bulk orders or wholesale inquiries, please contact us at Email: support@iotcart.in or call/message us at Phone: 8050206487.

DRV8833 2 Channel DC Motor Driver The DRV8833 2 Channel DC Motor Driver is a small, powerful motor driver that controls two brushed DC motors. It works with motor voltages between 2.7V and 10.8V, providing up to 1.2A of continuous current per channel, with short bursts up to 2A. This makes it ideal for low-voltage, small-motor applications. The board comes fully assembled with the DRV8833 chip and includes a safety feature for reverse battery protection. It also has built-in current limits and doesn’t need an external power supply for the logic voltage, making it easy to use in various projects. Key features Dual-H-bridge for two DC motors or one stepper motor. Voltage range: 2.7V to 10.8V. 1.2A continuous (2A peak) per motor, 2.4A continuous (4A peak) when paralleled. 3V- and 5V-compatible inputs. Protection against under-voltage, over-current, and over-temperature. Reverse-voltage protection. Current limiting with optional sense resistors.

  • Dual-H-bridge driver for two DC motors or one stepper motor.
  • Voltage range: 2.7V to 10.8V.
  • 1.2A continuous (2A peak) current per motor.
  • Compatible with 3V and 5V input signals.
Model Series DRV Series
Voltage Rating 2.7 to 10.8VDC
Current Rating 1.2 to 2A
Width 18mm
Height 8mm
Weight 5g
