Coin Type Micro Vibration Motor
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.

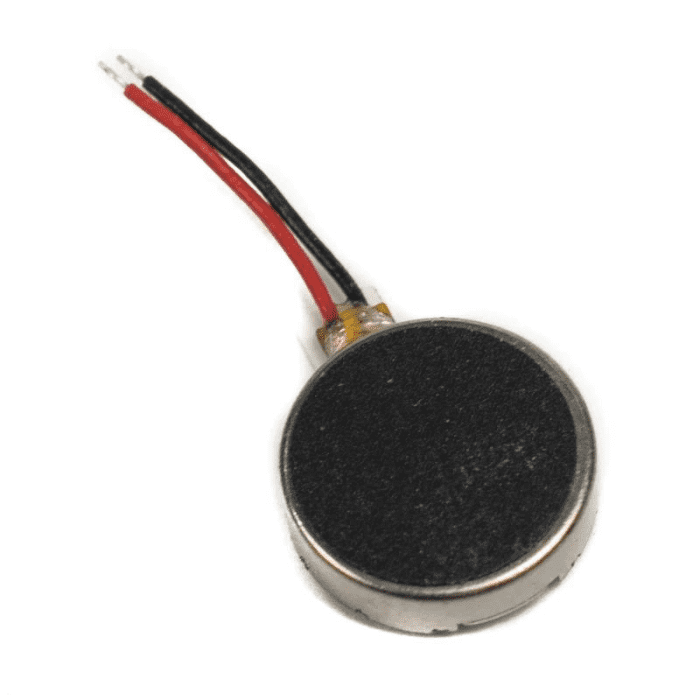

Coin Type Micro Vibration Motor This Flat 1034 Mobile Phone Vibration Motor is a shaftless vibration motor which is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 3.4 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5? leads for making quick connections. Polarity is not important; the motor can run CW or CCW. This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads. Features: Size: Approximately 10mm in diameter and 2-3mm in thickness. Voltage: Operates on 3V DC. Speed: Can reach up to 12,000 RPM. Type: Eccentric Rotating Mass (ERM) motor, which creates vibration by rotating an off-center mass. Mounting: Compact and convenient to use, with options for self-adhesive mounting. Noise Level: Low noise level when vibrating. Applications: Suitable for mobile phones, pagers, handheld devices, wearables, and other electronics requiring vibration feedback123. Applications: Mobile phones Toys, health products Handicrafts Electronic products Medical equipment Tablet computers Wearable devices Smartwatches Structure of Coin Type Micro Vibration Motor
- Compact 10mm x 3.4mm coin-type design
- Operates at 3V DC with 60mA current draw
- Vibration amplitude: 0.75g at up to 12,000 RPM
- Shaftless ERM motor with fully enclosed body
- 3M adhesive backing for easy mounting
- Low noise operation for discreet haptic feedback
- Ultra-compact form factor for space-constrained designs
- Self-adhesive mounting for quick installation
- Polarity-independent operation
- Suitable for wearables, IoT devices, and mobile gadgets
- Low power consumption for battery-powered applications

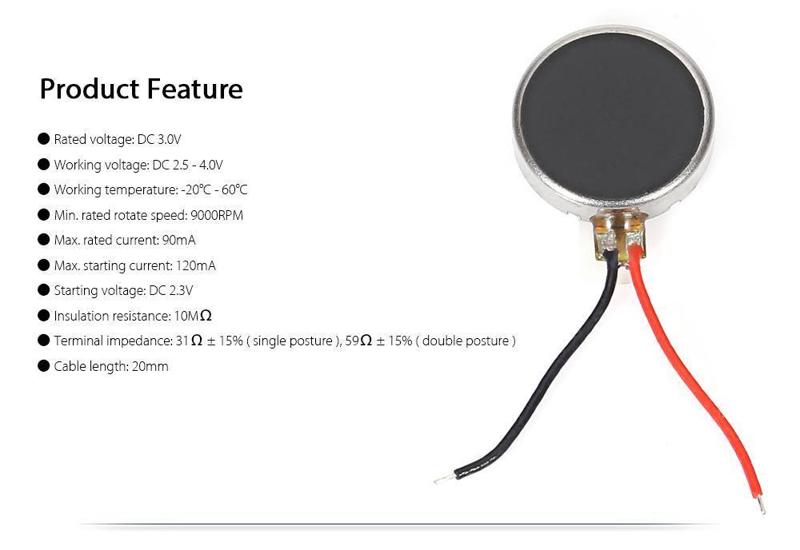

| Rated Voltage | DC 3.0v |
|---|---|
| Working Voltage | DC 2.5 – 4.0V |
| Working Temperature | -20°C – 60°C |
| Min. rated rotate speed | 9000RPM |
| Max. rated current | 90mA |
| Max. starting current | 120mA |
| Insulation Resistance | 10M ? |
| Terminal Impedance | 31 ? ±15% (single posture), 59 ?± 15% (double posture) |
| Cable length | 20mm |

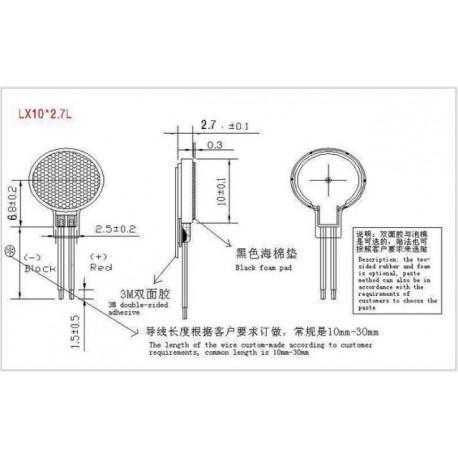

| Dimensions | 10x2.5mm |
What is the operating voltage of the SES-P-2018 vibration motor?
The motor operates at 3V DC and draws approximately 60mA under load.
Can this motor be used with Arduino or Raspberry Pi?
Yes, it is compatible with microcontrollers like Arduino and Raspberry Pi via a transistor or driver circuit.
What is the size of the coin vibration motor?
It measures 10mm in diameter and 3.4mm in height, making it ideal for compact designs.
Is polarity important when connecting the motor?
No, polarity is not critical—the motor runs efficiently in both directions.
