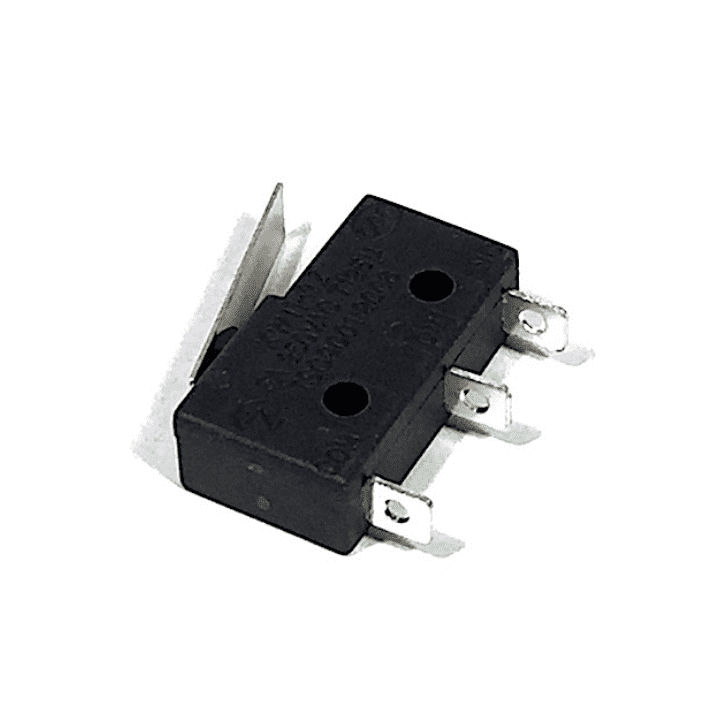

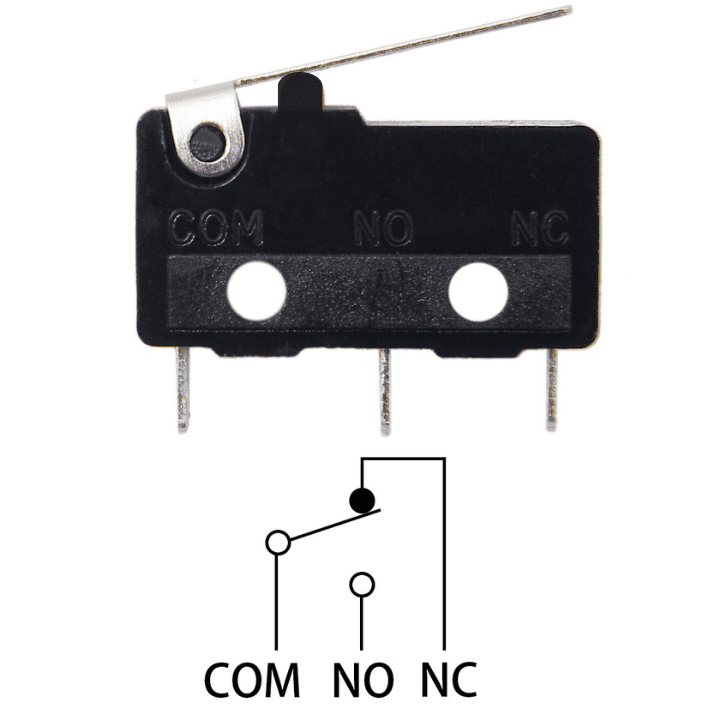

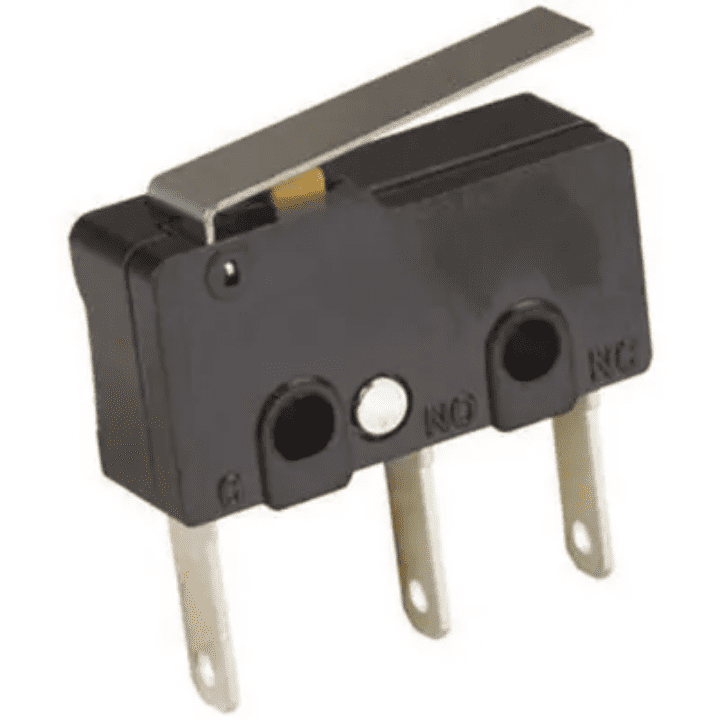

Arm Lever 15mm, 250V 6A SPDT 3-Pin Momentary Plastic Micro Limit Switch

ULN2003 12V Stepper Motor Driver This 12V DC 28BYJ-48 Stepper Motor is a low-cost, high-quality geared stepper motor. Because of the system's stability and reliability, the 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a popular combination of stepper motor and stepper driver. The pack includes the ULN2003 Stepper Motor Driver, which is a Mini Stepper Motor Driver. The main function of the ULN2003 is to amplify the control signals from the Arduino so that they can be used to drive the 28BYJ-48 Stepper Motor. If you want to control the stepper motor with the stepper motor driver, for that you will need a few essential components like Arduino jumper wires batteries or power supply Features: Stepper motor with a standard interface, when used directly pluggable. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work. Compact-size stepper motor perfect for small robotics applications. Also, read our blog What is Motor Driver detailing an overview of motor drivers, including the different types available and how they work.

48mm x 50 Meter Masking Tape Masking Tape is designed with a premium quality micron adhesive that can be easily removed with no residue left behind. Ideal for painting/designing walls, Holding, Bundling & Sealing by carpenter & other industrial use, No need to worry about cleaning up sticky spots after use on the surfaces or on items that you have labelled. This masking tape offers excellent surface protection when you're using 3D printer, at home or during a commercial project. It tears easily by hand and adheres quickly to a variety of surfaces. The adhesive is strong enough to ensure neat straight lines when painting but once finished can be removed effortlessly leaving no residue behind.

GT2 Open Timing Belt 6mm Width Pitch 2mm for 3D Printer The GT2 open timing belt is suitable for dishwashers, packaging machinery, motorcycles, automobile, dryer, food machinery, inkjet printer, conveyor, bonders etc.

4 Start T Type Copper Nut - 2mm Pitch The 4 start T type copper nut is specifically designed for RepRap 3D printers and other CNC machinery. The 2mm pitch copper nit for 3D printers has a compact design and weighs less than 50grams. It is best compatible with scree rod and together they work as axes in 3D printers. Feature of 4 Start Copper Nut Material Copper Pitch 2mm Lead 8mm Screw Type 4 Start T Type Nut Dimensions 5 x 4 x 3cms Weight 25 grams

5mm to 5mm Flexible Couplings The 5mm to 5mm flexible couplings are manufactured with high-quality aluminium which minimum backlash possible. These aluminium couplings are generally used to connect your driving shaft with the driven shaft. It is able to achieve this in the most efficient way possible while avoiding any misalignment. Flexible shaft couplers used in small CNC machines and 3d printers such as Prusa i3 or ord bot. Flex capability of the coupler removes stress when shafts are not aligned perfectly. Features of the Coupling Material Aluminium Coupling Type 5mm to 8mm Dimensions 19 mm x 25 mm Compatibility NEMA 17 Stepper Motors Weight 50 grams

LM8UU 8 MM Linear Motion Bearing for 3D Printer This LM8LUU 8mm Bushing Longer Linear Ball Bearing is a longer version of our standard LM8LUU linear slide bush for 8mm hardened steel shafts.

12V 10A PWM DC Motor Speed Controller The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The 12 Volt DC Motor Speed Controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function. This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz. Note: This cannot be used for the brushless motor. The controller is not reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity. Features: Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current protection. Control voltage over-voltage protection function The overload and short circuit protecting current is 10A Applications: Automotive: Controlling the speed of cooling fans, windshield wipers, and air conditioning systems. Industrial Automation: Managing the speed of conveyor belts, exhaust fans, and other motor-driven machinery. Home Appliances: Adjusting the speed of fans, pumps, and other household devices. Treadmills: Regulating the speed of the treadmill belt for different workout intensities. Robotics: Providing precise speed control for DC motors in robotic projects. DIY Projects: Ideal for custom electronics projects requiring variable motor speed control

1200W PWM Motor Speed Controller with Potentiometer This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance, and stable performance. It is made with a high-quality circuit board which ensures a longer service life. The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. Speed Regulator is an important electronic DIY equipment. Do not touch the heat sink with the wiring. If it touches, it may burn the circuit board. Note that this is not a power module. It must be connected to the motor to speed it up. There is no change in the output of the multimeter without the motor. Features: Maximum Power: 1200W The speed of the DC motor can be controlled by adjusting the pulse width modulation (PWM). The knob realizes 0-100% adjustment, supports step-less speed regulation, and facilitates positioning speed.

A3967 Stepper Motor Driver This A3967 Stepper Motor Driver For Arduino is the most recent version of EasyDriver v44, which was created in collaboration with Brian Schmalz. When compared to previous versions, it offers more flexibility and control over your stepper motor . It is a simple stepper motor driver that is compatible with most microcontrollers and capable of producing a digital 0 to 5V pulse (0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). A 7V to 30V power supply is required for the module's motor. The digital interface is powered by an onboard voltage regulator that can be set to 5V or 3.3V. The A3967 is a full-featured microstepping motor driver with an integrated transistor. It is intended for use with bipolar stepper motors in full-, half-, quarter-, and eighth-step modes, with output drive capabilities of 30 V and 750 mA. The A3967 comes with a fixed off-time current regulator that can operate in slow, fast, or mixed current-decay modes. This current-decay control scheme produces less audible motor noise, higher step accuracy, and lower power dissipation. The transistor is essential to the A3967's simple implementation. Simply sending one pulse to the STEP input causes the motor to move one step (full, half, quarter, or eighth depending on two logic inputs). It is not necessary to programme phase-sequence tables, high-frequency control lines, or complex interfaces. The A3967 interface is ideal for applications where a complex P is either unavailable or overburdened. Features: A3967 microstepping driver Adjustable current control from 150mA/phase to 750mA/phase MS1 and MS2 pins are broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth) Compatible with 4, 6, and 8-wire stepper motors of any voltage Breadboard-compatible pins.

Mini limit Switch 5A 250V The Mini Limit Switch 5A 250V is your versatile solution for precise control and automation. This 3-terminal, momentary action switch is equipped with 1 NO and 1 NC contact, along with a silver tone lever hinge for easy handling. Crafted with precision, this switch ensures the highest quality and durability, making it perfect for a wide range of applications, including appliances, electronic equipment, automatic machines, and automotive electric systems. Whether you're a hobbyist, maker, or engineer, this Mini Limit Switch is a must-have for your DIY projects. It's easy to install, catering to users of all skill levels. With reliable performance and a compact design, it's suitable for various age ranges and skill levels. Are you looking to enhance your DIY projects with precise control? Buy Mini Limit Switch now at the best price and experience the difference it makes in your automation endeavors! Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3 cm. Features: Contact Type: Momentary Action Terminal Type: 3-Terminal Versatile Design: 3-terminal, momentary action switch with silver tone lever hinge Durable Construction: Crafted with precision for high quality and durability Easy to Install: Designed for straightforward installation, suitable for users of all skill levels Applications: Mini limit switches like the 5A 250V version can be used in various applications such as industrial settings, assembly lines, and safety interlocks They are crucial in detecting the presence or absence of materials or objects, automating processes, and ensuring safety in machinery operations Limit switches are commonly employed in controlling devices and ensuring safety for both machinery and personnel by sending digital signals to control systems These switches play a vital role in manufacturing due to their simplicity, cost-effectiveness, and ability to create a link between physical and electrical domains

A4988 Stepper Motor Driver Module with Heat Sink For 3D Printer (Red) A4988 Stepper Motor Driver is a complete micro-stepping motor driver with a built-in translator for easy operation. The product can be full, half, 1/4, 1/8, and 1/16 step mode to operate bipolar stepper motor output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator can slow or mixed decay mode. The converter is the key to the easy implementation of the A4988. In inputting one pulse on the STEP input drives the motor one micros tep. No phase sequence tables, high-frequency control lines, or complex interfaces to programming. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened. The micro-step operation, the chopping control in the A4988 automatically selects the current decay mode (Slow or Mixed). In the mixed decay mode, the device is initially set to fast decay in the part of the fixed off-time, then a slow decay in the rest of the downtime. Mixed-decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry to improve the pulse-width modulation (PWM) power consumption when operating. Internal circuit protection includes thermal shutdown with hysteresis, under-voltage lockout (UVLO) and crossover current protection. Special power-Sort. If you want to control the stepper motor with this motor driver, you will need a few essential components like Arduino , breadboard, jumper wires, batteries, and power supply. Features: Simple step and direction control interface Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step Automatic current decay mode detection/choice. Mixed with slow current decay mode Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates check out : Stepper Motor Driver Expansion Board

Short Handle MK8 Extruder Aluminum Alloy for 3D Printer Block - Right Short This is a high quality MK8 Extruder Replacement Aluminum Alloy Block. Use it to replace your blocked/damaged extruder. This block comes in a kit form and requires assembly by the user. Since this is a very popular numerous assembly instructions and videos are available on the internet which will help you build your extruder. The MK8 Extruder is available in 3 different types - Right Side, Left Side and Right Short. These extruders differ in the direction in which the filament is extruded with respect to the extruder block. When using single extruders, any extruder can be used. When using dual extruders you can use one right side and one left side extruder as shown in the product image.

500mm Chrome Plated Stainless Steel Smooth Rod 8mm Diameter Generic High Precision Chrome Plated Smooth Rod is the perfect solution for your 3D printing and CNC needs. Measuring 500 MM in length and 8 MM in diameter, these rods offer precision, durability, and consistency for your projects. Made of chrome-plated high-carbon steel, these rods ensure smooth and reliable motion for 3D printers, hydraulics, and CNC applications. The high hardness and stability, along with accurate outer hole size, make them suitable for robotics, CNC engraving machines, and more. Manufactured for use in 3D printers and CNC applications, these smooth rods stand up to frequent use without a problem. The versatile applications of 500mm Chrome Plated Stainless Steel Smooth Rod 8mm diameter make this a must-have for makers, engineers, and hobbyists alike. Features: High precision, high hardness, high stability. Strictly control every precision process to ensure quality. Simple design, durable material, high temperature preheat treatment, accurate outer hole size. Due to its moderate hardness, it has been applied in many fields. Made of stainless steel, high corrosion resistance, high strength and wear resistance to maintain its efficient operation.

320mm Stainless Steel Rod with 8mm Diameter The 320mm stainless steel rods are specifically designed for 3D printer kits . These 3D Printer Stainless Steel Rod are manufactured with stainless steel material and are given an extremely smooth finishing. Smooth stainless steel rods have a number of applications in robotics and 3D printing. In the world of 3D printing, the 320mm stainless steel rods are generally used as the axis for 3D printers, and for CNC machines, they are used as a slide-on for engraving machines. After rigorous inspection, the last important thing is safe packing. Anti-rust oil is to be sprayed on the rod surface and each rod is to be packed in a paper sleeve and then in the wooden box. Having been manufactured with stainless steel material, these rods have added advantages like: The 320mm rods for 3D printers are resistant to corrosion. They have high tensile strength. The smooth stainless steel rods need low maintenance, are long-lasting, and are resistive against high temperatures. Applications: 3D Printer CNC Also check 300mm Stainless Steel Rod with an 8mm diameter offered by Iotcart. These rods are designed for use in 3D printer kits and CNC machines. Manufactured with high precision and stability, the rods are made of stainless steel, providing resistance to corrosion and high tensile strength. They feature a smooth finishing, are low-maintenance, long-lasting, and resistive against high temperatures.

CNC Shield for Arduino The CNC shield for Arduino has total four slots, can drive 4 A4988 stepper motors. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. The CNC Shield V3.0 allows you to build a engraving machine, 3D printer, mini CNC and other similar devices using your Arduino. It is designed as a shield and can plug on top of an Arduino requiring no external connections and wiring. There are 4 slots on the board for plugging in stepper motor drive module which can drive 1 stepper motor each. Controlling each step stepper motor requires only two IO pins on the Arduino. Just insert this Arduino CNC Shield V3.0 onto an Arduino UNO , and install the GRBL firmware, you can then quickly build a DIY CNC engraving machine. This arduino shield is very convenient to use and is suitable for development boards compatible with Arduino. This CNC shield compatible with Arduino is the latest version of the CN shield model (V 3.0). The CNC Shield is GRBL 0.9 compatible and with the help of jumper wires , it is accessible to stepper drivers. Features: Compact design. Stepper Motors can be connected with 4 pin molex connectors or soldered in place. GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals) 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
