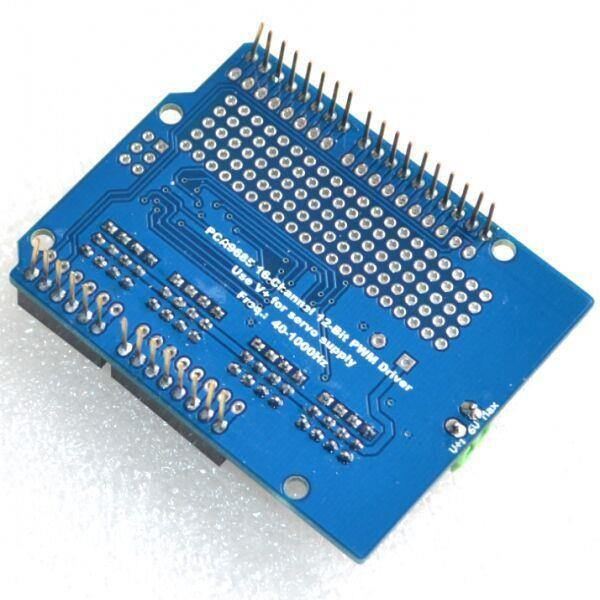

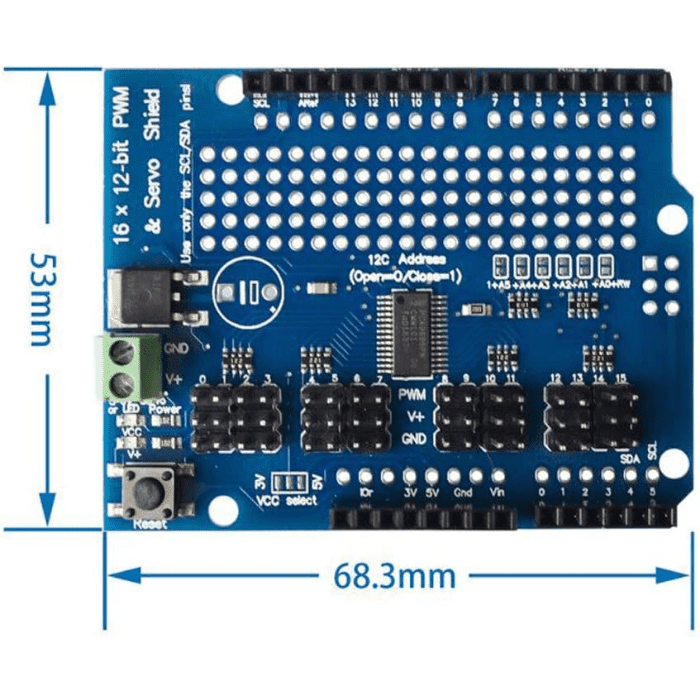

Arduino 16 channel PWM Servo Motor Shield

ULN2003 12V Stepper Motor Driver This 12V DC 28BYJ-48 Stepper Motor is a low-cost, high-quality geared stepper motor. Because of the system's stability and reliability, the 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a popular combination of stepper motor and stepper driver. The pack includes the ULN2003 Stepper Motor Driver, which is a Mini Stepper Motor Driver. The main function of the ULN2003 is to amplify the control signals from the Arduino so that they can be used to drive the 28BYJ-48 Stepper Motor. If you want to control the stepper motor with the stepper motor driver, for that you will need a few essential components like Arduino jumper wires batteries or power supply Features: Stepper motor with a standard interface, when used directly pluggable. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work. Compact-size stepper motor perfect for small robotics applications. Also, read our blog What is Motor Driver detailing an overview of motor drivers, including the different types available and how they work.

28BYJ-48 5V DC Stepper Motor This 5V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system. The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor which has 5-wires. As stated before the pack contains ULN2003 Stepper motor driver which is a Mini Stepper Motor Driver.The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor. If you will give the ULN2003 Stepper motor driver a certain pulse signal, it will drive step motor to a certain angle.The control of Stepper motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses. Connect the 28BYJ-48 motor with the ULN2003 motor driver then interface this combination of motor and driver with Arduino , do some coding and your 28BYJ-48 Stepper Motor is ready to listen to your commands Features: Stepper motor with a standard interface, when used directly pluggable. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work. Compact-size stepper motor perfect for small robotics applications. Applications: Cameras for providing precise control and positioning. Tilting of car side mirrors can be controlled using these motors. CNC Machines Robotic Arms Home Automation

Female to Female Jumper Wires (20cm) 40pcs These are 20cm 40pcs Female to Female Jumper wires, very Flexible and easily detachable. These jumper cables have 1Pin female to the 1pin female header with both ends. Also, it is compatible with 2.54 mm mil spacing pin headers. This cable is an electrical wire or group of them in a cable with a connector or pins at each end, which is normally for interconnecting the components of a breadboard or other prototype or test circuit, internally or with other equipment or components, without soldering. Individual Dupont Cables are fitted by inserting their end connectors into the slots provided in a breadboard, the header connector of a circuit board, or a piece of test equipment. Mostly Dupont cables are useful with Orange Pi, Banana Pi, Raspberry Pi , Arduino , and other mini PCs and development boards . It is very useful in the PCB project, PC motherboard, as well as Breadboard connections. Additionally, these jumper wires allows you to plug and unplug easily for prototyping and can be used over and over again. Check out the best selection of Jumper Wires . Applications: Raspberry Pi Arduino PCB projects Breadboard connections Get a complete set of M2M, M2F, F2F Jumper Wires Set for DIY projects.

12V 10A PWM DC Motor Speed Controller The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The 12 Volt DC Motor Speed Controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function. This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz. Note: This cannot be used for the brushless motor. The controller is not reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity. Features: Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current protection. Control voltage over-voltage protection function The overload and short circuit protecting current is 10A Applications: Automotive: Controlling the speed of cooling fans, windshield wipers, and air conditioning systems. Industrial Automation: Managing the speed of conveyor belts, exhaust fans, and other motor-driven machinery. Home Appliances: Adjusting the speed of fans, pumps, and other household devices. Treadmills: Regulating the speed of the treadmill belt for different workout intensities. Robotics: Providing precise speed control for DC motors in robotic projects. DIY Projects: Ideal for custom electronics projects requiring variable motor speed control

1200W PWM Motor Speed Controller with Potentiometer This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance, and stable performance. It is made with a high-quality circuit board which ensures a longer service life. The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. Speed Regulator is an important electronic DIY equipment. Do not touch the heat sink with the wiring. If it touches, it may burn the circuit board. Note that this is not a power module. It must be connected to the motor to speed it up. There is no change in the output of the multimeter without the motor. Features: Maximum Power: 1200W The speed of the DC motor can be controlled by adjusting the pulse width modulation (PWM). The knob realizes 0-100% adjustment, supports step-less speed regulation, and facilitates positioning speed.

A3967 Stepper Motor Driver This A3967 Stepper Motor Driver For Arduino is the most recent version of EasyDriver v44, which was created in collaboration with Brian Schmalz. When compared to previous versions, it offers more flexibility and control over your stepper motor . It is a simple stepper motor driver that is compatible with most microcontrollers and capable of producing a digital 0 to 5V pulse (0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). A 7V to 30V power supply is required for the module's motor. The digital interface is powered by an onboard voltage regulator that can be set to 5V or 3.3V. The A3967 is a full-featured microstepping motor driver with an integrated transistor. It is intended for use with bipolar stepper motors in full-, half-, quarter-, and eighth-step modes, with output drive capabilities of 30 V and 750 mA. The A3967 comes with a fixed off-time current regulator that can operate in slow, fast, or mixed current-decay modes. This current-decay control scheme produces less audible motor noise, higher step accuracy, and lower power dissipation. The transistor is essential to the A3967's simple implementation. Simply sending one pulse to the STEP input causes the motor to move one step (full, half, quarter, or eighth depending on two logic inputs). It is not necessary to programme phase-sequence tables, high-frequency control lines, or complex interfaces. The A3967 interface is ideal for applications where a complex P is either unavailable or overburdened. Features: A3967 microstepping driver Adjustable current control from 150mA/phase to 750mA/phase MS1 and MS2 pins are broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth) Compatible with 4, 6, and 8-wire stepper motors of any voltage Breadboard-compatible pins.

A4988 Stepper Motor Driver Module with Heat Sink For 3D Printer (Red) A4988 Stepper Motor Driver is a complete micro-stepping motor driver with a built-in translator for easy operation. The product can be full, half, 1/4, 1/8, and 1/16 step mode to operate bipolar stepper motor output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator can slow or mixed decay mode. The converter is the key to the easy implementation of the A4988. In inputting one pulse on the STEP input drives the motor one micros tep. No phase sequence tables, high-frequency control lines, or complex interfaces to programming. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened. The micro-step operation, the chopping control in the A4988 automatically selects the current decay mode (Slow or Mixed). In the mixed decay mode, the device is initially set to fast decay in the part of the fixed off-time, then a slow decay in the rest of the downtime. Mixed-decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry to improve the pulse-width modulation (PWM) power consumption when operating. Internal circuit protection includes thermal shutdown with hysteresis, under-voltage lockout (UVLO) and crossover current protection. Special power-Sort. If you want to control the stepper motor with this motor driver, you will need a few essential components like Arduino , breadboard, jumper wires, batteries, and power supply. Features: Simple step and direction control interface Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step Automatic current decay mode detection/choice. Mixed with slow current decay mode Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates check out : Stepper Motor Driver Expansion Board

CNC Shield for Arduino The CNC shield for Arduino has total four slots, can drive 4 A4988 stepper motors. Each road stepper motors only need two IO ports. In other words, six IO ports can be well managed three stepper motors. The CNC Shield V3.0 allows you to build a engraving machine, 3D printer, mini CNC and other similar devices using your Arduino. It is designed as a shield and can plug on top of an Arduino requiring no external connections and wiring. There are 4 slots on the board for plugging in stepper motor drive module which can drive 1 stepper motor each. Controlling each step stepper motor requires only two IO pins on the Arduino. Just insert this Arduino CNC Shield V3.0 onto an Arduino UNO , and install the GRBL firmware, you can then quickly build a DIY CNC engraving machine. This arduino shield is very convenient to use and is suitable for development boards compatible with Arduino. This CNC shield compatible with Arduino is the latest version of the CN shield model (V 3.0). The CNC Shield is GRBL 0.9 compatible and with the help of jumper wires , it is accessible to stepper drivers. Features: Compact design. Stepper Motors can be connected with 4 pin molex connectors or soldered in place. GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals) 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)

CNC Shield + UNO R3 Board compatible with Arduino + 4xDRV8825 Driver Kit Arduino Uno is an open-source microcontroller used by students and hobbyists entering the world of DIY electronics and automation, The Arduino Uno can be used for any application including being the brains of your next DIY 3D printer and/or CNC router The CNC Shield V3.0 allows you to build an engraving machine, 3D printer, mini CNC and other similar devices using your Arduino. It is designed as a shield and can plug on top of an Arduino requiring no external connections and wiring. Along with that, the CNC shield allows you to control up to four stepper motors by mounting on 4 stepper motor drivers, included with this kit The DRV8825 provides an integrated motor driver solution for printers, scanners, and other automated equipment. The device has two H-bridge and is intended to drive a bipolar stepper motor. Features: UNO R3 Board: The main microcontroller board compatible with Arduino. CNC Shield: An expansion board that allows for easy connection and control of stepper motors. 4x DRV8825 Stepper Motor Drivers: High-performance drivers for controlling stepper motors. Micro-Stepping: Supports micro-stepping settings for precise control of stepper motors. GRBL Compatibility: Compatible with GRBL firmware, which is widely used for CNC control. Voltage Range: Operates on 12-36V DC. Heat Sinks: Included for cooling the stepper motor drivers. USB Cable: For connecting the UNO R3 board to a computer. 40-Pin Row Needles: For additional connections. Applications: CNC Machines: Used for controlling stepper motors in CNC milling, engraving, and cutting machines. 3D Printers: Essential for driving stepper motors in 3D printers, ensuring precise layer deposition and movement. Laser Cutters: Controls stepper motors in laser cutting machines for accurate cutting and engraving. Robotics: Ideal for robotics projects requiring precise motor control, such as robotic arms and automated guided vehicles (AGVs). X-Y Tables: Used in X-Y tables for accurate positioning and movement in various industrial applications. Pick-and-Place Devices: Employed in pick-and-place machines for accurate component placement in electronics manufacturing. Labeling Machines: Used in labeling machines for precise label application. Pinout Diagram for the Arduino Uno Microcontroller Applications of the Kit The kit can be used to create custom 3D printers, scanner, CNC mills and other automated equipment applications

Cytron Maker Pi RP2040 – Robotics Controller Board with Raspberry Pi The Cytron Maker Pi RP2040 is a compact, beginner-friendly robotics controller board powered by the Raspberry Pi RP2040 microcontroller. Designed for DIY robotics, automation, and motion-control projects, this board integrates a dual-channel DC motor driver, four servo ports, and seven Grove connectors - giving makers everything they need to build robots without complex wiring. With compatibility across CircuitPython, MicroPython, C/C++, and even the Arduino ecosystem, this board ranks among the best RP2040 robotics controllers for students, hobbyists, and educators. Built for convenience, the Maker Pi RP2040 supports multiple power input options (USB, LiPo battery, or VIN), includes onboard functional test buttons, and features status LEDs for easy debugging. The preloaded demo code lets you start controlling motors, playing melodies, and testing GPIOs right out of the box. Whether you are exploring Raspberry Pi’s RP2040 ecosystem or building an advanced robot, the Cytron Maker Pi RP2040 robot controller offers exceptional versatility, ease of use, and reliable motor-driving performance. Features: Powered by the Raspberry Pi RP2040 dual-core Arm Cortex-M0+ processor. Includes dual-channel DC motor driver and four servo motor ports for robotics. Seven Grove ports support digital, analog, I2C, SPI, and UART expansion. Preloaded with CircuitPython for easy plug-and-play coding. Supports USB 5V, LiPo 1-cell battery, or 3.6–6V VIN input with automatic switching. Built-in LiPo charging circuit with safety protections. Onboard piezo buzzer, RGB LEDs, GPIO test LEDs, and push buttons. Quick-test buttons and motor output LEDs for immediate motor testing. Fully compatible with the Raspberry Pi Pico ecosystem, MicroPython, C/C++, and Arduino cores. Includes LEGO-compatible mounting holes and M3 mounting points. Board Layout: Dimension:

SmartElex BMM150 3 Axis Magnetometer Sensor The SmartElex BMM150 3 Axis Magnetometer Sensor is a compact digital sensor designed to measure magnetic fields along three axes. It helps users accurately detect orientation and heading, making it useful in projects where direction sensing and magnetic field measurement are required. This sensor is suitable for students, makers, engineers, educators, and startups working on embedded systems, learning projects, and prototype development that need reliable magnetic sensing in a small and easy-to-use form. This 3 axis magnetometer sensor is commonly used in robotics, IoT devices, navigation systems, and automation projects that require compass functionality or motion awareness. It can be easily integrated with popular development platforms such as Arduino, Raspberry Pi, and ESP32, allowing smooth data communication and quick setup. The stable performance and simple interfacing make it ideal for applications like robot navigation, electronic compasses, orientation tracking, and smart sensor-based systems Note - The default configuration of module is I2C interface, for SPI interface remove I2C smd jumper & short SPI smd jumper on module. Features: Measures magnetic field strength along three axes (X, Y, and Z) Enables accurate heading and orientation detection Digital output for easy interfacing with microcontrollers Low power operation suitable for battery-powered projects Compact sensor design for space-constrained applications Compatible with Arduino, Raspberry Pi, ESP32, and other development boards

SmartElex 5S 6V-30V DC Motor Driver The SmartElex 5S 6V–30V DC Motor Driver is a robust and efficient DC motor driver built specifically for brushed DC motors, combining simplicity with high power performance. Operating on a wide input voltage range of 6V to 30V DC, it supports 5S battery configurations, making it ideal for robotics, automation, and DIY mechatronics systems. This brushed DC motor driver is easy to interface with microcontrollers, allowing smooth motor speed and direction control with minimal setup. Designed for reliability and versatility, it serves as a dependable high-power DC motor driver for applications that demand stable and efficient motor operation. Features: The motor can operate at voltages ranging from 6 to 30 V. Without a heat sink, the maximum current is 5A, with a peak current of 10A for 10 seconds. One brushed DC motor with bidirectional control. Current limiting at 5 amps. Overvoltage lockout. PWM frequency is up to 32 kHz. Supports TTL PWM from the microcontroller. Internal thermal shutdown. Undervoltage lockout. Drive four externally powered NMOS transistors using PWM and direction control. 3.3V and 5V logic level inputs

SmartElex 12V 3A 2 Channel Signal Relay Module The SmartElex 12V 3A 2 Channel Signal Relay Module is a compact and dependable solution for controlling multiple electrical loads using low-power control signals. It allows users to switch devices safely without directly handling higher voltages or currents, helping protect sensitive control circuits. This relay module is suitable for students, makers, engineers, educators, and startups working on embedded systems, control projects, and automation setups that require reliable dual-channel switching. This 2-channel relay module is ideal for robotics, IoT applications, home and industrial automation, and general prototyping where two devices need to be controlled independently. It can be easily interfaced with popular development platforms such as Arduino, Raspberry Pi, and ESP32, making it simple to control lights, motors, pumps, alarms, or other external equipment. The straightforward design and stable performance make it easy to integrate into both experimental projects and finished products, supporting consistent and safe operation. Features: Dual-channel relay module for controlling two devices independently Operates on 12V, suitable for automation and control systems Supports up to 3A load current per channel Provides electrical isolation between control and load circuits Compatible with Arduino, Raspberry Pi, ESP32, and other controllers Compact design with LED indicators for easy status monitoring

7Semi SHT40 Temperature & Humidity Sensor Breakout I2C Qwiic SHT40 Breakout (ES-13514) The 7Semi SHT40 Temperature & Humidity Sensor Breakout (I2C Qwiic) is a compact and reliable sensor module designed to measure both temperature and humidity with high accuracy. It is based on the Sensirion SHT40 sensor, making it suitable for modern electronics projects that need precise environmental data. This breakout board supports I2C communication and comes with a Qwiic connector, allowing quick and solder-free connections with microcontrollers like Arduino, ESP32, and Raspberry Pi. Its small size and low power consumption make it ideal for IoT devices, weather monitoring, indoor air quality projects, and learning applications where simplicity and accuracy matter. Features: High-accuracy temperature and humidity sensing using the SHT40 sensor Supports I²C communication for easy integration with microcontrollers Qwiic connector enables quick, solder-free plug-and-play connections Wide measurement range of 0–100% RH and –40°C to +125°C temperature Low-power and compact design, ideal for IoT and battery-powered projects Compatible with Arduino, Raspberry Pi, ESP32, and other development boards SHT40 Board Dimensions

Cytron UNO Special Edition – Arduino-Compatible Board with Side Connectors The Cytron UNO Special Edition (CT-UNO-SE) is a fully Arduino-compatible development board designed for makers, students, and hobbyists who need reliable performance for DIY electronics and robotics projects. Built around the ATmega328P microcontroller, this board offers the familiar Arduino UNO experience while adding enhanced stability with the FTDI FT231X USB-to-Serial chip, ensuring smoother programming and communication. Whether you're prototyping sensors, robotics circuits, or automation systems, this board delivers a dependable and beginner-friendly platform for all your microcontroller learning needs. What makes the CT-UNO-SE stand out is its unique side connectors, allowing it to be stacked on top of or beneath Arduino shields, giving you maximum flexibility while building layered circuits or compact embedded systems. With full Arduino UNO R3 shield compatibility, 14 digital I/O pins, 6 analog inputs, and both 5V and 3.3V regulated outputs, this special edition board combines convenience, versatility, and long-term durability - all wrapped into a sleek white PCB that makes your projects look clean and professional. Features Built with the ATmega328P microcontroller paired with the Optiboot bootloader for faster program uploads. Equipped with the FTDI FT231X USB interface, offering stable and reliable serial communication. Supports a wide DC input range of 7–15V, suitable for most maker power setups. Includes a 1A 5V regulator and 500mA 3.3V regulator for powering sensors and modules. Offers 14 digital I/O pins (6 PWM) and 6 analog inputs for versatile interfacing. Fully R3 shield compatible with special side connectors for flexible stacking. Features 32KB Flash memory, 2KB SRAM, and 1KB EEPROM for program storage. Comes with easily visible TX, RX, power, and pin-13 LEDs placed on the board edge. Utilizes a durable USB Micro-B connector on a clean white PCB. Dimensions
