300 RPM Dual Shaft BO Motor-Straight
Delivery & Pickup Options
Order now and we'll have it ready for delivery by the next business day.

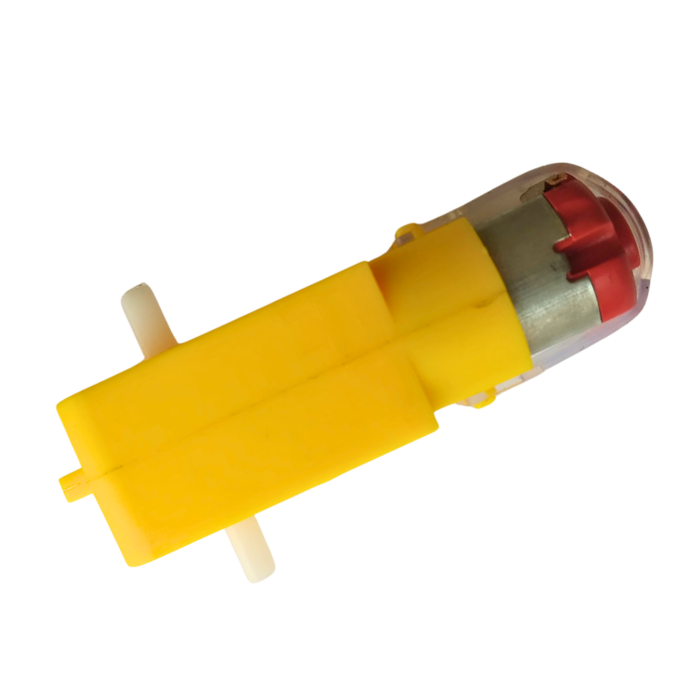

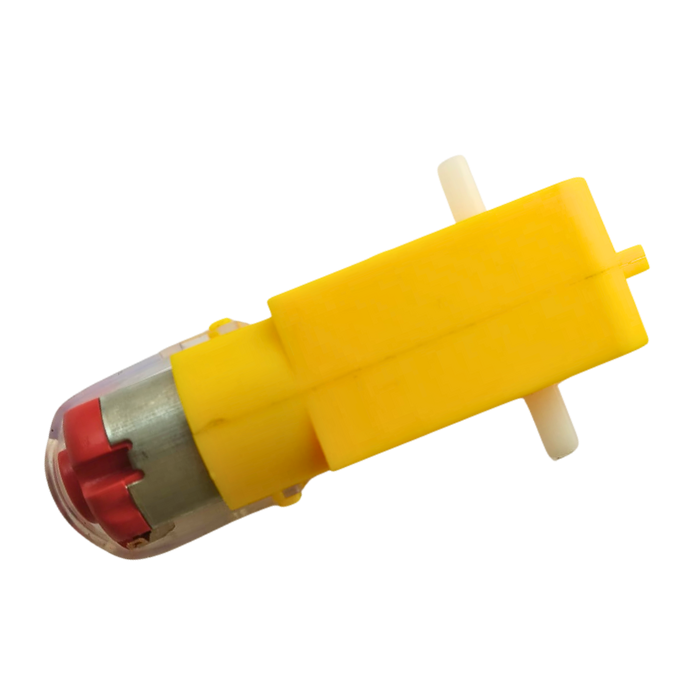

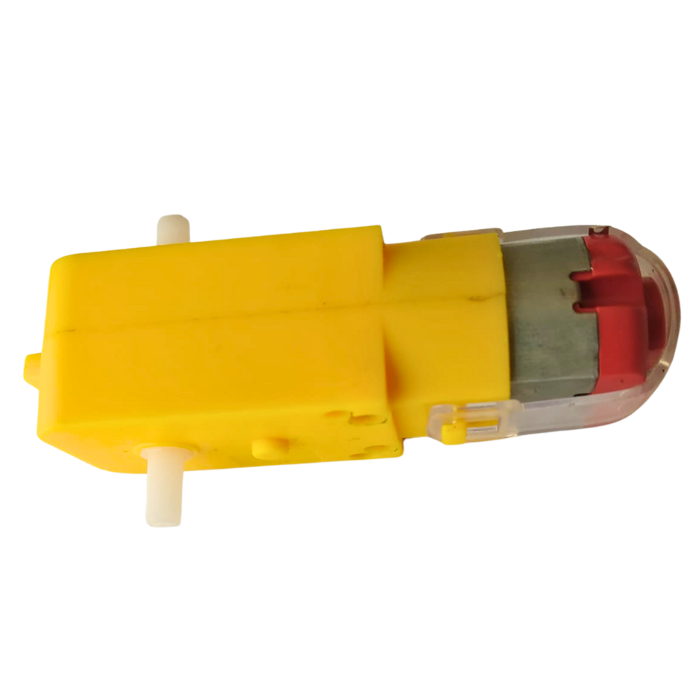

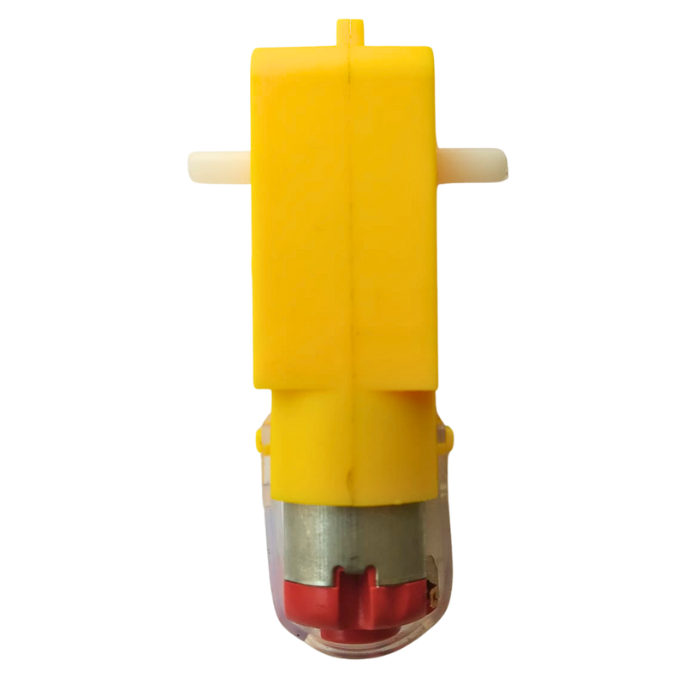

300 RPM Dual Shaft BO Motor-Straight The Iotcart 300 RPM Dual Shaft Straight BO Motor is a high-quality and lightweight motor designed for DIY robotics enthusiasts. This motor is the perfect solution for various robotics applications, including obstacle-avoiding robots, line follower robots, 2WD and 4WD smart robot cars, and more. This robotics motor operates efficiently with an operating voltage range of 3V to 12V which is versatile for different power supply options. It features a low-density, low-inertia design with a relatively low coefficient of friction, ensuring smooth and efficient performance. One of the standout features of this 300 RPM BO gear motor is its double D-type shaft, which allows easy coupling with matching wheels, providing stability and optimized design for your robotic applications. The Dual Shaft BO Motor Straight offers a cost-effective and reliable solution for your projects. Features: Cost-effectiveness of the injection-molding process. Elimination of machining operations. Low density: lightweight, low inertia. Uniformity of parts. Capability to absorb shock and vibration as a result of elastic compliance. Ability to operate with minimum or no lubrication, due to inherent lubricity. The relatively low coefficient of friction. Corrosion-resistance; elimination of plating, or protective coatings. The quietness of operation. Tolerances are often less critical than for metal gears, due in part to their greater resilience. Applications: DIY robot Line follower robot 4wd smart robot car 2wd smart robot car Obstacle avoiding robot
- 300 RPM no-load speed for balanced speed and torque
- Dual D-type shaft for secure wheel mounting
- Wide operating voltage: 3V–12V DC
- Lightweight, low-inertia design for fast response
- Compatible with Arduino, Raspberry Pi, and ESP32
- Ideal for 2WD/4WD robots, line followers, and AGVs
- Low noise and vibration operation
- Corrosion-resistant and maintenance-free
- Shock-absorbing elastic compliance
- No lubrication required
- Cost-effective for bulk prototyping
| Type | Dual Shaft BO Motor |
|---|---|
| RPM | 300 |
| Rated Torque | 0.35 Kgcm |
| No Load Current | 40-180mA. |
| Shaft Diameter (mm) | 5.5 (Double D-type) |
| Shaft Length (mm) | 8.5 |
| Operating Voltage(VDC) | 3V-12V |
| Color | Yellow |
| Weight (gm) | 30 |
What voltage does the 300 RPM BO motor operate on?
It operates on 3V to 12V DC, making it compatible with most microcontroller power systems.
Can this motor be used with Arduino or Raspberry Pi projects?
Yes, it is fully compatible with Arduino, Raspberry Pi, and other microcontroller-based robot platforms.
What is the shaft type of this motor?
It features a dual D-type shaft for secure coupling with wheels and mechanical linkages.
Is this motor suitable for 4WD robot cars?
Yes, it is ideal for 2WD and 4WD smart robot cars, line followers, and obstacle-avoiding robots.
