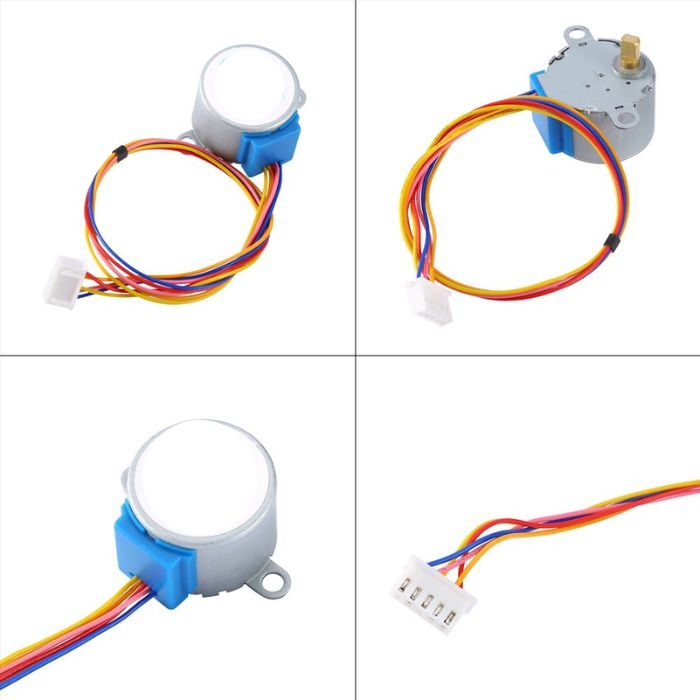

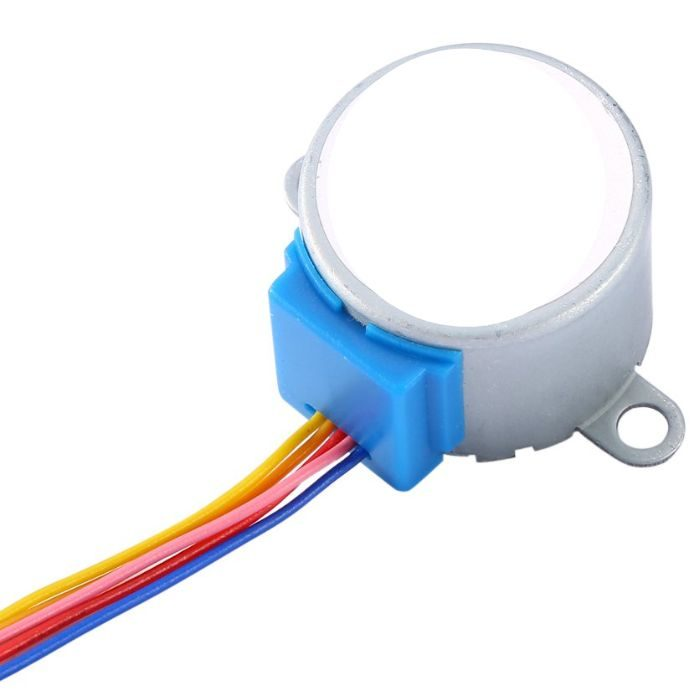

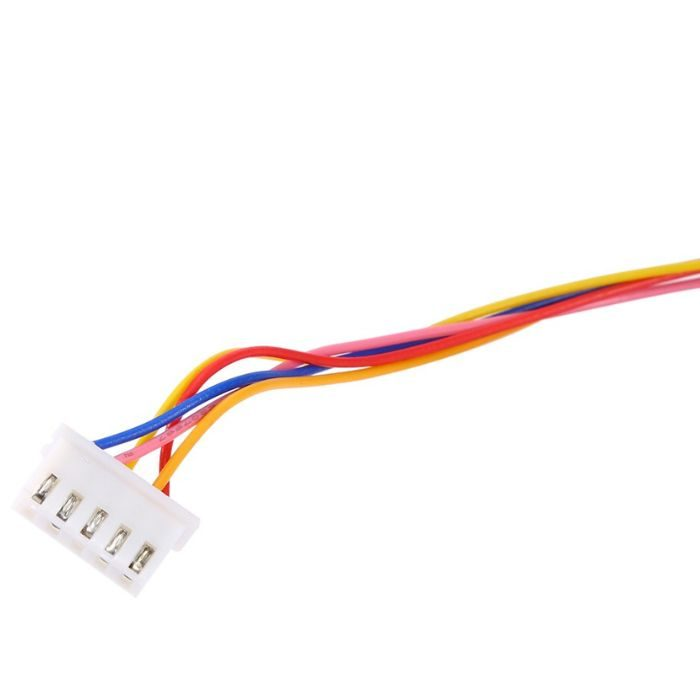

28BYJ-48 12V Valve DC Gear Stepper Motor

ULN2003 Stepper Motor Driver Module This is ULN2003 Driver Module Stepper Motor Driver, small in size and easy to use. It uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option is commonly used to run and control stepper motors . If you want to use this Stepper Motor Driver in your projects, for that you will need a few essential components like Arduino , jumper wires , stepper motors, and a power supply. Note: The colour of the PCB may vary according to the Manufacturer HOW TO CONTROL STEPPER MOTOR The step motor is to a machine to convert pulse to angular displacement. So if you give stepper driver a certain pulse signal, it will drive stepper motor to a certain angle. you can control the angle the stepper moved by the number of the pulse. And you also can control the speed of the stepper rotate by the frequency of the pulse. The following picture is the schematic of the stepper driver. The following picture is the control signal to drive a 28BYJ48 stepper to rotate 1/4096 circle. Pin Diagram of ULN2003 Stepper Motor Driver: Fig: Pin Diagram Lines 1 2 3 4 5 6 7 8 red 1 1 1 1 1 1 1 1 orange 1 1 0 0 0 0 0 1 yellow 0 1 1 1 0 0 0 0 pink 0 0 0 1 1 1 0 0 blue 0 0 0 0 0 1 1 1 Features: 4-way signal indicator Chip all the pins have Input leads Mounted for easy connection to use XH-5P socket can be connected directly 28BYJ-48 Model stepper motor

ULN2003 12V Stepper Motor Driver This 12V DC 28BYJ-48 Stepper Motor is a low-cost, high-quality geared stepper motor. Because of the system's stability and reliability, the 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a popular combination of stepper motor and stepper driver. The pack includes the ULN2003 Stepper Motor Driver, which is a Mini Stepper Motor Driver. The main function of the ULN2003 is to amplify the control signals from the Arduino so that they can be used to drive the 28BYJ-48 Stepper Motor. If you want to control the stepper motor with the stepper motor driver, for that you will need a few essential components like Arduino jumper wires batteries or power supply Features: Stepper motor with a standard interface, when used directly pluggable. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work. Compact-size stepper motor perfect for small robotics applications. Also, read our blog What is Motor Driver detailing an overview of motor drivers, including the different types available and how they work.

28BYJ-48 5V DC Stepper Motor This 5V DC 28BYJ-48 Stepper Motor is small, inexpensive and high-quality geared step motor. The 28BYJ-48 Stepper Motor and ULN2003 Stepper Motor Driver is a widely popular combination of the stepper motor and stepper driver, because of the stability and reliability of the system. The motor has a reduction ratio of 64:1, so it offers a decent torque for its size at speeds of about 15 RPM. It is a unipolar stepper motor which has 5-wires. As stated before the pack contains ULN2003 Stepper motor driver which is a Mini Stepper Motor Driver.The main purpose of ULN2003 is to amplify the control signals from the Arduino, so as to drive the 28BYJ-48 Stepper Motor. If you will give the ULN2003 Stepper motor driver a certain pulse signal, it will drive step motor to a certain angle.The control of Stepper motor movement angle is done by controlling the number of stepper motor driver pulses. The speed of the stepper motor rotation is also controllable by controlling the frequency of the pulses. Connect the 28BYJ-48 motor with the ULN2003 motor driver then interface this combination of motor and driver with Arduino , do some coding and your 28BYJ-48 Stepper Motor is ready to listen to your commands Features: Stepper motor with a standard interface, when used directly pluggable. A, B, C, D four-phase LED indicator which indicates the status of the stepper motor work. Compact-size stepper motor perfect for small robotics applications. Applications: Cameras for providing precise control and positioning. Tilting of car side mirrors can be controlled using these motors. CNC Machines Robotic Arms Home Automation

48mm x 50 Meter Masking Tape Masking Tape is designed with a premium quality micron adhesive that can be easily removed with no residue left behind. Ideal for painting/designing walls, Holding, Bundling & Sealing by carpenter & other industrial use, No need to worry about cleaning up sticky spots after use on the surfaces or on items that you have labelled. This masking tape offers excellent surface protection when you're using 3D printer, at home or during a commercial project. It tears easily by hand and adheres quickly to a variety of surfaces. The adhesive is strong enough to ensure neat straight lines when painting but once finished can be removed effortlessly leaving no residue behind.

GT2 Open Timing Belt 6mm Width Pitch 2mm for 3D Printer The GT2 open timing belt is suitable for dishwashers, packaging machinery, motorcycles, automobile, dryer, food machinery, inkjet printer, conveyor, bonders etc.

4 Start T Type Copper Nut - 2mm Pitch The 4 start T type copper nut is specifically designed for RepRap 3D printers and other CNC machinery. The 2mm pitch copper nit for 3D printers has a compact design and weighs less than 50grams. It is best compatible with scree rod and together they work as axes in 3D printers. Feature of 4 Start Copper Nut Material Copper Pitch 2mm Lead 8mm Screw Type 4 Start T Type Nut Dimensions 5 x 4 x 3cms Weight 25 grams

5mm to 5mm Flexible Couplings The 5mm to 5mm flexible couplings are manufactured with high-quality aluminium which minimum backlash possible. These aluminium couplings are generally used to connect your driving shaft with the driven shaft. It is able to achieve this in the most efficient way possible while avoiding any misalignment. Flexible shaft couplers used in small CNC machines and 3d printers such as Prusa i3 or ord bot. Flex capability of the coupler removes stress when shafts are not aligned perfectly. Features of the Coupling Material Aluminium Coupling Type 5mm to 8mm Dimensions 19 mm x 25 mm Compatibility NEMA 17 Stepper Motors Weight 50 grams

LM8UU 8 MM Linear Motion Bearing for 3D Printer This LM8LUU 8mm Bushing Longer Linear Ball Bearing is a longer version of our standard LM8LUU linear slide bush for 8mm hardened steel shafts.

12V 10A PWM DC Motor Speed Controller The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The 12 Volt DC Motor Speed Controller can provide a continuous current of 10A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of the power supply and control voltage over-voltage protection function. This speed regulator uses a barrier terminal block as its wiring type. The output voltage is linear under load and features a control frequency of 13kHz. Note: This cannot be used for the brushless motor. The controller is not reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity. Features: Control the speed of a DC motor with this controller. High efficiency, high torque, low heat generating. With reverse polarity protection, high current protection. Control voltage over-voltage protection function The overload and short circuit protecting current is 10A Applications: Automotive: Controlling the speed of cooling fans, windshield wipers, and air conditioning systems. Industrial Automation: Managing the speed of conveyor belts, exhaust fans, and other motor-driven machinery. Home Appliances: Adjusting the speed of fans, pumps, and other household devices. Treadmills: Regulating the speed of the treadmill belt for different workout intensities. Robotics: Providing precise speed control for DC motors in robotic projects. DIY Projects: Ideal for custom electronics projects requiring variable motor speed control

The DIY Mini Wind Turbine Blade Set is a compact, vertical-axis wind turbine kit designed for educational, experimental, and small-scale renewable energy applications. Ideal for hobbyists, students, and engineers, this micro generator blade set enables hands-on learning about wind energy conversion and sustainable power generation. Each blade is precision-engineered for optimal aerodynamic efficiency at low wind speeds, making it perfect for indoor demonstrations or outdoor micro-generation setups. This set includes lightweight, durable blades compatible with most small DC generators and motors repurposed as generators. The vertical axis design ensures 360-degree wind capture, eliminating the need for yaw mechanisms and allowing operation from any wind direction. It's widely used in STEM education, science fairs, IoT energy harvesting prototypes, and off-grid sensor power systems. Easy to assemble and integrate, the kit supports experimentation with blade pitch, count, and generator coupling. Whether you're building a wind-powered charger, environmental monitoring station, or classroom demo, this turbine blade set offers a practical, low-cost entry into wind energy technology. Available for fast delivery across India.

1200W PWM Motor Speed Controller with Potentiometer This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance, and stable performance. It is made with a high-quality circuit board which ensures a longer service life. The DC Motor Speed Controller allows controlling the direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. Speed Regulator is an important electronic DIY equipment. Do not touch the heat sink with the wiring. If it touches, it may burn the circuit board. Note that this is not a power module. It must be connected to the motor to speed it up. There is no change in the output of the multimeter without the motor. Features: Maximum Power: 1200W The speed of the DC motor can be controlled by adjusting the pulse width modulation (PWM). The knob realizes 0-100% adjustment, supports step-less speed regulation, and facilitates positioning speed.

A3967 Stepper Motor Driver This A3967 Stepper Motor Driver For Arduino is the most recent version of EasyDriver v44, which was created in collaboration with Brian Schmalz. When compared to previous versions, it offers more flexibility and control over your stepper motor . It is a simple stepper motor driver that is compatible with most microcontrollers and capable of producing a digital 0 to 5V pulse (0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). A 7V to 30V power supply is required for the module's motor. The digital interface is powered by an onboard voltage regulator that can be set to 5V or 3.3V. The A3967 is a full-featured microstepping motor driver with an integrated transistor. It is intended for use with bipolar stepper motors in full-, half-, quarter-, and eighth-step modes, with output drive capabilities of 30 V and 750 mA. The A3967 comes with a fixed off-time current regulator that can operate in slow, fast, or mixed current-decay modes. This current-decay control scheme produces less audible motor noise, higher step accuracy, and lower power dissipation. The transistor is essential to the A3967's simple implementation. Simply sending one pulse to the STEP input causes the motor to move one step (full, half, quarter, or eighth depending on two logic inputs). It is not necessary to programme phase-sequence tables, high-frequency control lines, or complex interfaces. The A3967 interface is ideal for applications where a complex P is either unavailable or overburdened. Features: A3967 microstepping driver Adjustable current control from 150mA/phase to 750mA/phase MS1 and MS2 pins are broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth) Compatible with 4, 6, and 8-wire stepper motors of any voltage Breadboard-compatible pins.

Mini limit Switch 5A 250V The Mini Limit Switch 5A 250V is your versatile solution for precise control and automation. This 3-terminal, momentary action switch is equipped with 1 NO and 1 NC contact, along with a silver tone lever hinge for easy handling. Crafted with precision, this switch ensures the highest quality and durability, making it perfect for a wide range of applications, including appliances, electronic equipment, automatic machines, and automotive electric systems. Whether you're a hobbyist, maker, or engineer, this Mini Limit Switch is a must-have for your DIY projects. It's easy to install, catering to users of all skill levels. With reliable performance and a compact design, it's suitable for various age ranges and skill levels. Are you looking to enhance your DIY projects with precise control? Buy Mini Limit Switch now at the best price and experience the difference it makes in your automation endeavors! Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3 cm. Features: Contact Type: Momentary Action Terminal Type: 3-Terminal Versatile Design: 3-terminal, momentary action switch with silver tone lever hinge Durable Construction: Crafted with precision for high quality and durability Easy to Install: Designed for straightforward installation, suitable for users of all skill levels Applications: Mini limit switches like the 5A 250V version can be used in various applications such as industrial settings, assembly lines, and safety interlocks They are crucial in detecting the presence or absence of materials or objects, automating processes, and ensuring safety in machinery operations Limit switches are commonly employed in controlling devices and ensuring safety for both machinery and personnel by sending digital signals to control systems These switches play a vital role in manufacturing due to their simplicity, cost-effectiveness, and ability to create a link between physical and electrical domains

DRV8825 Stepper Motor Driver Module The DRV 8825 stepper motor driver carrier is a breakout board for ti’s DRV 8825 micro-stepping bipolar stepper motor driver. The DRV 8825 features adjustable current limiting, overcurrent and over-temperature protection and six micro-step resolutions (down to 1 or 32step). It operates from 8.2 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling). This product is a carrier board or breakout board for ti’s DRV 8825 stepper motor driver; we, therefore, recommend careful reading of the DRV 8825 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil (see the power dissipation considerations section below for more information). Here are some of the driver’s key features: simple step and direction control interface six different step resolutions: full-step, half step, 1 or 4step, 1 or 8step, 1 or 16step and 1 or 32step adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay) 45 v maximum supply voltage built-in regulator (no external logic voltage supply needed) can interface directly with 3.3 V and 5 v systems over-temperature thermal shutdown, overcurrent shutdown and under-voltage lockout short to ground and shorted load protection 4layer, 2 oz. If you want to control the stepper motor with this motor driver, for that you will need a few essential components like Arduino , breadboard , jumper wires , batteries or power supply . Use Aluminum Heatsink for DRV8825 Stepper Motor Driver for better performance and heat dissipation. Features: Simple step and direction control interface Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32 Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay) Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step Short-to-ground and shorted-load protection Adjustable current control lets you set the maximum current output with a potentiometer. Hence lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates check out : A4988 Stepper Motor Driver

A4988 Stepper Motor Driver Module with Heat Sink For 3D Printer (Red) A4988 Stepper Motor Driver is a complete micro-stepping motor driver with a built-in translator for easy operation. The product can be full, half, 1/4, 1/8, and 1/16 step mode to operate bipolar stepper motor output drive capacity of up to 35 V and ± 2 A. A4988 includes a fixed off-time current regulator, the regulator can slow or mixed decay mode. The converter is the key to the easy implementation of the A4988. In inputting one pulse on the STEP input drives the motor one micros tep. No phase sequence tables, high-frequency control lines, or complex interfaces to programming. A4988 interface is very suitable for complex microprocessor is unavailable or is overburdened. The micro-step operation, the chopping control in the A4988 automatically selects the current decay mode (Slow or Mixed). In the mixed decay mode, the device is initially set to fast decay in the part of the fixed off-time, then a slow decay in the rest of the downtime. Mixed-decay current control scheme results in reduced audible motor noise, increased step accuracy, and reduced power consumption. Internal synchronous rectification control circuitry to improve the pulse-width modulation (PWM) power consumption when operating. Internal circuit protection includes thermal shutdown with hysteresis, under-voltage lockout (UVLO) and crossover current protection. Special power-Sort. If you want to control the stepper motor with this motor driver, you will need a few essential components like Arduino , breadboard, jumper wires, batteries, and power supply. Features: Simple step and direction control interface Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step Automatic current decay mode detection/choice. Mixed with slow current decay mode Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates check out : Stepper Motor Driver Expansion Board
