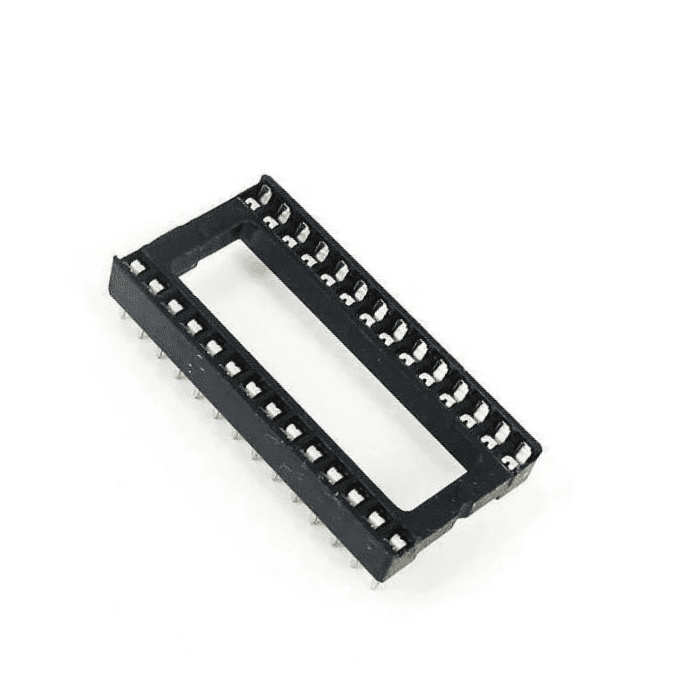

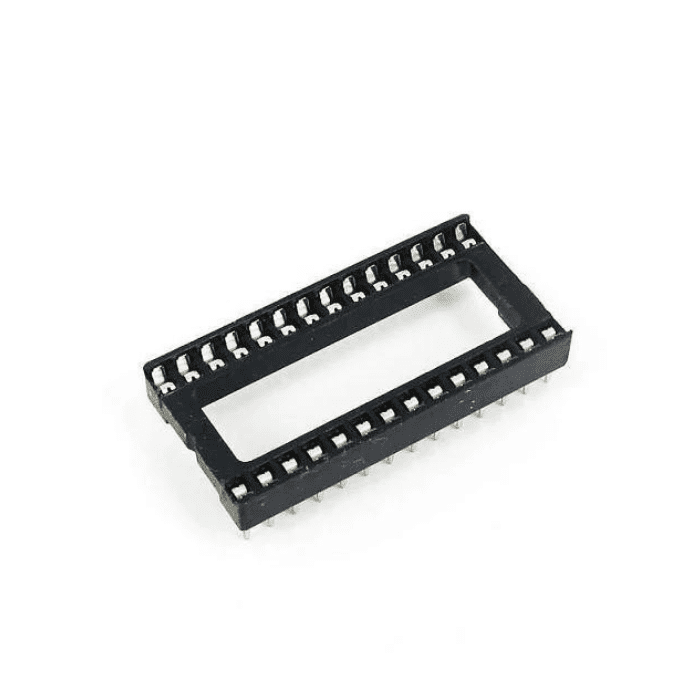

28 Pin Wide IC Base (Pack of 5)
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.
28 Pin Wide IC Base The 28-Pin IC base is a 28 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder. The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming Also check pack of 5 40 Pin Wide IC Bases available on Iotcart. Each IC base is a holder for a 40-pin integrated circuit (IC) and can be soldered directly onto a PCB. Package Included: 5 x 28 Pin Wide IC Base
- 28-pin wide DIP socket with 0.3-inch pin spacing
- Protects ICs from soldering heat damage
- Reusable for multiple IC insertions and removals
- Compatible with ATmega328P and other microcontrollers
- Pack of 5 for cost-effective prototyping
- Secure IC retention with reliable contact
- Prevents thermal damage to sensitive ICs
- Ideal for prototyping and development
- Compatible with standard DIP-28 ICs
| Pin | 28 |
|---|---|
| Dimension | 12x5x4mm |
| Weight | 2g |
What is the pin configuration of this IC base?
This is a 28-pin wide DIP socket with 14 pins on each side, spaced 0.3 inches apart.
Can I use this IC base with Arduino or Raspberry Pi?
Yes, it is compatible with ICs used in Arduino (e.g., ATmega328P) and other microcontroller projects.
Why use an IC socket instead of soldering the IC directly?
IC sockets protect heat-sensitive ICs during soldering and allow easy replacement or reprogramming.
Is this IC base reusable?
Yes, the socket allows multiple insertions and removals of compatible 28-pin DIP ICs.
