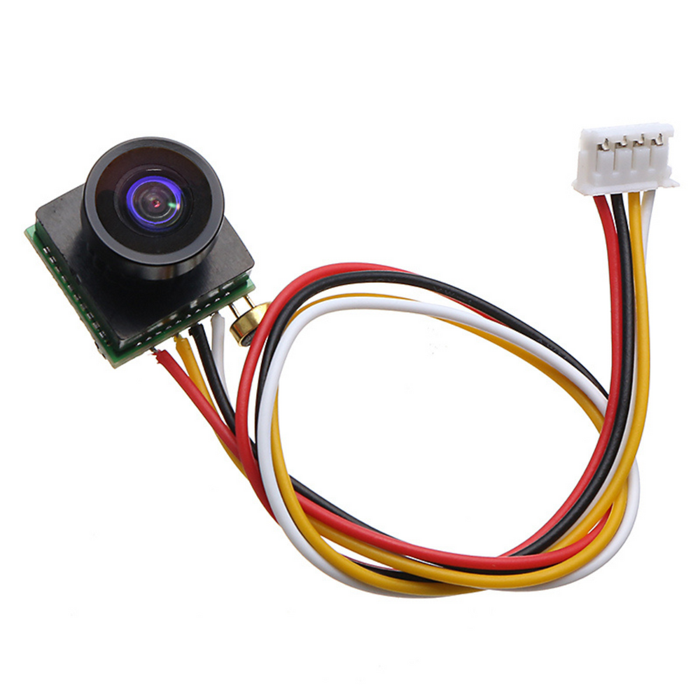

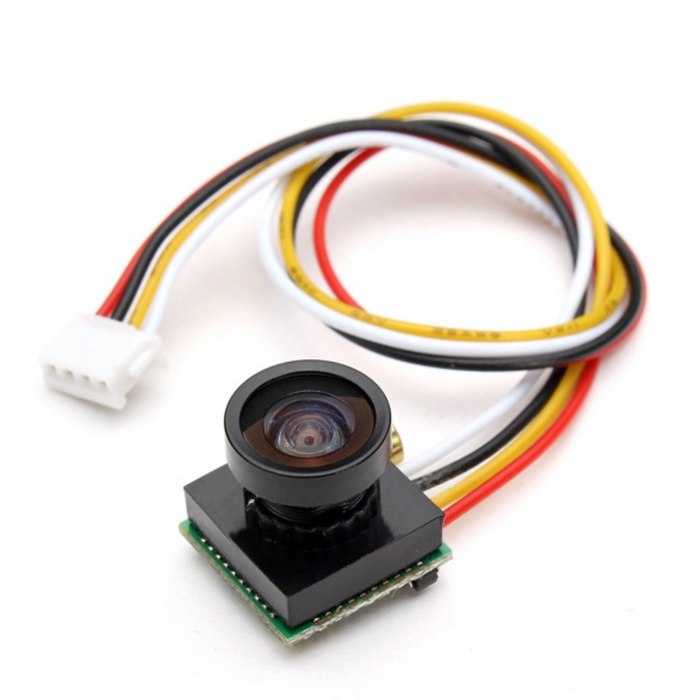

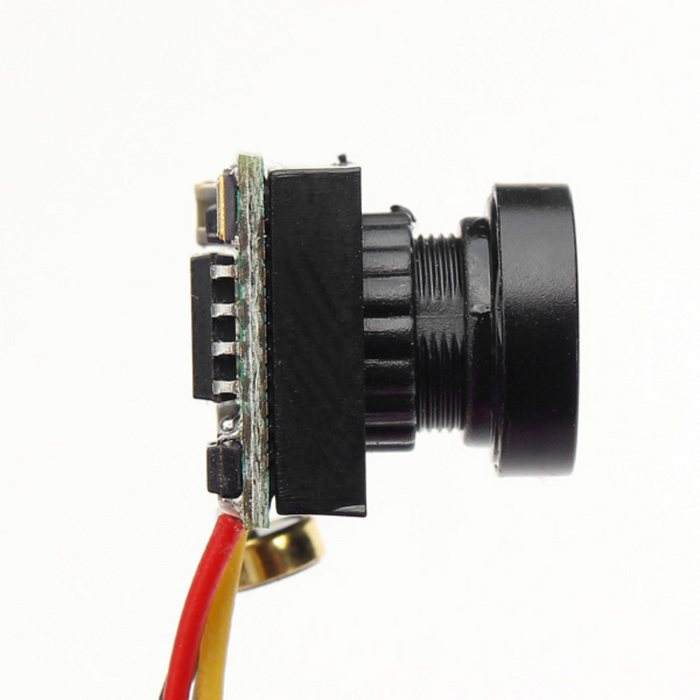

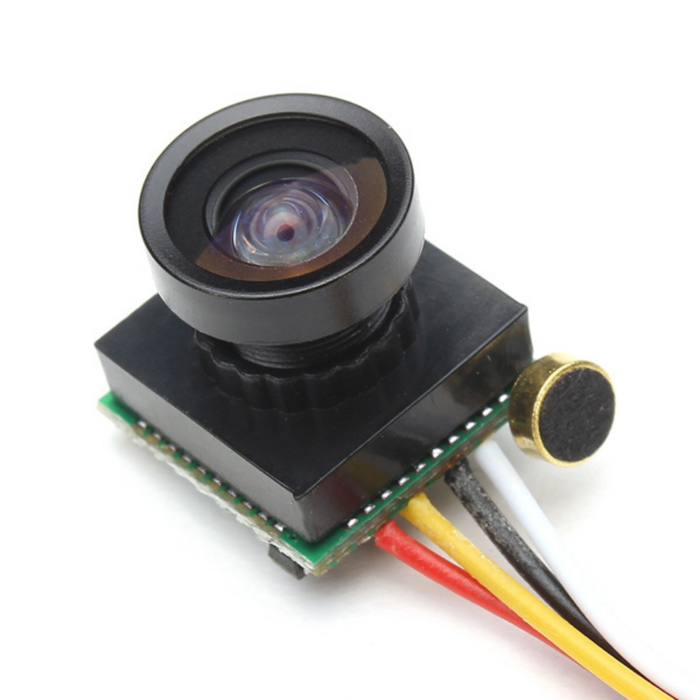

170 Degree Mini FPV AV Drone Camera 600TVL with Audio for Mini 200/250/300 Drone
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.
170 Degree Mini FPV AV Drone Camera 600TVL with Audio for Mini 200/250/300 Drone The 170 Degree Mini FPV AV Drone Camera 600TVL with Audio is a must-have for any drone enthusiast looking to enhance their aerial experience. Designed for Mini 200/250/300 drones, this compact FPV camera delivers clear and stable video with a 600TVL resolution and a wide 170° field of view, ensuring you capture every angle with precision. Supporting both PAL and NTSC video formats, it offers flexibility between sharper text display and smoother video playback. With its lightweight build, 1280 x 960 recording resolution, ~50 fps frame speed, and excellent low-light performance, this FPV camera is perfect for aerial photography, FPV racing, remote inspections, and other drone applications. Operating efficiently on just 3.7–5V at 100mA, it’s an ideal choice for building or upgrading your FPV drone setup. Features: Illumination: 0.5 Lux. Format: PAL/NTSC Audio Lens: Wide-angle. 1.8 mm (170 degrees). Sensitive area: 3.5964 x 2.7084 mm Dimensions: 648 pixels horizontally and 488 pixels vertically. Horizontal scanning frequency: 15.625 kHz Vertical frequency: 50Hz, level: 15.7343 kHz. Vertical: 60 Hz. Electronic Shutter 1/50-1/80000 (sec) 1/60-1/80000 (sec) Standard lens: 1.8 mm. Size of the lens: M10. Power: DC5V ± 10%; 70mA ± 10% The operating temperature range is -10 °C to 60 °C with a maximum humidity of 95%.
- 600TVL high-resolution imaging
- 170° ultra-wide-angle lens (1.8mm)
- Supports PAL/NTSC video formats
- Built-in audio recording
- Low-light performance down to 0.5 Lux
- Lightweight and compact design
- 1280 x 960 recording resolution
- 3.7–5V DC power input, 100mA current draw
- High-definition 600TVL imaging for clear FPV feed
- Ultra-wide 170° field of view for immersive aerial perspective
- Dual video format support (PAL/NTSC) for global compatibility
- Integrated microphone for real-time audio capture
- Optimized for low-light environments with 0.5 Lux sensitivity
- Low power consumption for extended flight times
- Compact and lightweight for minimal aerodynamic impact
- Robust construction for reliable outdoor and indoor use
| Item Type | FPV Camera |
|---|---|
| Resolution (TVL) | 600 |
| Image Sensor | 1/4 CMOS |
| Minimum Illumination | 0.1 Lux / F1.2 |
| Resolution | 1280 x 960 |
| Video Output | 1.0Vp – P75Ω |
| S/N Ratio (dB) | 48 |
| Operating Temperature (°C) | -10 to 50 |
| Dimensions (L x W x H) mm | 12.5 x 12.5 x 17 |
| Weight (g) | 4 |
What drones is this FPV camera compatible with?
Compatible with Mini 200, 250, and 300 drones. Supports PAL and NTSC video formats.
What is the video resolution and field of view?
600TVL resolution with a 170° wide-angle lens and 1280 x 960 recording resolution.
Does this camera support low-light conditions?
Yes, it performs well in low light with 0.5 Lux illumination sensitivity.
What power supply does the camera require?
Operates on 3.7–5V DC at 100mA, ideal for standard drone power systems.
Can this camera record audio?
Yes, it includes built-in audio support for synchronized video and sound capture.
