11.1V 5200mAh Orange Lithium polymer battery
Expected restock within 5-7 business days. We'll ship immediately once available.
For urgent inquiries, please contact us .
Delivery & Pickup Options
Expected to be in stock within 5-7 business days. We'll ship immediately once available.

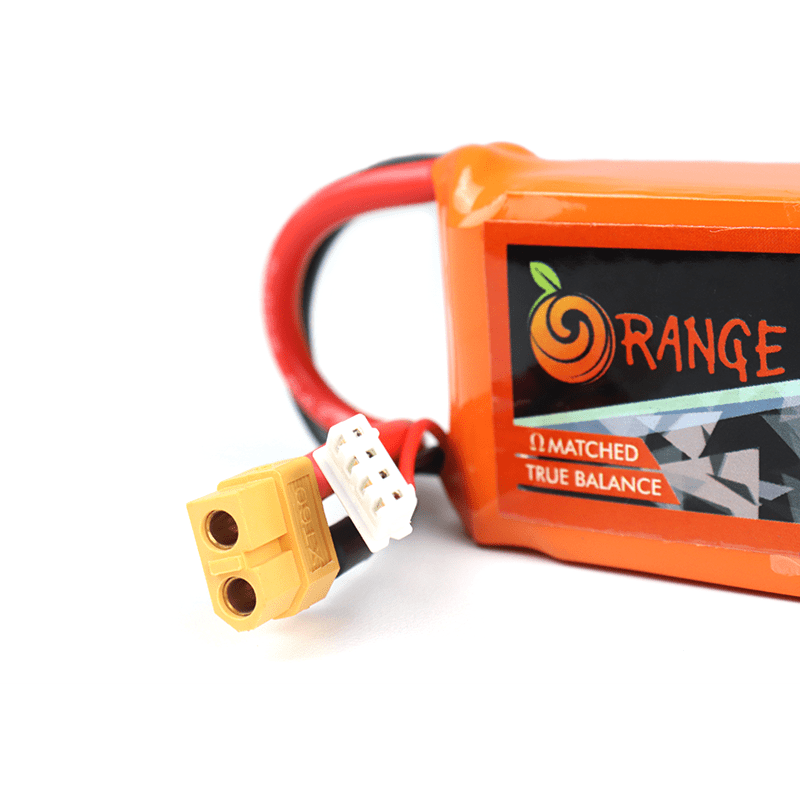

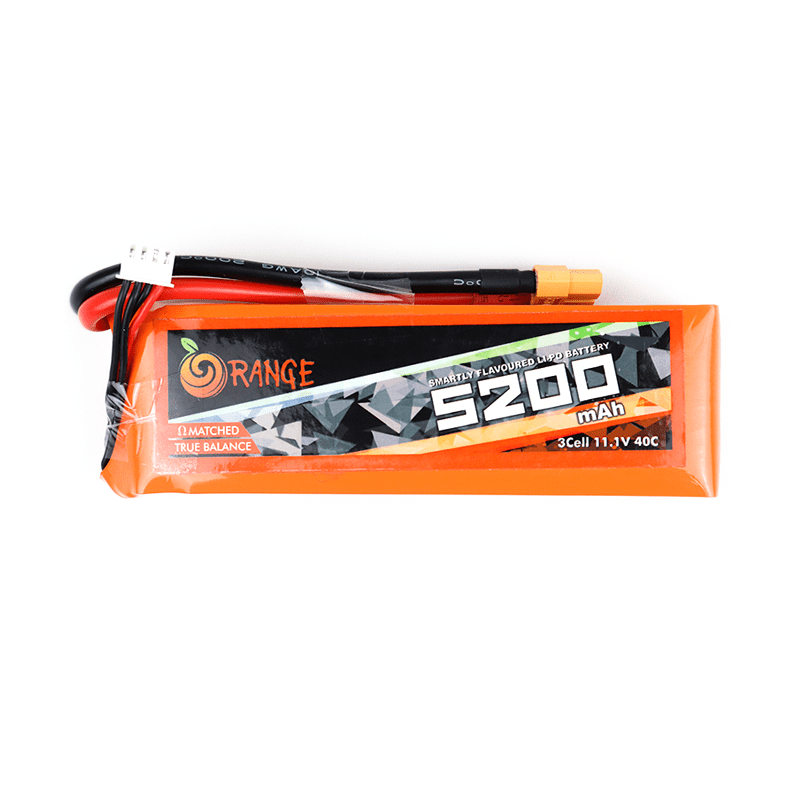

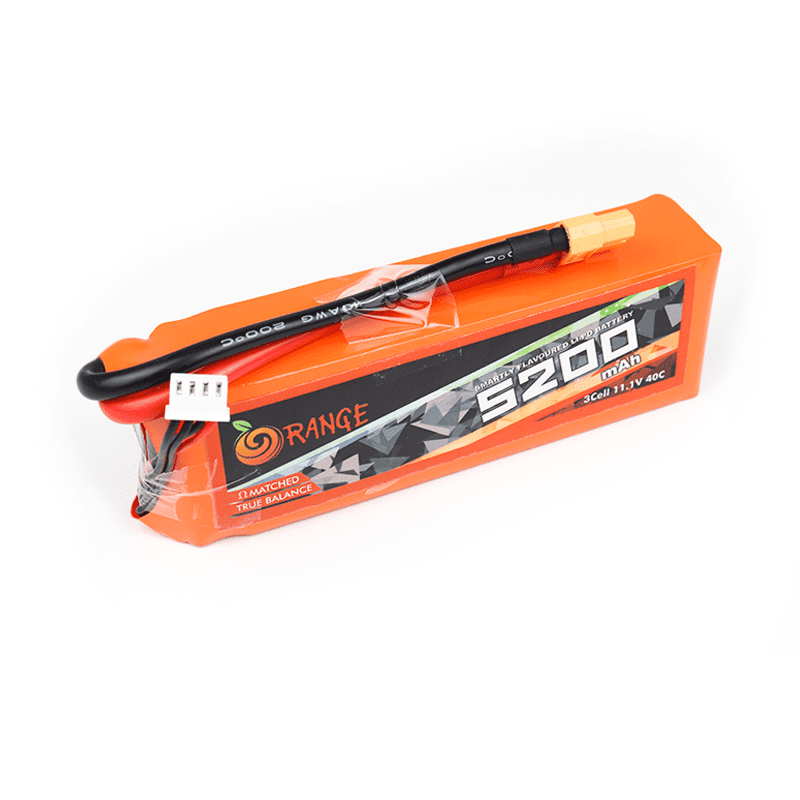

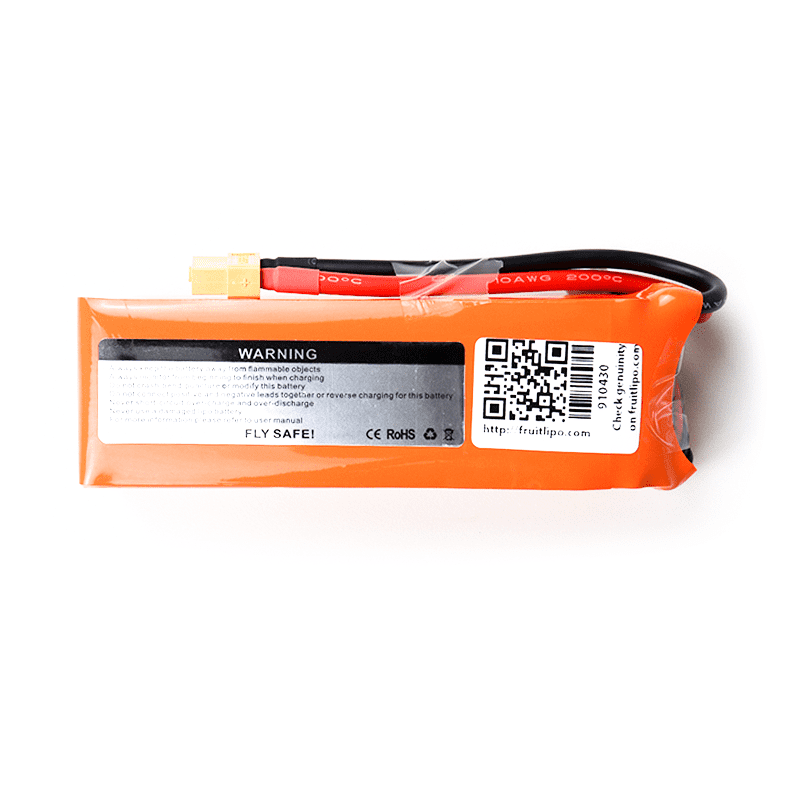

11.1 V 5200mAh Orange Lithium Polymer Battery The 5200mAh Lithium Battery Pack from Orange is a low-cost high power density lithium polymer battery that provides high performance with great reliability. These LiPo battery packs find great use in powering DIY drones, quadcopters, RC cars, and other DIY kits. These batteries use the JST-XH style balance connector and the XT-60 type discharge connector. IR matched cells are used in these LiPo batteries. They are equipped with heavy-duty discharge leads that are important to minimize resistance and sustain high current loads. SAFETY PRECAUTIONS: In order to maintain the efficiency and battery life of the LiPo batteries, avoid overcharging or over-discharging them. LiPo batteries must not be kept near hot devices, surfaces, or substances. This can lead to severe damage and/or fire. To avoid environmental damage, do not throw the Lithium Polymer batteries into water or fire. Never leave this battery on charge unattended. APPLICATIONS FOR THIS PRODUCT: LiPo batteries can be used in RC Cars Quadcopters RC airplanes Power various small low-powered embedded devices.
- 11.1V nominal voltage (3S LiPo configuration)
- 5200mAh high-capacity for extended runtime
- XT-60 discharge connector for high-current applications
- JST-XH balance connector for safe charging
- IR-matched cells for consistent performance
- Ideal for drones, RC vehicles, and embedded systems
- High energy density for compact power solutions
- Robust discharge leads to minimize resistance
- Balanced charging support via JST-XH port
- Suitable for high-drain applications
- Compatible with standard LiPo chargers
| Model | ORANGE 5200 / 3S-40C |
|---|---|
| Capacity | 5200mAh |
| Max. Continuous Discharge | 40C |
| Max. Burst Discharge | 80C |
| Balance Plug | JST-XH |
| Discharge Plug | XT-60 |
| Dimensions | 137mmx44mmx37mm (LxWxH) |
| Weight | 360gm |
What devices are compatible with this 11.1V 5200mAh LiPo battery?
Compatible with drones, quadcopters, RC cars, RC airplanes, and low-powered embedded systems using XT-60 and JST-XH connectors.
What connectors does this LiPo battery use?
Uses XT-60 discharge connector and JST-XH balance connector for safe charging and high-current output.
Is this battery safe for indoor use?
Only use in well-ventilated areas with fire safety precautions. Never charge unattended or near flammable materials.
Can I use this battery with Arduino or Raspberry Pi projects?
Yes, with a suitable voltage regulator or BMS. Ensure input voltage matches device requirements to avoid damage.
